Chip Resistor SMD 270Ω ±5% 250mW 1206
The Chip Resistor SMD 270Ω ±5% 250mW 1206 is a thick-film surface-mount resistor designed for reliable resistance control in electronic circuits. It provides a nominal resistance of 270Ω with a ±5% tolerance and a rated power of 250mW, making it suitable for a broad range of general-purpose electronic applications.
Features:
- 270Ω nominal resistance.
- ±5% resistance tolerance.
- 250mW rated power.
- 1206 surface-mount package.
- Thick-film resistor construction.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | FOJAN. |
| Model Number | FRC1206J271 TS. |
| Component Type | Thick-film chip resistor. |
| Resistance | 270Ω. |
| Tolerance | ±5%. |
| Rated Power | 250mW. |
| Package | 1206. |
| Voltage Rating | 200V. |
| Temperature Coefficient | ±100ppm/°C. |
| Operating Temperature Range | -55°C to +155°C. |
| Mounting Type | Surface mount. |
| Construction | Thick film. |

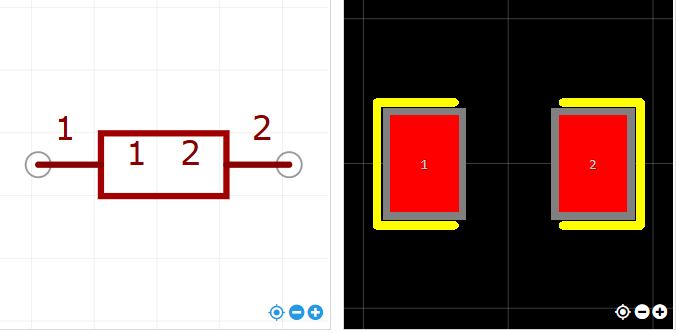

Foot print:
Applications:
- LED current limiting circuits.
- Current limiting circuits.
- Signal damping networks.
- Voltage divider circuits.
- Bias networks.
- Pull-up circuits.
- Pull-down circuits.
- Signal conditioning circuits.
- Communication equipment.
- Computer electronics.
- Industrial control systems.
- Power supply circuits.
- General-purpose PCB assemblies.
Package Include:
1x Chip-Resistor SMD 270Ω ±5% 250mW 1206
