Vibration Motor Module

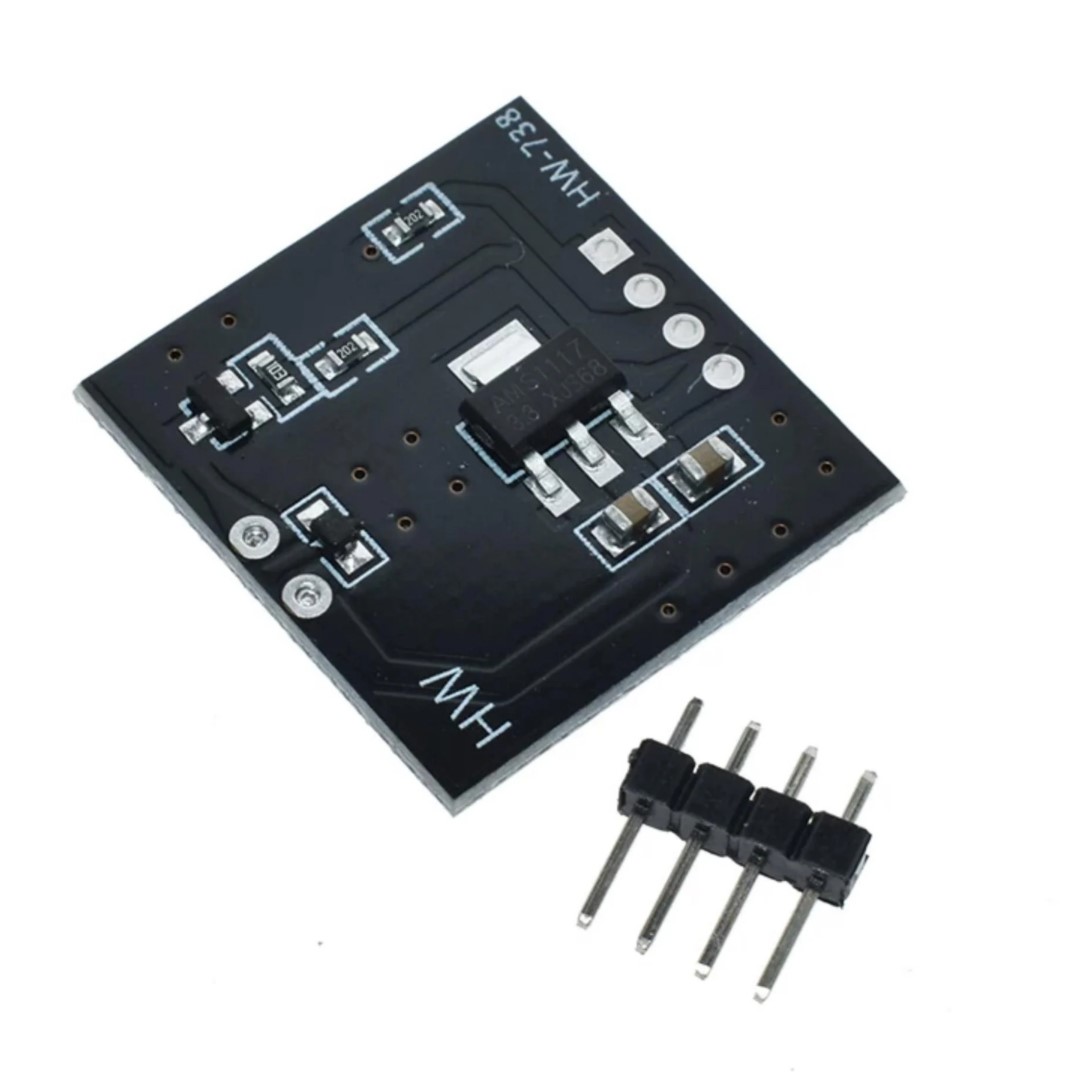

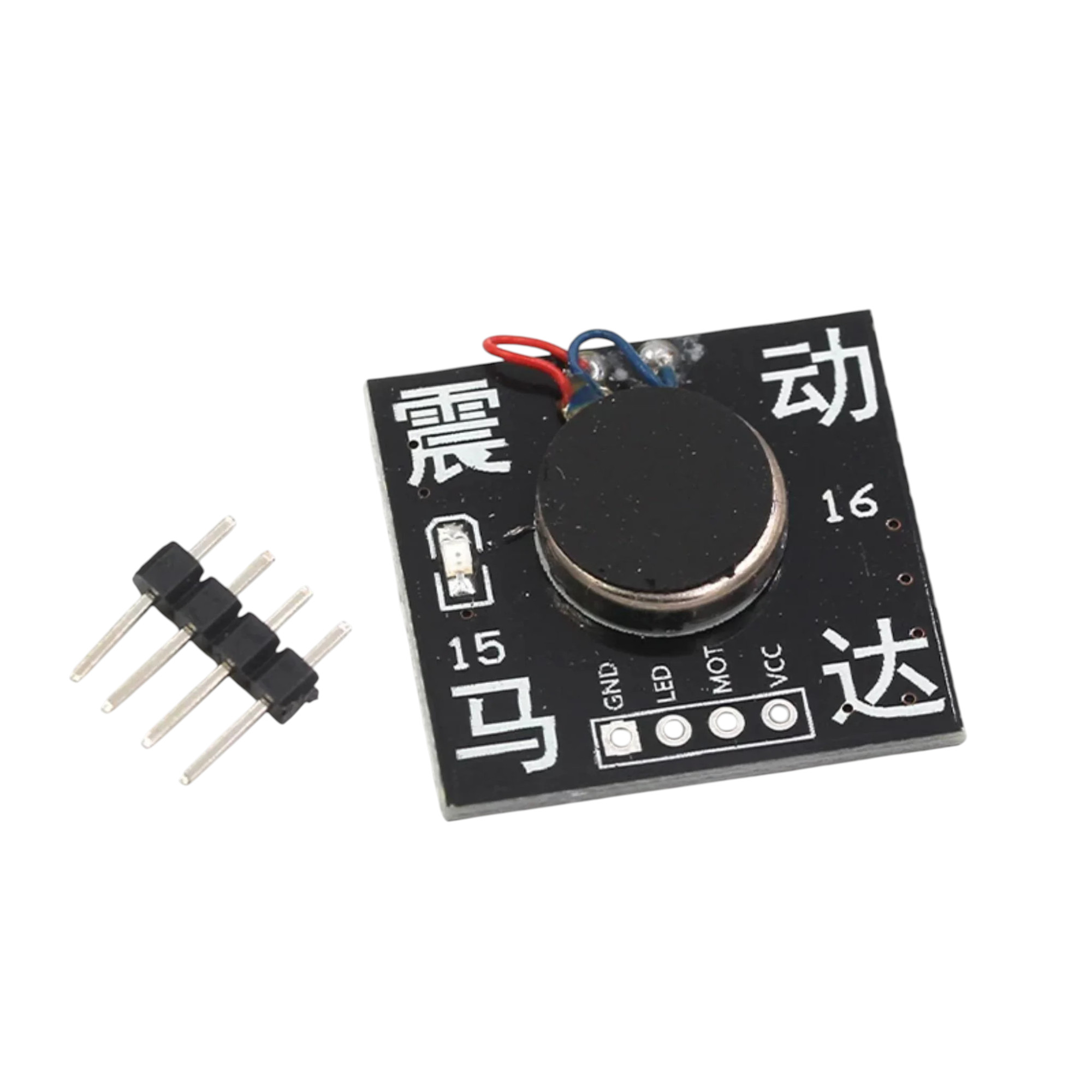

HW-738 Vibration Motor Module with MOSFET drive, status LED, and compact 25x23mm PCB.
95.00 EGP
Buy NowVibration Motor Module
The HW-738 is a compact haptic feedback module designed to add tactile alerts and silent notifications to electronic projects. Unlike bare vibration motors, this module features an integrated MOSFET driver and an AMS1117 3.3V regulator, allowing it to be controlled directly by 5V microcontrollers like Arduino, ESP32, and Raspberry Pi without the risk of overdrawing current from the I/O pins.
Features
- Integrated Drive Circuit
- Onboard Regulation
- Status LED
- Dual Control Modes
Specifications
| Parameter | Specification |
| Model | HW-738 |
| Operating Voltage | 3V – 5V DC |
| Rated Current | Max 60mA |
| Trigger Level | High Level (Digital) or PWM |
| Dimensions | 23mm x 25mm |
Applications
- Wearable Tech
- Haptic Feedback
- Silent Indicators
- Robotics
Package Content
