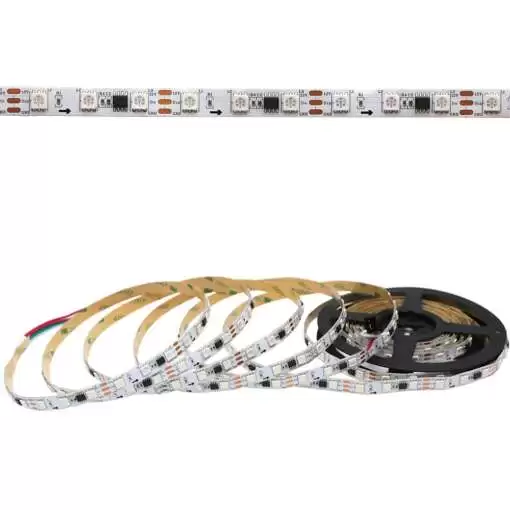

WS2811 Addressable Non-Waterproof RGB LED Strip 60leds/m DC12V 5 Meter

Product Parameter:

• Working Voltage: DC 12V
• LED Source: SMD 5050 RGB
• LED Chip: Epistar
• LED QTY: 60 LED/M
• IC QTY: 20 Pcs/M
• Power: 18 W/M
• Grey Scale: 256 / Color

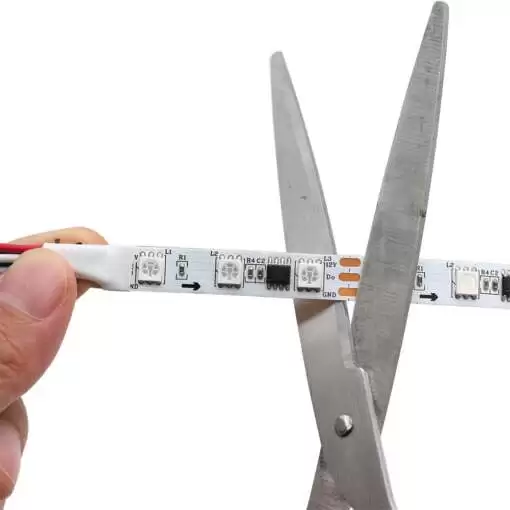

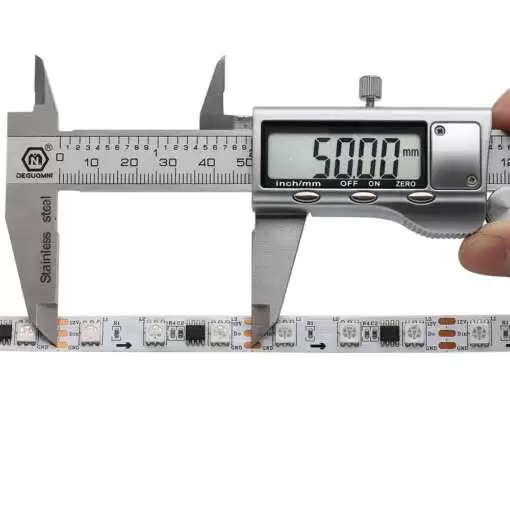

• Cutability: 3 led / cutting ( External 2811 ic, 1 ic control 3 LED )
• Beam Angle: 120 °
• Color Mode: 133Pattern & 100 Speeds
• Dimension: 5000mm x 10mm x 2.4mm

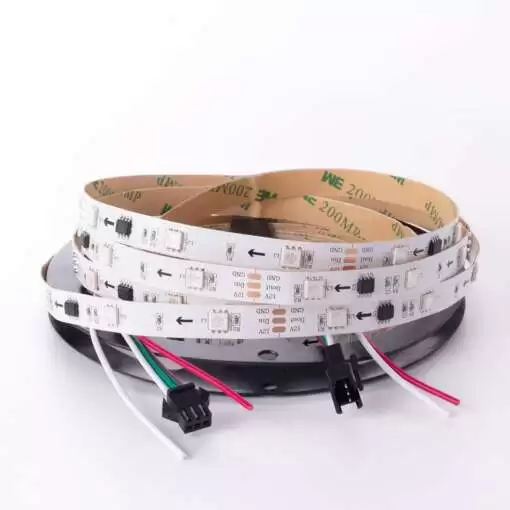

• Packaging: 5m / roll 12v ws2811 RGB strip + 3 pin connector

Connection

The device has a 3-pin connector consisting of the following outputs:

• GND (white wire)– module’s ground
• 12V (red wire)– voltage supply, for one matrix you should connect the source with the maximum output current of not less than 1.0 A for each meter of chain
• DIN (green wire)– digital control signal from the microcontroller

Features:

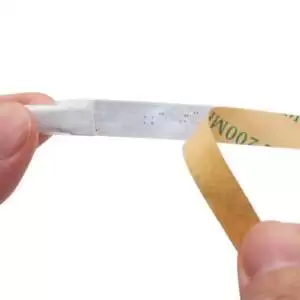

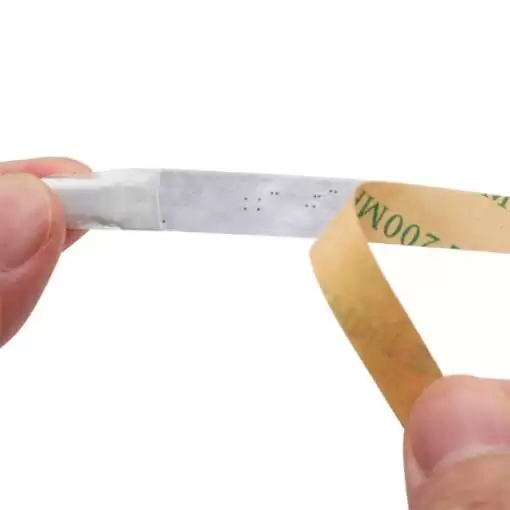

• Flexible PCB  With 3M adhesive tape on the back for easy installation.
• Energy saving and environment protection.
• High brightness 5050 SMD LED light strip.
• Solid-state, high shock or vibration resistance.
• Low power consumption, high intensity.
• Match the RGB controller and power supplier system.
• Wide viewing angle.

Brief description of WS2811 magic LED light strip function:
Control single-light horse racing, opening windows, shooting stars, chasing, animation, video, text, and other tricks.

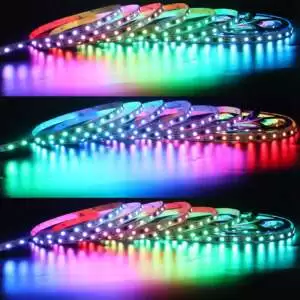

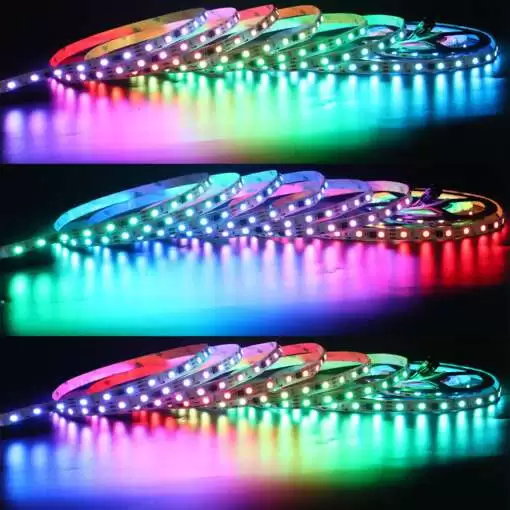

Any color can be displayed, and it can be combined into any pattern at will, especially when it is used as a light bar screen.

Describe:
The light source of this series of products adopts high-quality ultra-high brightness 5050RGB LED, which has high brightness, low power consumption, good consistency, large angle, no radiation, strong environmental adaptability, and long service life.

Every LED light can form a circuit (pixel point), which is light in size, rich in patterns and colors, can be fixed arbitrarily, and is easy to install.

Application scope of LED WS2811 magic light strip:
The light source of this product is rich and bright in color, has high visibility, and is more visually attractive.

It is widely used in wall corridors, indoor environment decoration, entertainment venues, bar backlights, ceiling backlights, LED lightbox light sources, LED luminous signs, car decorations, etc. A generation of lighting sources.

How to connect and control
The WS2811 led strip has 3 wires for sending data – one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control the strip. Because the data is separated, you can use any processor speed or type to control these strips.

By varying the level of red, green, and blue (RGB) per pixel point, many color combinations can be made, you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any ‘raw’ microcontrollers/microprocessors to control the strip.

This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1″ copper pads and you’re good to go.

You can also connect strips together to make them longer.

NOTE!
The price is only LED strip, Not Including the Power Supply or LED controller!
WS2811 Must Use DC12V Power Supply AND Led Controller to Control!

Please note: The WS2811 Addressable Non-Waterproof RGB LED Strip version only has 5m/16.4ft per roll. If order 1M, we will send you the LED Strip without Connector
