Brass Hot Melt Plastic Insert Straight Knurled Nuts

Contents List

1. Introduction.
2. What Is a Brass Hot Melt Plastic Insert Straight Knurled Nut?
3. How a Hot Melt Insert Works?
4. How the Straight Knurling Works?
5. How to Install a Brass Hot Melt Insert?
6. Insert Specifications and Dimensions.
7. Brass as a Copper Alloy.
8. Types of Copper Alloys and Where Brass Fits.
9. Common Brass Grades Used for Machined Components.
10. How to Choose the Right Brass Alloy Grade?
11. C3604 Brass for Hot Melt Inserts.
12. Advantages and Limitations of Brass Hot Melt Plastic Inserts.
13. Applications of Brass Hot Melt Plastic Inserts.
14. Choosing the Correct Insert for Your Application.
15. Common Installation Problems.
16. Practical Electronics Enclosure Example.
17. Frequently Asked Questions.
18. Conclusion.

Reading Time is 20 minute

1- Introduction

Plastic is widely used for electronics enclosures, robotics parts, 3D-printed components, control panels, and mechanical housings because it is lightweight, easy to manufacture, and electrically insulating.

However, creating a durable threaded connection directly in plastic can be difficult, especially when the screw must be removed and installed repeatedly.

A Brass Hot Melt Plastic Insert solves this problem by providing a metal internal thread inside the plastic part.

The insert is installed by heating it until the surrounding thermoplastic softens. The insert is then pressed into the prepared hole, allowing the softened plastic to flow around its external knurled surface. After cooling, the plastic hardens and mechanically locks the insert in place.

The result is a reusable metal thread inside a plastic component.

2- What Is a Brass Hot Melt Plastic Insert Straight Knurled Nut?

A Brass Hot Melt Plastic Insert, also called a heat-set insert or thermal insert, is a small metal component designed to be installed into a thermoplastic part using heat.

The insert typically contains:

• An internal machine thread
• A cylindrical external surface
• Straight knurling or another external retention feature
• A defined length
• A defined outside diameter

For example, a product specified as:

C3604 Brass Hot Melt Insert – M3 × 5 × 4 mm

can be interpreted as:

• M3 → internal metric thread
• 5 mm → insert length
• 4 mm → approximate outside diameter
• C3604 → specified brass material grade

The important distinction is that “brass hot melt plastic insert” describes the product type, while “C3604” identifies the material grade.

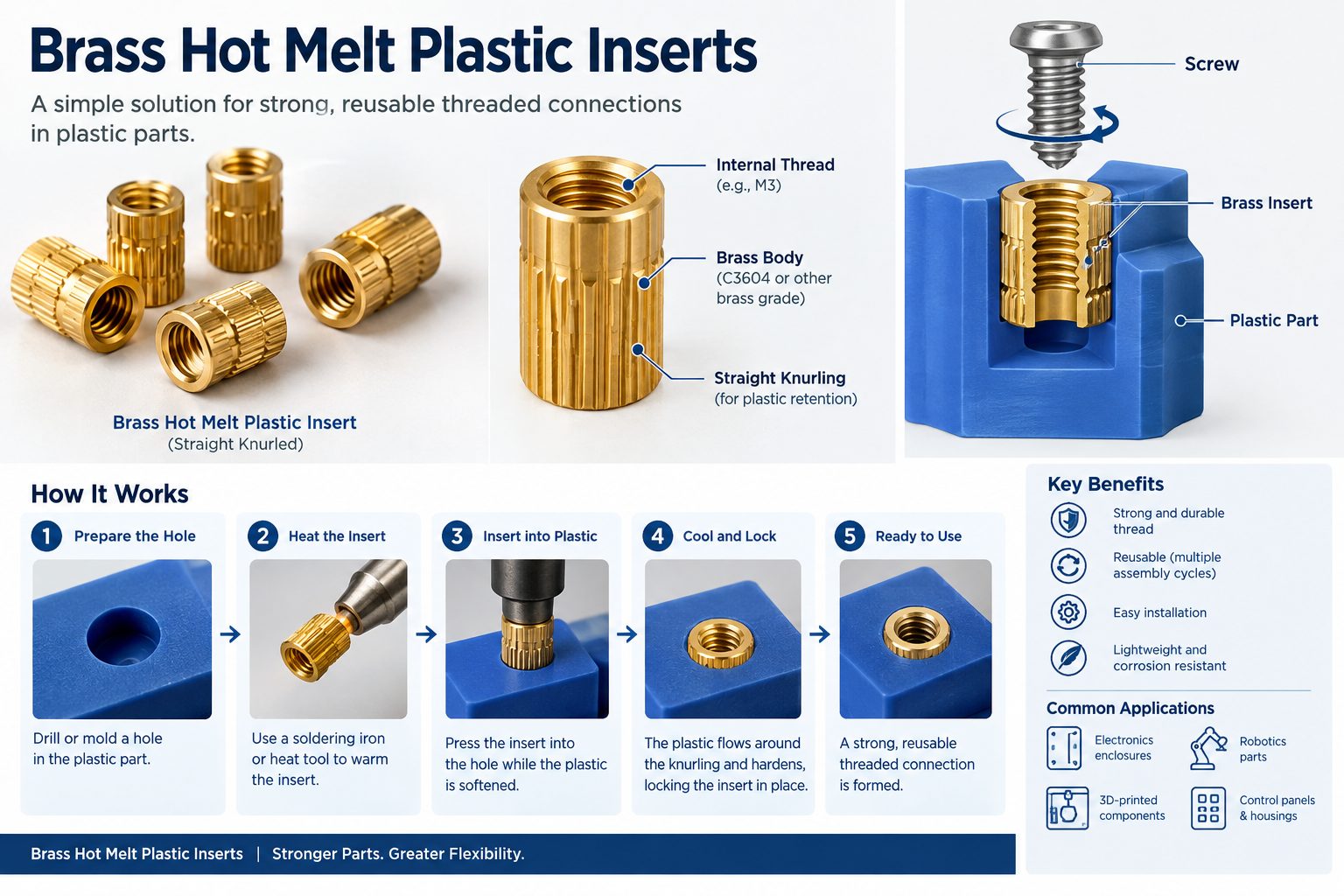

3- How a Hot Melt Insert Works?

The installation process is based on the behavior of thermoplastics.

The insert is heated using a controlled heat source, such as:

• Temperature-controlled soldering iron
• Dedicated heat-set insert tool
• Specialized thermal insertion equipment

The heated insert is positioned over the prepared plastic hole.

As the insert enters the hole:

Heat → Plastic softens → Insert enters → Plastic flows around knurling → Plastic cools → Insert becomes mechanically locked

The final connection is created by the solidified plastic surrounding the external features of the insert.

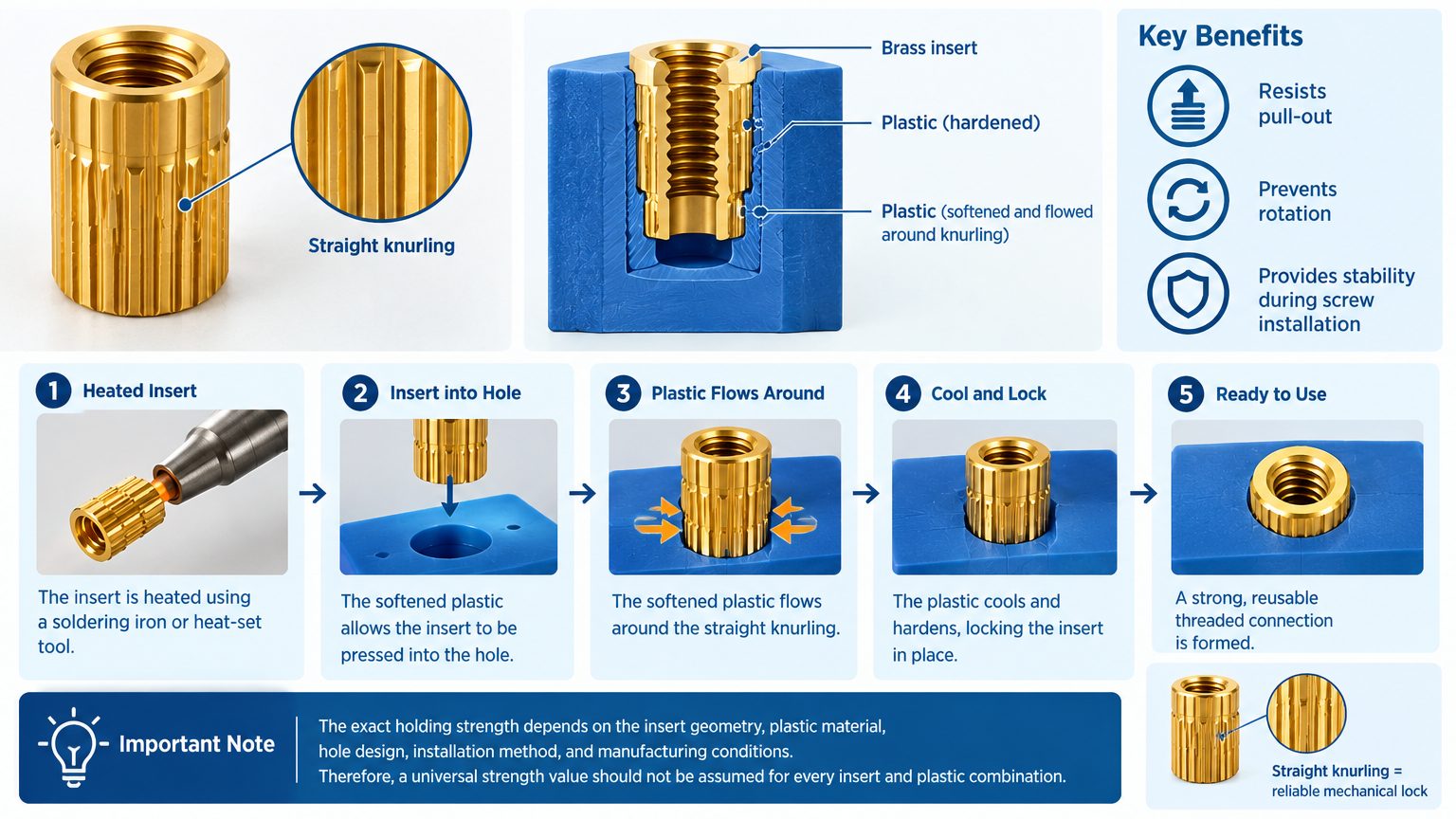

4- How the Straight Knurling Works?

The straight knurled exterior provides mechanical engagement between the insert and the surrounding plastic.

During installation, heat softens the plastic around the insert. The softened material flows around the external knurling.

After cooling, the plastic solidifies around these features.

This helps resist:

• Pull-out
• Rotation
• Movement during screw installation

The exact holding strength depends on the insert geometry, plastic material, hole design, installation method, and manufacturing conditions. Therefore, a universal strength value should not be assumed for every insert and plastic combination.

5- How to Install a Brass Hot Melt Insert?

A basic installation sequence is:

1. Prepare the correct hole in the thermoplastic part.
2. Heat the brass insert using a controlled tool.
3. Position the insert perpendicular to the plastic surface.
4. Apply controlled pressure.
5. Allow the softened plastic to flow around the knurled exterior.
6. Stop at the required installation depth.
7. Hold the insert aligned while the plastic cools.
8. Allow the assembly to cool completely.
9. Check the internal thread using the appropriate screw.

The correct temperature and hole dimensions depend on the specific insert and plastic material. Therefore, the manufacturer’s recommendations should take priority over generic temperature or hole-size values.

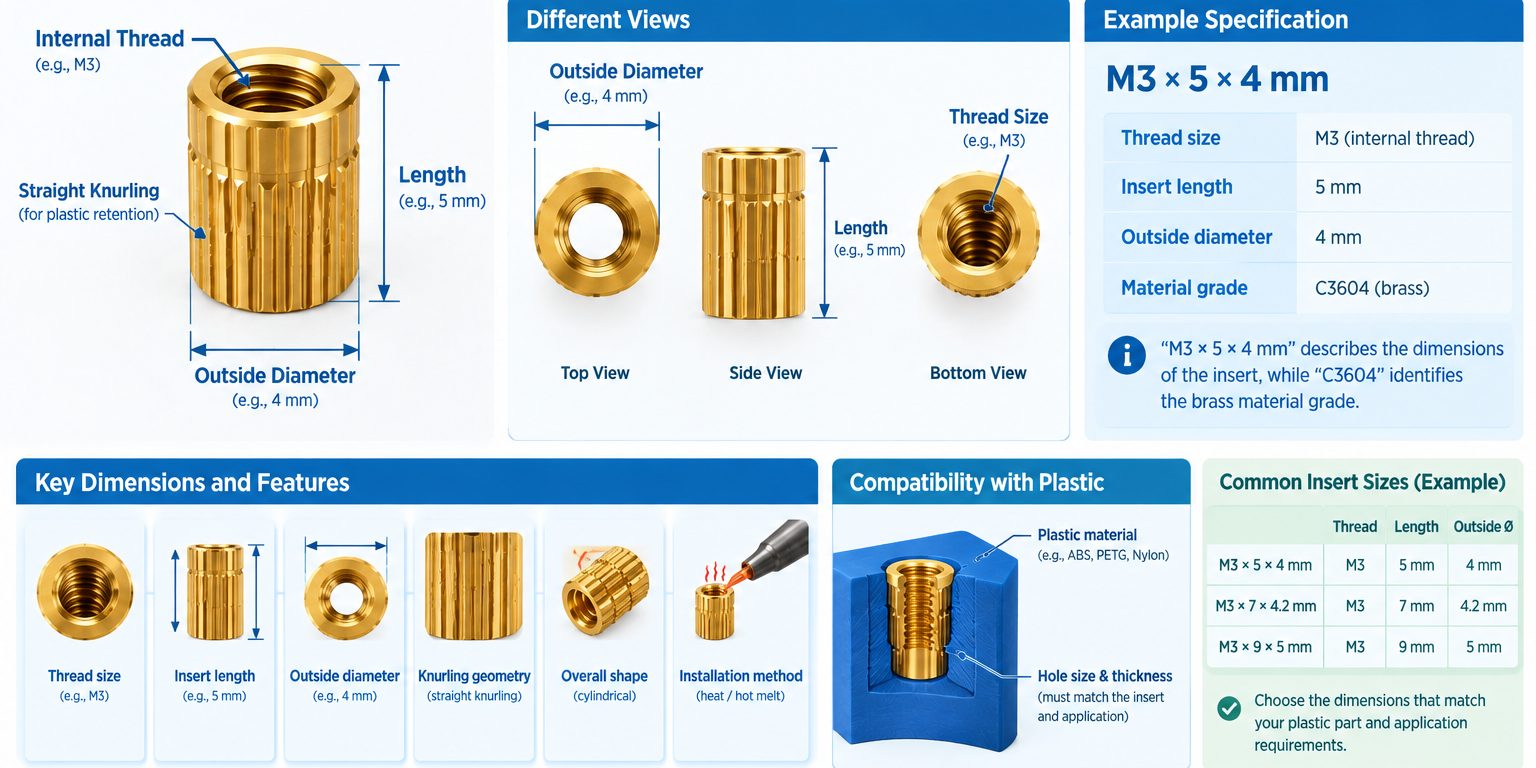

6- Insert Specifications and Dimensions

When selecting a brass insert, the most important dimensions normally include:

• Thread size
• Insert length
• Outside diameter
• Knurling geometry
• Overall shape
• Installation method

For example:

M3 × 5 × 4 mm

means:

M3 thread × 5 mm length × approximately 4 mm outside diameter

The insert must also be compatible with the thickness and material of the plastic component.

7- Brass as a Copper Alloy

Brass is not a single material. It is a family of copper alloys, primarily based on copper and zinc, with additional elements sometimes added to modify properties.

Different brass grades can have significantly different:

• Copper and zinc content
• Lead content
• Machinability
• Strength
• Ductility
• Corrosion resistance
• Formability
• Manufacturing characteristics

For this reason, specifying only “brass” does not completely identify the material.

For a precision-machined insert, the exact alloy designation can be important.

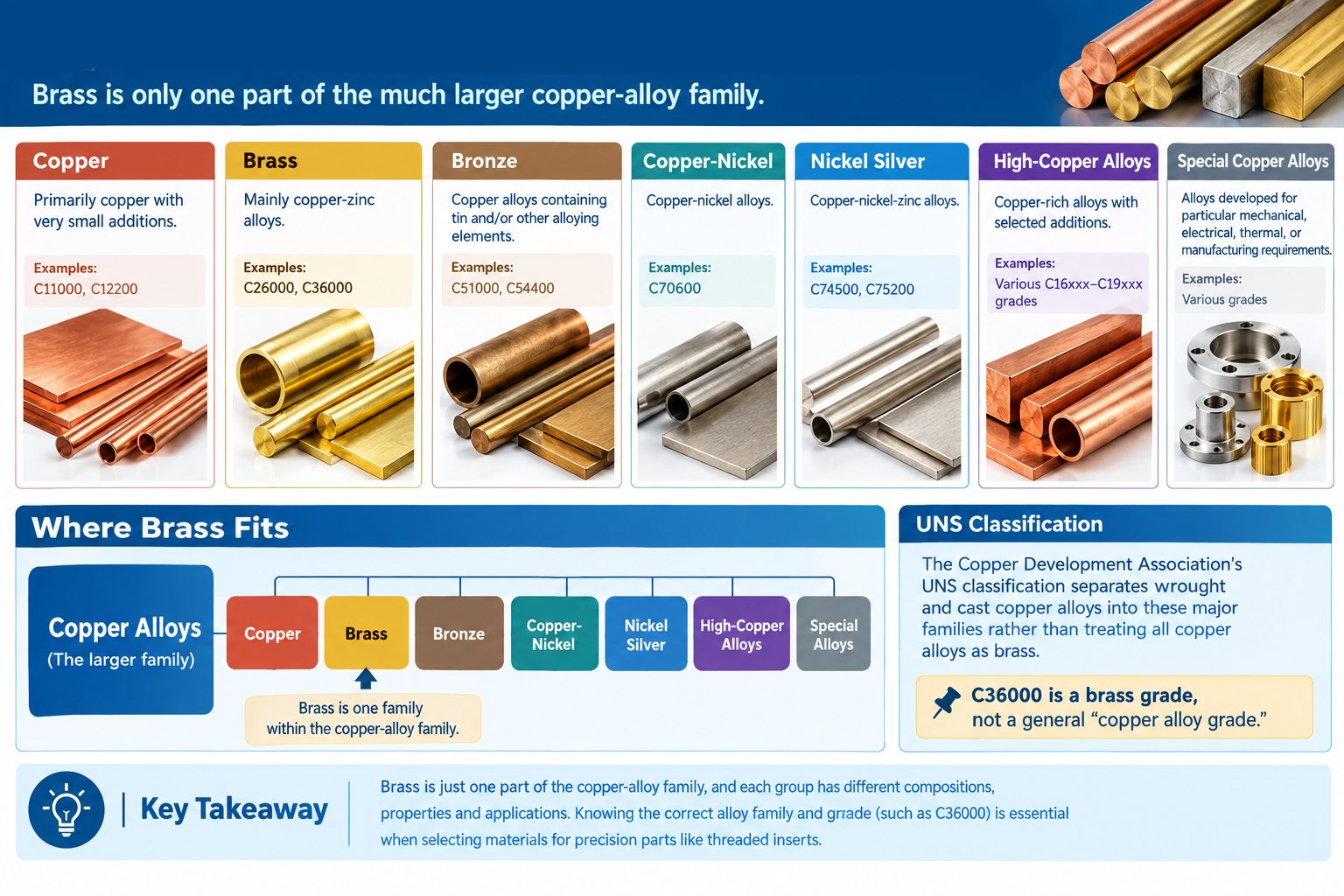

8- Types of Copper Alloys and Where Brass Fits

Brass is only one part of the much larger copper-alloy family.

Common copper-alloy groups include:

Copper-alloy group	General description	Examples
Copper	Primarily copper with very small additions	C11000, C12200
Brass	Mainly copper-zinc alloys	C26000, C36000
Bronze	Copper alloys containing tin and/or other alloying elements	C51000, C54400
Copper-Nickel	Copper-nickel alloys	C70600
Nickel Silver	Copper-nickel-zinc alloys	C74500, C75200
High-Copper Alloys	Copper-rich alloys with selected additions	Various C16xxx–C19xxx grades
Special Copper Alloys	Alloys developed for particular mechanical, electrical, thermal, or manufacturing requirements	Various grades

The Copper Development Association’s UNS classification separates wrought and cast copper alloys into these major families rather than treating all copper alloys as brass.

Therefore, C36000 is a brass grade, not a general “copper alloy grade.”

This distinction is useful when discussing the materials used to manufacture threaded inserts.

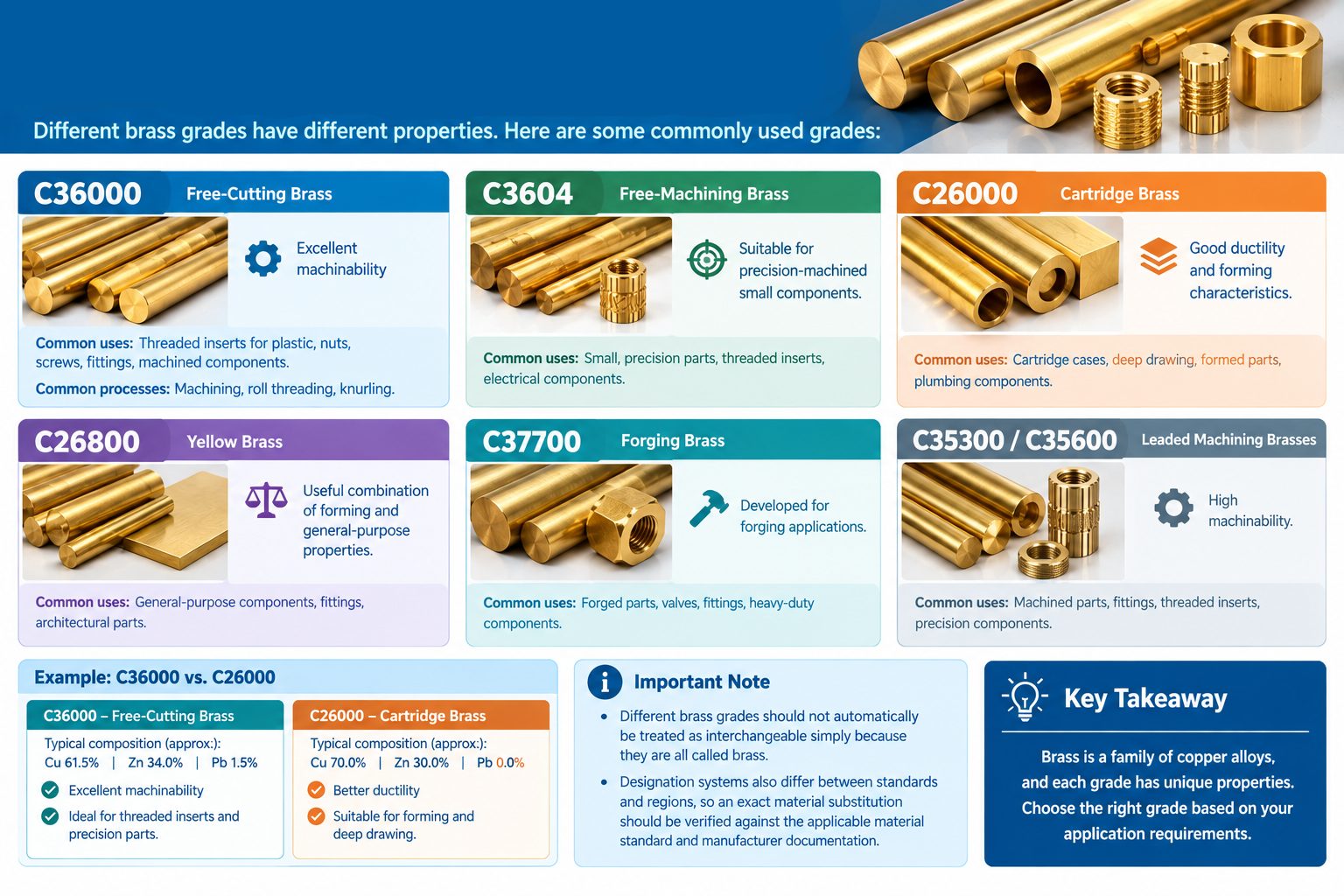

9- Common Brass Grades Used for Machined Components

There are many brass grades, so an article about hot-melt inserts does not need to list every available alloy.

Some useful examples include:

Grade	General description	Typical characteristic
C36000	Free-cutting brass	Excellent machinability
C3604	Commonly specified free-machining brass designation	Suitable for precision-machined small components
C26000	Cartridge brass	Good ductility and forming characteristics
C26800	Yellow brass	Useful combination of forming and general-purpose properties
C37700	Forging brass	Developed for forging applications
C35300 / C35600	Leaded machining brasses	High machinability

For example, C36000 is officially classified as Free-Cutting Brass and is specifically listed for applications including threaded inserts for plastic, nuts, screws, fittings, and machined components. Its listed common fabrication processes include machining, roll threading, and knurling.

C26000, by comparison, is Cartridge Brass, 70%, with a substantially different copper-zinc composition and different fabrication characteristics.

The important lesson is:

Different brass grades should not automatically be treated as interchangeable simply because they are all called brass.

Designation systems also differ between standards and regions, so an exact material substitution should be verified against the applicable material standard and manufacturer documentation.

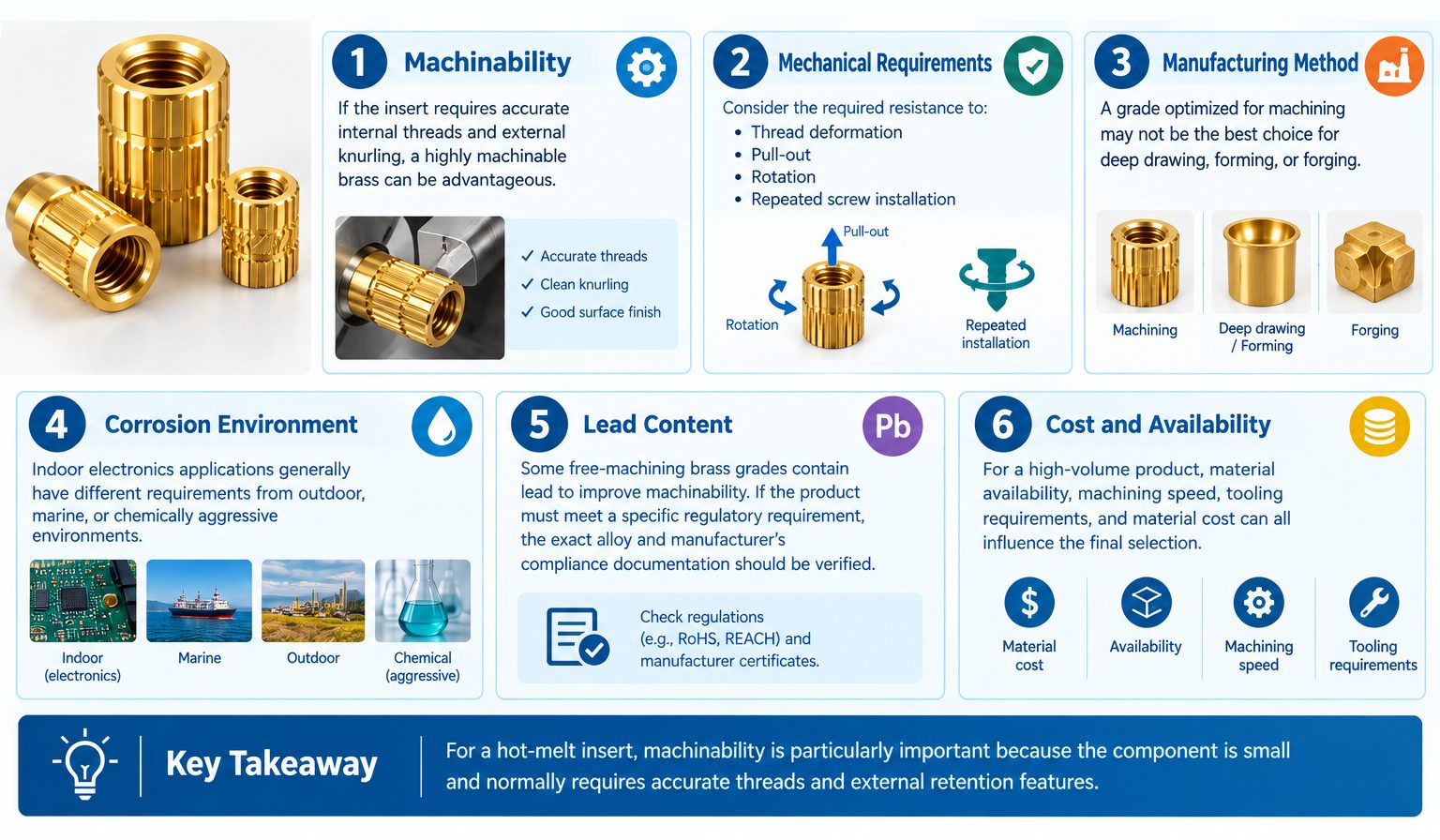

10- How to Choose the Right Brass Alloy Grade?

Choosing the correct brass grade depends primarily on the manufacturing process and the required properties.

For a small threaded insert, consider the following:

1. Machinability

If the insert requires accurate internal threads and external knurling, a highly machinable brass can be advantageous.

2. Mechanical requirements

Consider the required resistance to:

• Thread deformation
• Pull-out
• Rotation
• Repeated screw installation

3. Manufacturing method

A grade optimized for machining may not be the best choice for deep drawing, forming, or forging.

4. Corrosion environment

Indoor electronics applications generally have different requirements from outdoor, marine, or chemically aggressive environments.

5. Lead content

Some free-machining brass grades contain lead to improve machinability. If the product must meet a specific regulatory requirement, the exact alloy and manufacturer’s compliance documentation should be verified.

6. Cost and availability

For a high-volume product, material availability, machining speed, tooling requirements, and material cost can all influence the final selection.

For a hot-melt insert, machinability is particularly important because the component is small and normally requires accurate threads and external retention features.

11- C3604 Brass for Hot Melt Inserts

The C3604 grade is an example of a brass alloy selected for machined components.

For the Makers Electronics product, the specified material is C3604 brass, and the available insert dimensions include M3 versions such as:

• M3 × 5 × 4 mm
• M3 × 7 × 4.2 mm
• M3 × 9 × 5 mm

These dimensions describe the thread size, insert length, and external diameter respectively.

C3604 should therefore be understood as the specified material grade, not as the name of the entire hot-melt insert category.

It is also important not to assume that C3604 and every similarly named brass grade are chemically or technically identical. Material designations can belong to different national or international standards and should be checked against the applicable specification.

12- Advantages and Limitations of Brass Hot Melt Plastic Inserts

Advantages:

• Provides a durable metal thread.
• Allows repeated screw removal..
• Suitable for thermoplastic parts.
• Compact.
• Useful for 3D-printed components..
• Improves serviceability of plastic assemblies.

Limitations:

• Requires controlled heat during installation.
• Incorrect installation can damage the plastic.
• Requires appropriate hole geometry.
• Not all plastics are suitable.
• Installation strength depends strongly on the plastic and insert design.
• Brass alloy selection may matter for specialized environments or regulatory requirements.

13- Applications of Brass Hot Melt Plastic Inserts

Typical applications include:

• 3D-printed electronics enclosures
• PCB mounting
• Robotics
• Control boxes
• Instrument housings
• Consumer electronics
• Prototypes
• Mechanical assemblies

14- Choosing the Correct Insert for Your Application

The insert should be selected based on:

• Screw size
• Plastic type
• Plastic wall thickness
• Required thread length
• Expected screw torque
• Number of assembly cycles
• Available installation space

For example, an M3 insert may be appropriate for mounting a small PCB or securing an electronics enclosure cover.

A longer insert can provide more thread engagement, but it also requires sufficient plastic depth.

15- Common Installation Problems

Several problems can occur during installation.

Insert rotates inside the plastic

Possible causes include:

• Insufficient plastic engagement
• Incorrect hole geometry
• Poor installation technique
• Excessive screw torque

Insert becomes tilted

The insert was not maintained perpendicular during installation.

Plastic is excessively melted

Too much heat or excessive insertion time can damage the surrounding plastic.

Insert does not reach the required depth

Possible causes include:

• Incorrect hole dimensions
• Insufficient heating
• Plastic not soft enough
• Mechanical interference

Thread becomes contaminated

Molten plastic can enter the internal thread. Keeping the thread clear during installation helps prevent this problem.

16- Practical Electronics Enclosure Example

A simple electronics project can demonstrate why these inserts are useful.

Consider a 3D-printed enclosure containing an ESP32 development board and an OLED display.

Four brass inserts can be installed into the enclosure base.

The enclosure cover can then be secured using four M3 screws.

Example components:

• C3604 Brass Hot Melt Insert M3 × 5 × 4 mm — 4 pieces
• M3 × 8 mm screws — 4 pieces
• ESP32-WROOM-32 development board — 1
• SSD1306 0.96-inch 128 × 64 I²C OLED — 1
• 3D-printed thermoplastic enclosure — 1
• 5 V regulated USB power supply — 1

The inserts are mechanical components and do not need to be electrically connected to the ESP32.

17- Frequently Asked Questions

What is a brass hot melt insert?

It is a threaded metal insert installed into a thermoplastic component using heat. The softened plastic flows around the insert’s external features and locks it in place after cooling.

What does C3604 mean?

C3604 identifies a particular brass material grade. It is not the name of the insert itself.

Is C3604 the same as C36000?

They are closely related free-machining brass designations, but they belong to different designation systems. They should not be treated as automatically identical without checking the applicable material standards and composition requirements.

Are there other copper alloys besides brass?

Yes. Copper alloys include brass, bronze, copper-nickel alloys, nickel silvers, high-copper alloys, and other specialized families. Brass is only one category within the larger copper-alloy family.

Can every brass grade be used to manufacture hot-melt inserts?

Not necessarily. The alloy should be suitable for the required manufacturing process and provide the required machinability, mechanical properties, corrosion resistance, and regulatory characteristics.

Can a brass insert be installed in any plastic?

No. Heat-set inserts are primarily intended for suitable thermoplastics. The plastic must soften sufficiently during installation and then solidify around the insert.

Can the insert be used for repeated screw removal?

Yes. One of the main advantages of a metal threaded insert is that it provides a more durable reusable thread than a directly molded or printed plastic thread.

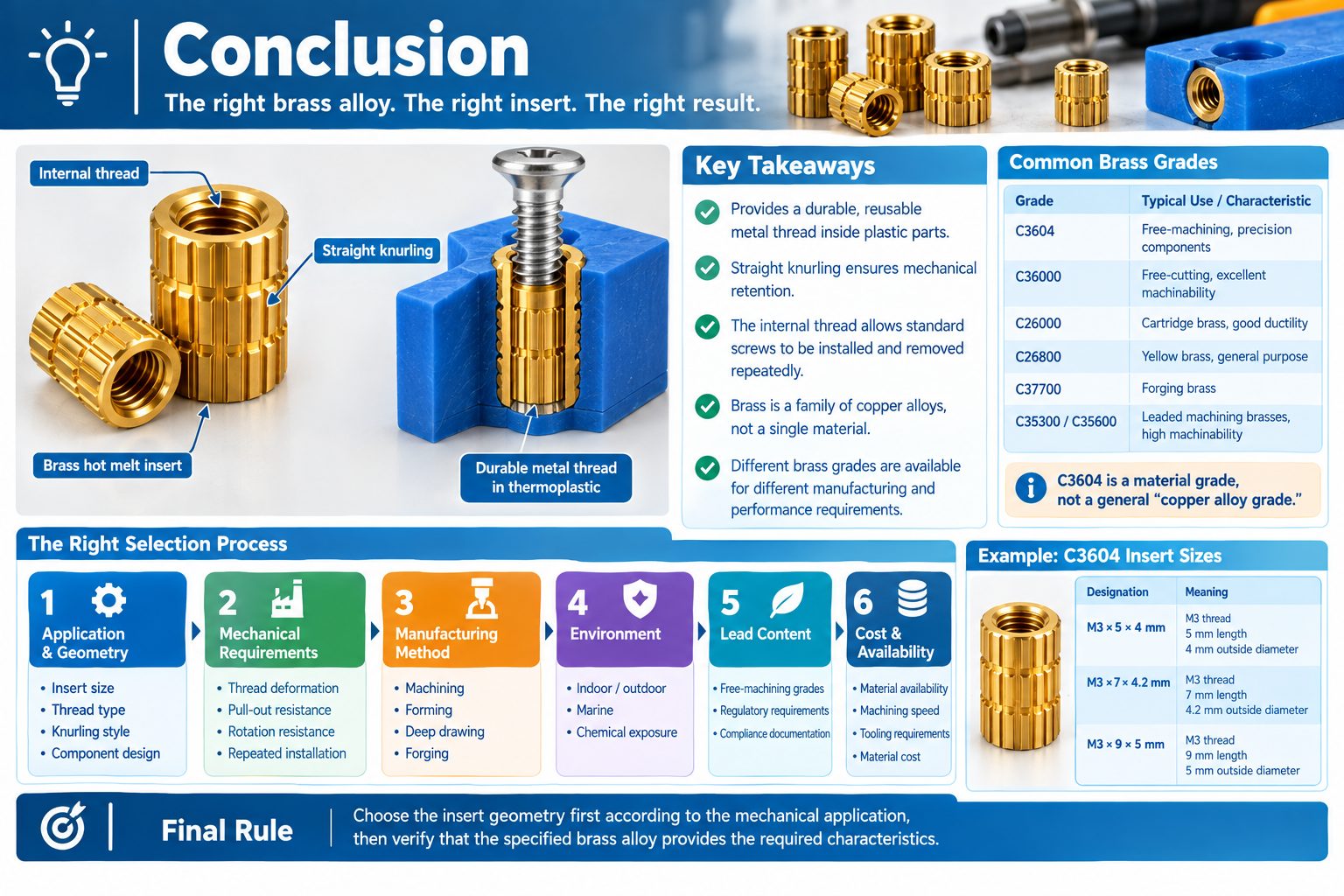

18- Conclusion

A Brass Hot Melt Plastic Insert Straight Knurled Nut provides a practical way to create a durable, reusable metal thread inside a thermoplastic component.

The straight knurled exterior provides mechanical retention, while the internal thread allows a standard screw to be installed and removed repeatedly.

The term brass describes a broad family of copper alloys rather than one specific material. Different grades are available for different manufacturing and performance requirements. Examples include C3604, C36000, C26000, C26800, and C37700, among many others.

For precision-machined threaded inserts, free-machining brass grades are particularly relevant because they support the production of small, accurate threaded and knurled components.

The most important selection rule is therefore simple:

Choose the insert geometry first according to the mechanical application, then verify that the specified brass alloy provides the required machining, mechanical, environmental, and regulatory characteristics.

For the C3604 insert discussed in this article, C3604 identifies the material grade, while M3 × 5 × 4 mm, M3 × 7 × 4.2 mm, and M3 × 9 × 5 mm identify particular insert dimensions.
