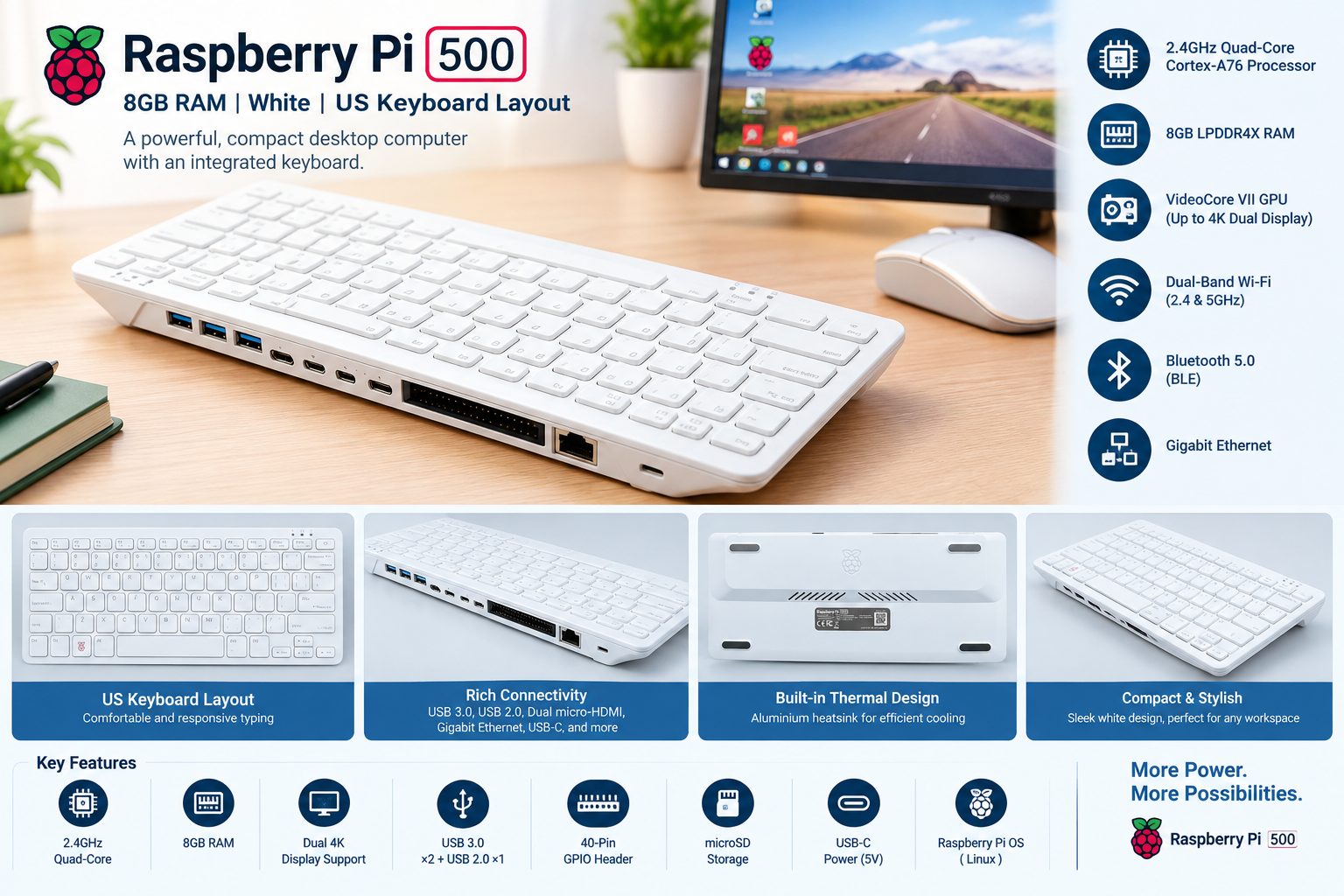

Raspberry Pi 500 8GB White – US Keyboard Layout

Contents List

1. Introduction to Raspberry Pi 500
2. What Is the Raspberry Pi 500?
3. Raspberry Pi 500 8GB Key Specifications
4. Raspberry Pi 500 Processor and Performance
5. 8GB LPDDR4X RAM
6. Integrated Keyboard and US Layout
7. Graphics and Dual 4K Display Support
8. Connectivity and I/O Ports
9. Storage and Raspberry Pi OS
10. Power Supply and Thermal Management
11. GPIO and Electronics Projects
12. Raspberry Pi 500 for Beginners and Hobbyists
13. Raspberry Pi 500 for Engineers and Developers
14. Practical Applications
15. Raspberry Pi 500 vs Raspberry Pi 5
16. Raspberry Pi 500 vs Raspberry Pi 400
17. Important Considerations Before Buying
18. Frequently Asked Questions
19. Conclusion

Time reading is 20min.

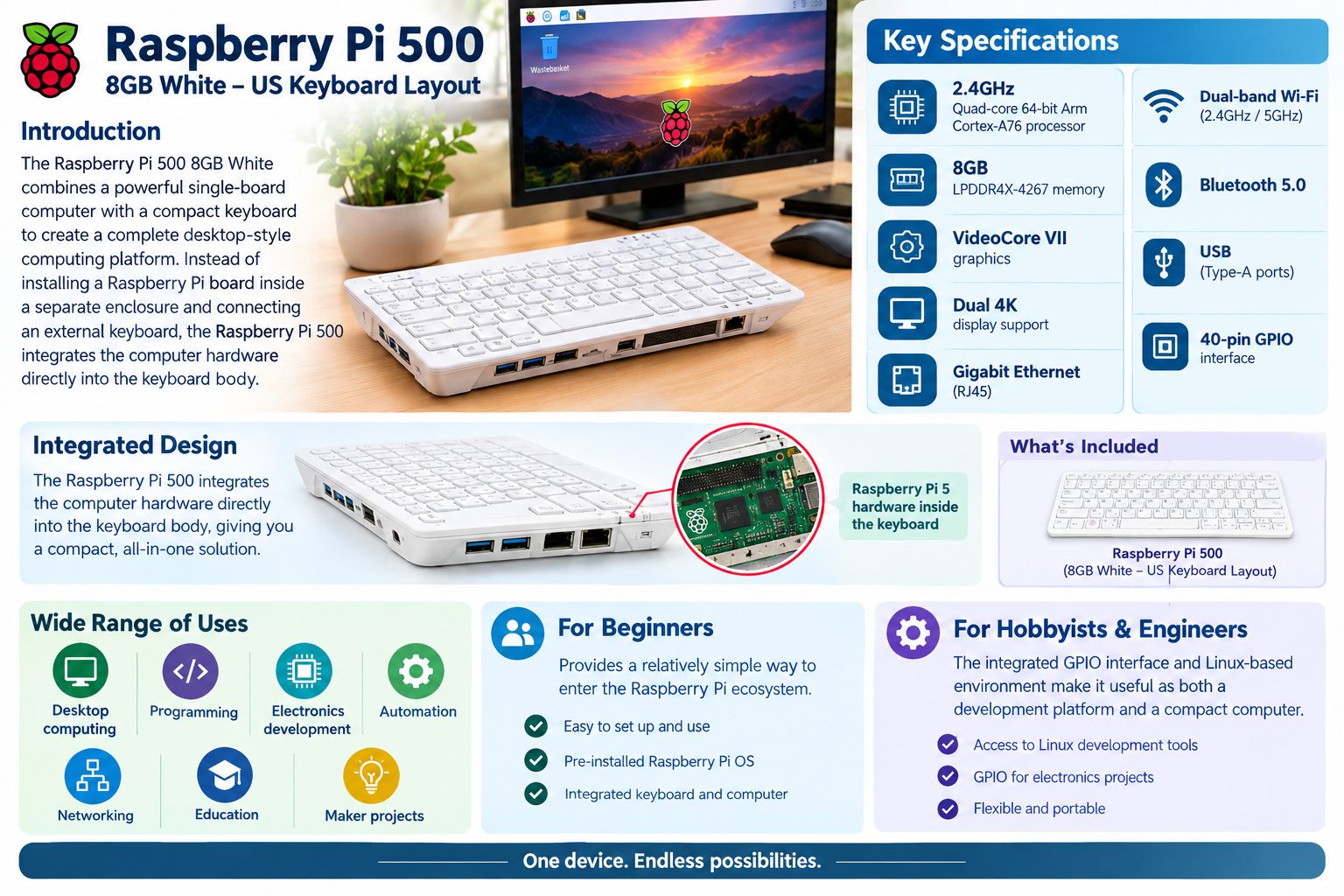

1. Introduction

The Raspberry Pi 500 8GB White  – US Keyboard Layout combines a powerful single-board computer with a compact keyboard to create a complete desktop-style computing platform. Instead of installing a Raspberry Pi board inside a separate enclosure and connecting an external keyboard, the Raspberry Pi 500 integrates the computer hardware directly into the keyboard body.

The Raspberry Pi 500 is based on the same core platform as the Raspberry Pi 5 and features a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor, 8GB of LPDDR4X-4267 memory, VideoCore VII graphics, dual 4K display support, Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0, USB connectivity, and a 40-pin GPIO interface.

This combination makes the Raspberry Pi 500 suitable for a wide range of uses, from everyday desktop computing and programming to electronics development, automation, networking, education, and maker projects.

For beginners, it provides a relatively simple way to enter the Raspberry Pi ecosystem. For hobbyists and engineers, the integrated GPIO interface and Linux-based environment make it useful as both a development platform and a compact computer.

2. What Is the Raspberry Pi 500?

The Raspberry Pi 500 is an all-in-one keyboard computer developed by Raspberry Pi. It follows the concept introduced by the Raspberry Pi 400, but moves to the more powerful Raspberry Pi 5-generation hardware platform.

The computer is built directly into the keyboard enclosure. The result is a compact device that requires fewer separate components than a conventional Raspberry Pi desktop setup.

Internally, the Raspberry Pi 500 uses the Broadcom BCM2712 processor together with the RP1 I/O controller. It provides 8GB of RAM and includes an integrated aluminium heatsink to help manage heat during operation.

Unlike a conventional desktop PC, the Raspberry Pi 500 does not include an internal hard drive or SSD. The operating system and user data are normally stored on a microSD card.

The physical dimensions are approximately 286 × 122 × 23 mm, making it considerably more compact than a conventional desktop computer.

3. Raspberry Pi 500 8GB Key Specifications

The following table summarizes the main hardware characteristics of the Raspberry Pi 500.

These specifications are based primarily on Raspberry Pi’s official product documentation and product brief: Raspberry Pi 500 8GB White – US Keyboard Layout

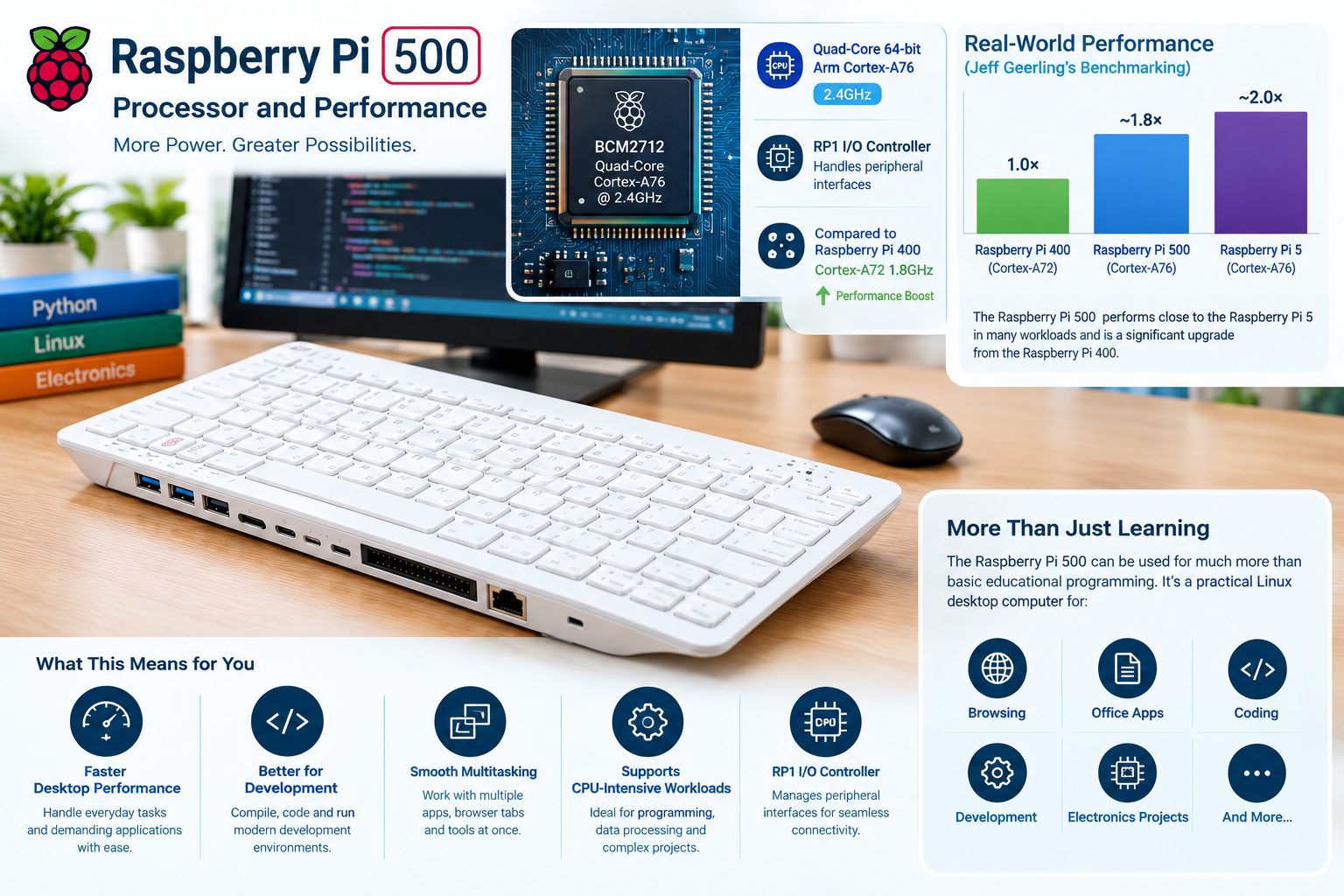

4. Raspberry Pi 500 Processor and Performance

The Raspberry Pi 500 uses a quad-core 64-bit Arm Cortex-A76 processor running at 2.4GHz. This is a significant architectural step beyond the Cortex-A72 processor used in the Raspberry Pi 400.

The Cortex-A76 architecture provides substantially more processing capability for desktop applications, programming environments, multitasking, compiling software, and other CPU-intensive workloads.

The Raspberry Pi 500 also includes the RP1 I/O controller, which handles many of the device’s peripheral interfaces.

Independent testing has shown that the Raspberry Pi 500 performs close to the Raspberry Pi 5 in many conventional workloads. Jeff Geerling’s benchmarking found its performance to be within a small margin of the Raspberry Pi 5 under typical workloads, while his testing also showed a substantial performance increase over the Raspberry Pi 400.

This means the Raspberry Pi 500 can be used for considerably more than basic educational programming. It can function as a practical Linux desktop computer for browsing, office applications, coding, development, and electronics-related software.

5. 8GB LPDDR4X RAM

One of the important features of this model is its 8GB LPDDR4X-4267 SDRAM.

RAM, or Random Access Memory, is the temporary working memory used by the processor to run applications and handle active data.

Having 8GB of RAM gives the Raspberry Pi 500 considerably more memory headroom than earlier Raspberry Pi keyboard computers such as the Raspberry Pi 400, which has 4GB in the configuration documented by Raspberry Pi.

For a beginner, this means more flexibility when running multiple applications.

For engineers and developers, the additional memory can be useful when working with:

• Development environments
• Web browsers with many tabs
• Compilers
• Databases
• Programming tools
• Virtualized or containerized workloads
• Data-processing applications
• Local development servers

It is important to remember that RAM is not the same as storage. The 8GB memory does not provide 8GB of permanent storage. The operating system and user files are stored separately, normally on a microSD card.

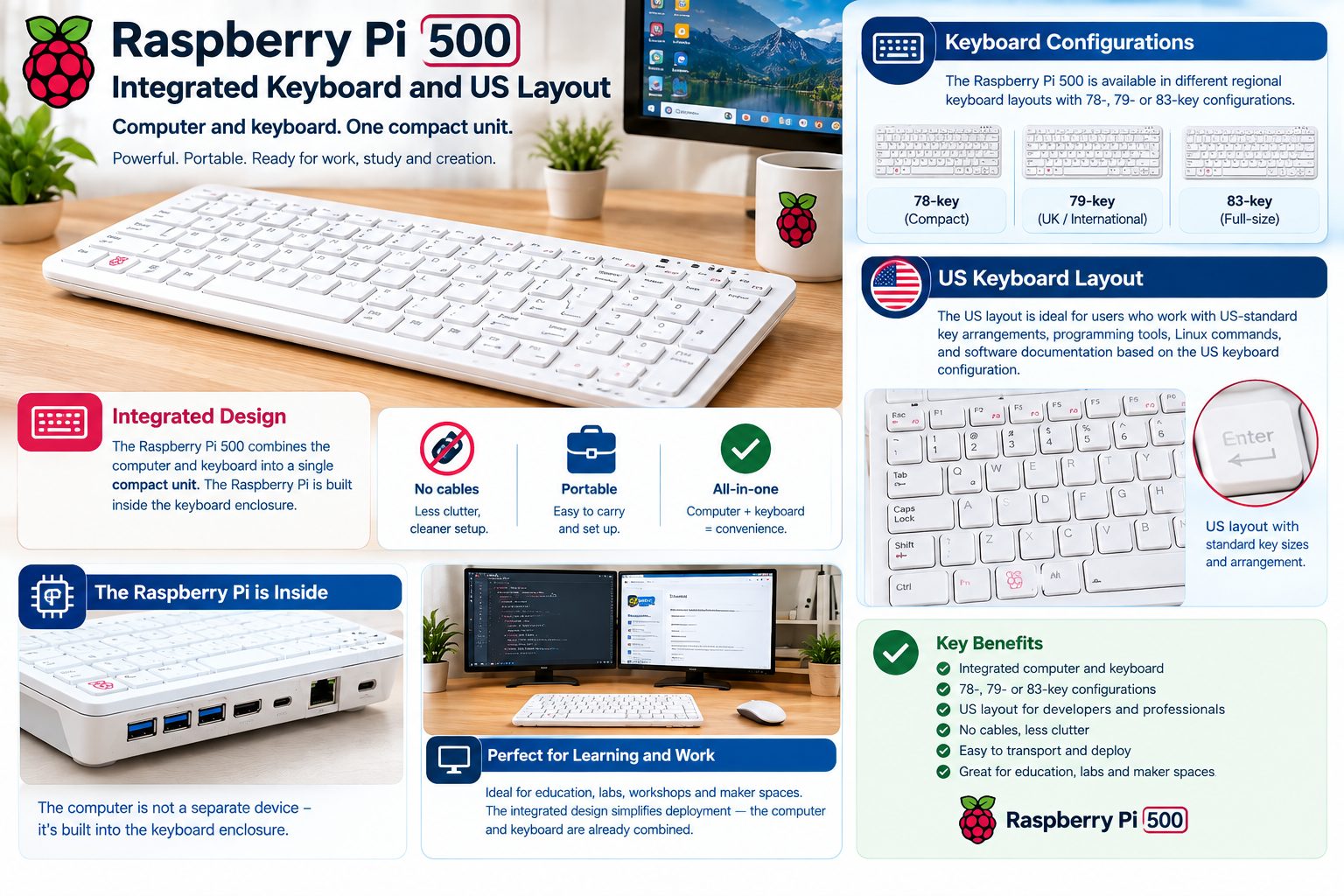

6. Integrated Keyboard and US Layout

The Raspberry Pi 500 integrates the computer and keyboard into a single compact unit.

The keyboard is available in different regional configurations. Raspberry Pi documentation specifies 78-, 79-, or 83-key configurations depending on the regional variant.

The US keyboard layout is particularly relevant for users who regularly work with US-standard key arrangements, programming tools, Linux commands, and software documentation based on the US keyboard configuration.

The keyboard is not simply an external accessory connected to the computer. The Raspberry Pi computer itself is housed inside the keyboard enclosure.

This design reduces cable clutter and makes the system easy to transport.

For educational environments, laboratories, workshops, and maker spaces, the integrated design can also simplify deployment because the computer and keyboard are already combined.

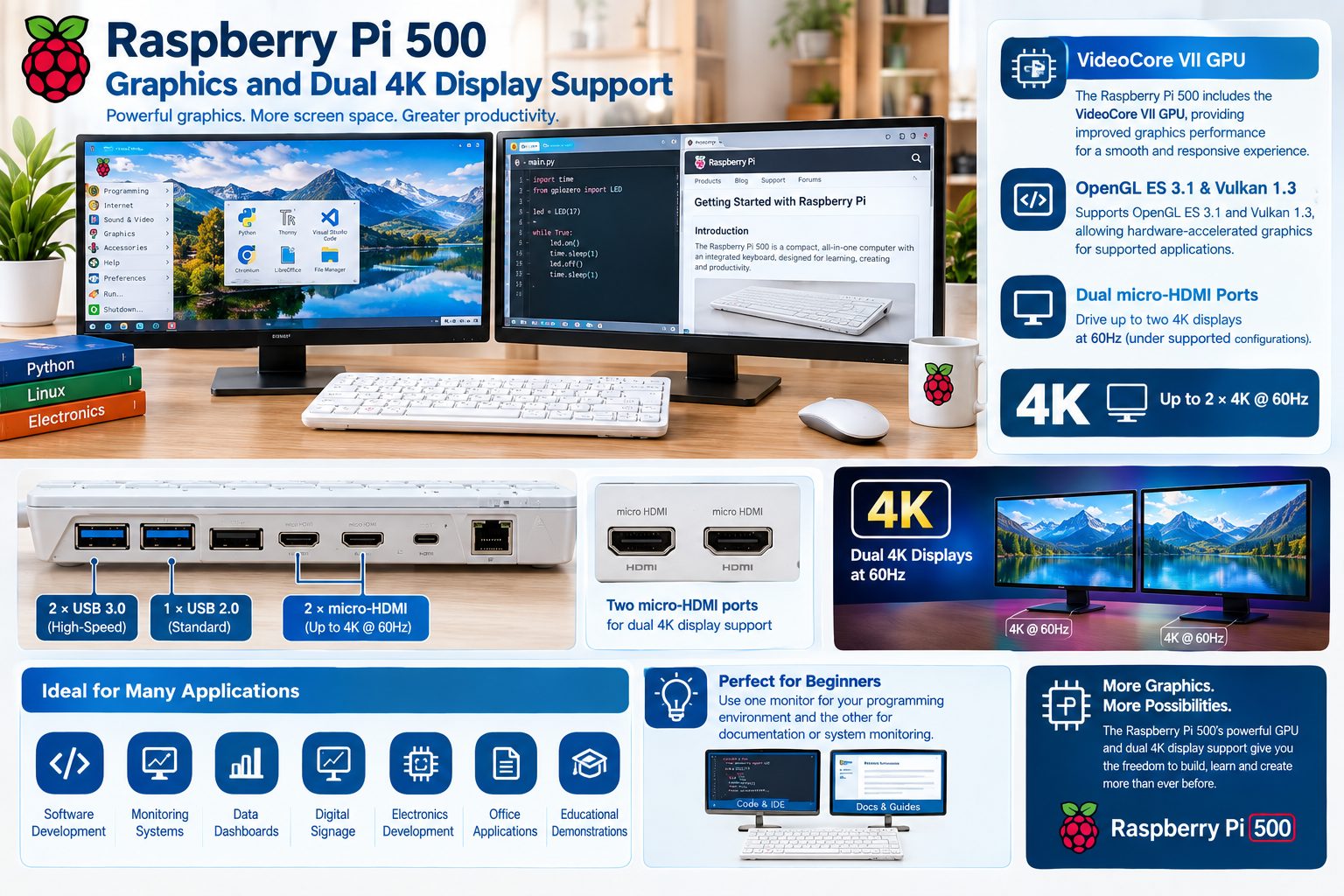

7. Graphics and Dual 4K Display Support

The Raspberry Pi 500 includes the VideoCore VII GPU.

According to Raspberry Pi’s specifications, the system supports OpenGL ES 3.1 and Vulkan 1.3, providing hardware-accelerated graphics capabilities for supported applications.

The device has two micro-HDMI ports, allowing it to drive up to two 4K displays at 60Hz under supported configurations.

This capability makes the Raspberry Pi 500 useful for applications where multiple displays are helpful, such as:

• Software development
• Monitoring systems
• Data dashboards
• Digital signage
• Electronics development
• Office applications
• Educational demonstrations

For beginners, the dual-display capability also provides an easy way to use one monitor for a programming environment and another for documentation or system monitoring.

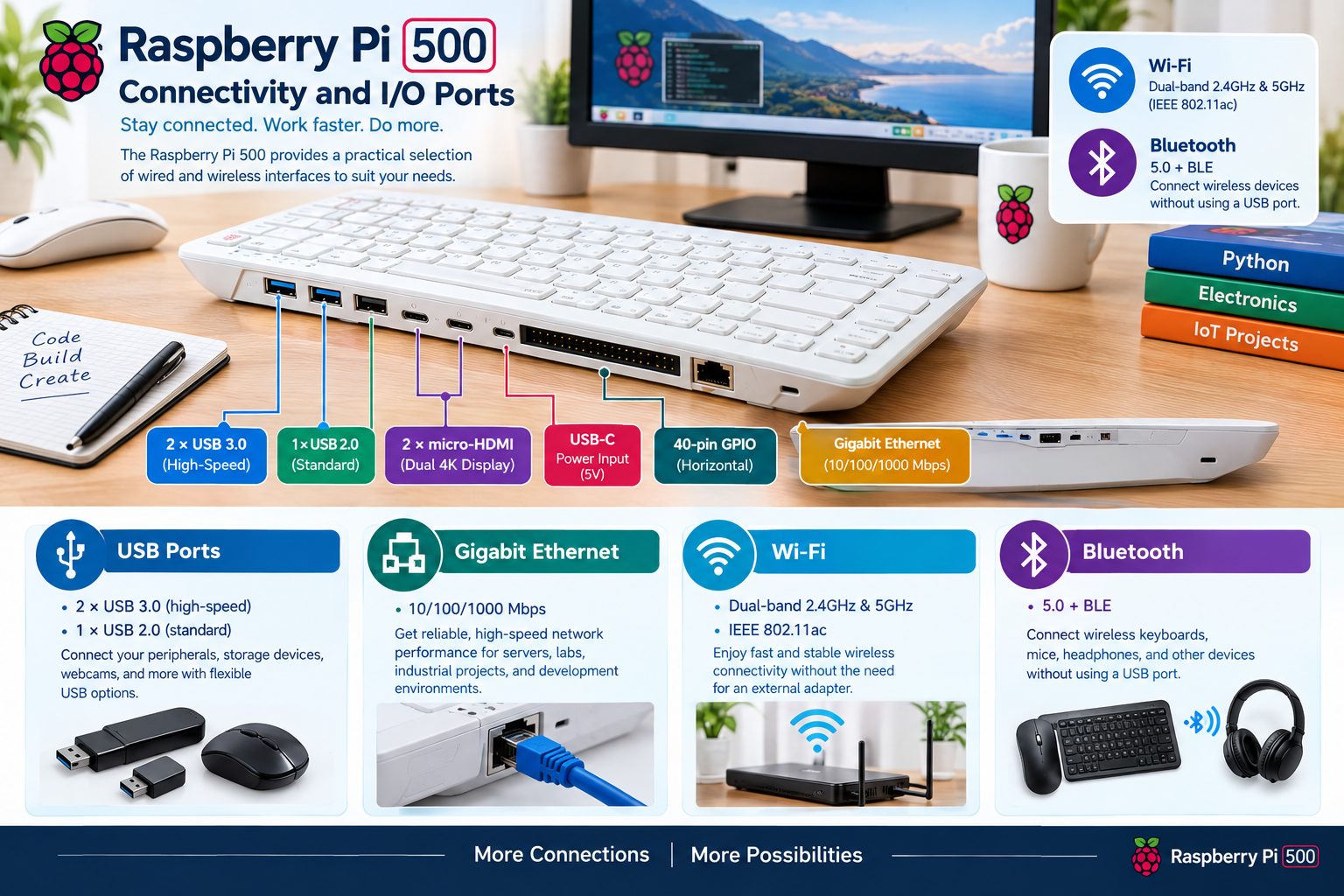

8. Connectivity and I/O Ports

The Raspberry Pi 500 provides a practical selection of wired and wireless interfaces.

USB Ports

The device includes:

• Two USB 3.0 ports
• One USB 2.0 port

The USB 3.0 interfaces support high-speed peripheral connectivity, while USB 2.0 remains useful for lower-bandwidth devices such as keyboards, mice, serial adapters, and other peripherals.

Gigabit Ethernet

• A Gigabit Ethernet interface is integrated into the Raspberry Pi 500.
• A wired Ethernet connection can be useful when reliable network performance is required, particularly for servers, network laboratories, industrial projects, and development environments.

Wi-Fi

• The Raspberry Pi 500 includes dual-band 2.4GHz and 5GHz Wi-Fi based on IEEE 802.11ac.
• This provides wireless network connectivity without requiring an external Wi-Fi adapter.

Bluetooth

Bluetooth 5.0 and Bluetooth Low Energy are also integrated, allowing compatible wireless peripherals and other devices to connect without occupying a USB port.

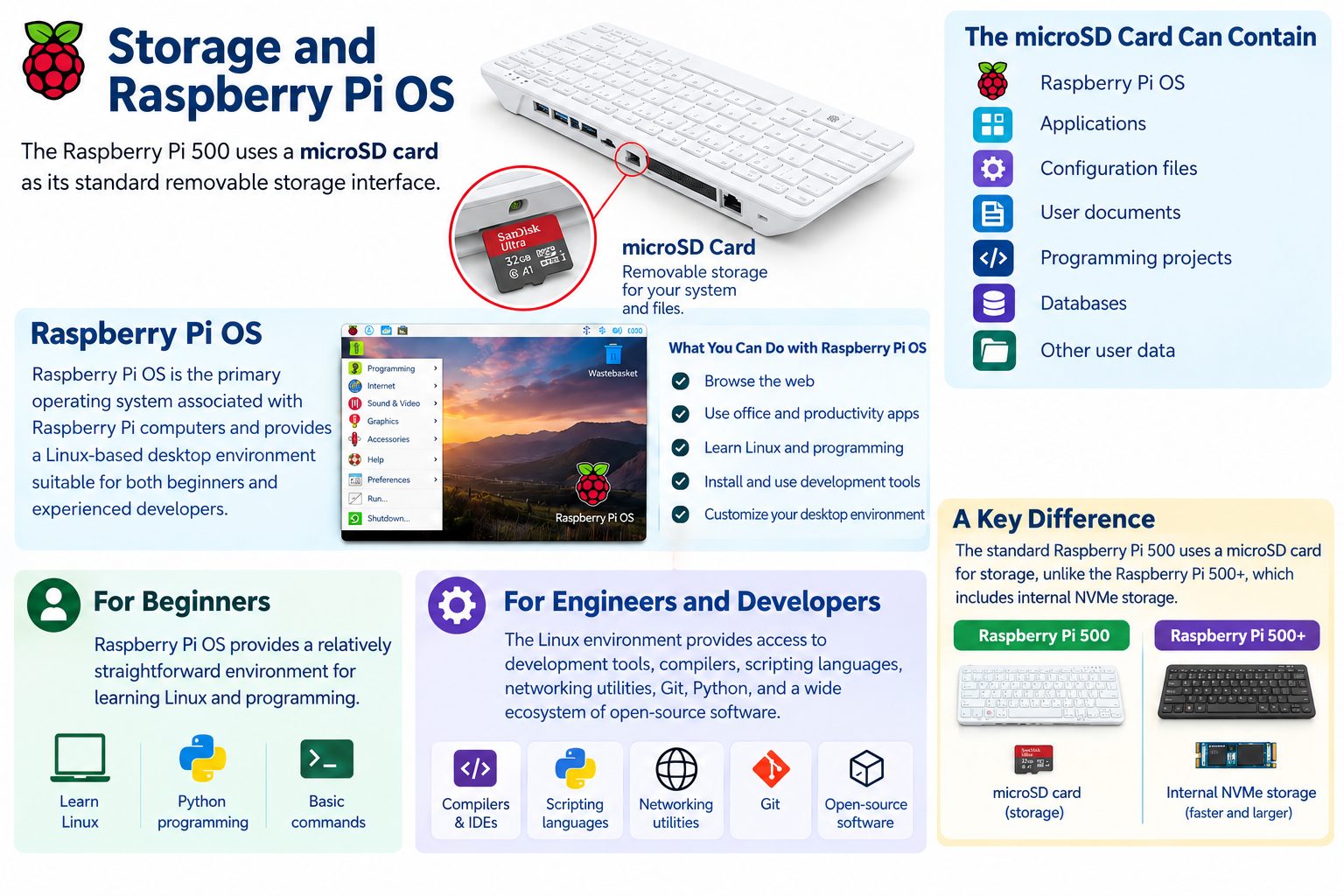

9. Storage and Raspberry Pi OS

The Raspberry Pi 500 uses a microSD card as its standard removable storage interface.

The microSD card can contain:

• Raspberry Pi OS
• Applications
• Configuration files
• User documents
• Programming projects
• Databases
• Other user data

Raspberry Pi OS is the primary operating system associated with Raspberry Pi computers and provides a Linux-based desktop environment suitable for both beginners and experienced developers.

For a beginner, Raspberry Pi OS provides a relatively straightforward environment for learning Linux and programming.

For engineers, the Linux environment provides access to development tools, compilers, scripting languages, networking utilities, Git, Python, and a wide ecosystem of open-source software.

One important distinction is that the standard Raspberry Pi 500 uses a microSD card for storage, unlike the Raspberry Pi 500+, which includes internal NVMe storage.

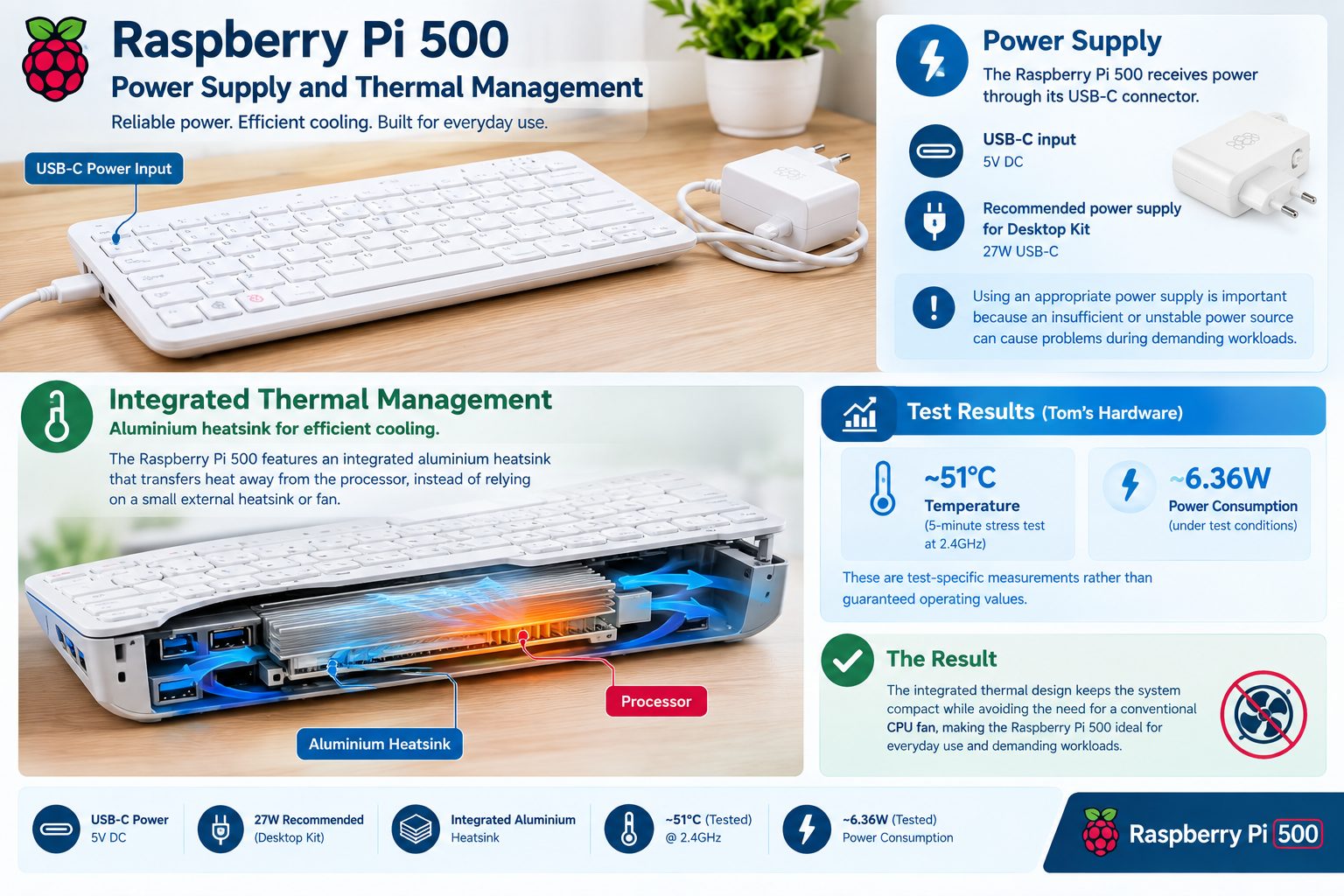

10. Power Supply and Thermal Management

The Raspberry Pi 500 receives power through its USB-C connector.

Raspberry Pi specifies 5V DC via USB-C, and its keyboard-computer documentation lists a 27W USB-C power supply for the Raspberry Pi 500 Desktop Kit.

Using an appropriate power supply is important because an insufficient or unstable power source can cause problems during demanding workloads.

Integrated Thermal Management

One of the interesting engineering aspects of the Raspberry Pi 500 is its integrated aluminium heatsink.

Instead of relying on a small external heatsink or fan, the internal aluminium structure is designed to transfer heat away from the processor.

Independent testing by Tom’s Hardware measured approximately 51°C during a five-minute stress test at the standard 2.4GHz operating frequency, with measured power consumption of about 6.36W under that test setup. These are test-specific measurements rather than guaranteed operating values.

For normal use, the integrated thermal design helps keep the system compact while avoiding the need for a conventional CPU fan.

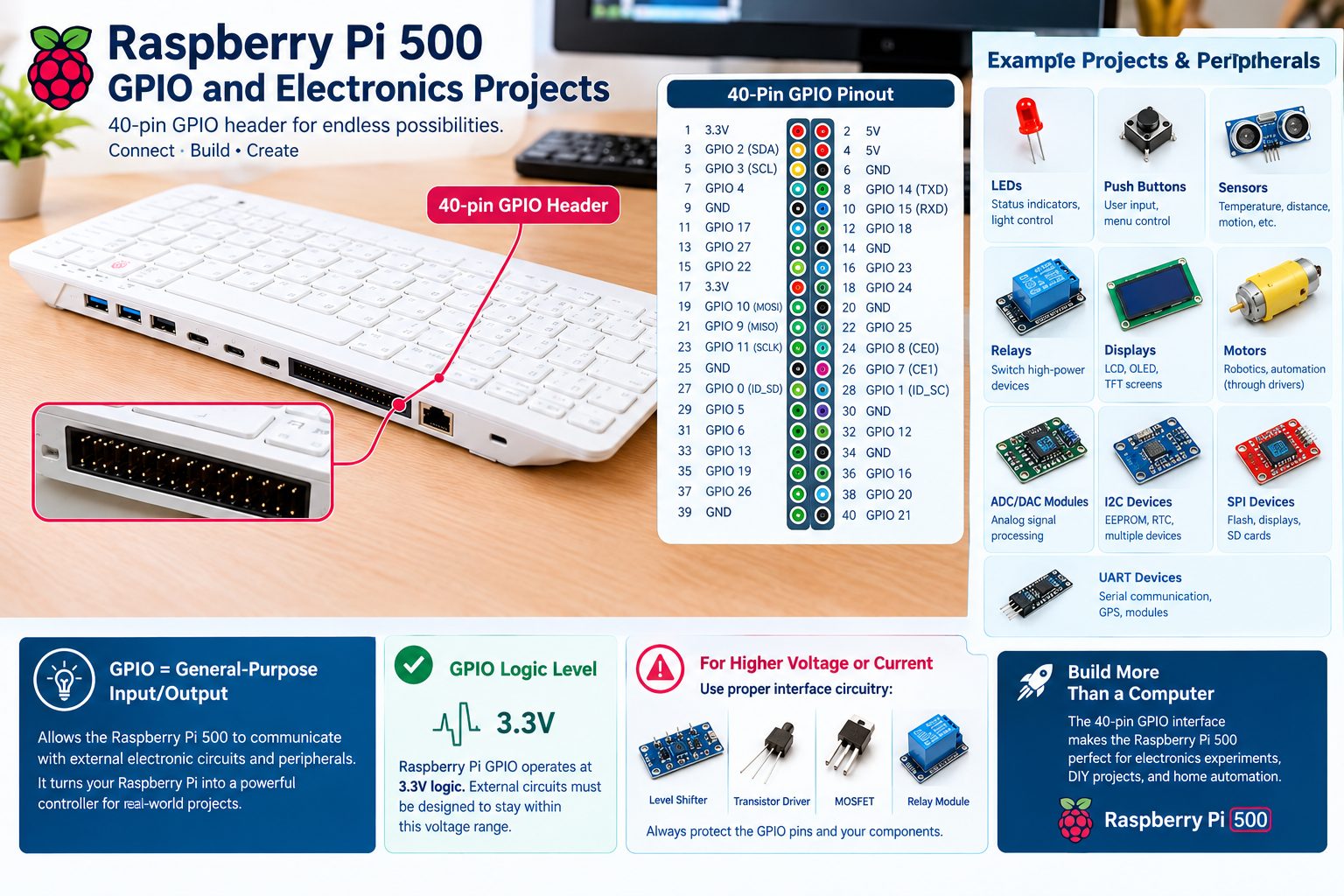

11. GPIO and Electronics Projects

For electronics engineers and makers, one of the most important features of the Raspberry Pi 500 is the 40-pin GPIO header.

GPIO stands for General-Purpose Input/Output.

These pins allow the Raspberry Pi to communicate with external electronic circuits and peripherals.

Examples include:

• LEDs
• Push buttons
• Sensors
• Relays
• Displays
• Motors through appropriate driver circuits
• ADC/DAC modules
• I2C devices
• SPI devices
• UART devices

The GPIO interface makes the Raspberry Pi 500 more than a compact desktop computer. It can also act as a Linux-based controller for electronics experiments and automation projects.

However, GPIO pins should be connected carefully. Raspberry Pi GPIO interfaces operate at 3.3V logic, so external circuits must be designed to remain within the electrical limits of the GPIO pins.

Devices requiring higher voltages or currents should normally be connected through appropriate interface circuitry such as level shifters, transistor drivers, MOSFETs, relay modules, or dedicated driver ICs.

12. Raspberry Pi 500 for Beginners and Hobbyists

The Raspberry Pi 500 provides a relatively accessible introduction to computing and electronics.

A beginner can start with a monitor, suitable USB-C power supply, microSD card, and mouse, then install Raspberry Pi OS and begin exploring Linux.

From there, the learning path can progress from basic desktop use to:

1. Python programming
2. Linux command-line tools
3. GPIO control
4. Sensor interfacing
5. Electronics experiments
6. Networking
7. Home automation
8. Web servers
9. Robotics
10. Embedded development

The integrated keyboard is particularly useful for beginners because there is no need to assemble a separate computer enclosure before starting.

13. Raspberry Pi 500 for Engineers and Developers

For engineers, the Raspberry Pi 500 can serve as a compact development and testing platform.

Its combination of processing power, RAM, networking, USB interfaces, GPIO, and Linux software makes it suitable for prototyping systems before moving to a dedicated embedded controller or industrial platform.

Potential engineering uses include:

• IoT gateway development
• Sensor data acquisition
• Network monitoring
• Automation prototypes
• Linux application development
• Python development
• Hardware control
• Industrial communication experiments
• Computer vision prototypes
• Local servers
• Remote monitoring systems

The 40-pin GPIO interface is particularly useful for hardware experimentation, while Gigabit Ethernet, Wi-Fi, USB, and Bluetooth provide multiple communication options.

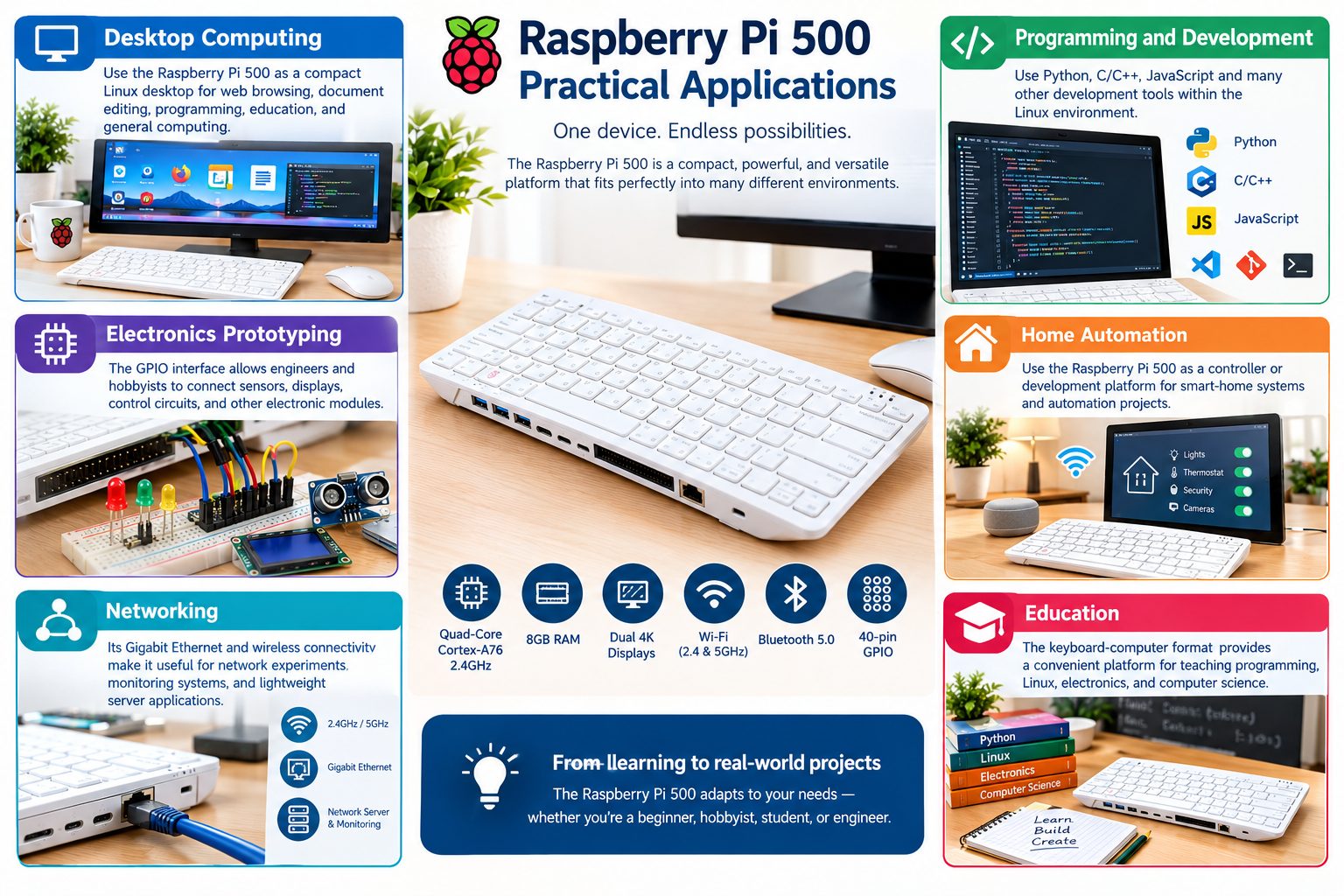

14. Practical Applications

The Raspberry Pi 500 can be used in many different environments.

Desktop Computing

The Raspberry Pi 500 can operate as a compact Linux desktop for web browsing, document editing, programming, education, and general computing.

Programming and Development

Python, C/C++, JavaScript and many other development tools can be used within the Linux environment.

Electronics Prototyping

The GPIO interface allows engineers and hobbyists to connect sensors, displays, control circuits, and other electronic modules.

Home Automation

The Raspberry Pi 500 can be used as a controller or development platform for smart-home systems and automation projects.

Networking

Its Gigabit Ethernet and wireless connectivity make it useful for network experiments, monitoring systems, and lightweight server applications.

Education

The keyboard-computer format provides a convenient platform for teaching programming, Linux, electronics, and computer science.

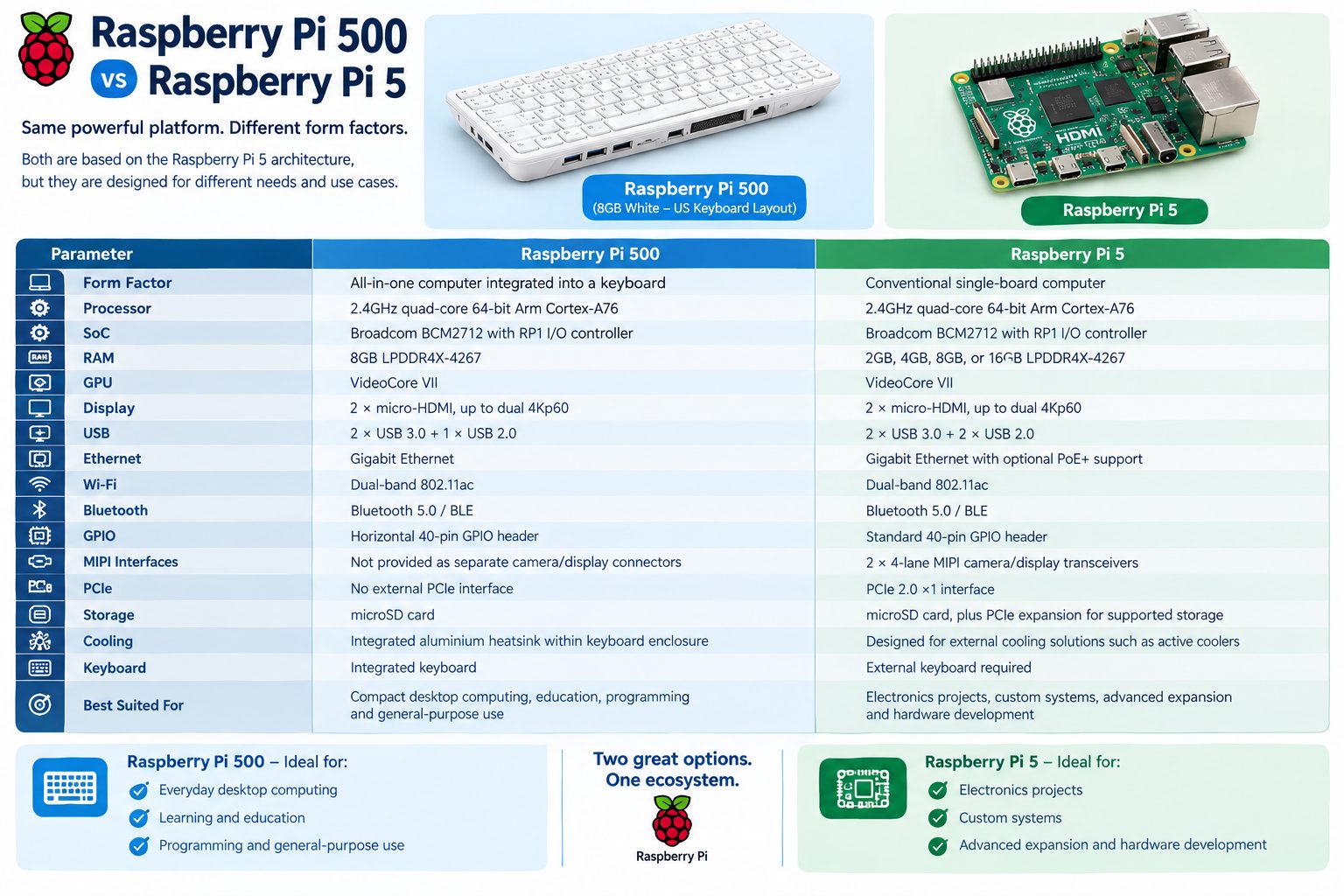

15. Raspberry Pi 500 vs Raspberry Pi 5

parameter	Raspberry Pi 500	Raspberry Pi 5
Form Factor	All-in-one computer integrated into a keyboard	Conventional single-board computer
Processor	2.4GHz quad-core 64-bit Arm Cortex-A76	2.4GHz quad-core 64-bit Arm Cortex-A76
SoC	Broadcom BCM2712 with RP1 I/O controller	Broadcom BCM2712 with RP1 I/O controller
RAM	8GB LPDDR4X-4267	2GB, 4GB, 8GB, or 16GB LPDDR4X-4267
GPU	VideoCore VII	VideoCore VII
Display	2 × micro-HDMI, up to dual 4Kp60	2 × micro-HDMI, up to dual 4Kp60
USB	2 × USB 3.0 + 1 × USB 2.0	2 × USB 3.0 + 2 × USB 2.0
Ethernet	Gigabit Ethernet	Gigabit Ethernet with optional PoE+ support
Wi-Fi	Dual-band 802.11ac	Dual-band 802.11ac
Bluetooth	Bluetooth 5.0 / BLE	Bluetooth 5.0 / BLE
GPIO	Horizontal 40-pin GPIO header	Standard 40-pin GPIO header
MIPI Interfaces	Not provided as separate camera/display connectors	2 × 4-lane MIPI camera/display transceivers
PCIe	No external PCIe interface	PCIe 2.0 ×1 interface
Storage	microSD card	microSD card, plus PCIe expansion for supported storage
Cooling	Integrated aluminium heatsink within keyboard enclosure	Designed for external cooling solutions such as active coolers
Keyboard	Integrated keyboard	External keyboard required
Best Suited For	Compact desktop computing, education, programming and general-purpose use	Electronics projects, custom systems, advanced expansion and hardware development

16. Raspberry Pi 500 vs Raspberry Pi 400

Parameter	Raspberry Pi 500	Raspberry Pi 400
Form Factor	Computer integrated into a compact keyboard	Computer integrated into a compact keyboard
Processor	2.4GHz quad-core 64-bit Arm Cortex-A76	1.8GHz quad-core 64-bit Arm Cortex-A72
SoC	Broadcom BCM2712 + RP1	Broadcom BCM2711
RAM	8GB LPDDR4X-4267	4GB LPDDR4-3200
GPU	VideoCore VII	VideoCore VI
GPU Frequency	910MHz	500MHz
Display	2 × micro-HDMI, up to 4Kp60; HDR support	2 × micro-HDMI, up to 4Kp60
USB	2 × USB 3.0 + 1 × USB 2.0	2 × USB 3.0 + 1 × USB 2.0
Ethernet	Gigabit Ethernet	Gigabit Ethernet
Wi-Fi	Dual-band 802.11ac	Dual-band 802.11ac
Bluetooth	Bluetooth 5.0 / BLE	Bluetooth 5.0 / BLE
GPIO	Horizontal 40-pin GPIO header	Horizontal 40-pin GPIO header
Storage	microSD card	microSD card
Power Button	Dedicated power key	No dedicated power button
Keyboard	78-, 79-, or 83-key regional variants	78-, 79-, or 83-key regional variants
Dimensions	286 × 122 × 23 mm	286 × 122 × 23 mm
Operating Temperature	0°C to +50°C	0°C to +50°C
Processor Architecture	ARM Cortex-A76	ARM Cortex-A72
Memory Capacity	8GB	4GB

17. Important Considerations Before Buying

Before choosing the Raspberry Pi 500, it is useful to understand what is included and what must be purchased separately.

Display

The Raspberry Pi 500 does not contain a built-in display. A monitor or compatible display must be connected through one of the micro-HDMI ports.

Storage

A microSD card is required for standard Raspberry Pi 500 installations unless using another supported boot configuration.

Power Supply

Use an appropriate USB-C power supply capable of providing the required power.

Mouse

Although the keyboard is integrated into the Raspberry Pi 500, a mouse or other pointing device is generally useful for desktop operation.

Keyboard Layout

Make sure the product is the US keyboard layout if that is the configuration required for your application.

Regional keyboard variants can have different physical key arrangements, so keyboard layout should be checked before purchase.

GPIO Accessibility

The GPIO header is available, but its physical orientation and keyboard-computer enclosure design are different from a traditional Raspberry Pi 5 board. This can be important when designing projects that require frequent access to GPIO connections.

18. Frequently Asked Questions

Is the Raspberry Pi 500 a complete computer?

Yes. The Raspberry Pi 500 combines a Raspberry Pi computer with an integrated keyboard. However, you still need a display, power supply, storage, and typically a mouse for a complete desktop setup.

How much RAM does the Raspberry Pi 500 have?

The Raspberry Pi 500 has 8GB of LPDDR4X-4267 SDRAM.

Does Raspberry Pi 500 have Wi-Fi?

Yes. It supports dual-band 2.4GHz and 5GHz 802.11ac Wi-Fi.

Does Raspberry Pi 500 have Bluetooth?

Yes. Bluetooth 5.0 and Bluetooth Low Energy are integrated.

Can Raspberry Pi 500 run two monitors?

Yes. It has two micro-HDMI outputs and supports dual 4K display output under supported configurations.

Does Raspberry Pi 500 have GPIO?

Yes. It provides a horizontal 40-pin GPIO header suitable for electronics and hardware projects.

What storage does Raspberry Pi 500 use?

The Raspberry Pi 500 has a microSD card slot for the operating system and data.

Is Raspberry Pi 500 suitable for programming?

Yes. Its Linux-based software environment, 8GB RAM, quad-core Cortex-A76 processor, GPIO, networking, and USB interfaces make it suitable for programming and development.

Is the Raspberry Pi 500 the same as Raspberry Pi 500+?

No. The Raspberry Pi 500 has 8GB RAM and microSD-based storage, while the Raspberry Pi 500+ has 16GB RAM, an internal 256GB SSD, and a mechanical keyboard.

Does the Raspberry Pi 500 use a US keyboard?

The Raspberry Pi 500 is produced in different regional keyboard configurations. The exact physical layout depends on the regional variant, so the product specification should be checked to confirm the US layout.

19. Conclusion

The Raspberry Pi 500 8GB White – US Keyboard Layout  combines the capabilities of a modern Raspberry Pi computer with the convenience of an integrated keyboard.

Its 2.4GHz quad-core Cortex-A76 processor, 8GB LPDDR4X RAM, VideoCore VII graphics, dual 4K display support, Gigabit Ethernet, Wi-Fi, Bluetooth, USB ports, and 40-pin GPIO interface provide a broad range of possibilities.

For beginners, it offers a straightforward way to explore Linux, programming, and electronics. For hobbyists, it provides a compact platform for automation, IoT, robotics, and maker projects. For engineers, the combination of processing power, connectivity, and GPIO makes it useful for prototyping and development.

The main advantage of the Raspberry Pi 500 is its integration: instead of treating the computer, enclosure, and keyboard as separate components, it brings them together into one compact platform while retaining the hardware interfaces that make Raspberry Pi systems useful for engineering and electronics projects.
