Transistors: Small Components … Big Possibilities

Contents List

1. Introduction to Transistors
2. What Is a Transistor?
3. How Transistors Work?
4. Main Types of Transistors
5. Bipolar Junction Transistors (BJT)
6. Field-Effect Transistors (FET)
7. MOSFETs: N-Channel and P-Channel
8. JFETs and Other Transistor Types
9. Transistor Operating Modes
10. Transistors as Electronic Switches
11. Transistors as Amplifiers
12. Important Transistor Specifications
13. BJT vs. MOSFET
14. Common Transistor Applications
15. How to Choose the Right Transistor?
16. Practical Transistor Circuit Considerations
17. Testing a Transistor with a Multimeter
18. Common Mistakes When Using Transistors
19. Frequently Asked Questions
20. Conclusion

Time reading is 20min.

1. Introduction to Transistors

Transistors are among the most important components in modern electronics. They are used in everything from simple LED circuits and sensor projects to computers, motor controllers, power supplies, audio amplifiers, communication systems, and sophisticated integrated circuits.

Although a transistor may look like a small three-terminal electronic component, its function can be extremely important. Depending on its type and how it is connected, a transistor can switch electrical current, amplify signals, regulate current, or control power.

For beginners, transistors can initially seem confusing because there are many different types, part numbers, symbols, and electrical specifications. The basic concept, however, is straightforward: a transistor allows one electrical signal to control another electrical current or voltage.

The two transistor families most important for practical electronics are Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs), particularly MOSFETs. BJTs use a base current to control collector current, while MOSFETs use gate-to-source voltage to control current through the device.

This article explains transistors from the fundamentals through practical selection, helping beginners understand the component while also providing useful information for hobbyists and engineers.

What You Will Learn

By the end of this guide, you should understand:

• What a transistor is and why it is used.
• How a transistor controls electrical current.
• The difference between BJTs and FETs.
• How NPN, PNP, N-channel, and P-channel devices differ.
• How transistors operate as switches and amplifiers.
• Which specifications are important when selecting a transistor.
• How to select a transistor for a practical circuit.
• How to test a BJT with a multimeter.
• Common mistakes that can damage a transistor or cause a circuit to malfunction.

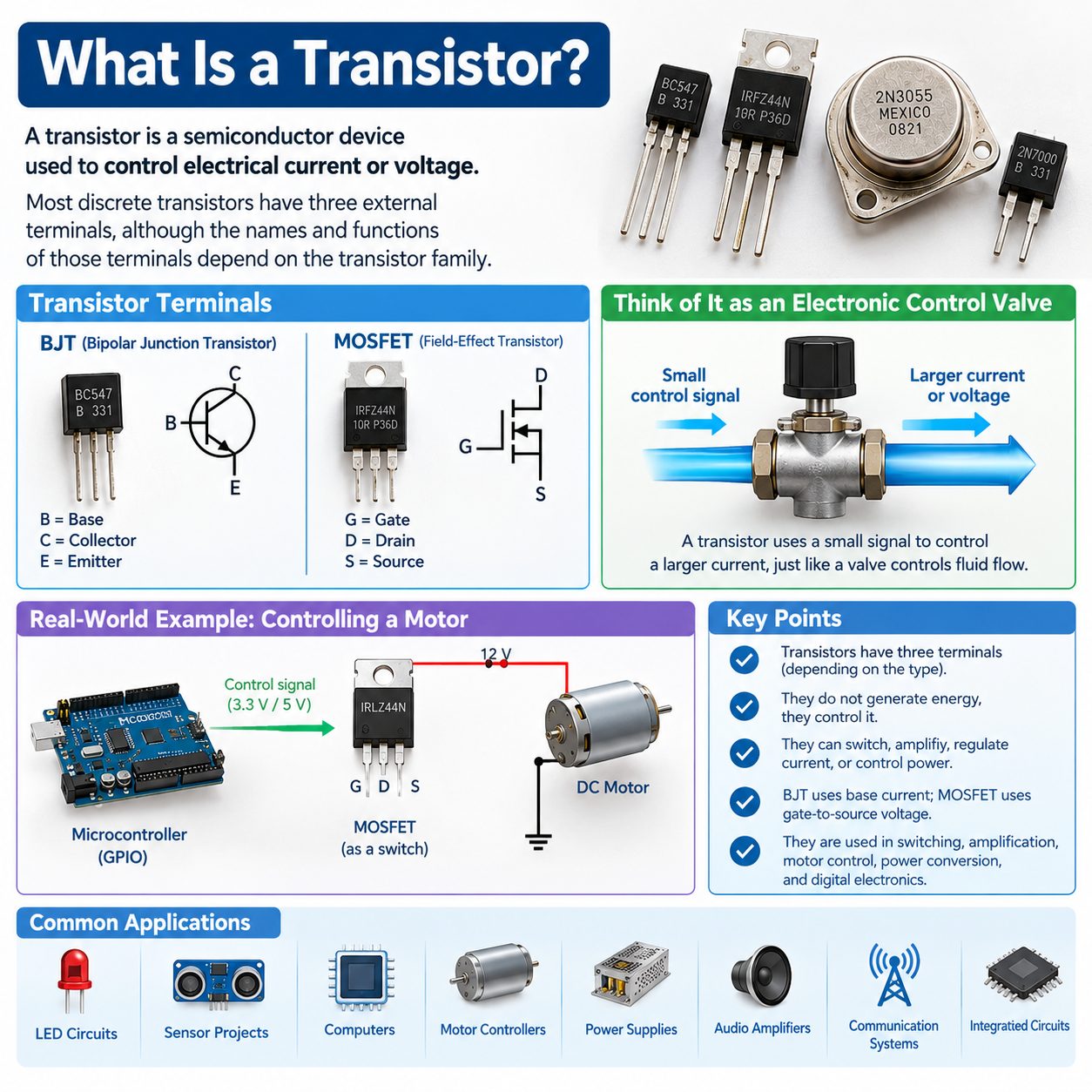

2. What Is a Transistor?

A Transistor is a semiconductor device used to control electrical current or voltage.

Most discrete transistors have three external terminals, although the names and functions of those terminals depend on the transistor family.

For a BJT, the terminals are:

• Base (B)
• Collector (C)
• Emitter (E)

For a MOSFET, the terminals are:

• Gate (G)
• Drain (D)
• Source (S)

A transistor does not generate electrical energy by itself. Instead, it uses a relatively small control signal to influence a larger current supplied by an external power source.

A useful way to understand the concept is to think of a transistor as an electronic control valve.

A small signal controls the behavior of a larger electrical flow.

For example:

• a microcontroller GPIO pin may not be able to drive a motor directly.
• A transistor can be placed between the power supply and the motor so that the microcontroller controls the transistor while the transistor handles the motor current.
• This principle is used extensively in switching, amplification, motor control, power conversion, and digital electronics.

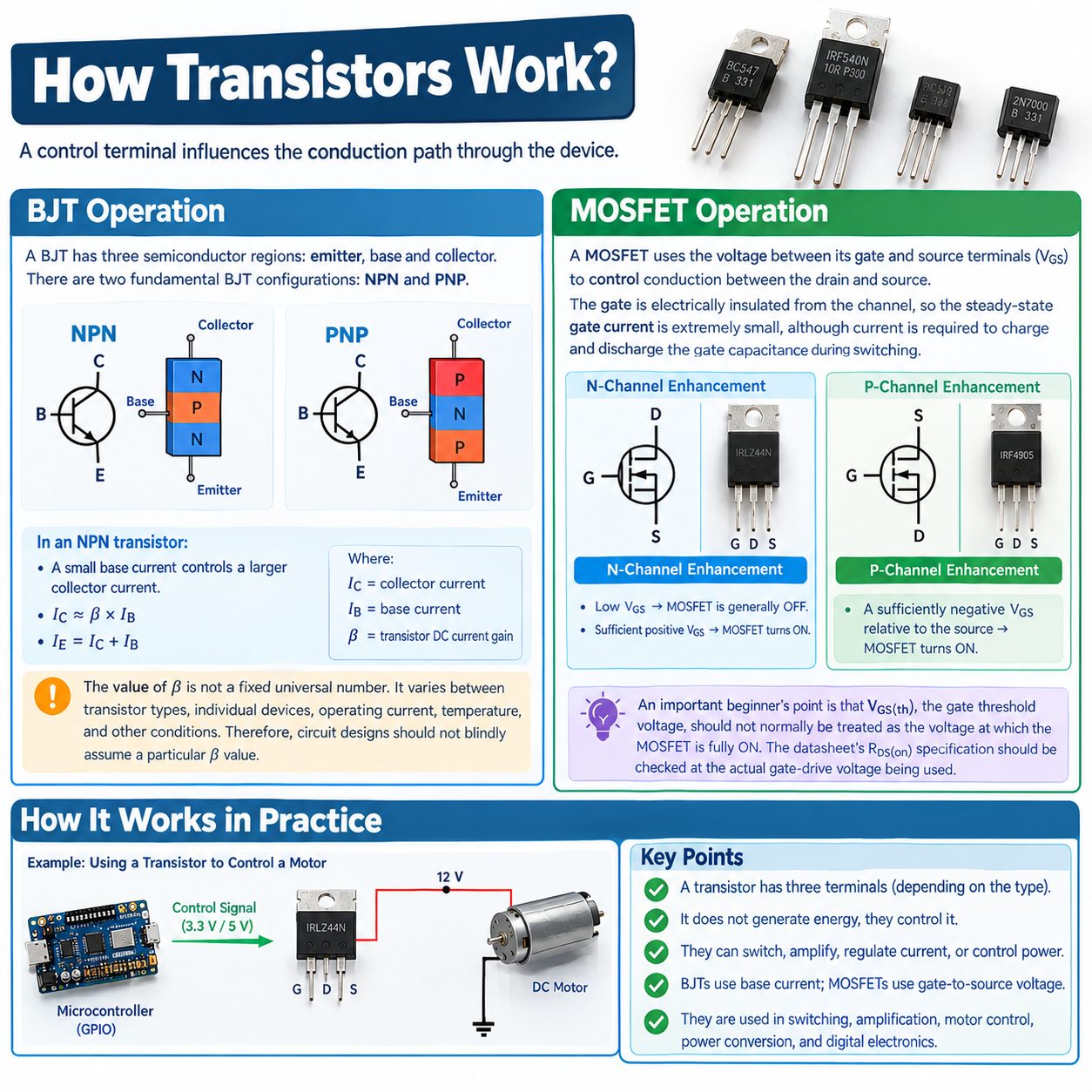

3. How Transistors Work?

The exact operating principle depends on the transistor type, but the fundamental idea is the same: a control terminal influences the conduction path through the device.

BJT Operation

A BJT has three semiconductor regions:

• Emitter
• Base
• Collector

There are two fundamental BJT configurations:

• NPN
• PNP

In an NPN transistor, a relatively small base current controls a larger collector current. A simplified relationship in the active region is:

IC ≈ β × IB

Where:

• IC = collector current
• IB = base current
• β = transistor DC current gain

The emitter current is:

IE = IC + IB

The value of β is not a fixed universal number. It varies between transistor types, individual devices, operating current, temperature, and other conditions. Therefore, circuit designs should not blindly assume a particular β value.

MOSFET Operation

A MOSFET works differently.

Instead of using a continuous base current, a MOSFET uses the voltage between its gate and source terminals (VGS) to control conduction between the drain and source.

The gate is electrically insulated from the channel, so the steady-state gate current is extremely small, although current is required to charge and discharge the gate capacitance during switching.

For an N-channel enhancement MOSFET:

• Low VGS → MOSFET is generally OFF.
• Sufficient positive VGS → MOSFET turns ON.

For a P-channel enhancement MOSFET:

• A sufficiently negative VGS relative to the source → MOSFET turns ON.

An important beginner’s point is that VGS(th), the gate threshold voltage, should not normally be treated as the voltage at which the MOSFET is fully ON. The datasheet’s RDS(on) specification should be checked at the actual gate-drive voltage being used.

4. Main Types of Transistors

Transistors can be divided into several families.

The most important categories for practical electronics are:

BJTs and MOSFETs are by far the most important transistor families for most hobby and general-purpose electronic projects.

5. Bipolar Junction Transistors (BJT)

A Bipolar Junction Transistor, or BJT, is a three-terminal transistor in which conduction involves both electrons and holes.

There are two main BJT types:

• NPN
• PNP

The three terminals are:

• Base
• Collector
• Emitter

NPN Transistor

• An NPN transistor is commonly used as a low-side switch.
• A typical arrangement is:  Load → VCC → Load → Collector → Emitter → Ground
• The control signal is applied to the base through an appropriate resistor.
• When sufficient base current is provided, the transistor turns on and allows current to flow through the load.

PNP Transistor

• A PNP transistor has the opposite polarity arrangement and is commonly used for high-side switching or complementary transistor circuits.
• For a PNP device, the emitter is normally connected toward the positive supply, while the transistor is controlled by pulling the base to a lower potential relative to the emitter.
• The difference between NPN and PNP is therefore not simply the physical direction of current; it also determines how the transistor must be biased and connected in the circuit.

6. Field-Effect Transistors (FET)

A Field-Effect Transistor, or FET, is controlled primarily by an electric field rather than by a continuous control current.

The main terminals are:

• Gate
• Drain
• Source

FETs have high input impedance, making them particularly useful in circuits where loading of the preceding stage must be minimized.

The two FET families most commonly encountered are:

• JFET
• MOSFET

MOSFETs are especially important in modern electronics and power switching.

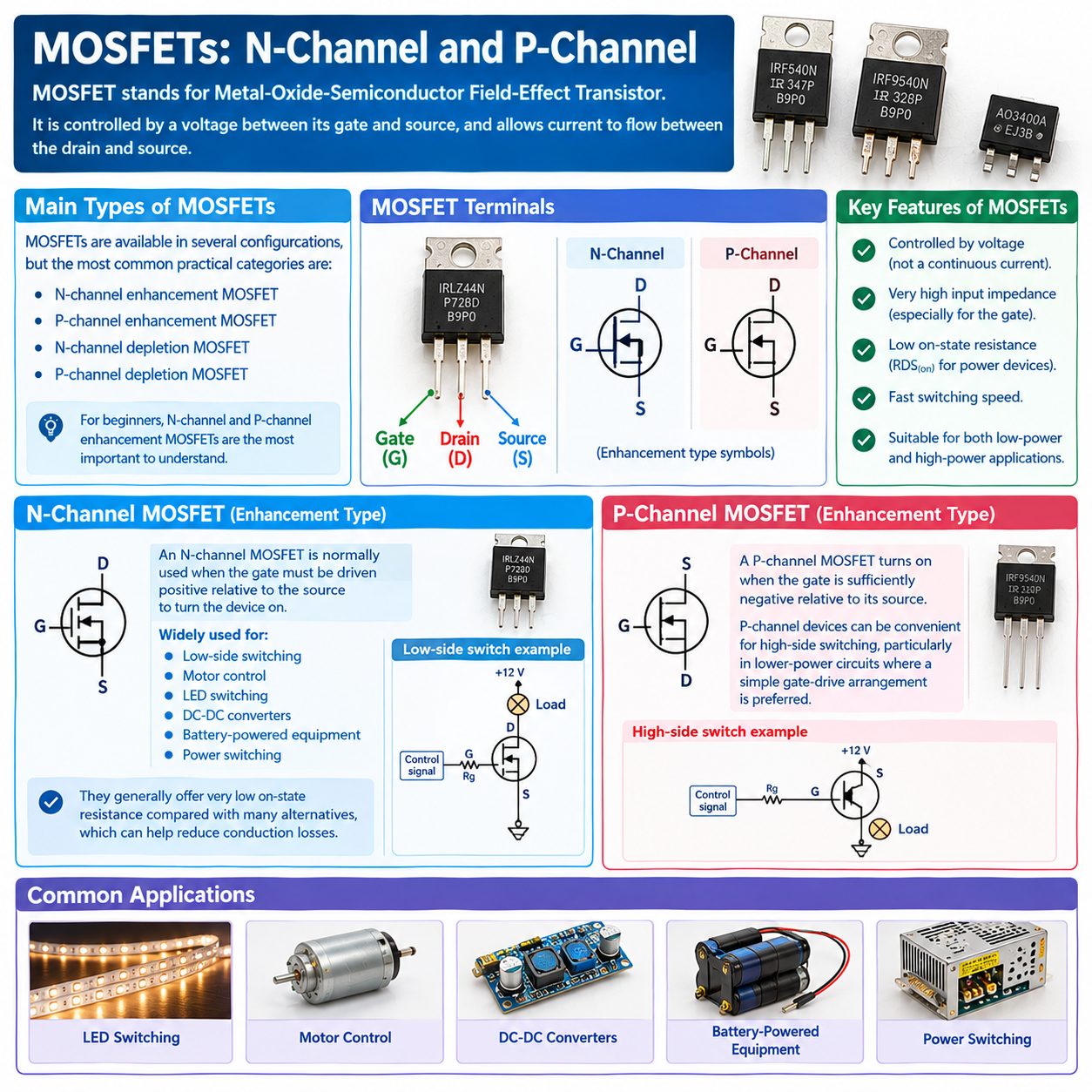

7. MOSFETs: N-Channel and P-Channel

MOSFET stands for Metal-Oxide-Semiconductor Field-Effect Transistor.

They are available in several configurations, but the most common practical categories are:

• N-channel enhancement MOSFET
• P-channel enhancement MOSFET
• N-channel depletion MOSFET
• P-channel depletion MOSFET

For beginners, N-channel and P-channel enhancement MOSFETs are the most important to understand.

N-Channel MOSFET

An N-channel MOSFET is normally used when the gate must be driven positive relative to the source to turn the device on.

N-channel MOSFETs are widely used for:

• Low-side switching
• Motor control
• LED switching
• DC-DC converters
• Battery-powered equipment
• Power switching

They generally offer very low on-state resistance compared with many alternatives, which can help reduce conduction losses.

P-Channel MOSFET

• A P-channel MOSFET turns on when the gate is sufficiently negative relative to its source.
• P-channel devices can be convenient for high-side switching, particularly in lower-power circuits where a simple gate-drive arrangement is preferred.

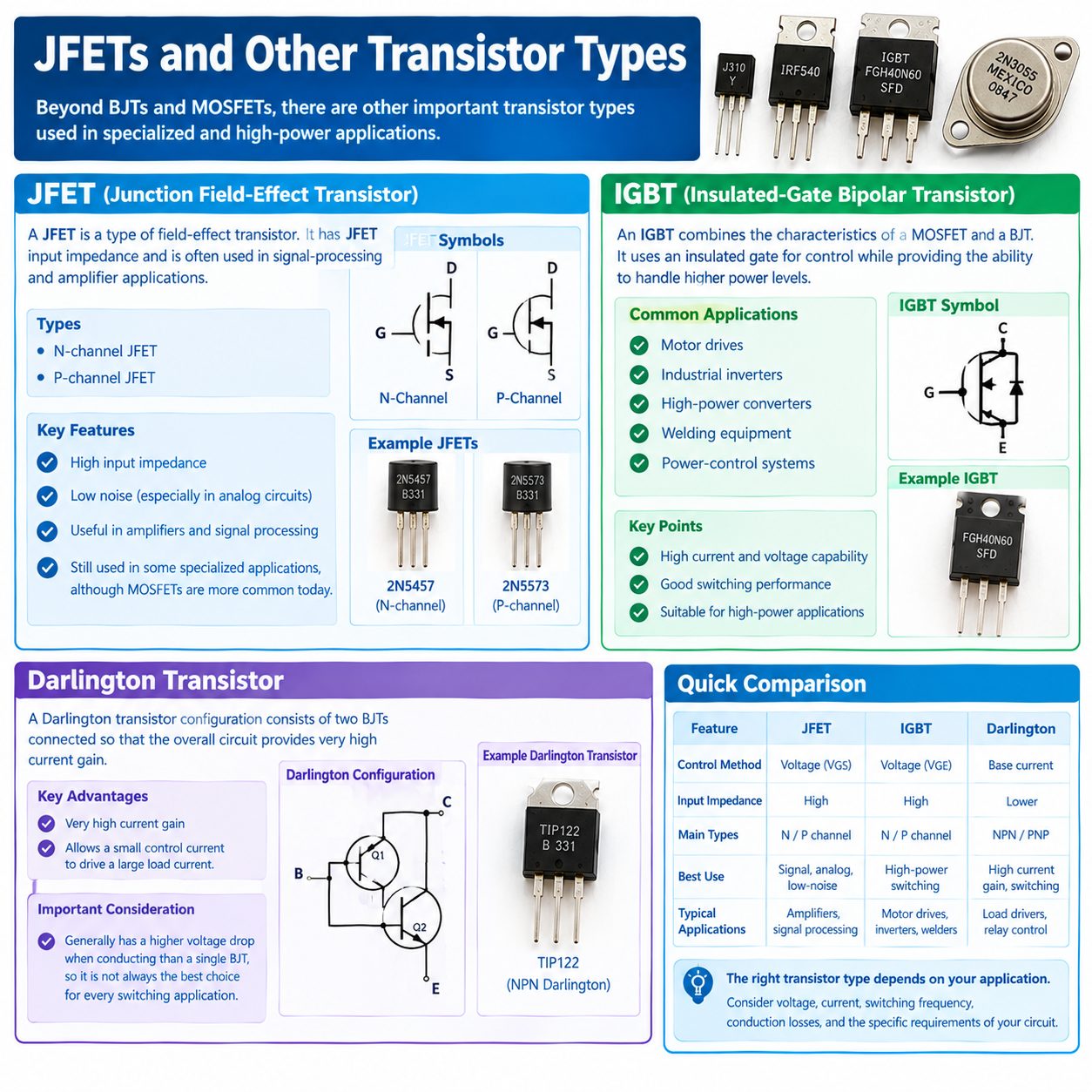

8. JFETs and Other Transistor Types

JFET

A Junction Field-Effect Transistor (JFET) is another type of field-effect transistor.

JFETs have high input impedance and are often used in signal-processing and amplifier applications. They are available as:

• N-channel JFETs
• P-channel JFETs

They remain useful in certain low-noise, analog, and specialized circuits, although MOSFETs dominate many modern applications.

IGBT

An Insulated-Gate Bipolar Transistor (IGBT) combines characteristics of MOSFET and BJT technologies.

It uses an insulated gate for control while providing characteristics useful for higher-power applications.

IGBTs are commonly encountered in:

• Motor drives
• Industrial inverters
• High-power converters
• Welding equipment
• Power-control systems

The choice between an IGBT and MOSFET depends strongly on voltage, current, switching frequency, conduction losses, and application requirements.

Darlington Transistor

• A Darlington transistor configuration consists of two BJTs connected so that the overall circuit provides very high current gain.
• This can be useful when a very small control current must control a relatively large load current.
• However, a Darlington arrangement generally has a higher voltage drop when conducting than a single BJT, so it is not automatically the best choice for every switching application.

9. Transistor Operating Modes

A transistor can behave differently depending on how it is biased.

For a BJT, three important operating regions are:

• Cutoff
• Active
• Saturation

Cutoff

• In cutoff, the transistor is essentially OFF.
• For a switching circuit, this means the load current is ideally close to zero.

Active Region

• In the active region, the transistor operates between cutoff and saturation.
• This region is particularly important for analog amplification.
• The transistor can use a smaller input signal to control a larger output signal.

Saturation

• In saturation, a BJT is driven strongly ON.
• This is commonly used when the transistor is functioning as a switch.
• The collector-emitter voltage becomes relatively low, although it is not exactly zero. The actual VCE(sat) depends on the transistor and operating conditions.
• For MOSFET switching, designers generally focus on the device’s on-state resistance and operating conditions rather than describing operation using BJT terms such as saturation.

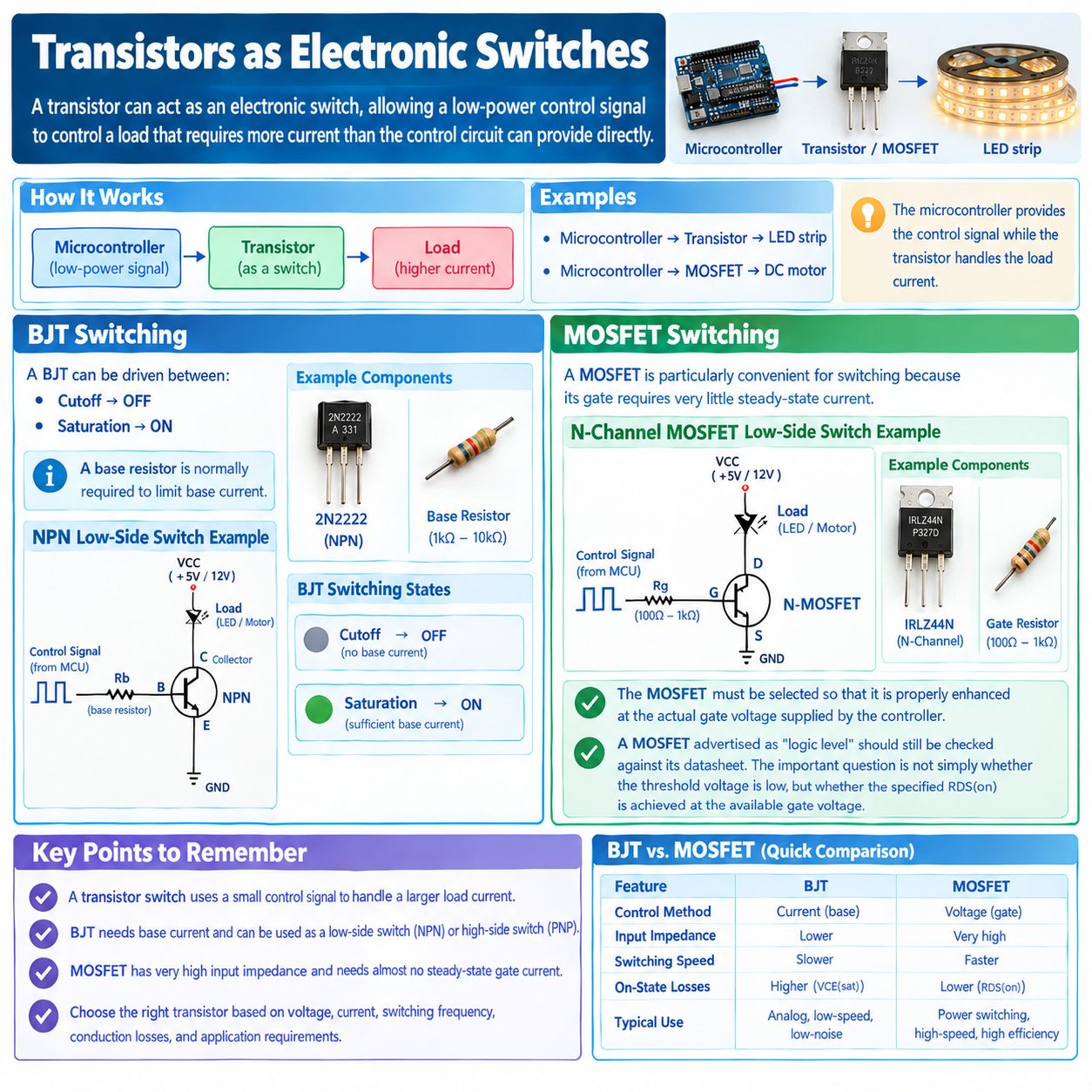

10. Transistors as Electronic Switches

One of the most common uses of a transistor is as an electronic switch.

A transistor switch allows a low-power control signal to control a load that requires more current than the control circuit can provide directly.

For example:  Microcontroller → Transistor → LED strip

or:  Microcontroller → MOSFET → DC motor

The microcontroller provides the control signal while the transistor handles the load current.

BJT Switching

A BJT can be driven between:

• Cutoff → OFF
• Saturation → ON

A base resistor is normally required to limit base current.

For example, an NPN transistor can be used as a low-side switch:

• VCC → Load → Collector
• Emitter → GND
• Control signal → Base resistor → Base

When the control signal is applied, base current turns the transistor on and allows current through the load.

MOSFET Switching

A MOSFET is particularly convenient for switching because its gate requires very little steady-state current.

For a low-side N-channel MOSFET circuit:

• VCC → Load → Drain
• Source → GND
• Control signal → Gate

However, the MOSFET must be selected so that it is properly enhanced at the actual gate voltage supplied by the controller.

A MOSFET advertised as “logic level” should still be checked against its datasheet. The important question is not simply whether the threshold voltage is low, but whether the specified RDS(on) is achieved at the available gate voltage.

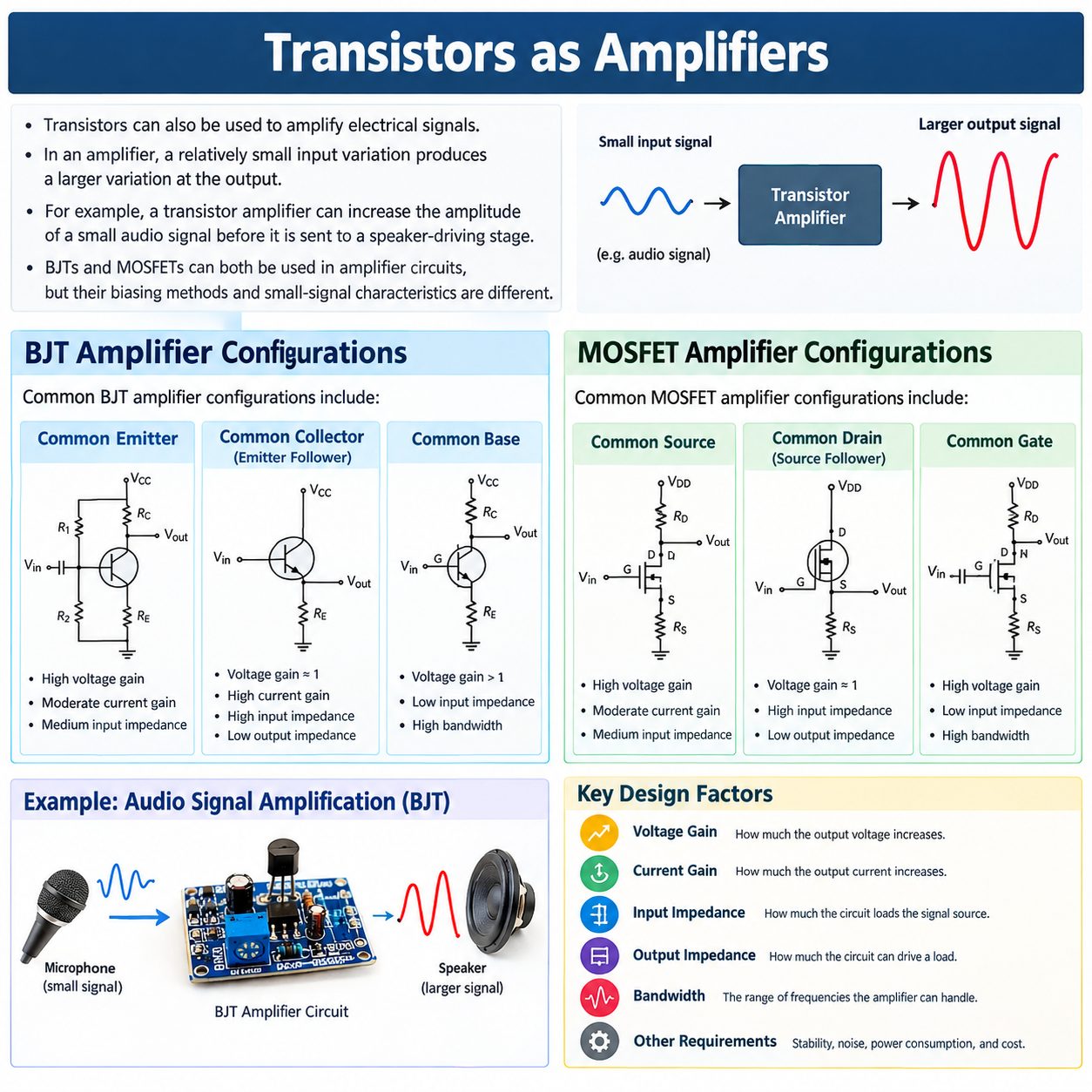

11. Transistors as Amplifiers

• Transistors can also be used to amplify electrical signals.
• In an amplifier, a relatively small input variation produces a larger variation at the output.
• For example, a transistor amplifier can increase the amplitude of a small audio signal before it is sent to a speaker-driving stage.
• BJTs and MOSFETs can both be used in amplifier circuits, but their biasing methods and small-signal characteristics are different.

Common BJT amplifier configurations include:

• Common emitter
• Common collector
• Common base

Common MOSFET amplifier configurations include:

• Common source
• Common drain
• Common gate

The choice of configuration depends on the required voltage gain, current gain, input impedance, output impedance, bandwidth, and other design requirements.

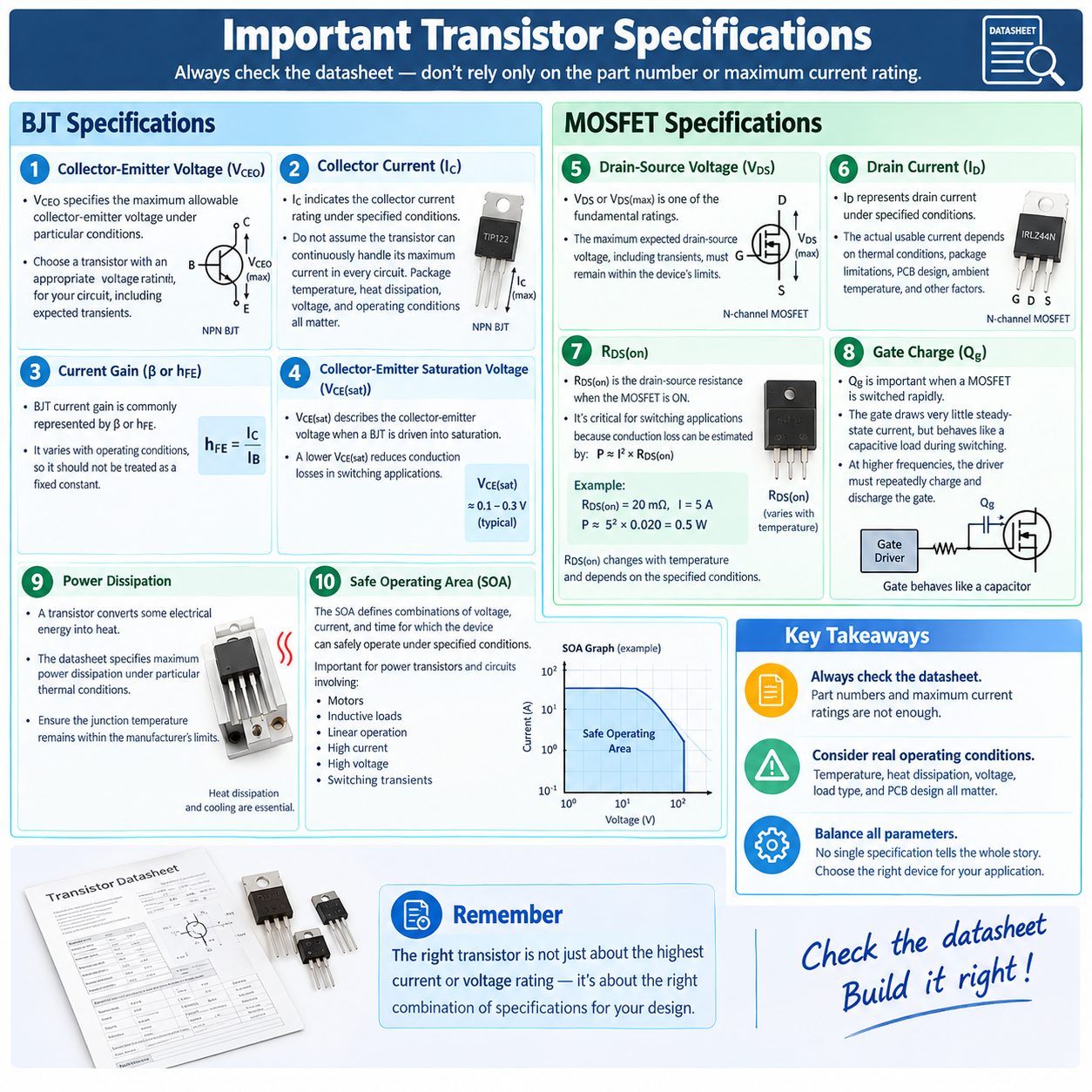

12. Important Transistor Specifications

Selecting a transistor based only on its part number or maximum current rating can lead to design problems.

The datasheet should always be checked.

Collector-Emitter Voltage — BJT

• For a BJT, parameters such as VCEO specify maximum allowable collector-emitter voltage under particular conditions.
• The selected transistor should have an appropriate voltage rating for the circuit, including expected transients.

Collector Current — BJT

• IC indicates the collector current rating under specified conditions.
• Do not assume that a transistor can continuously operate at its maximum advertised current in every circuit. Package temperature, heat dissipation, voltage, and operating conditions matter.

Current Gain — BJT

• BJT current gain is commonly represented by β or hFE.
• It is useful for understanding the transistor’s behavior, but it varies with operating conditions. Therefore, it should not normally be treated as a fixed constant.

Collector-Emitter Saturation Voltage

• VCE(sat) describes the collector-emitter voltage when a BJT is driven into saturation under specified conditions.
• A lower VCE(sat) can reduce conduction losses in switching applications.

Drain-Source Voltage — MOSFET

• For a MOSFET, VDS or VDS(max) is one of the fundamental ratings.
• The maximum expected drain-source voltage, including transients, must remain within the device’s safe limits.

Drain Current — MOSFET

• ID represents drain current under specified conditions.
• The actual usable current depends on thermal conditions, package limitations, PCB design, ambient temperature, and other factors.

RDS(on)

• RDS(on) is the MOSFET’s drain-source resistance when it is ON under specified conditions.
• It is extremely important for switching applications because conduction loss can approximately be estimated as:  P ≈ I² × RDS(on)

For example:

if a MOSFET has an effective RDS(on) of 20 mΩ and carries 5 A:

• P ≈ 5² × 0.020
• P ≈ 0.5 W

The actual result can differ because RDS(on) changes with temperature and depends on the conditions under which it is specified.

Lower RDS(on) generally means lower conduction loss, but other parameters must also be considered.

Gate Charge

• Qg, or total gate charge, is important when a MOSFET is switched rapidly.
• Although a MOSFET gate draws very little steady-state current, the gate behaves significantly like a capacitive load during switching.
• At higher switching frequencies, gate charge becomes increasingly important because the driver must repeatedly charge and discharge the gate.

Power Dissipation

• A transistor converts some electrical energy into heat.
• The datasheet may specify maximum power dissipation under particular thermal conditions.
• The design must ensure that the junction temperature remains within the manufacturer’s limits.

Safe Operating Area

The Safe Operating Area (SOA) defines combinations of voltage, current, and time for which the device can safely operate under specified conditions.

This becomes particularly important for power transistors and circuits involving:

• Motors
• Inductive loads
• Linear operation
• High current
• High voltage
• Switching transients

13. BJT vs. MOSFET

The following comparison provides a practical starting point.

This does not mean that one technology is universally better.

The correct choice depends on the application, operating voltage, current, switching frequency, thermal conditions, control signal, cost, and required performance.

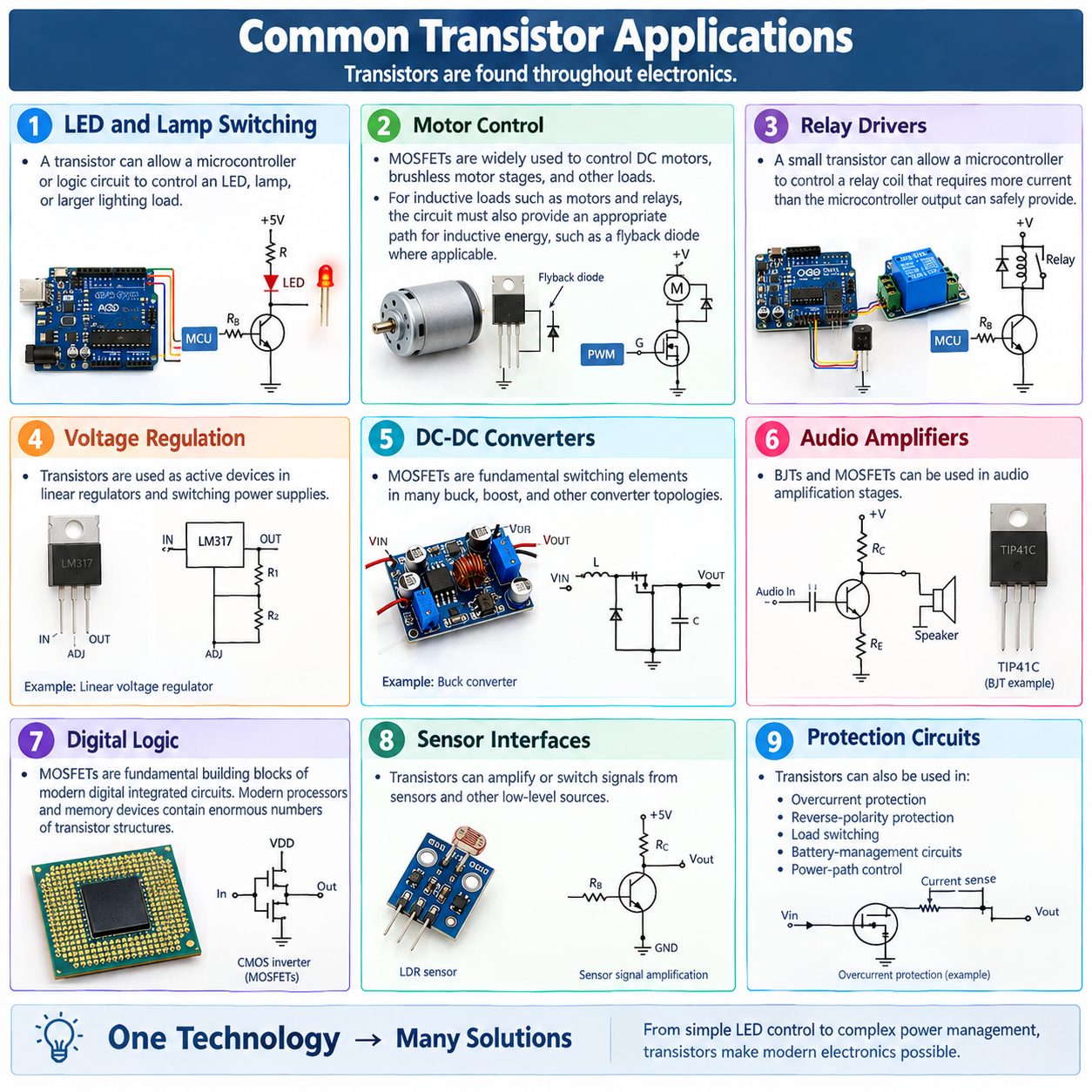

14. Common Transistor Applications

Transistors are found throughout electronics.

LED and Lamp Switching

A transistor can allow a microcontroller or logic circuit to control an LED, lamp, or larger lighting load.

Motor Control

MOSFETs are widely used to control DC motors, brushless motor stages, and other loads.

For inductive loads such as motors and relays, the circuit must also provide an appropriate path for inductive energy, such as a flyback diode where applicable.

Relay Drivers

A small transistor can allow a microcontroller to control a relay coil that requires more current than the microcontroller output can safely provide.

Voltage Regulation

Transistors are used as active devices in linear regulators and switching power supplies.

DC-DC Converters

MOSFETs are fundamental switching elements in many buck, boost, and other converter topologies.

Audio Amplifiers

BJTs and MOSFETs can be used in audio amplification stages.

Digital Logic

MOSFETs are fundamental building blocks of modern digital integrated circuits. Modern processors and memory devices contain enormous numbers of transistor structures.

Sensor Interfaces

Transistors can amplify or switch signals from sensors and other low-level sources.

Protection Circuits

Transistors can also be used in:

• Overcurrent protection
• Reverse-polarity protection
• Load switching
• Battery-management circuits
• Power-path control

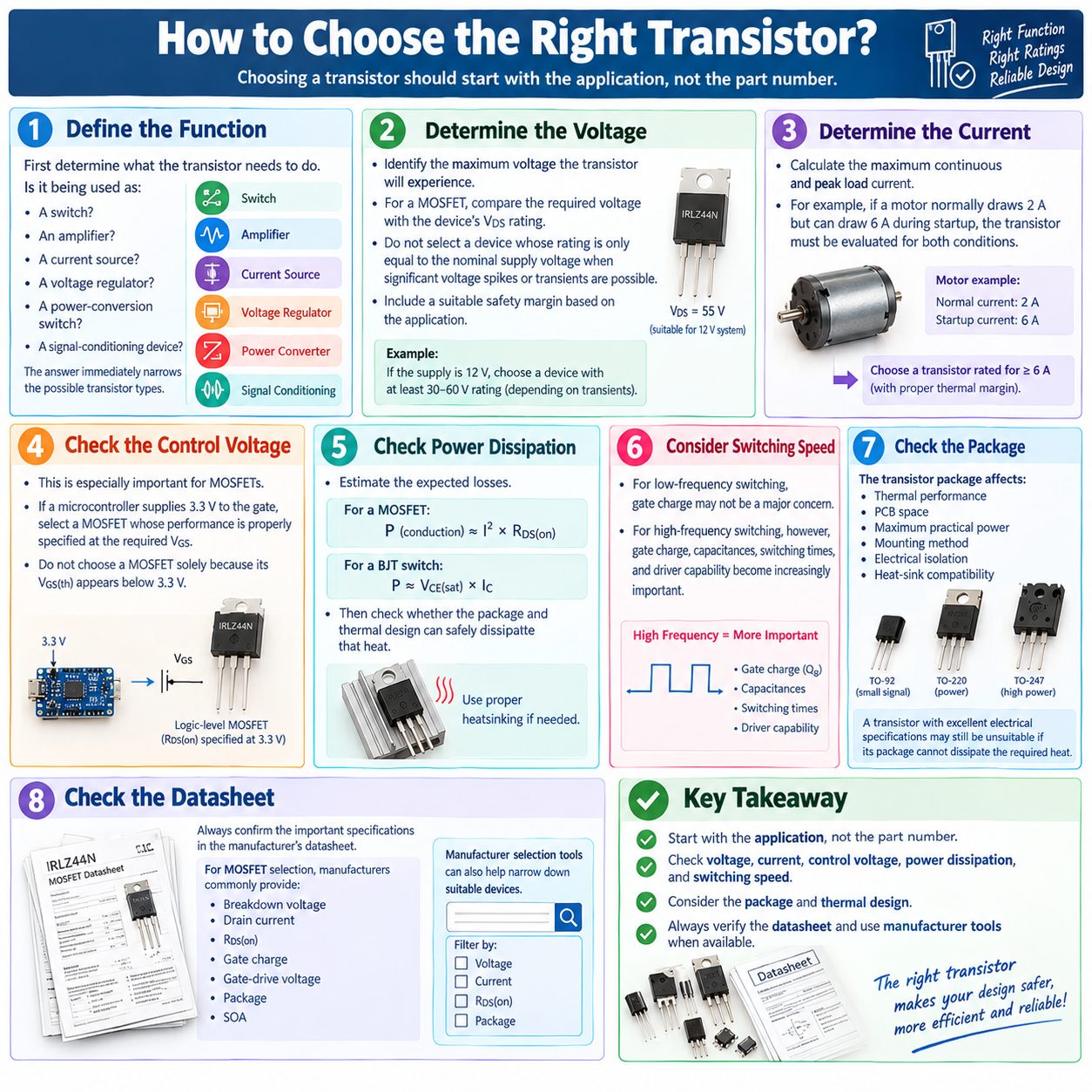

15. How to Choose the Right Transistor?

Choosing a transistor should start with the application, not the part number.

Step 1: Define the Function

First determine what the transistor needs to do.

Is it being used as:

• A switch?
• An amplifier?
• A current source?
• A voltage regulator?
• A power-conversion switch?
• A signal-conditioning device?

The answer immediately narrows the possible transistor types.

Step 2: Determine the Voltage

• Identify the maximum voltage the transistor will experience.
• For a MOSFET, compare the required voltage with the device’s VDS rating.
• Do not select a device whose rating is only equal to the nominal supply voltage when significant voltage spikes or transients are possible.
• A suitable safety margin should be included based on the application.

Step 3: Determine the Current

• Calculate the maximum continuous and peak load current.
• For example, if a motor normally draws 2 A but can draw 6 A during startup, the transistor must be evaluated for both conditions.

Step 4: Check the Control Voltage

• This is especially important for MOSFETs.
• If a microcontroller supplies 3.3 V to the gate, select a MOSFET whose performance is properly specified at the required VGS.
• Do not choose a MOSFET solely because its VGS(th) appears below 3.3 V.

Step 5: Check Power Dissipation

• Estimate the expected losses.
• For a MOSFET:  P (conduction)≈ I² × RDS(on)
• For a BJT switch, conduction loss can be approximated from the saturation voltage:  P ≈ VCE(sat) × IC
• Then check whether the package and thermal design can safely dissipate that heat.

Step 6: Consider Switching Speed

• For low-frequency switching, gate charge may not be a major concern.
• For high-frequency switching, however, gate charge, capacitances, switching times, and driver capability become increasingly important.

Step 7: Check the Package

The transistor package affects:

• Thermal performance
• PCB space
• Maximum practical power
• Mounting method
• Electrical isolation
• Heat-sink compatibility

A transistor with excellent electrical specifications may still be unsuitable if its package cannot dissipate the required heat.

Step 8: Check the Datasheet

Always confirm the important specifications in the manufacturer’s datasheet.

For MOSFET selection, manufacturers commonly provide selection parameters such as:

• Breakdown voltage
• Drain current
• RDS(on)
• Gate charge
• Gate-drive voltage
• Package
• SOA

Manufacturer selection tools can also help narrow down suitable devices.

16. Practical Transistor Circuit Considerations

A transistor is rarely used completely by itself. The surrounding circuit is often just as important as the transistor.

BJT Base Resistor

• A resistor is normally placed between the control source and a BJT base to limit base current.
• Connecting a BJT base directly to a voltage source can result in excessive current and damage the transistor or the driving circuit.

MOSFET Gate Resistor

• A gate resistor can be useful for controlling gate charging current, reducing ringing, and managing switching behavior.
• Its exact value depends on the transistor, driver, PCB layout, switching frequency, and application.

Gate Pull-Down Resistor

A pull-down resistor can help ensure that an N-channel MOSFET remains OFF when the microcontroller is starting up or when its GPIO is temporarily high impedance.

Common Ground

• For many low-side switching circuits, the controller and transistor circuit need a suitable common reference.
• However, isolated circuits require different design practices.

Inductive Loads

• Motors, relay coils, solenoids, and similar loads can generate significant voltage transients when their current is interrupted.
• A suitable suppression method, such as a flyback diode for appropriate DC inductive loads, should be considered.

Heat Dissipation

Power losses create heat.

For higher-power applications, evaluate:

• Junction temperature
• Ambient temperature
• Thermal resistance
• PCB copper area
• Heat sink
• Airflow

Never assume that the maximum current printed in a product listing represents the current that can always be handled without additional thermal considerations.

17. Testing a Transistor with a Multimeter

A multimeter can provide a useful basic check of a BJT.

Set the multimeter to diode-test mode.

A BJT contains two PN junctions associated with the base, so a normal BJT can show diode-like behavior when tested appropriately.

For an NPN transistor, the base-to-emitter and base-to-collector junctions should normally show forward conduction in the appropriate probe orientation.

For a PNP transistor, the polarity is reversed.

A short circuit between terminals or unexpected conduction in both directions can indicate a damaged transistor.

However, a basic multimeter test does not prove that a transistor is fully functional under operating voltage, current, frequency, or temperature conditions.

Important Warning

Before testing a transistor in a circuit:

• Turn the power OFF.
• Discharge capacitors where necessary.
• Avoid measuring a powered circuit with the diode-test function unless the meter and procedure are specifically designed for that measurement.
• Remember that other components connected to the transistor can affect the reading.

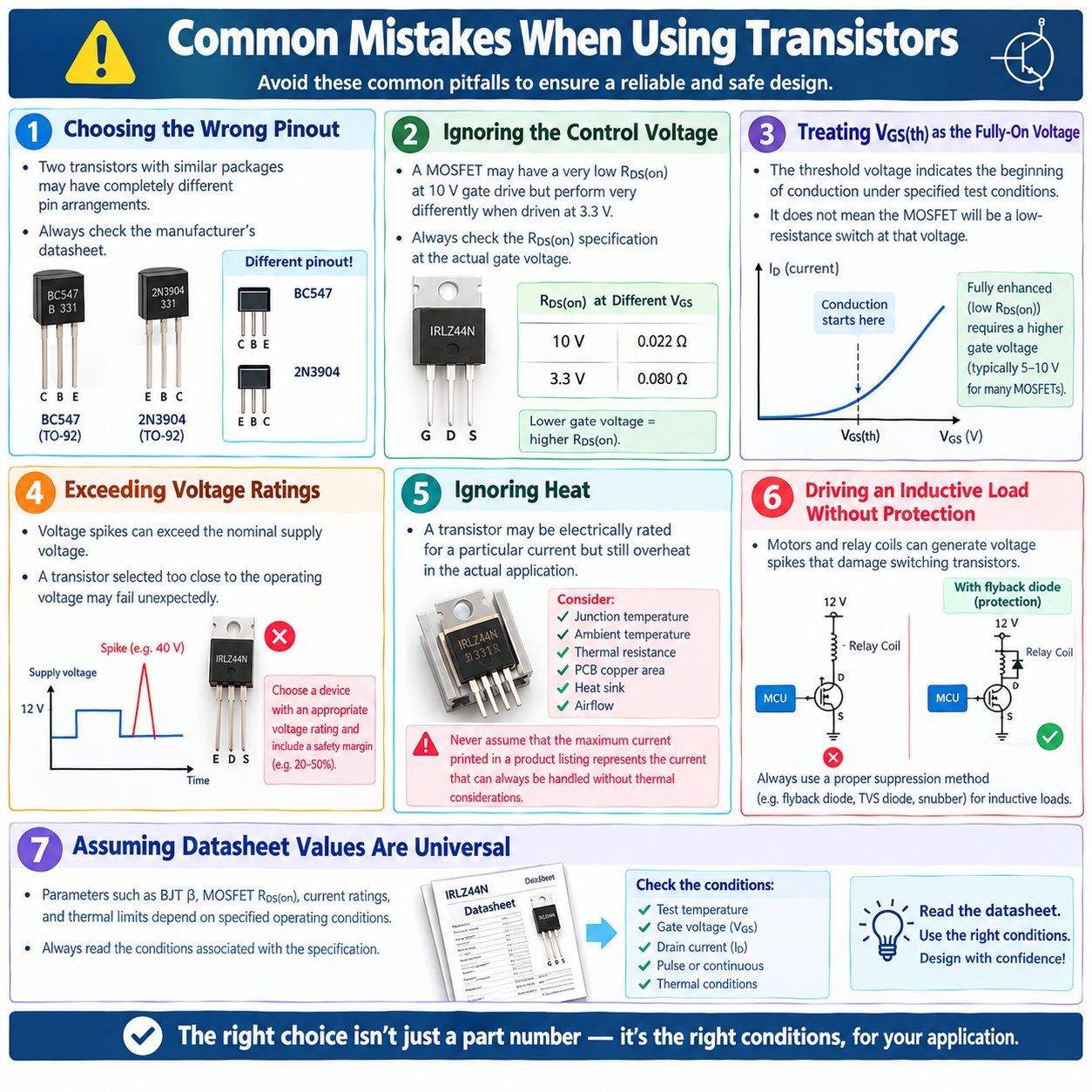

18. Common Mistakes When Using Transistors

Choosing the Wrong Pinout

Two transistors with similar packages may have completely different pin arrangements.

Always check the manufacturer’s datasheet.

Ignoring the Control Voltage

A MOSFET may have a very low RDS(on) at 10 V gate drive but perform very differently when driven at 3.3 V.

Always check the RDS(on) specification at the actual gate voltage.

Treating VGS(th) as the Fully-On Voltage

The threshold voltage indicates the beginning of conduction under specified test conditions. It does not mean the MOSFET will be a low-resistance switch at that voltage.

Exceeding Voltage Ratings

Voltage spikes can exceed the nominal supply voltage.

A transistor selected too close to the operating voltage may fail unexpectedly.

Ignoring Heat

A transistor may be electrically rated for a particular current but still overheat in the actual application.

Driving an Inductive Load Without Protection

Motors and relay coils can generate voltage spikes that damage switching transistors.

Assuming Datasheet Values Are Universal

Parameters such as BJT β, MOSFET RDS(on), current ratings, and thermal limits depend on specified operating conditions.

Always read the conditions associated with the specification.

19. Frequently Asked Questions

What is the main purpose of a transistor?

A transistor is primarily used to control electrical current or voltage. Common applications include switching, amplification, regulation, and signal processing.

What is the difference between a BJT and a MOSFET?

A BJT is primarily controlled by base current, while a MOSFET is controlled by the voltage between its gate and source. MOSFETs also have very high DC input impedance because the gate is insulated from the channel.

Which is better, BJT or MOSFET?

Neither is universally better. MOSFETs are often excellent for power switching, while BJTs remain useful for amplification, current-control circuits, and many switching applications.

Can a transistor replace a relay?

A transistor can replace a relay in many electronic switching applications, particularly when electrical isolation and mechanical contacts are not required. However, a relay may still be preferable when galvanic isolation or switching different voltage domains is required.

Can I connect a motor directly to a microcontroller pin?

Generally, no. A typical microcontroller GPIO cannot safely provide the current required by many motors. A suitable transistor or MOSFET driver stage should normally be used.

Why is a resistor needed with a BJT base?

The base-emitter junction behaves similarly to a forward-biased PN junction. A resistor limits base current and protects both the transistor and the circuit driving the base.

Does a MOSFET gate consume current?

A MOSFET gate draws extremely little steady-state DC current because it is insulated. However, current is required to charge and discharge its gate capacitance during switching.

What does RDS(on) mean?

RDS(on) is the drain-source resistance of a MOSFET when it is turned on under specified conditions. A lower value generally reduces conduction losses.

What does transistor β mean?

For a BJT, β or hFE represents the ratio of collector current to base current under specified conditions:

β = IC / IB

It varies with operating conditions and should not be treated as a universal constant.

What is a logic-level MOSFET?

A logic-level MOSFET is designed to operate effectively with relatively low gate-drive voltages commonly available from digital circuits. Nevertheless, the datasheet should always be checked to confirm its RDS(on) at the actual control voltage.

How do I choose a transistor for a microcontroller project?

First determine the load voltage and current, then choose a transistor with suitable voltage and current ratings. For a MOSFET, also verify that its RDS(on) is specified at the microcontroller’s actual GPIO voltage.

20. Conclusion

Transistors are fundamental building blocks of modern electronics. Although there are many transistor technologies and configurations, understanding a few core principles makes them much easier to work with.

The two most important families for practical electronic design are BJTs and MOSFETs. BJTs use base current to control collector current, while MOSFETs use gate-source voltage to control conduction between the drain and source.

Transistors can operate as switches, amplifiers, regulators, drivers, and power-control devices. Selecting the correct transistor requires more than checking its maximum current rating. The designer should consider voltage, current, control voltage, RDS(on) or VCE(sat), power dissipation, thermal conditions, switching speed, gate charge, SOA, and package limitations.

For beginners, a good starting point is to understand the practical use of an NPN BJT as a switch and an N-channel MOSFET as a low-side switch. Once these circuits are understood, more advanced applications such as motor control, power converters, amplifier stages, and protection circuits become much easier to understand.

Most importantly, always use the manufacturer’s datasheet as the final authority when selecting and designing around a specific transistor. Product listings and general transistor guides are useful for learning, but the datasheet provides the conditions and limits required for a reliable engineering design.
