The 74132 IC is a Quad 2-Input NAND Schmitt-Trigger with noise immunity, ideal for stable signal processing and reliable logic in digital circuits.
74132 Quad 2-Input NAND Schmitt-Trigger 5V IC DIP-14
18.00 ج.م
متوفرالكود 4616609982232
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
74132 Quad 2-Input NAND Schmitt-Trigger 5V IC DIP-14
The 74132 is a Quad 2-Input NAND Schmitt-Trigger integrated circuit, designed to provide noise immunity and hysteresis for digital signal processing. This IC contains four independent 2-input NAND gates with Schmitt-trigger inputs, making it ideal for use in applications where noise and signal fluctuations need to be minimized, ensuring stable and reliable logic transitions.
Features:
- Four independent 2-input NAND gate.
- Schmitt-trigger inputs with hysteresi.
- Improved noise immunit.
- Supports waveform shaping and pulse conditioning.
- Suitable for digital signal processing.

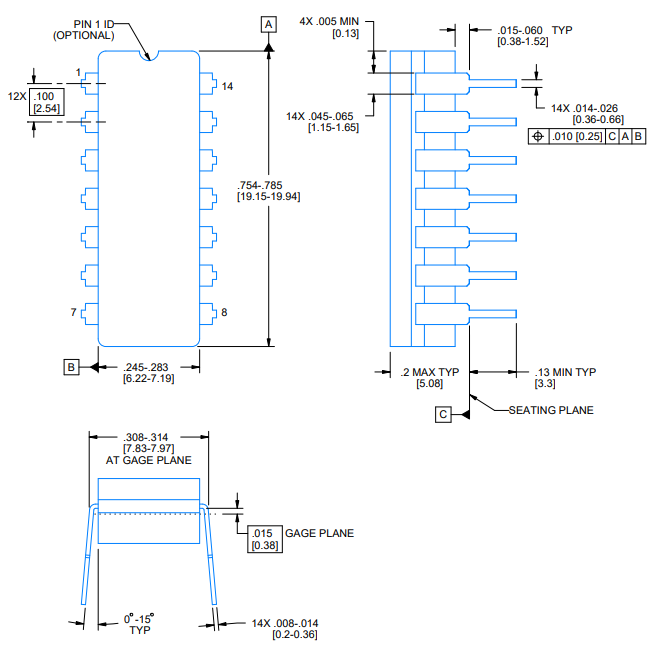

- Through-hole DIP package.
- TTL-compatible logic in standard 74132-family implementations.
Specifications:
| Physical | |
| Case/Package | DIP |
| Mount | Through Hole |
| Number of Pins | 14 |
| Technical | |
| High Level Output Current | -5.2 mA |
| Logic Function | NAND |
| Low Level Output Current | 5.2 mA |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 6 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 2 V |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5 V |
| Output Current | 5.2 mA |
| Propagation Delay | 32 ns |
| Quiescent Current | 2 µA |
Pinout
| Pin # | Type | Description |
|---|---|---|
| 1 | Input | Input to the first NAND gate. |
| 2 | Input | Input to the first NAND gate. |
| 3 | Output | Output from the first NAND gate. |
| 4 | Input | Input to the second NAND gate. |
| 5 | Input | Input to the second NAND gate. |
| 6 | Output | Output from the second NAND gate. |
| 7 | Power | Connect to ground (GND). |
| 8 | Output | Output from the third NAND gate. |
| 9 | Input | Input to the third NAND gate. |
| 10 | Input | Input to the third NAND gate. |
| 11 | Output | Output from the fourth NAND gate. |
| 12 | Input | Input to the fourth NAND gate. |
| 13 | Input | Input to the fourth NAND gate. |
| 14 | Power | Positive power supply (VCC). Connect to +5V power. |
Package Included:
- 1 × 74132 Quad 2-Input NAND Schmitt-Trigger IC, DIP-14.
Documents:
