74151 Multiplexer Single 8:1 5V 29mA IC DIP-16
The 74151 Single 8:1 Multiplexer is a digital logic integrated circuit designed to select one of eight digital data inputs using three binary selection inputs. This allows multiple signals to share a single output path, reducing the amount of additional logic required in digital systems.
The IC includes complementary output options and an enable input for controlling its operation. Its DIP-16 through-hole package makes it suitable for printed circuit boards, breadboard experiments, and digital electronics projects. It is commonly used in signal selection, logic design, data routing, and control circuits.
Features:
- ‘150 Selects One-of-Sixteen Data Sources
- Others Select One-of-Eight Data Sources
- All Perform Parallel-to-Serial Conversion
- All Permit Multiplexing from N Lines to One Line
- Also For Us as Boolean Function Generator
- Input-Clamping Diodes Simplify System Design
- Fully Compatible with Most TTL Circuits,
Technical Specifications
| Physical | |

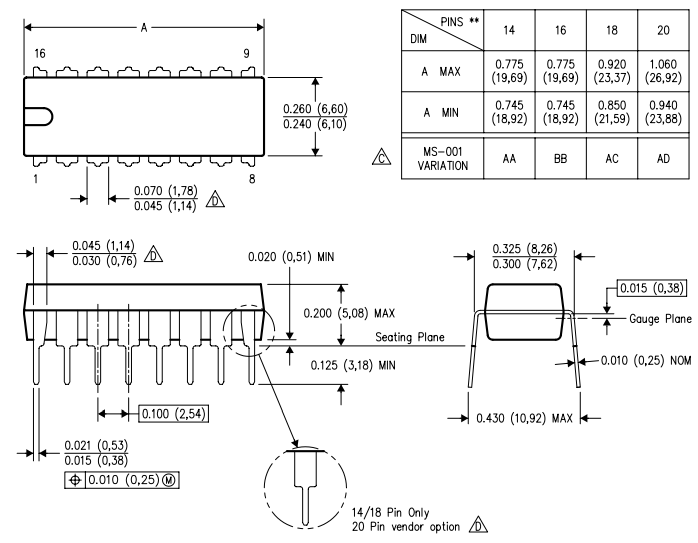

| Case/Package | PDIP |
| Contact Plating | Gold |
| Mount | Through Hole |
| Number of Pins | 16 |
| Technical | |
| Bandwidth | 28 MHz |
| High Level Output Current | 5.2 mA |
| Independent Circuits | 1 |
| Logic Function | Multiplexer |
| Low Level Output Current | 5.2 mA |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 6 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 2 V |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 8 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Propagation Delay | 31 ns |
| Supply Type | Single |
Pinout
| 1 | D3 | multiplexer input |
| 2 | D2 | multiplexer input |
| 3 | D1 | multiplexer input |
| 4 | D0 | multiplexer input |
| 5 | Y | multiplexer output |
| 6 | Y | complementary multiplexer output |
| 7 | E | enable input (active low) |
| 8 | GND | ground |
| 9 | S2 | select input |
| 10 | S1 | select input |
| 11 | S0 | select input |
| 12 | D7 | multiplexer input |
| 13 | D6 | multiplexer input |
| 14 | D5 | multiplexer input |
| 15 | D4 | multiplexer input |
| 16 | Vcc | supply voltage |
Applications:
- Digital signal selection.
- Data routing and switching.
- Digital logic circuit design.
- Microprocessor and controller interfaces.
- Communication and control systems.
- Educational electronics projects.
- Logic function implementation.
Package Included:
- 1 × 74151 Multiplexer Single 8:1 5V 29mA IC DIP-16
