74158 Quad 2-to-1 Data Selectors/Multiplexers 5V 30mA IC DIP-16
The 74158 is a Quad 2-input multiplexer IC, featuring four 2-input multiplexers that select data based on control signals, widely used in digital switching applications.
25.00 ج.م
متوفرالكود 7197416445464
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
74158 Quad 2-to-1 Data Selectors/Multiplexers 5V 30mA IC DIP-16
The 74LS158 is a Quad 2-Input Multiplexer integrated circuit (IC), which means t contains four independent 2-input multiplexers. Each multiplexer selects one of two inputs based on a common select Line (S). and it also features active-low enable pins for output control This IC belongs to the 74LS series, known for using low-power Schottky technology, ensuring high-speed operation with low power consumption.
Features:
- Quad 2-Input Multiplexers: Contains four independent 2-input multiplexers, each capable of selecting between two inputs.
- Common Select Line: A single select line (S) controls which input (A or B) is routed to the output for all four multiplexers.
- Active-Low Enable: The outputs are enabled or disabled based on the active-low enable pin (E), allowing control over the multiplexer outputs.
- Inverted Outputs: The outputs are inverted, meaning the selected input is inverted at the output.
- High-Speed Operation: Uses low-power Schottky (LS) technology for fast switching and low power consumption.
- Standard TTL Compatibility: Directly compatible with other TTL logic devices.
- DIP-16 Package: Compact 16-pin dual in-line package, suitable for easy use in breadboards and PCB designs.
Specifications
| Product Attribute | Attribute Value |
| Product Category: | Encoders, Decoders, Multiplexers & Demultiplexers |
| Product: | 74158 Selectors / Multiplexers |
| Logic Family: | LS |
| Number of Input Lines: | 2 Input |
| Number of Output Lines: | 1 Output |
| Package/Case: | PDIP-16 |
| Number of Bits: | 4 bit |
| Propagation Delay Time: | 14 ns |
| Supply Voltage – Min: | 4.75 V |
| Supply Voltage – Max: | 5.25 V |
| Mounting Style: | Through Hole |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Function: | Multiplexer |
| High Level Output Current: | – 400 uA |
| Logic Type: | Data Selectors/Multiplexers |
| Low Level Output Current: | 8 mA |
| Maximum Clock Frequency: | 35 MHz |
| Number of Circuits: | 4 Circuit |
| Operating Supply Voltage: | 5 V |
| Product Type: | Encoders, Decoders, Multiplexers & Demultiplexers |

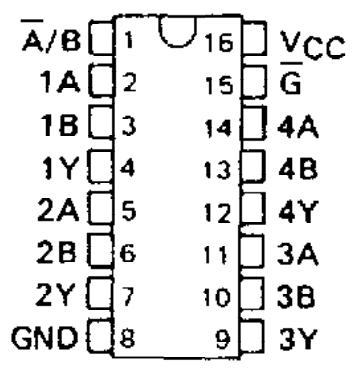

Pinout:
Applications:
- Digital signal selection and routing.
- Data bus switching.
- Digital logic circuit design.
- Processor and controller interface circuits.
- Selection between two 4-bit data sources.
- Educational electronics and prototyping.
Package Included:
- 1 × 74158 Quad 2-to-1 Data Selectors/Multiplexers 5V 30mA IC DIP-16
