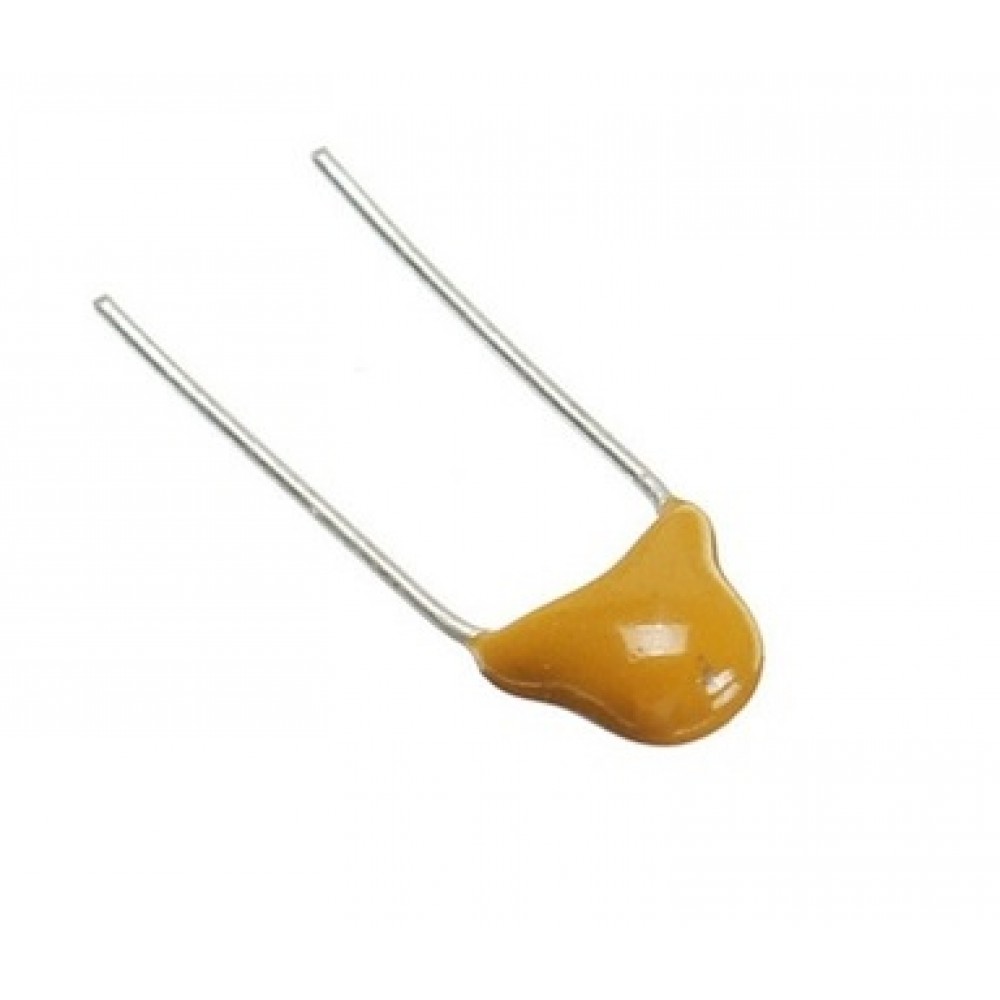

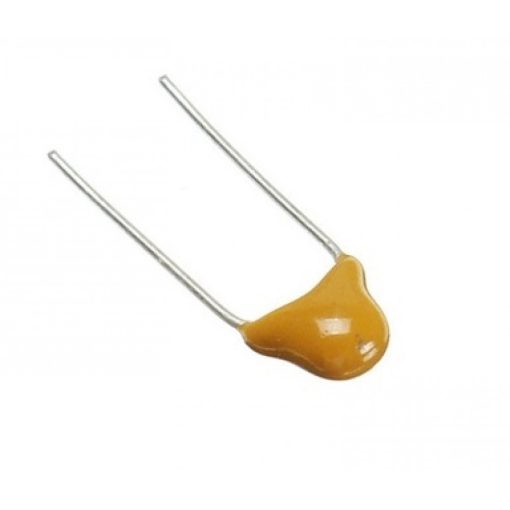

Ceramic Capacitor 22pF 50V
A compact 22pF, 50 VDC multi‑layer ceramic capacitor (MLCC) offering low losses, high stability, and wide temperature range for general‑purpose decoupling, filtering and timing applications.
Features
- Precision capacitance: 22pF
- Rated voltage: 50 VDC
- Dielectric type: X7R (–55 °C to +125 °C)
- High insulation resistance & excellent long‑term stability
- Compact, space‑saving package
Specifications
| Parameter | Value |
|---|---|
| Capacitance | 22pF |
| Tolerance | ±10% |
| Rated Voltage | 50 VDC |
| Dielectric | X7R |
| Package | Through Hole |
| Operating Temperature | –55 °C to +125 °C |

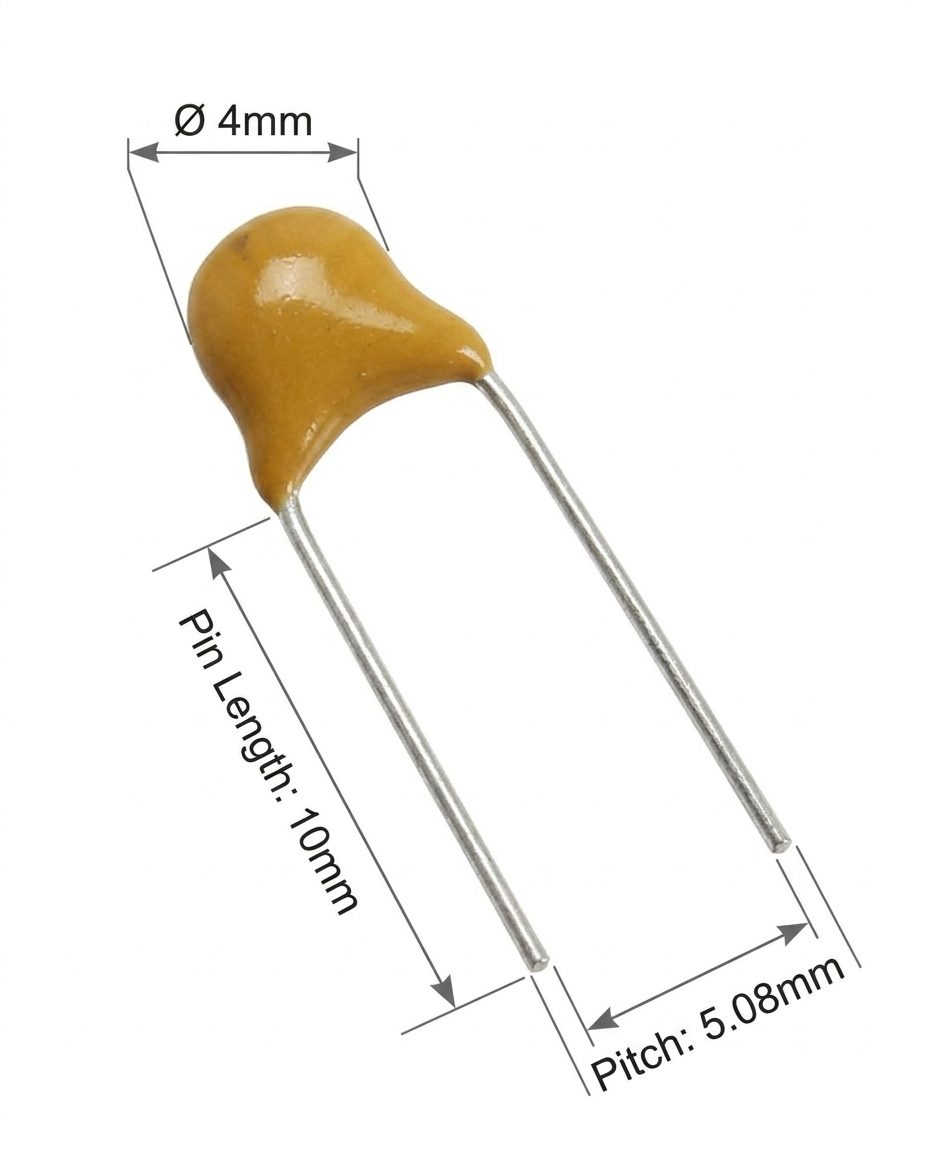

| Pitch | 5.08mm |
Applications
- Power‑supply decoupling & bypass
- Analog & digital signal filtering
- Timing, oscillator & pulse‑shaping circuits
- EMI/RFI noise suppression
- Data‑line coupling & AC‑grounding
- General‑purpose consumer, automotive, and industrial electronics
Package Include
1x Ceramic-Capacitor 22pF 50V
