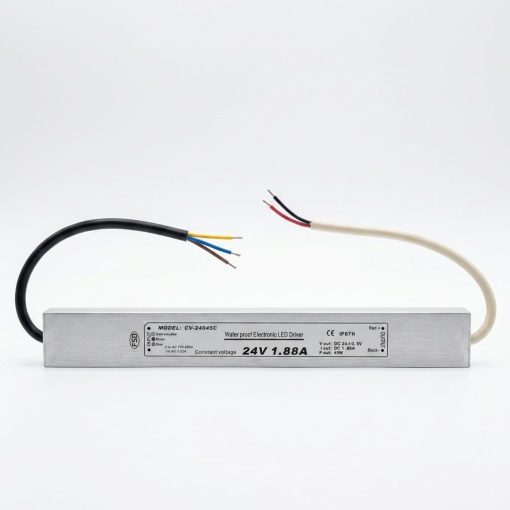

CV-24045C Slim Waterproof LED Driver 24VDC 1.88A 45W IP67
The CV-24045C Slim Waterproof LED Driver 24VDC 1.88A 45W IP67 is a compact constant-voltage electronic LED driver designed to convert AC mains power into a regulated 24VDC output for compatible LED lighting systems. The product label identifies the unit as model CV-24045C and specifies a 24VDC, 1.88A, 45W constant-voltage output.
Features:
- Constant-voltage LED power supply with 24VDC output.
- 45W maximum rated output power.
- 1.88A rated output current.
- 24VDC±0.5V specified output voltage.
- 170–250VAC input voltage range.
- 0.32A labeled input current.
- IP67-rated waterproof enclosure.
- Slim 250mm-long housing for space-constrained installations.
Specifications:
| Parameter | Value |
|---|---|
| Model | CV-24045C |
| Product Type | Waterproof Electronic LED Driver |
| Input Voltage | 170–250VAC |
| Nominal Input | 220VAC |
| Input Current | 0.32A |
| Output Voltage | 24VDC±0.5V |
| Output Current | 1.88A |
| Output Power | 45W |
| Output Type | Constant Voltage |
| Protection Rating | IP67 |
| Certification Marking | CE |
| Input Cable Length | 20cm |
| Input Conductors | Brown, Blue, Green/Yellow |
| Output Cable Length | 25cm |
| Output Conductors | Red, Black |
| Housing Length | 250mm |
| Housing Width | 21mm |
| Housing Height | 31.5mm |
Wire Configuration:
| Wire Configuration | Function |
|---|---|
| Brown | AC Live (L) input. |
| Blue | AC Neutral (N) input. |
| Yellow/Green | Protective Earth (PE) / Ground. |
| Red | DC Positive (+) output. |
| Black | DC Negative (−) output. |
Applications:
- 24V LED strip lighting systems.
- 24V LED modules.
- Indoor LED lighting installations.
- Suitable outdoor LED lighting installations when the complete installation maintains the required environmental protection.
- Architectural and decorative LED lighting.
- Cabinet and display LED lighting.
- Signage and advertising LED lighting.
- Other compatible 24V constant-voltage LED loads.
Package Include:
1x CV-24045C Slim Waterproof LED Driver 24VDC 1.88A 45W IP67
