IRF3205 N-Channel Power MOSFET Transistor 55V 110A 8mΩ TO-220
High-performance IRF3205 MOSFET with 110A current capacity, 55V voltage rating, 8mΩ Rds(on), perfect for efficient power switching in demanding applications.
IRF3205 N-Channel Power MOSFETTransistor 55V 110A 8mΩ TO-220
The IRF3205 is a high-current N-Channel MOSFET that can switch currents upto 110A and 55V. The specialty of the MOSFET is that it has very low on resistance of only 8.0mΩ making it suitable for switching circuits like Inverters, motor speed control, DC-DC converter etc. It is also one of the easily available and cheap MOSFET with a low on-resistance.
So if you looking for a MOSFET to be used in your switching circuit that operates below 55V and less than 110A you can consider using the IRF3205. Note that the IRF3205 has high threshold voltage and hence not ideal for on/off control with embedded controllers. You can try the IRF540Nfor that purpose.
Features:
N-Channel Power MOSFET.
Continuous Drain Current (ID) is 110A when VGS is 10V.
Minimum Gate threshold voltage 2V.
Drain to Source Breakdown Voltage: 55V.
Low On-Resistance of 8.0mΩ.
Gate-Source Voltage is (VGS) is ±20V.
Rise time is 101ns.
It is commonly used with power-switching circuits.
Available in To-220 package.
Specifications:
Parameter
Value
Drain-to-Source Voltage
55V
Continuous Drain Current (25°C)
110A
Continuous Drain Current (100°C)
80A
Pulsed Drain Current
390A
Static Drain-to-Source On-Resistance
8.0mΩ
Gate-to-Source Voltage
±20V
Power Dissipation (25°C)
200W
Junction-to-Case Thermal Resistance
0.75°C/W
Junction-to-Ambient Thermal Resistance
62°C/W
Operating Junction Temperature
-55 to 175°C
Storage Temperature Range
-55 to 175°C

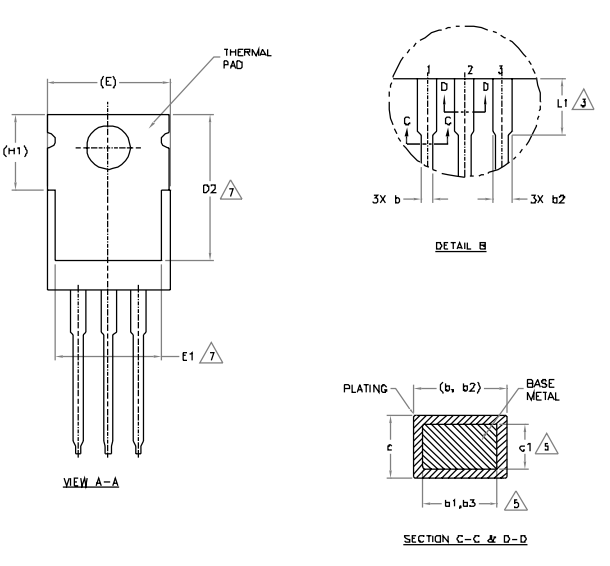

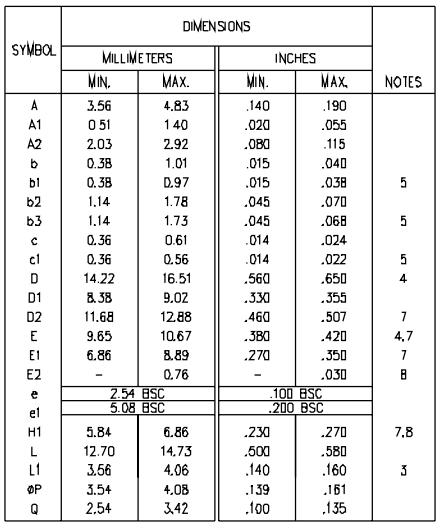

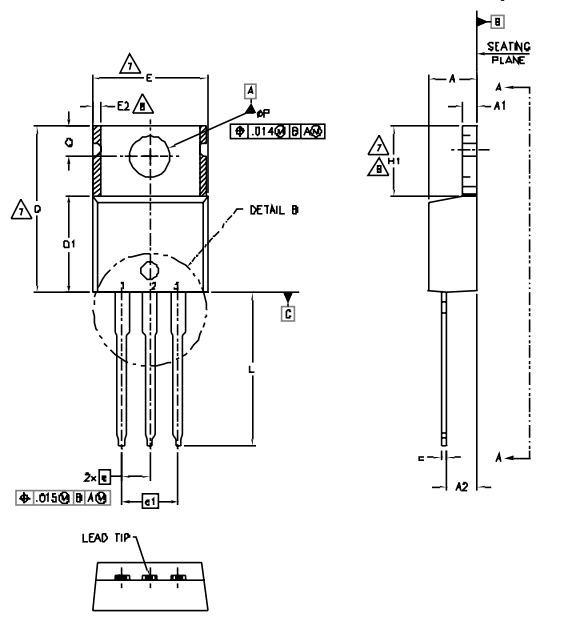

Pin Configuration & Foot print:
Pin Number
Pin Name
Description
1
Gate
Controls the biasing of the MOSFET
2
Drain
Current flows in through Drain
3
Source
Current flows out through Source
Applications:
Switching Applications.
Boost converters.
Choppers.
Solar inverters.
Speed control.
Package Contents:
1x IRF3205 N-Channel Power MOSFET 55V-110A-8mΩ TO-220
