LH.NOVA Aluminum Electrolytic Capacitor 100µF 25V 6.3x7mm

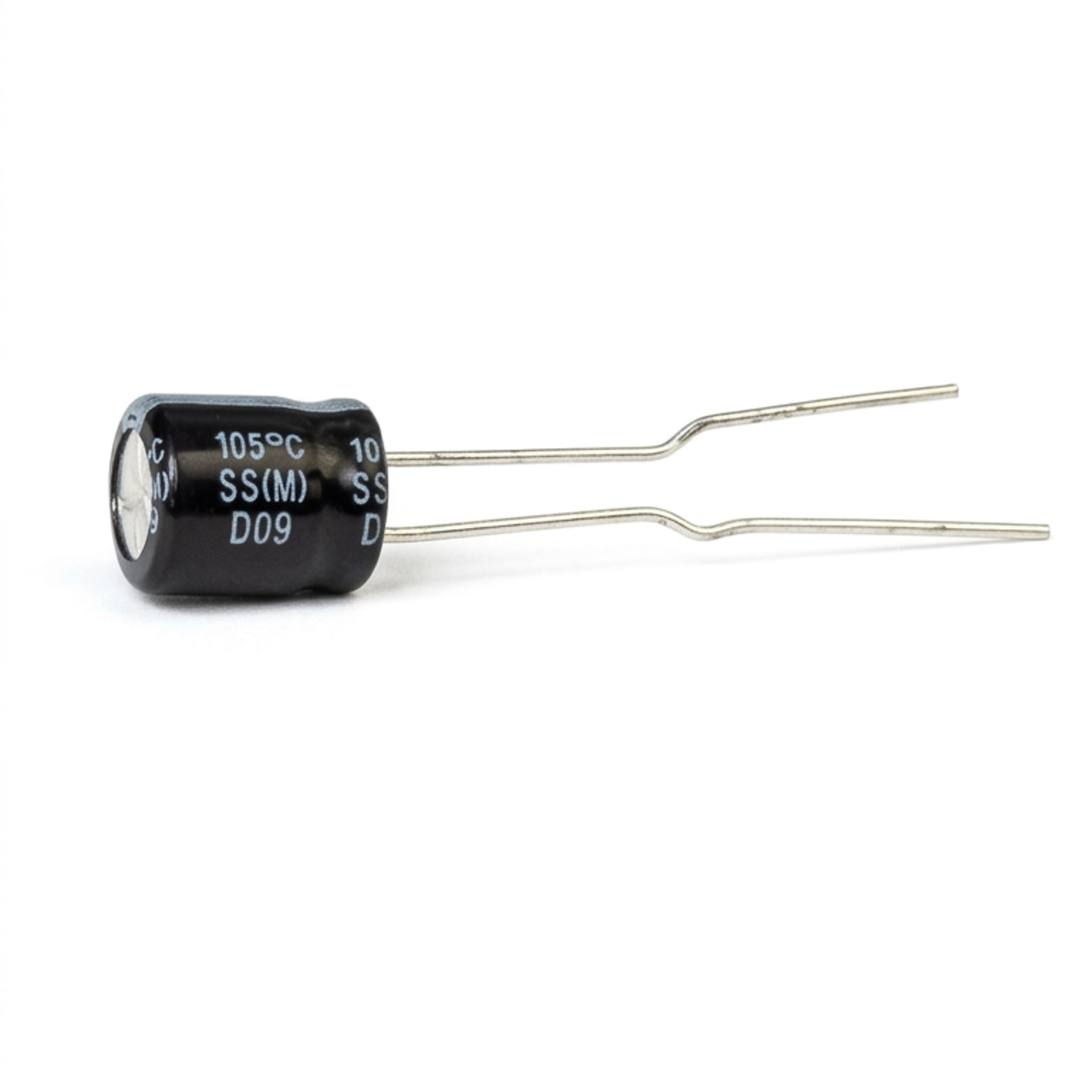

Radial leaded aluminum electrolytic capacitor 100µF 25V, 105°C, SS(M) D09, LH.NOVA, polarity stripe, 6.3x7mm through-hole body.
1.00 ج.م
متوفرالكود 3496300160655
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
LH.NOVA Aluminum Electrolytic Capacitor 100µF 25V 6.3x7mm

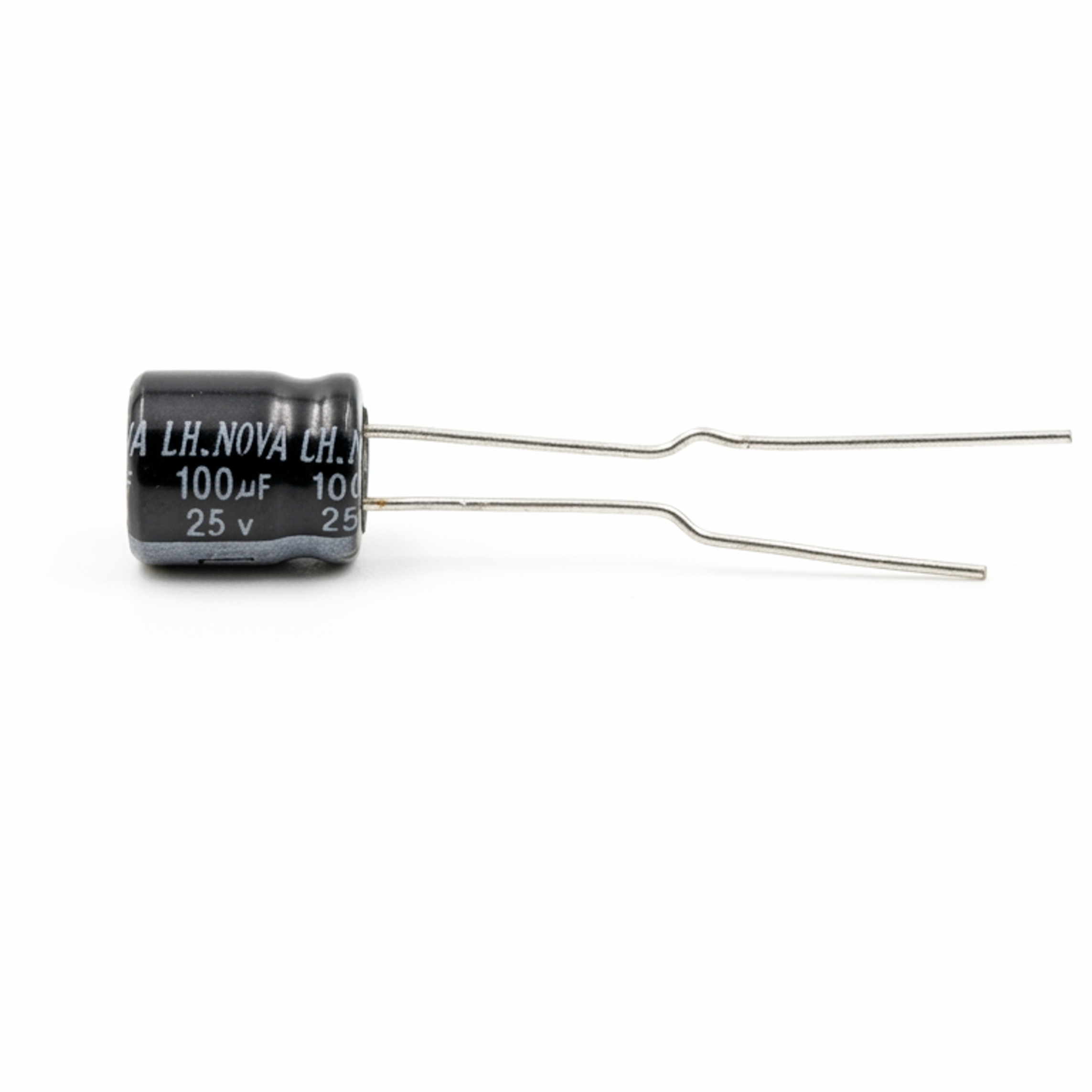

This component is a radial leaded (through-hole) aluminum electrolytic capacitor. The sleeve printing reads “LH.NOVA”, “100µF” (capacitance), “25 V” (rated voltage), “105°C” (maximum operating temperature). The capacitor features two long radial leads for through-hole PCB mounting. Housed in a compact 6.3 x 7 mm (diameter x length) body, it is a general-purpose electrolytic capacitor suited to filtering, smoothing and coupling duties in low-voltage DC circuits.
Features
- Radial leaded (through-hole) construction with two straight leads for easy PCB mounting
- High-temperature capability up to 105°C as printed on the sleeve

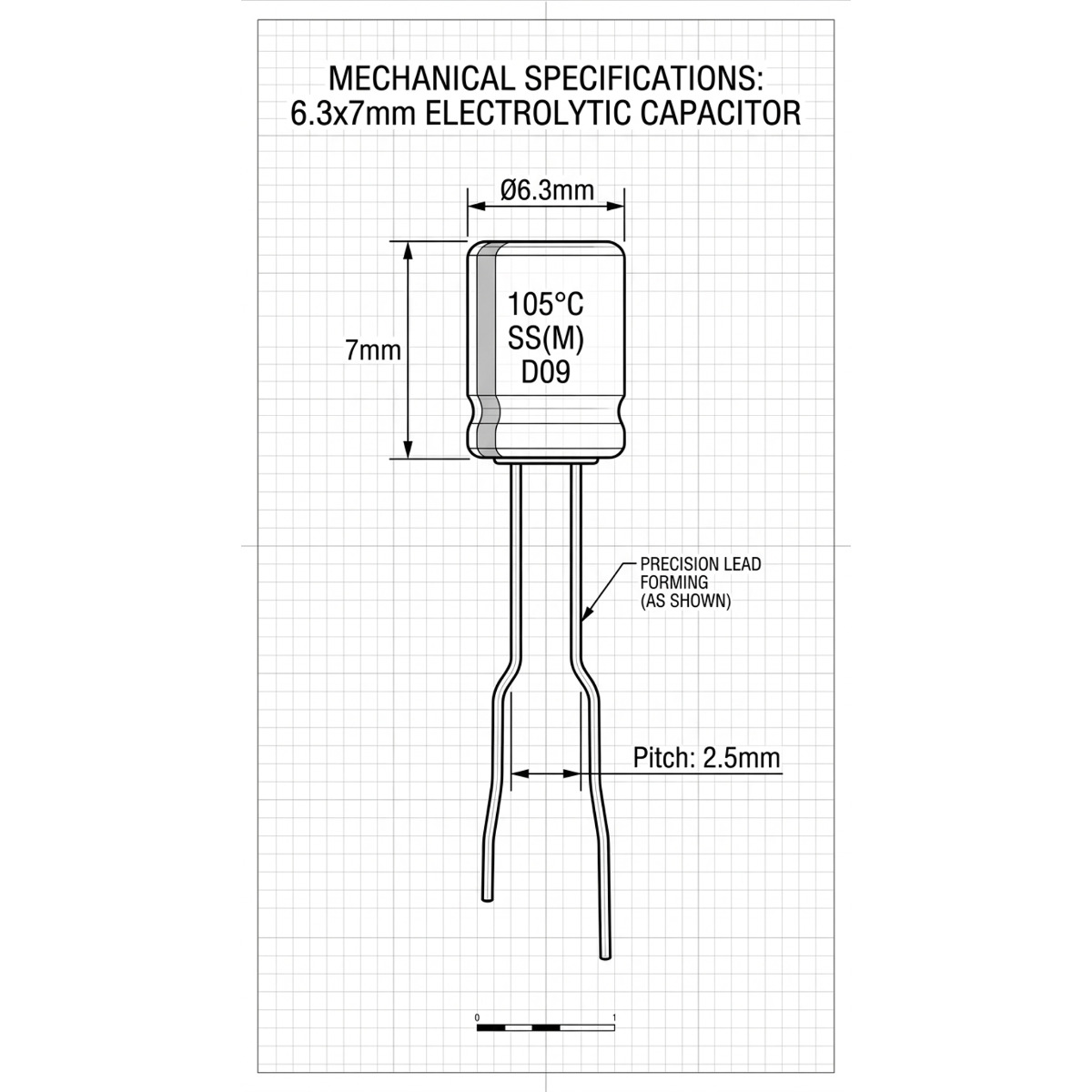

- Compact 6.3 x 7 mm (D x L) body size
Specifications
| Component Type | Radial leaded aluminum electrolytic capacitor |
| Capacitance | 100 µF |
| Rated Voltage | 25 V |
| Max. Operating Temperature | 105°C |
| Dimensions (D x L) | 6.3 x 7 mm |
| Lead Type | Radial, 2 leads (through-hole) |
| Polarity | Polarized |
Applications
- Smoothing and filtering in low-voltage DC power supplies (up to 25 V)
- Input/output decoupling and bulk energy storage on printed circuit boards
- Backup and energy-storage duties in low-voltage electronics
- General-purpose through-hole applications in enclosures up to 105°C
Package Content
- 1 x LH.NOVA Aluminum Electrolytic Capacitor 100µF 25V 6.3x7mm
