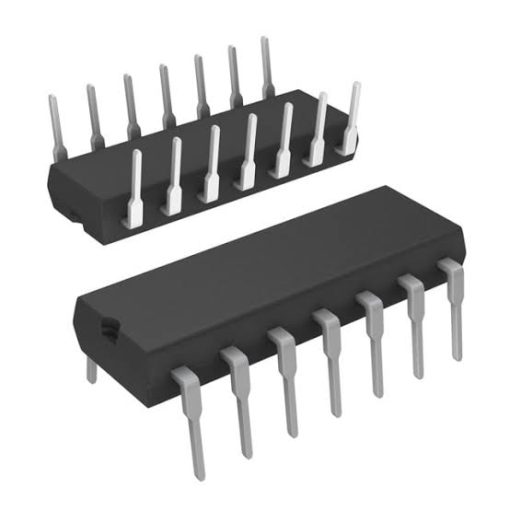

Name: PIC16F630 8-Bit FLASH CMOS Microcontroller 2.0–5.5V 8.5µA PDIP-14
SKU: 3496300064472
Price: 125.00 EGP
Availability: InStock

PIC16F630 8-Bit FLASH CMOS Microcontroller 2.0–5.5V 8.5µA PDIP-14

The PIC16F630 is a 14-pin FLASH-based 8-bit CMOS microcontroller from Microchip, featuring a RISC CPU with 35 instructions, operation up to 20MHz oscillator/clock input, 12 general-purpose I/O pins, FLASH program memory, SRAM, EEPROM data memory, an analog comparator with programmable voltage reference, Timer0 and Timer1, interrupt capability, multiple oscillator options, SLEEP mode, Watchdog Timer, Brown-out Detect, and In-Circuit Serial Programming (ICSP).

Features

8-bit RISC CPU architecture
Only 35 instructions
Single-cycle instructions except branches
Up to 20MHz oscillator/clock input
200ns instruction cycle
8-level deep hardware stack
Direct, indirect and relative addressing
1K x 14 words FLASH program memory
64 bytes SRAM
128 bytes EEPROM
12 general-purpose I/O pins
Individual I/O direction control
High-current sink/source capability for direct LED drive
Analog comparator module
Programmable on-chip comparator voltage reference (CVREF)
Timer0 8-bit timer/counter with programmable prescaler
Enhanced Timer1 16-bit timer/counter with prescaler
Internal and external oscillator options
Precision internal 4MHz oscillator calibrated to ±1%
SLEEP power-saving mode
Power-on Reset (POR)
Power-up Timer (PWRT)
Oscillator Start-up Timer (OST)
Brown-out Detect (BOD)
Watchdog Timer with independent oscillator
Interrupt-on-pin-change
Individual programmable weak pull-ups
Programmable code protection
In-Circuit Serial Programming via two pins
FLASH endurance: 100,000 write cycles
EEPROM endurance: 1,000,000 write cycles
FLASH/Data EEPROM retention: greater than 40 years
Industrial and Extended temperature options

Specifications

Manufacturer	Microchip Technology
Part Number	PIC16F630
Device Type	8-Bit FLASH-Based CMOS Microcontroller
CPU Architecture	High Performance RISC CPU
Instruction Set	35 instructions
Maximum Oscillator / Clock Input	20 MHz
Instruction Cycle	200 ns
Operating Voltage	2.0 V to 5.5 V
Typical Operating Current	8.5 µA @ 32 kHz, 2.0 V
Typical Operating Current	100 µA @ 1 MHz, 2.0 V
Typical Standby Current	1 nA @ 2.0 V
Watchdog Timer Current	300 nA @ 2.0 V, typical
Program Memory	1024 x 14 words FLASH
Data RAM	64 bytes
Data EEPROM	128 bytes
I/O Pins	12
Analog Comparator	1 comparator with programmable on-chip comparator voltage reference
Timer0	8-bit timer/counter with 8-bit programmable prescaler
Timer1	16-bit timer/counter with prescaler and external gate input mode
Oscillator Options	Internal and external oscillator options
Internal Oscillator	4 MHz precision internal oscillator, factory calibrated to ±1%
Reset / Protection	POR, PWRT, OST, Brown-out Detect and Watchdog Timer
Interrupt Features	Interrupt capability and interrupt-on-pin-change
Programming	In-Circuit Serial Programming (ICSP) via two pins
FLASH Endurance	100,000 write cycles
EEPROM Endurance	1,000,000 write cycles
Data Retention	Greater than 40 years for FLASH/Data EEPROM
Operating Temperature	-40°C to +85°C (Industrial); -40°C to +125°C (Extended)
