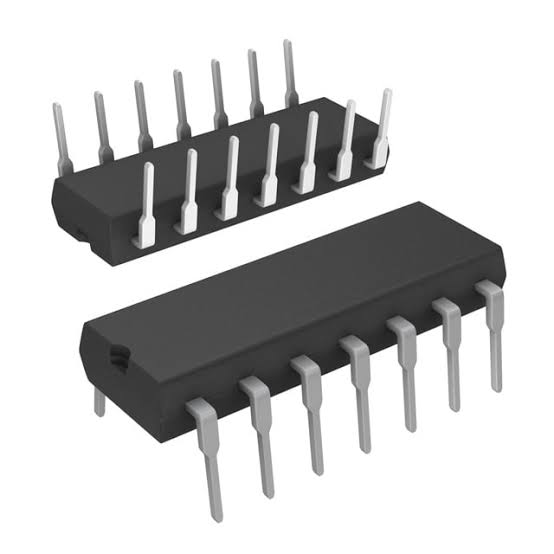

PIC16F630 8-Bit FLASH CMOS Microcontroller 2.0–5.5V 8.5µA PDIP-14
PIC16F630 8-bit FLASH microcontroller with 2.0–5.5V operation, 12 I/O pins, 64B RAM, 128B EEPROM, timers, comparator and ICSP.
125.00 EGP
In stockSKU 3496300064472
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
PIC16F630 8-Bit FLASH CMOS Microcontroller 2.0–5.5V 8.5µA PDIP-14
The PIC16F630 is a 14-pin FLASH-based 8-bit CMOS microcontroller from Microchip, featuring a RISC CPU with 35 instructions, operation up to 20MHz oscillator/clock input, 12 general-purpose I/O pins, FLASH program memory, SRAM, EEPROM data memory, an analog comparator with programmable voltage reference, Timer0 and Timer1, interrupt capability, multiple oscillator options, SLEEP mode, Watchdog Timer, Brown-out Detect, and In-Circuit Serial Programming (ICSP).
Features
- 8-bit RISC CPU architecture
- Only 35 instructions
- Single-cycle instructions except branches
- Up to 20MHz oscillator/clock input
- 200ns instruction cycle
- 8-level deep hardware stack
- Direct, indirect and relative addressing
- 1K x 14 words FLASH program memory
- 64 bytes SRAM
- 128 bytes EEPROM
- 12 general-purpose I/O pins
- Individual I/O direction control
- High-current sink/source capability for direct LED drive
- Analog comparator module
- Programmable on-chip comparator voltage reference (CVREF)
- Timer0 8-bit timer/counter with programmable prescaler
- Enhanced Timer1 16-bit timer/counter with prescaler
- Internal and external oscillator options
- Precision internal 4MHz oscillator calibrated to ±1%
- SLEEP power-saving mode
- Power-on Reset (POR)
- Power-up Timer (PWRT)
- Oscillator Start-up Timer (OST)
- Brown-out Detect (BOD)
- Watchdog Timer with independent oscillator
- Interrupt-on-pin-change
- Individual programmable weak pull-ups
- Programmable code protection
- In-Circuit Serial Programming via two pins
- FLASH endurance: 100,000 write cycles
- EEPROM endurance: 1,000,000 write cycles
- FLASH/Data EEPROM retention: greater than 40 years
- Industrial and Extended temperature options
Specifications
| Manufacturer | Microchip Technology |
| Part Number | PIC16F630 |
| Device Type | 8-Bit FLASH-Based CMOS Microcontroller |
| CPU Architecture | High Performance RISC CPU |
| Instruction Set | 35 instructions |
| Maximum Oscillator / Clock Input | 20 MHz |
| Instruction Cycle | 200 ns |
| Operating Voltage | 2.0 V to 5.5 V |
| Typical Operating Current | 8.5 µA @ 32 kHz, 2.0 V |
| Typical Operating Current | 100 µA @ 1 MHz, 2.0 V |
| Typical Standby Current | 1 nA @ 2.0 V |
| Watchdog Timer Current | 300 nA @ 2.0 V, typical |
| Program Memory | 1024 x 14 words FLASH |
| Data RAM | 64 bytes |
| Data EEPROM | 128 bytes |
| I/O Pins | 12 |
| Analog Comparator | 1 comparator with programmable on-chip comparator voltage reference |
| Timer0 | 8-bit timer/counter with 8-bit programmable prescaler |
| Timer1 | 16-bit timer/counter with prescaler and external gate input mode |
| Oscillator Options | Internal and external oscillator options |
| Internal Oscillator | 4 MHz precision internal oscillator, factory calibrated to ±1% |
| Reset / Protection | POR, PWRT, OST, Brown-out Detect and Watchdog Timer |
| Interrupt Features | Interrupt capability and interrupt-on-pin-change |
| Programming | In-Circuit Serial Programming (ICSP) via two pins |
| FLASH Endurance | 100,000 write cycles |
| EEPROM Endurance | 1,000,000 write cycles |
| Data Retention | Greater than 40 years for FLASH/Data EEPROM |
| Operating Temperature | -40°C to +85°C (Industrial); -40°C to +125°C (Extended) |
Applications
- Embedded control designs requiring an 8-bit microcontroller
- Designs using multiple general-purpose digital I/O pins
- Timer and counter-based control
- Comparator-based signal monitoring
- Low-power battery-oriented designs using SLEEP mode
- Designs requiring non-volatile FLASH and EEPROM memory
- Systems requiring ICSP in-circuit programming
- LED drive and other applications using the device’s high-current I/O capability

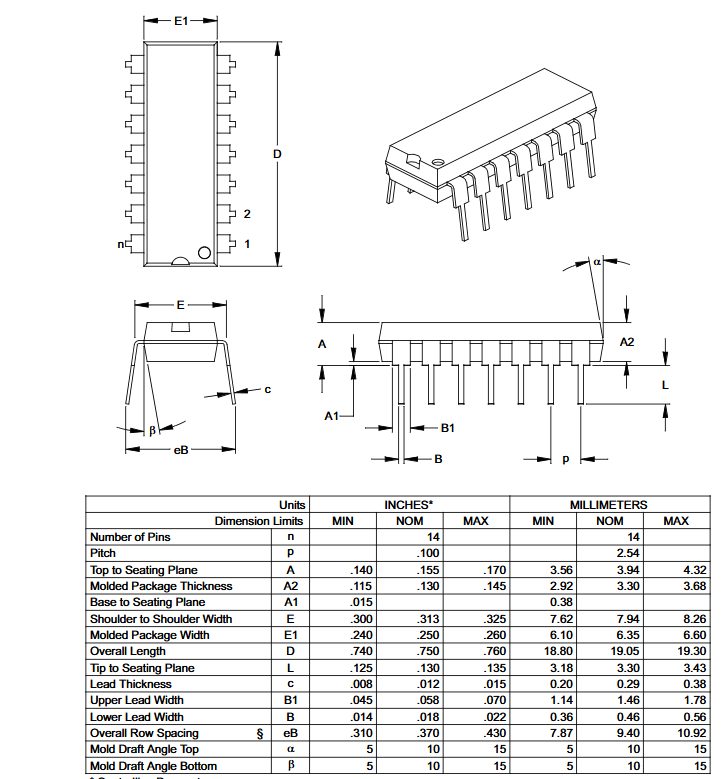

Package Content
- 1 x PIC16F630 8-Bit FLASH CMOS Microcontroller 2.0–5.5V 8.5µA PDIP-14
DataSheet
