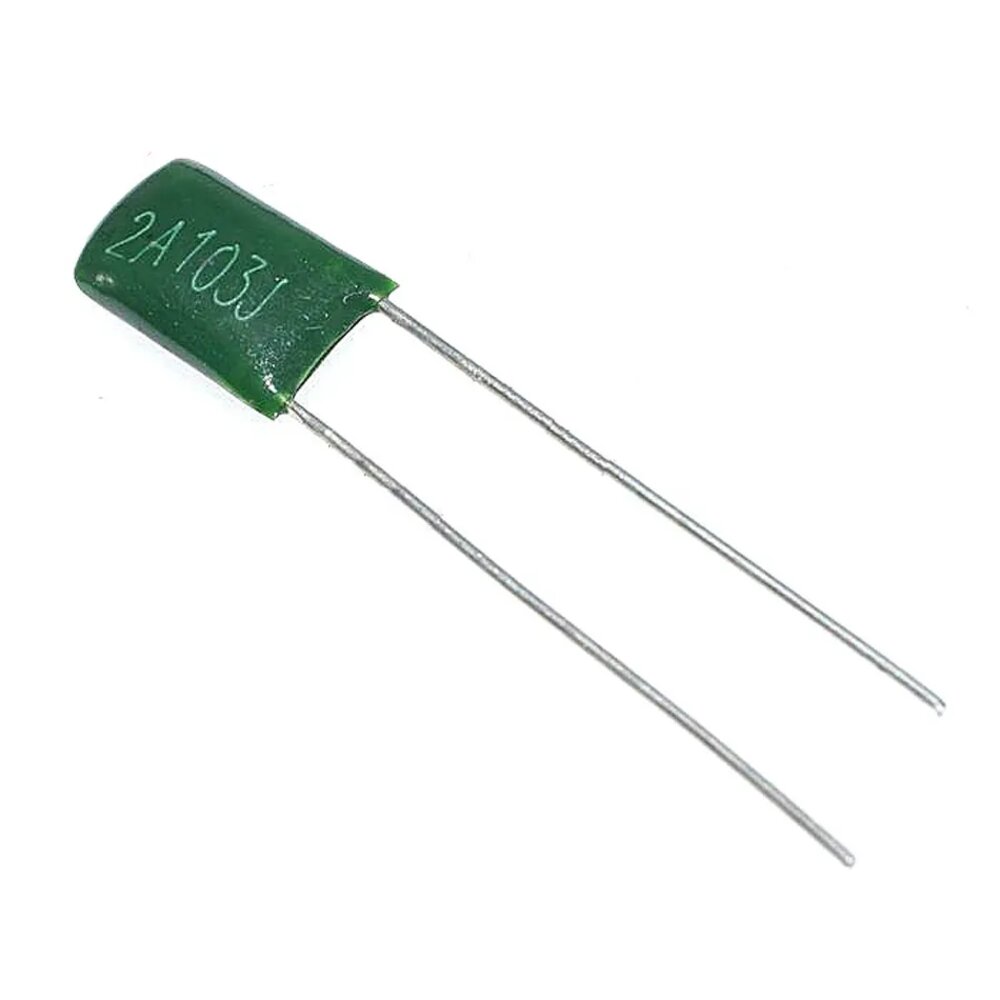

Polyester Capacitor 10nF 100V
The Polyester Capacitor 10nF 100V ±5% 4mm Pitch is a through-hole film capacitor designed for general-purpose electronic circuits. It provides a capacitance of 10nF and a rated DC voltage of 100V, with a ±5% capacitance tolerance for consistent performance in circuit applications. Maker’s Electronics identifies this component as a non-inductive, epoxy-coated capacitor with high moisture resistance.
Features:
- Non-inductive, epoxy DIP coated, high moisture resistance.
- The dissipation factor is normally low and it is stable against high frequency and change of temperature.
- Recommended for high-frequency circuits like an s-curve compensating circuit.
- High reliability because of its excellent Self-Healing performance.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Polyester Film Capacitor. |
| Capacitance | 10nF. |
| Rated Voltage | 100VDC. |
| Tolerance | ±5%. |
| Dielectric Material | Polyester Film. |
| Mounting Type | Through Hole. |
| Lead Configuration | Radial. |
| Lead Pitch | 4mm. |
| Lead Diameter | 0.5mm. |
| Leakage Current | 3µA. |
| Operating Temperature | -55°C to 125°C. |
| Length | 10mm. |
| Width | 5.5mm. |
Applications:
- High-frequency circuits.
- S-curve compensation circuits.
- Signal coupling.
- Signal filtering.
- Decoupling circuits.
- Timing circuits.
- Noise suppression.
- General-purpose PCB circuits.
- Electronic repair and replacement.
- Prototyping and development.
Package Include:
1x Polyester Capacitor 10nF 100V.
