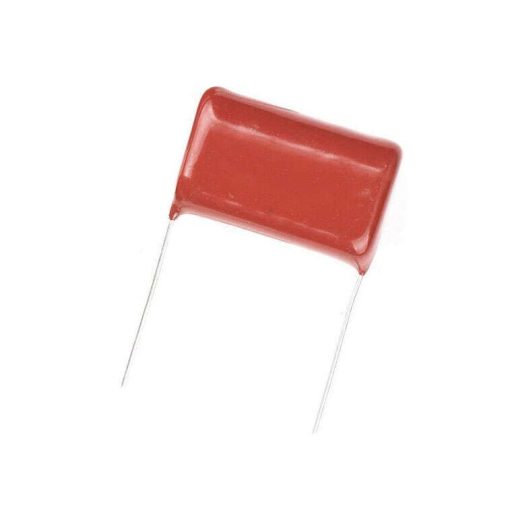

Polyester Capacitor 10nF 250V
The Polyester Capacitor 10nF 250V is a high-performance metallized polyester film capacitor designed for a wide range of electronic applications. It offers stable performance in demanding conditions, ensuring the reliability of circuits.
With its encapsulated construction, the capacitor is durable and resistant to environmental factors, such as moisture and temperature fluctuations. The metallized polyester film technology provides enhanced self-healing capabilities, making the capacitor suitable for long-term use.
This 10nF 250V capacitor is ideal for use in power circuits, filtering, and energy-efficient systems. Its ability to operate at high temperatures and voltages ensures that it is a versatile component for both general and high-performance electronic designs.
Features
- Self-healing capability for enhanced durability.
- Compact design with low inductance.
- Encapsulated with epoxy resin for added protection.
- Stable performance across a wide temperature range.
Specifications
| Parameter | Value |
|---|---|
| Capacitance | 10nF |
| Tolerance | ±10% (standard E12 series) |
| Rated Voltage (DC) | 250 V |
| Dielectric Type | Metallized Polyester (MKT) |
| Mounting Style | Through‑hole (dipped) |
| Lead Pitch (typical) | 10 mm |
| Operating Temperature | Around −40 °C to +80 °C |
Applications
- Power Circuits.
- Filtering Systems.
- Energy-efficient Lighting.
- Coupling and Decoupling Applications.
- High-Temperature Systems.
