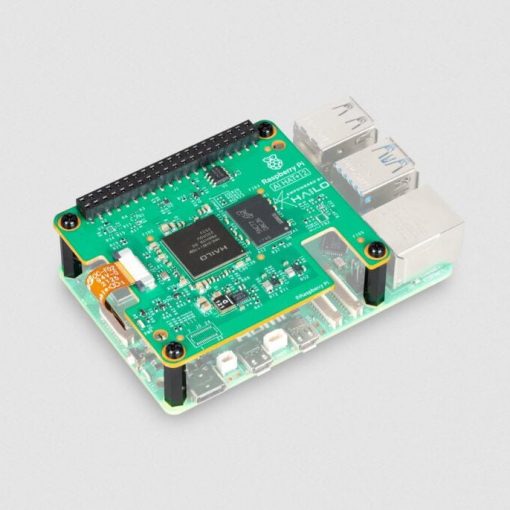

Raspberry Pi AI HAT+2 Expansion Board Module
Features
- Provides powerful on-device AI acceleration using the Hailo-10H neural processing unit for efficient edge computing performance.
- Delivers up to 40 TOPS of inference performance, enabling fast execution of advanced AI models and workloads.
- Includes 8GB dedicated onboard memory, allowing smooth operation of large language models and vision-language models locally.
- Enables generative AI capabilities on Raspberry Pi 5, supporting modern AI applications beyond traditional vision tasks.
- Supports low-latency edge processing, improving real-time responsiveness for robotics, automation, and smart systems.
- Ensures data privacy and offline operation by processing AI tasks locally without requiring cloud connectivity.
- Integrates with Raspberry Pi OS and AI software frameworks, enabling easy deployment of AI models and applications.
- Designed for efficient power usage in embedded systems, making it suitable for continuous AI workloads in compact projects.

Specifications
| Parameter | Value |
|---|---|
| Product Name | Raspberry Pi AI HAT+ 2 Expansion Board Module |
| AI Accelerator | Hailo-10H Neural Processing Unit |
| AI Performance | Up to 40 TOPS (INT4 inference performance) |
| Onboard Memory | 8GB dedicated RAM for AI workloads |
| Target Platform | Raspberry Pi 5 |
| Interface | PCIe connection for high-speed AI processing |
| Primary Function | Generative AI, edge AI inference, vision-language models |
| Supported AI Types | Large Language Models (LLMs), Vision-Language Models (VLMs) |
| Operating Mode | Fully local edge processing (no cloud required) |
| Software Support | Raspberry Pi OS AI stack and supported ML frameworks |
| Power Efficiency | Optimized for low-power embedded AI workloads |
| Board Type | HAT+ expansion board compliant with Raspberry Pi standard |
| Cooling Support | Compatible with heatsink and thermal management accessories |
| Physical Dimensions | Approx. 66 mm × 56.5 mm |
| Operating Temperature | 0°C to 50°C |
Dimensions


All Dimensions in mm
Pin Configuration
| Pin Number | Pin Name | Function / Description |
|---|---|---|
| 1 | 3V3 | 3.3V Power Supply |
| 2 | 5V | 5V Power Input |
| 3 | GPIO2 (SDA1) | I2C1 Data line (HAT ID / communication) |
| 4 | 5V | 5V Power Input |
| 5 | GPIO3 (SCL1) | I2C1 Clock line (HAT ID / communication) |
| 6 | GND | Ground |
| 7 | GPIO4 | General Purpose I/O |
| 8 | GPIO14 (TXD0) | UART Transmit |
| 9 | GND | Ground |
| 10 | GPIO15 (RXD0) | UART Receive |
| 11 | GPIO17 | General Purpose I/O |
| 12 | GPIO18 | PWM / General Purpose I/O |
| 13 | GPIO27 | General Purpose I/O |
| 14 | GND | Ground |
| 15 | GPIO22 | General Purpose I/O |
| 16 | GPIO23 | General Purpose I/O |
| 17 | 3V3 | 3.3V Power Supply |
| 18 | GPIO24 | General Purpose I/O |
| 19 | GPIO10 (MOSI) | SPI0 MOSI |
| 20 | GND | Ground |
| 21 | GPIO9 (MISO) | SPI0 MISO |
| 22 | GPIO25 | General Purpose I/O |
| 23 | GPIO11 (SCLK) | SPI0 Clock |
| 24 | GPIO8 (CE0) | SPI Chip Enable 0 |
| 25 | GND | Ground |
| 26 | GPIO7 (CE1) | SPI Chip Enable 1 |
| 27 | GPIO0 (ID_SD) | HAT EEPROM / ID I2C |
| 28 | GPIO1 (ID_SC) | HAT EEPROM / ID I2C |
| 29 | GPIO5 | General Purpose I/O |
| 30 | GND | Ground |
| 31 | GPIO6 | General Purpose I/O |
| 32 | GPIO12 | PWM / General Purpose I/O |
| 33 | GPIO13 | PWM / General Purpose I/O |
| 34 | GND | Ground |
| 35 | GPIO19 | PWM / SPI/ALT function |
| 36 | GPIO16 | General Purpose I/O |
| 37 | GPIO26 | General Purpose I/O |
| 38 | GPIO20 | General Purpose I/O |
| 39 | GND | Ground |
| 40 | GPIO21 | General Purpose I/O |
Applications
Package Contents
- 1 x Raspberry Pi AI HAT+2 Expansion Board Module
