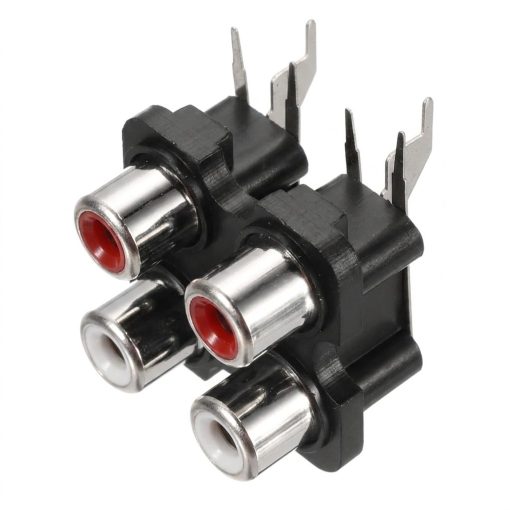

RCA Jack Audio Female Connector 4 Port for PCB
4-Port RCA Female Connector (2×2). 6-pin PCB mount, nickel-plated, rated DC 50V. Ideal for audio/video signal routing in amplifiers, TVs, and DIY projects.
8.00 ج.م
متوفرالكود 3496300145065
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
RCA Jack Audio Female Connector 4 Port for PCB
The 4-Port RCA Female Jack Connector is engineered for durability and signal integrity. It features a robust plastic housing with nickel-plated metal sockets to resist corrosion and ensure low contact resistance. Its 6-pin design makes it an ideal choice for manufacturers and DIY enthusiasts looking to integrate multi-channel audio or composite video interfaces into their electronic projects.
Features
- High-Density Design
- Secure PCB Mounting
- Color-Coded Sockets
- Corrosion Resistance
Specifications
| Attribute | Specification |
|---|---|
| Connector Type | RCA Female |
| Number of Ports | 4 (2×2 Layout) |
| Mounting Type | PCB Through-Hole (Right Angle) |
| Pin Count | 6 Pins |
| Rated Voltage | DC 50V |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 30mm x 27mm x 25mm |
Applications
- Home Entertainment
- Audio Equipment
- DIY Projects
- Automotive
- Security
Package Content
- 1 x RCA Jack Audio Female Connector 4 Port for PCB
