SAMWHA Aluminum Electrolytic Capacitor 1uF 50V 5×11.5mm Made in South Korea
SAMWHA RG 1µF 50V radial aluminum electrolytic capacitor, 105°C rated, Ø5×11.5mm body, 2.1mm lead pitch, Ø0.6mm leads. Made in South Korea.
0.65 ج.م
متوفرالكود 3496300160679
اشترِ الآن
شحن لجميع محافظات مصريصلك حتى باب بيتك
الدفع عند الاستلامادفع عند وصول طلبك
غير متأكد أنه يناسب مشروعك؟اسألنا على واتساب - نرد بسرعة
SAMWHA Aluminum Electrolytic Capacitor 1uF 50V 5×11.5mm Made in South Korea

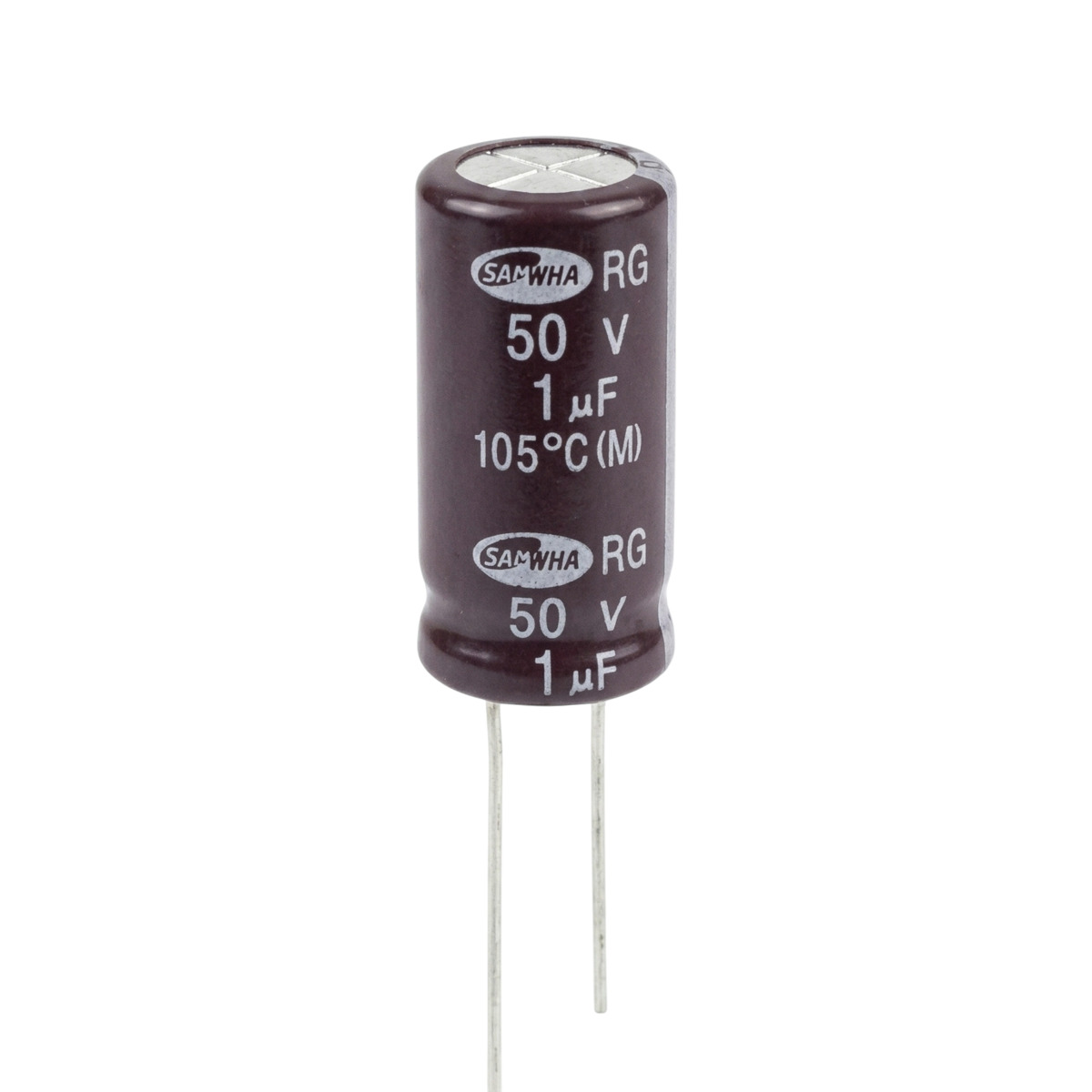

The SAMWHA RG series aluminum electrolytic capacitor offers 1 µF of capacitance at a 50 V rated voltage in a compact radial-leaded package. Marked for 105 °C operation, it is suited to circuits that must tolerate elevated operating temperatures.

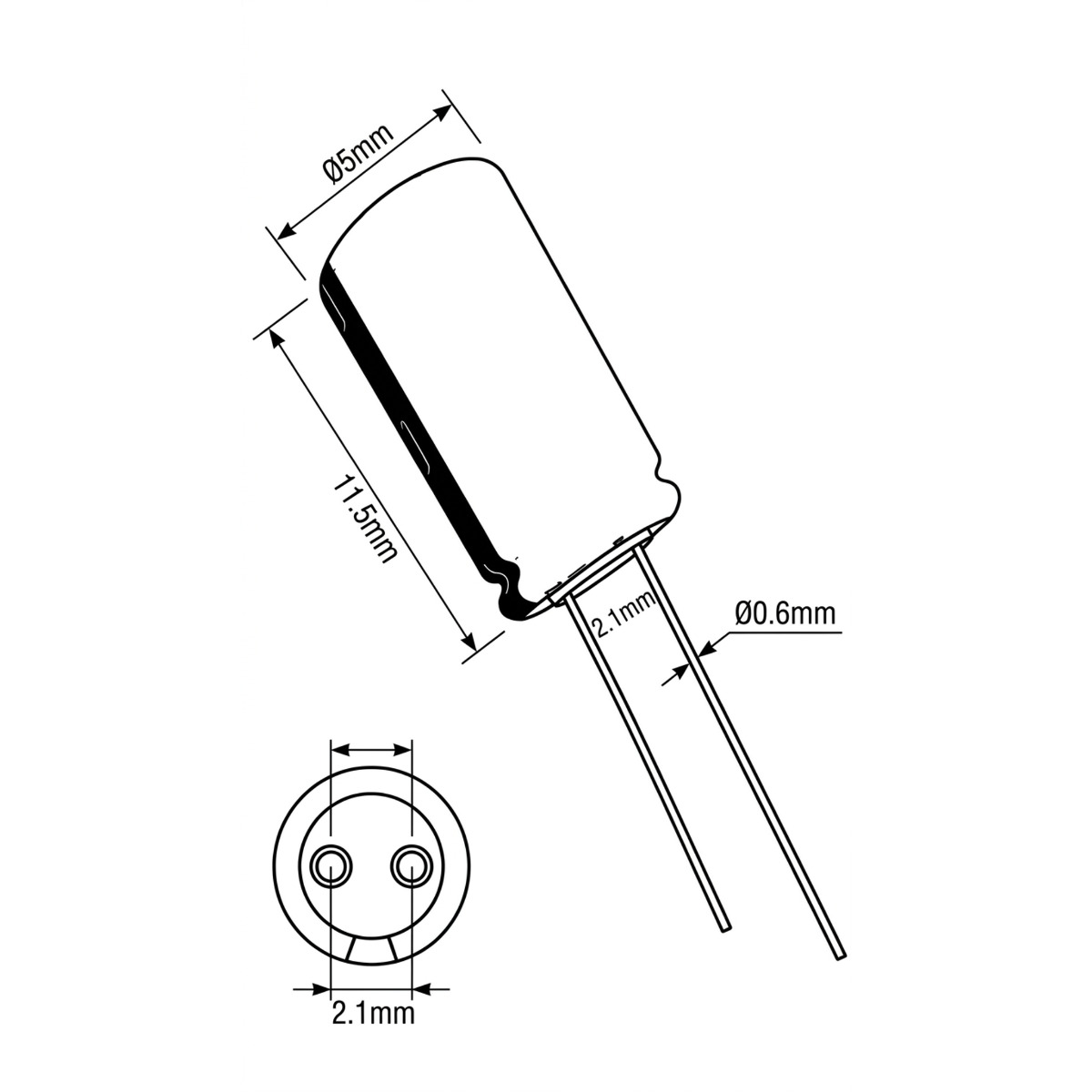

The capacitor body measures Ø5 mm in diameter and 11.5 mm in length, with two straight radial leads on a 2.1 mm pitch and Ø0.6 mm lead wire — ideal for standard through-hole PCB mounting. A printed negative-polarity stripe on the sleeve ensures correct orientation during assembly, and the cross-scored top serves as a pressure-relief vent.
Features
- RG series radial (through-hole) aluminum electrolytic capacitor
- 1 µF capacitance at 50 V rated voltage
- 105 °C operating temperature marking for high-temperature endurance
- Compact body: Ø5 mm × 11.5 mm (diameter × length)
- 2.1 mm lead pitch with Ø0.6 mm leads for standard through-hole boards
- Cross-scored top pressure-relief vent
Specifications
| Specification | Value |
|---|---|
| Brand | SAMWHA |
| Series | RG |
| Component Type | Aluminum Electrolytic Capacitor |
| Mounting / Termination | Radial leads, through-hole (straight leads) |
| Capacitance | 1 µF |
| Rated Voltage | 50 V |
| Capacitance Tolerance | M (±20%) |
| Max. Operating Temperature | 105 °C |
| Body Dimensions | Ø5 mm × 11.5 mm (diameter × length) |
| Lead Spacing (Pitch) | 2.1 mm |
| Lead Diameter | Ø0.6 mm |
| Polarity | Polarized; negative stripe marked on sleeve |
| Country of Origin | South Korea |
Applications
- DC filtering and smoothing in low-voltage power supplies and adapters (50 V rating)
- Coupling, decoupling and bypassing in audio and general signal circuits
- Boards exposed to elevated ambient temperatures, thanks to the 105 °C rating
- Space-constrained through-hole designs, thanks to the small 5 × 11.5 mm footprint
Package Content
- 1 x SAMWHA Aluminum Electrolytic Capacitor 1uF 50V 5×11.5mm Made in South Korea
