SAMWHA Aluminum Electrolytic Capacitor 1uF 50V 5×11.5mm Made in South Korea

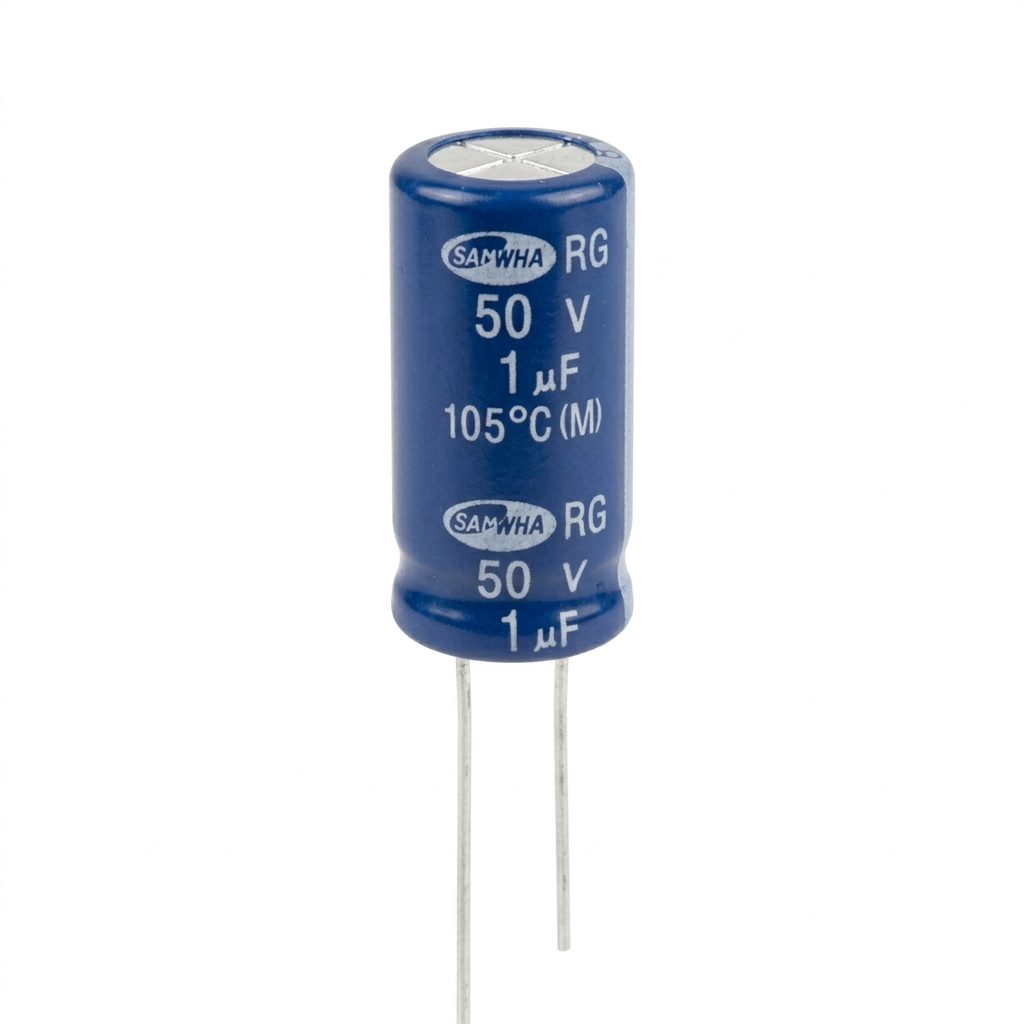

The SAMWHA RG series aluminum electrolytic capacitor offers 1 µF of capacitance at a 50 V rated voltage in a compact radial-leaded package. Marked for 105 °C operation, it is suited to circuits that must tolerate elevated operating temperatures.
The capacitor body measures Ø5 mm in diameter and 11.5 mm in length, with two straight radial leads on a 2.1 mm pitch and Ø0.6 mm lead wire — ideal for standard through-hole PCB mounting. A printed negative-polarity stripe on the sleeve ensures correct orientation during assembly, and the cross-scored top serves as a pressure-relief vent.
Features
- RG series radial (through-hole) aluminum electrolytic capacitor
- 1 µF capacitance at 50 V rated voltage
- 105 °C operating temperature marking for high-temperature endurance
- Compact body: Ø5 mm × 11.5 mm (diameter × length)
- 2.1 mm lead pitch with Ø0.6 mm leads for standard through-hole boards
- Cross-scored top pressure-relief vent
Specifications
| Specification | Value |
|---|---|
| Brand | SAMWHA |
| Series | RG |
| Component Type | Aluminum Electrolytic Capacitor |
| Mounting / Termination | Radial leads, through-hole (straight leads) |
| Capacitance | 1 µF |
| Rated Voltage | 50 V |
| Capacitance Tolerance | M (±20%) |
| Max. Operating Temperature | 105 °C |
| Body Dimensions | Ø5 mm × 11.5 mm (diameter × length) |
| Lead Spacing (Pitch) | 2.1 mm |
| Lead Diameter | Ø0.6 mm |
| Polarity | Polarized; negative stripe marked on sleeve |
| Country of Origin | South Korea |
Applications
- DC filtering and smoothing in low-voltage power supplies and adapters (50 V rating)
- Coupling, decoupling and bypassing in audio and general signal circuits
- Boards exposed to elevated ambient temperatures, thanks to the 105 °C rating
- Space-constrained through-hole designs, thanks to the small 5 × 11.5 mm footprint
Package Content
- 1 x SAMWHA Aluminum Electrolytic Capacitor 1uF 50V 5×11.5mm Made in South Korea
