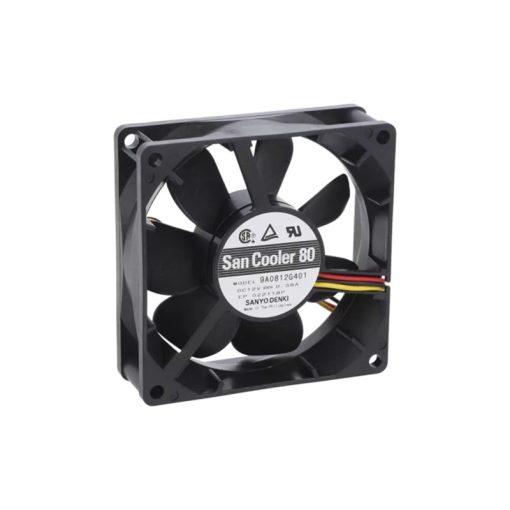

SANYO 9A0812G401 DC Fan 12V 0.38A 80x80x25mm (USED LIKE NEW)
The SANYO 9A0812G401 is a reliable axial-type DC cooling fan, engineered for continuous operation in electronic systems and enclosures where ventilation and thermal control are essential. Although compact in its 80 × 80 mm footprint (with a 25 mm thickness), this fan delivers robust airflow, making it suited for server racks, power supplies, and other heat-sensitive devices. Its design prioritizes a balance between performance and noise, helping maintain system stability without excessive acoustic disturbance.
Constructed with quality materials and precision engineering, the 9A0812G401 features a plastic frame and impeller blades optimized for efficient air movement. The internal mechanisms, including a ball bearing, ensure long operational life under continuous load. The fan is engineered with protections such as locked-rotor and reverse polarity resistance, delivering more resilience in real-world usage. Its modest current draw (0.38 A at 12 V) allows it to integrate well with typical DC power systems without overtaxing power budgets.
As part of the SANYO “San Ace / San Cooler” 80 mm series, this fan is often employed as a replacement or upgrade in industrial, computing, or telecom equipment. Its stable performance across a reasonable temperature range makes it effective in a variety of environments. Whether cooling a densely packed PCB, venting a cabinet, or sustaining airflow in a server chassis, the 9A0812G401 helps maintain component temperatures within safe limits, contributing to longevity and reliable operation.
Features:
- Axial fan design optimized for efficient airflow.
- Ball bearing system for durability and longevity.
- Thermal protections including locked-rotor safeguard.
- Reverse polarity protection.
- Moderate acoustic level relative to performance.
- Lightweight and compact form factor.
- Stable operation across standard voltage range.
Specifications:
| Parameter | Value |
|---|---|
| Model / Part Number: | 9A0812G401 |
| Fan Type: | Axial DC Fan |
| Dimensions (L × W × H): | 80 × 80 × 25 mm |
| Rated Voltage: | 12 VDC |
| Rated Current: | 0.38 A |
| Power Consumption: | 4.56 W |
| Speed (RPM): | 4,500 RPM |
| Airflow: | 53.0 CFM (≈ 1.48 m³/min) |
| Static Pressure: | 0.323 in H₂O (≈ 80.4 Pa) |
| Noise Level: | 40 dB(A) |
| Operating Voltage Range: | 6 to 13.2 VDC |
| Operating Temperature: | –20 °C to +60 °C |
| Bearing Type: | Ball bearing |
| Color: | Black |
| Weight: | ~90 g |
Applications:
- Server / Rack Cooling.
- Power Supply Ventilation.
- Telecom / Network Equipment.
- Industrial Enclosure Cooling.
Package Contents:
- 1x SANYO 9A0812G401 DC Fan 12V 0.38A 80x80x25mm (USED LIKE NEW)
