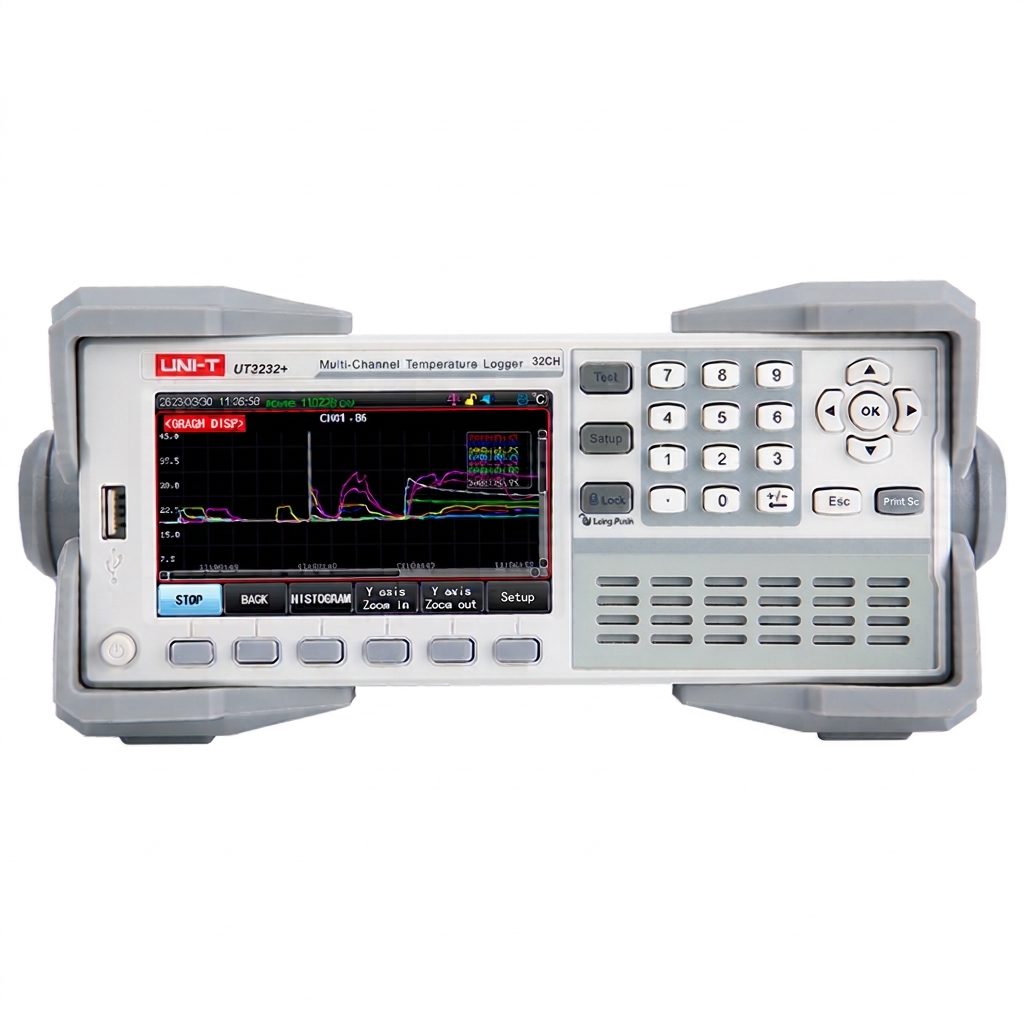

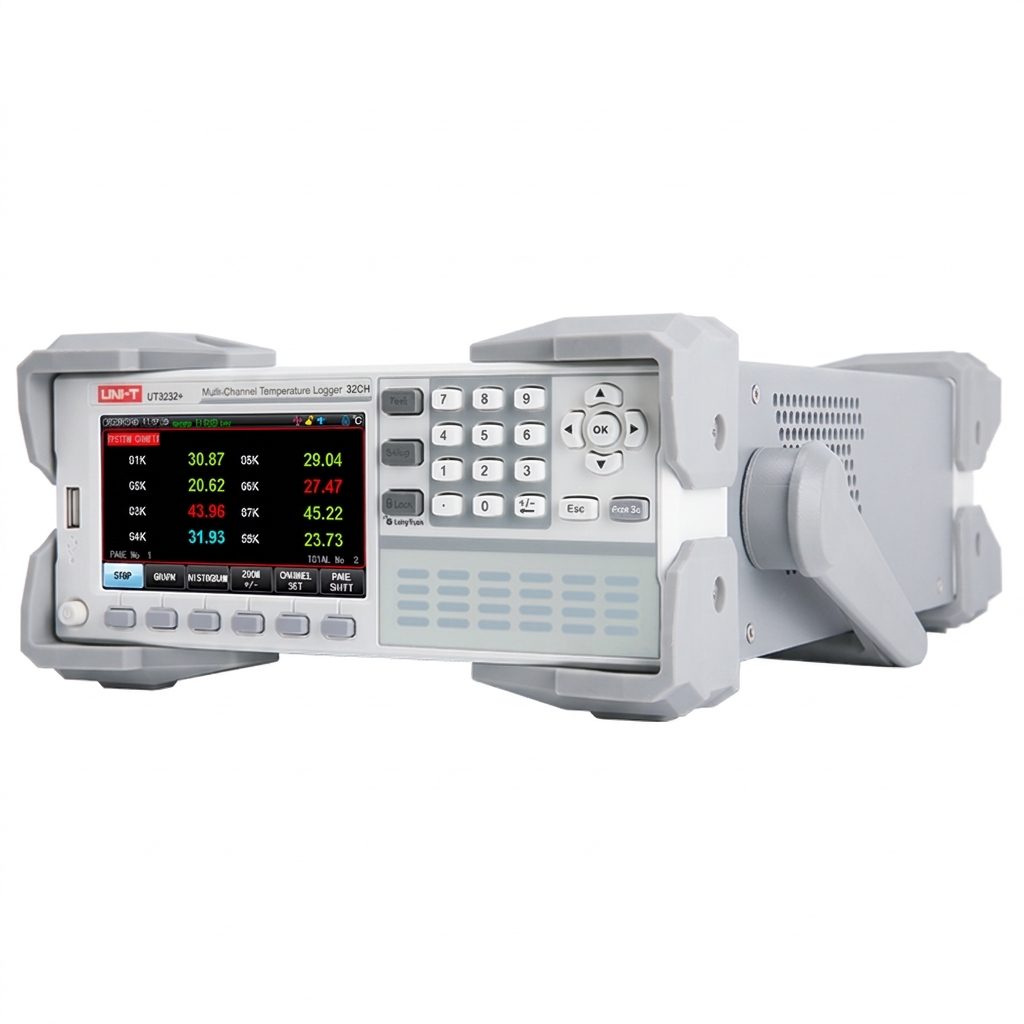

UNI-T UT3232+ Multi-channel Temperature Tester (-200~1800℃ , 32CH)
The UNI-T UT3232+ Multi-channel Temperature Tester is a professional temperature measurement instrument designed for simultaneous monitoring, recording, and analysis of temperature across multiple test points. Part of the UT3200+ series, it provides 32 measurement channels and supports eight thermocouple types, making it suitable for industrial testing, product development, laboratory research, and quality inspection.
Features:
- 32-channel temperature measurement for simultaneous monitoring of multiple test points.
- Temperature measurement range of −200°C to 1800°C, depending on the thermocouple type.
- 0.01°C display resolution.
- Scanning speed of up to 10 readings per second.
- Supports J, K, T, E, S, N, B, and R thermocouples.
- 4.3-inch color TFT-LCD for clear presentation of measurement results.
- Numerical readings, curve charts, and histogram display modes.
- Cold-junction compensation for thermocouple measurements.
- Automatic detection of open-circuit thermocouples.
- Individually configurable upper and lower temperature alarms for each channel.
- Visual indication of readings that exceed configured temperature limits.
- USB Host interface and USB storage for recording data and screenshots.
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model | UT3232+ |
| Product Type | Multi-channel temperature tester |
| Series | UT3200+ series |
| Number of Channels | 32 |
| Measurement Principle | Thermocouple temperature measurement |
| Temperature Measurement Range | −200°C to 1800°C, depending on thermocouple type |
| Display Resolution | 0.01°C |
| Scanning Speed | Up to 10 readings/s |
| Supported Thermocouples | J, K, T, E, S, N, B, R |
| Display Type | 4.3-inch color TFT-LCD |
| Display Modes | Numerical readings, curve charts, and histograms |
| Cold-Junction Compensation | Supported |
| Open-Circuit Detection | Automatic thermocouple open-circuit detection |
| Temperature Alarms | Individually configurable upper and lower limits for each channel |
| Data Storage | USB storage for measurement data and screenshots |
| USB Interface | USB Host |
| Serial Interface | RS-232C |
| Network Interface | LAN |
| Optional Interface | RS-485 |
| Communication Protocols | SCPI and MODBUS RTU |
| Calibration Functions | Input calibration and input offset |
| Channel Isolation | 350VDC and 230VAC, as specified by the manufacturer |
| Power Supply | 100–240VAC, 50/60Hz |
| Operating Environment | 15–35°C, humidity below 80%RH |
Applications:
- Industrial temperature monitoring and process testing.
- Quality control and product inspection.
- Temperature distribution testing across multiple measurement points.
- Motors, transformers, and electrical equipment testing.
- Heating appliances, ovens, and electric heating systems.
- Thermostat and thermal protector evaluation.
- Power supply and electronic component temperature testing.
- LED lighting thermal performance testing.
- Research and development laboratories.
- Manufacturing process validation and thermal data logging.
- Automated temperature acquisition and monitoring systems.
- Engineering education and temperature measurement experiments.
Package Include:
- 1x UNI-T UT3232+ Multi-channel Temperature Tester.
- 1x AC Power Cable.
- 1x 8GB USB Flash Drive.
- 4x 8-Channel Temperature Test Modules.
- 1x RS-232 Communication Cable.
- 1x Type K Thermocouple Test Lead, 2m.
