1N4007F M7 SMAF Diodes – General Purpose Single 1.1V 1A SMD
The 1N4007F (M7) is a surface-mount general-purpose silicon rectifier diode designed for reliable power rectification and protection applications. It is the SMD equivalent of the popular 1N4007 through-hole diode and is widely used in power supplies, battery chargers, adapters, and electronic control circuits. Its compact SMAF package allows easy integration into modern PCB designs while maintaining dependable performance.
This diode provides excellent reverse voltage capability and stable forward current handling, making it suitable for both commercial and industrial electronic applications. It is commonly used for rectification, polarity protection, freewheeling in inductive loads, and general-purpose switching in low-frequency power circuits. The device features a molded plastic package with high-temperature soldering capability and flame-retardant construction.
Features:
- General-purpose rectifier diode.
- Surface-mount package.
- Low forward voltage drop.
- High reverse voltage capability.
- Suitable for power supply applications.
- Reliable surge current handling.
- Compact low-profile design.
- Built-in strain relief.
- Easy automated assembly and placement.
- High-temperature soldering compatible.
- Flame-retardant package construction.
- Suitable for commercial and industrial electronics.
Specifications
| Parameter | Value |
|---|---|
| Part Number | 1N4007F / M7 |
| Diode Type | General Purpose Rectifier |

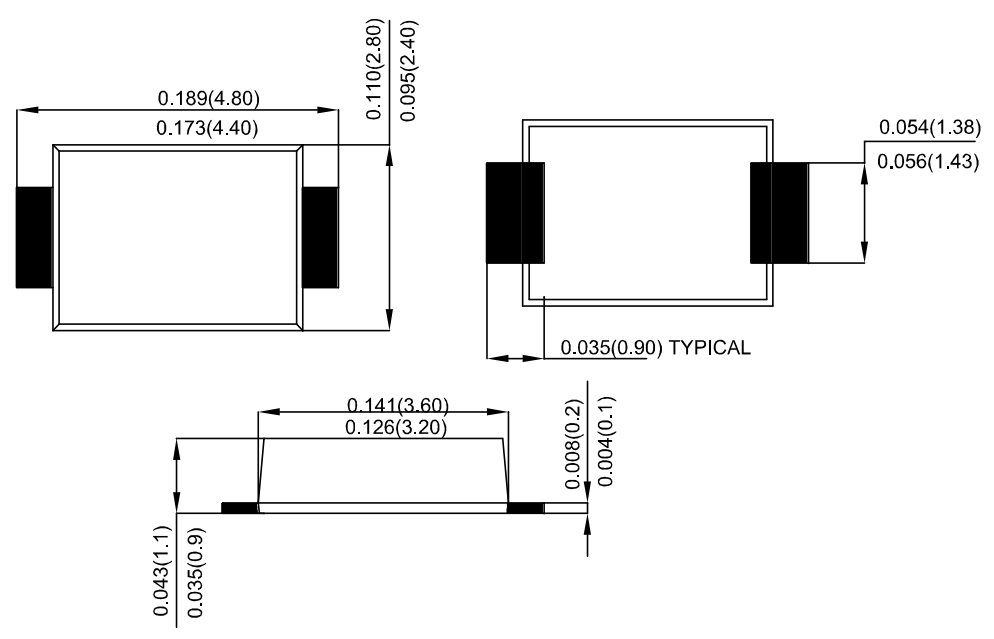

| Package | SMAF |
| Mounting Type | Surface Mount (SMD) |
| Maximum Repetitive Reverse Voltage (VRRM) | 1000 V |
| Maximum DC Blocking Voltage (VDC) | 1000 V |
| Maximum RMS Voltage (VRMS) | 700 V |
| Average Forward Rectified Current (IO) | 1 A |
| Forward Voltage (VF) @ 1A | 1.1 V |
| Peak Surge Forward Current (IFSM) | 30 A |
| Reverse Current (IR) @ 25°C | 5 µA |
| Typical Junction Capacitance | 12 pF |
| Operating Temperature Range | -55°C to +150°C |
| Storage Temperature Range | -55°C to +150°C |
Pinout:
| Pin | Description |
|---|---|
| Anode | Positive terminal |
| Cathode | Negative terminal (marked by band) |
Applications:
- AC to DC rectification.
- Switching power supplies.
- Battery chargers.
- Reverse polarity protection.
- DC power adapters.
- LED drivers.
- Motor drive protection circuits.
- Freewheeling diode applications.
- Industrial control equipment.
- Consumer electronics.
- Power distribution circuits.
- General-purpose rectification.
Package Included:
- 1x 1N4007F M7 SMAF Diodes – General Purpose Single 1.1V 1A SMD.
