2SC3852 NPN Transistor TO-220F
The 2SC3852 NPN Transistor TO-220F is a silicon NPN bipolar junction power transistor designed for switching and amplification applications in power electronics and control circuits. This transistor is widely used in motor drivers, regulators, and general-purpose power circuits due to its strong current handling capability and reliable electrical performance.
Features:
- NPN bipolar junction power transistor.
- Collector-emitter voltage up to 60V.
- Maximum collector current of 3A.
- High power dissipation capability up to 25W.
- High DC current gain for efficient amplification.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage | 60V |
| Collector-Base Voltage | 80V |
| Emitter-Base Voltage | 6V |
| Collector Current | 3A |
| Power Dissipation | 25W |
| DC Current Gain | 500 min |
| Transition Frequency | 15MHz |
| Saturation Voltage | 0.5V max |
| Package | TO-220F |
| Operating Junction Temperature | -55°C to +150°C |

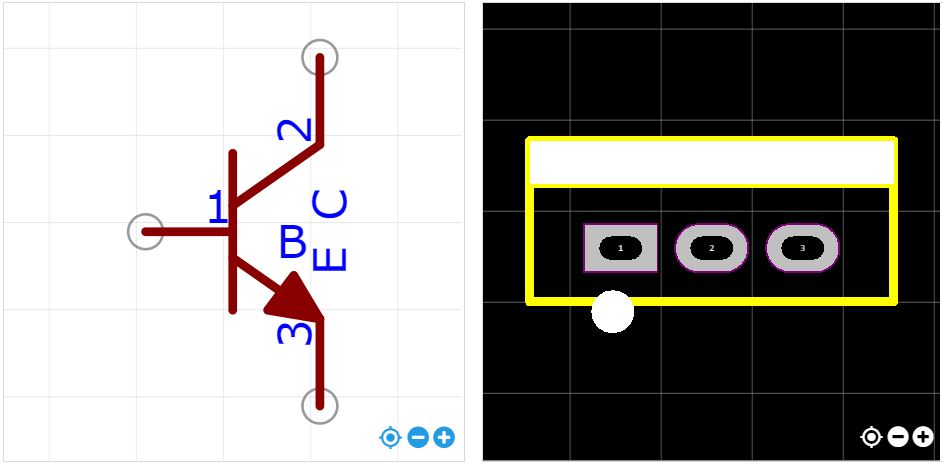

Pin Configuration:
Applications:
- Driver circuits for solenoids and motors.
- Series regulator and voltage stabilization designs.
- General-purpose amplification and switching stages.
- Audio amplifier output stages and power control.
- Industrial automation and consumer electronics.
- DC-DC converter and relay driver applications.
Package Include:
1x 2SC38-52 NPN Transistor TO-220F.
