2SC5252 NPN Transistor TO-3P
The 2SC5252 NPN Transistor TO-3P is a high-power silicon NPN bipolar junction transistor designed for high-voltage switching and power control applications. Developed using triple diffused planar technology, this transistor provides reliable electrical performance and high breakdown voltage, making it suitable for demanding electronic systems.
Features:
- High-voltage silicon NPN power transistor.
- Collector-emitter voltage up to 800V.
- Collector-base voltage up to 1500V.
- Continuous collector current up to 15A.
- High power dissipation capability up to 50W.
- High-speed switching performance.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Base Voltage: | 1500V |
| Collector-Emitter Voltage: | 800V |
| Emitter-Base Voltage: | 6V |
| Collector Current: | 15A |
| Collector Peak Current: | 30A |
| Power Dissipation: | 50W |
| Saturation Voltage: | 5V max |
| Fall Time: | 0.15µs typ |
| Junction Temperature: | 150°C |
| Operating Temperature: | -55°C to +150°C |
| Package: | TO-3P |

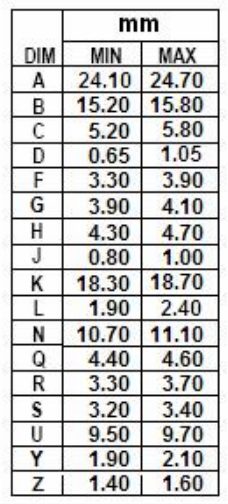

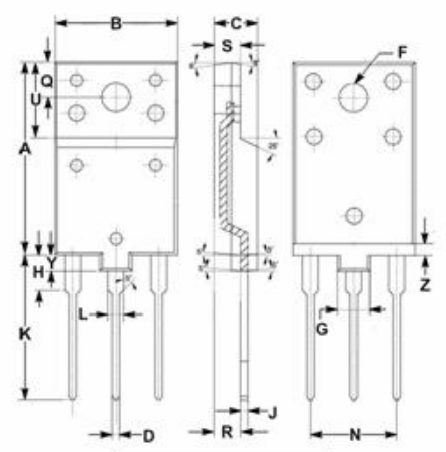

Pin Configurations:
Applications:
- Horizontal deflection output in CRT character displays.
- High-voltage switching circuits in legacy monitors and televisions.
- Power supply and deflection stages in industrial equipment.
- General high-voltage amplification and switching designs.
- CRT-based display driver applications.
- Pulse and high-energy switching circuits.
Package Include:
- 1x 2SC52-52 NPN Transistor TO-3P
