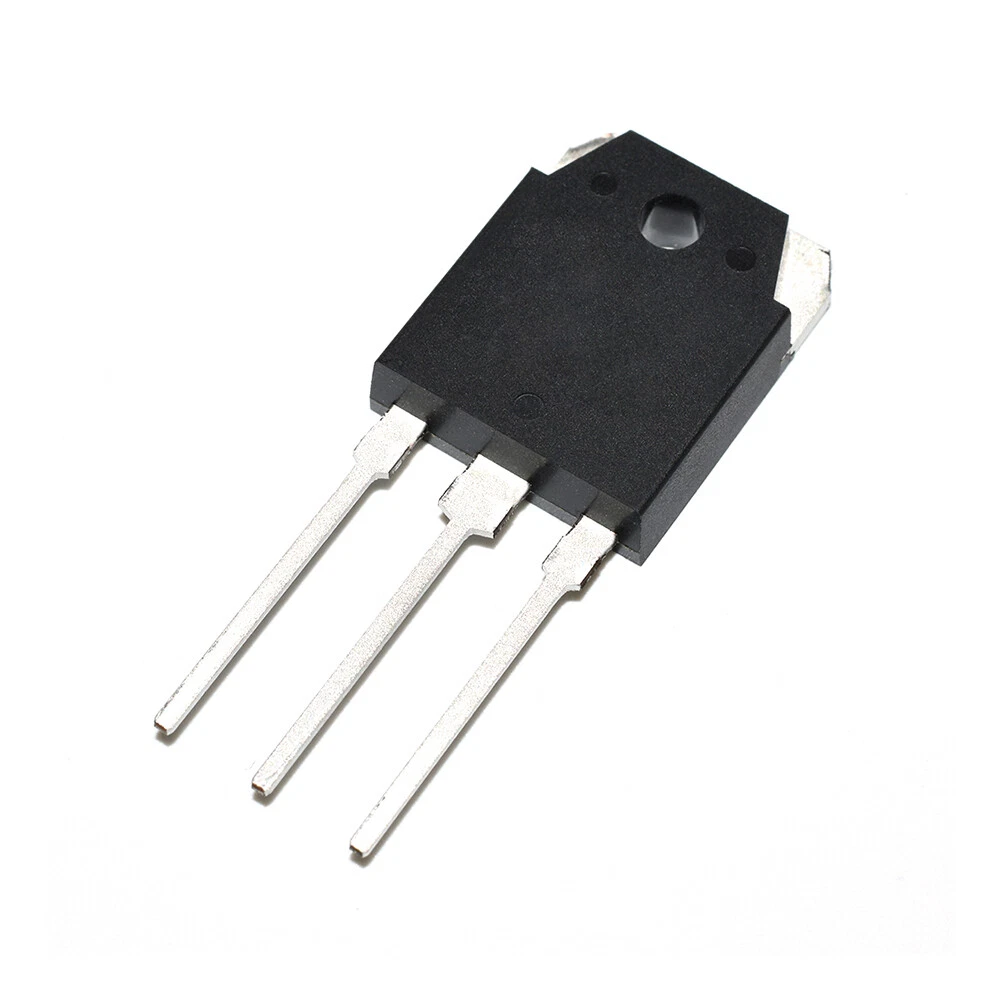

2SK1342 N-Channel MOSFET Transistor 900V 8A TO-3P
The 2SK1342 is a high-performance N-Channel power MOSFET transistor designed for audio power amplifiers, high-speed switching applications, and industrial power electronics. The transistor is manufactured in a TO-3P package, providing excellent thermal performance and reliable high-power operation for through-hole electronic circuits and professional audio systems.
Features:
- Low drain-source on-state resistance for minimal conduction losses.
- High speed switching capability.
- Low drive current requirement.
- No secondary breakdown mechanism ensures robust operation.
- Suitable for switching regulator and DC-DC converter applications.
- High voltage capability with 900V drain-source breakdown voltage.
- Wide operating temperature range from -55°C to +150°C.
- Reliable TO-3P package for effective thermal management.
Specifications:
| Parameter | Value |
|---|---|
| Transistor Type | N-Channel MOSFET |
| Drain-Source Voltage (VDSS) | 900V |
| Gate-Source Voltage (VGSS) | ±30V |
| Continuous Drain Current (ID) | 8A |
| Channel Dissipation (Pch) | 100W |
| Drain-Source On-State Resistance (RDS(on)) | 1.6Ω (Max.) |
| Drain-Source Breakdown Voltage (V(BR)DSS) | 900V (Min.) |
| Zero Gate Voltage Drain Current (IDSS) | 250μA (Max.) |
| Input Capacitance (Ciss) | 980pF (Typ.) |
| Output Capacitance (Coss) | 500pF (Typ.) |
| Reverse Transfer Capacitance (Crss) | 100pF (Typ.) |
| Turn-On Delay Time (td(on)) | 30ns (Typ.) |
| Rise Time (tr) | 50ns (Typ.) |
| Turn-Off Delay Time (td(off)) | 200ns (Typ.) |
| Fall Time (tf) | 100ns (Typ.) |
| Storage Temperature Range | -55°C to +150°C |
| Channel Temperature | 150°C (Max.) |
| Package Type | TO-3P |
| Mounting Style | Through-Hole |
Pin Configuration:
Applications:
- Switching regulator designs.
- DC-DC converter circuits.
- High speed power switching applications.
- Switch mode power supplies and SMPS designs.
- Power inverter designs.
- High-voltage power management systems.
- Motor drive and control applications.
