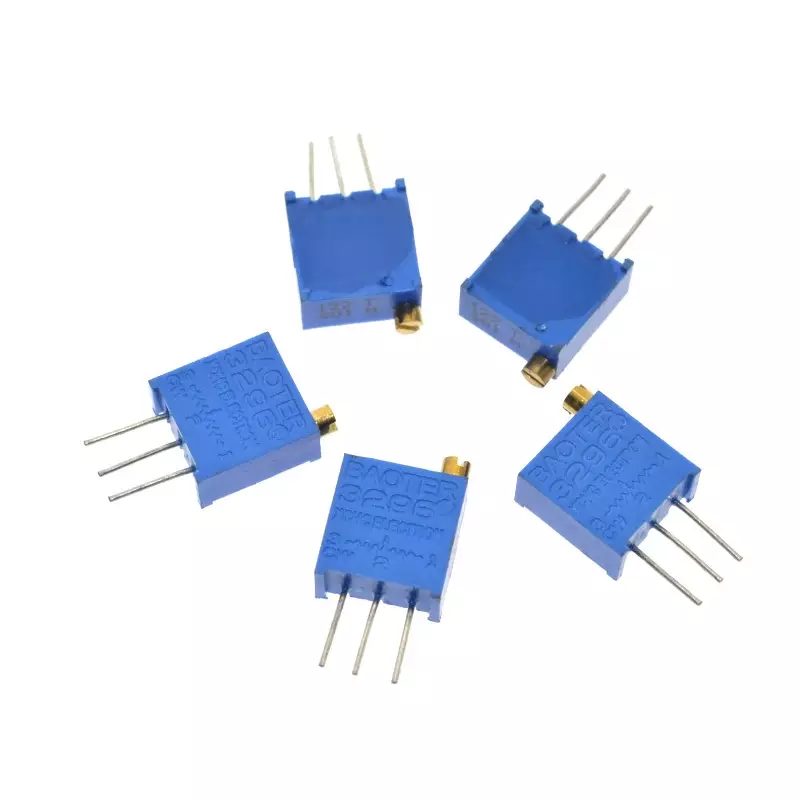

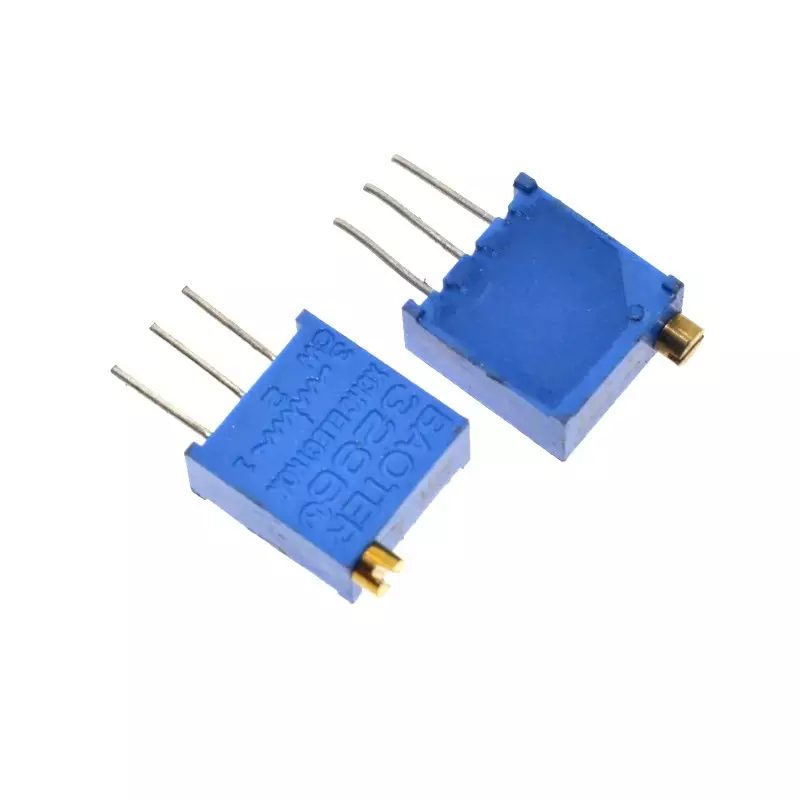

3296W-1-104 Trimmer Potentiometer Multiturn 100KΩ 0.5W 3 Pin Through hole
The 3296W-1-104 is a high-precision multi-turn trimmer potentiometer with a resistance value of 100KΩ and a power rating of 0.5W. It is designed for applications requiring fine and stable adjustment of resistance values. The multi-turn mechanism provides smooth and highly accurate control, making it suitable for calibration and tuning operations in analog and digital electronic systems.
This trimmer potentiometer comes in a compact through-hole package with three pins for easy PCB installation. Its robust construction ensures reliable long-term performance in industrial equipment, power supplies, instrumentation devices, audio electronics, and DIY projects. The 3296W series is widely used where precise adjustment and stability are essential.
Features:
- Multi-turn precision adjustment.
- Smooth and accurate tuning.
- Compact through-hole design.
- Stable resistance characteristics.
- Durable and reliable construction.
- Easy PCB mounting.
- Long operational life.
- High adjustment sensitivity.
- Low noise performance.
- Suitable for calibration circuits.
Specifications:
| Physical | |
| Color | Blue |
| Contact Plating | Lead, Tin |
| Mount | Panel, Through Hole |
| Technical | |
| Composition | Cermet |
| Max Operating Temperature | 125 °C |
| Max Power Dissipation | 500 mW |
| Military Standard | Not |
| Min Operating Temperature | -55 °C |
| Number of Turns | 25 |
| Power Rating | 500 mW |
| Resistance | 100 kΩ |
| Taper | Linear |
| Temperature Coefficient | 100 ppm/°C |
| Termination | Pin |
| Tolerance | 10 % |
| Voltage Rating (DC) | 500 V |
Applications:
- Voltage adjustment circuits.
- Adjustable power supplies.
- Signal calibration and tuning.
- Sensor calibration.
- Audio amplifier adjustment.
- Gain and offset control.
- Timing and oscillator circuits.
- Industrial control equipment.
- Arduino and embedded electronics.
- Electronic measurement devices.
Package Included:
- 1x 3296W-1-104 Trimmer Potentiometer Multiturn 100KΩ 0.5W 3 Pin Through hole.
