Specifications
| Manufacturer | BOURNS |
| Type of potentiometer | mounting |
| Kind of potentiometer | multiturn |
| Resistance | 1kΩ |
| Power | 500mW |
| Mounting | THT |
| Tolerance | ±10% |
| Characteristics | linear |
| Track material | cermet |
| Operating temperature | -55…125°C |
| Potentiometer standard | 3/8″ |
| Temperature coefficient | 100ppm/°C |

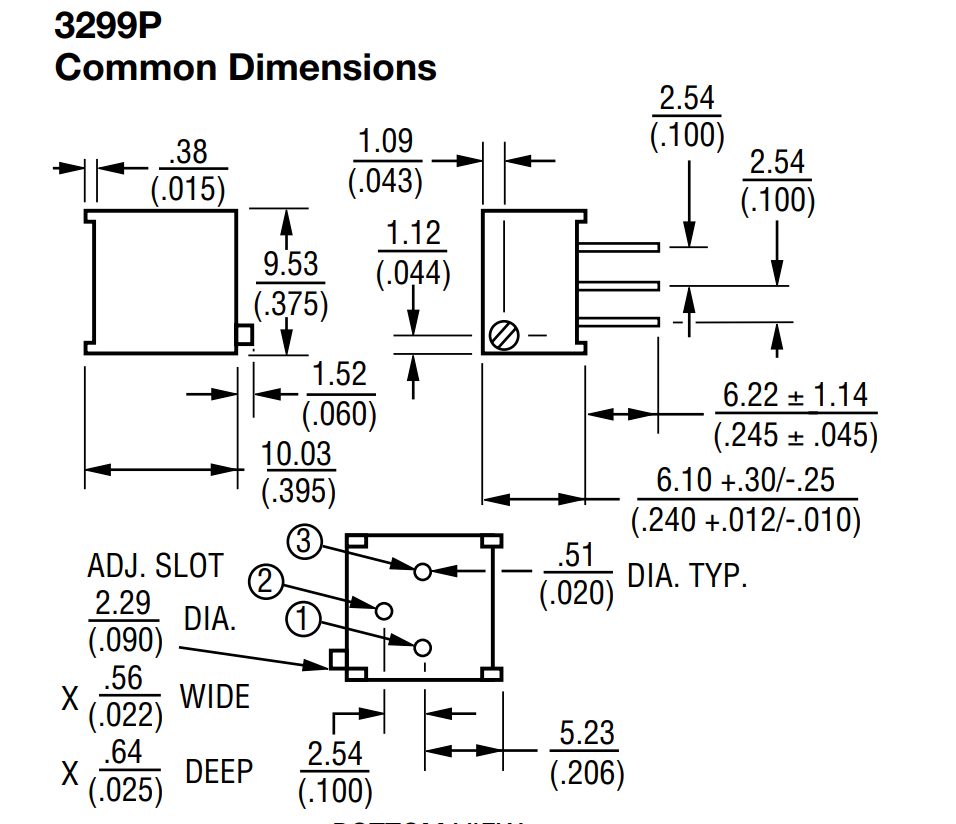

| Body dimensions | 10×9.5×6.1mm |
| Terminal pitch | 5.08×2.54mm |
| Number of electrical turns | 25 |
| Max. operating voltage | 300V |
