32GP-31ZY High Torque Planetary Reduction DC Gear Motor 12V 112RPM D-shaft 7mm with Mount Bracket

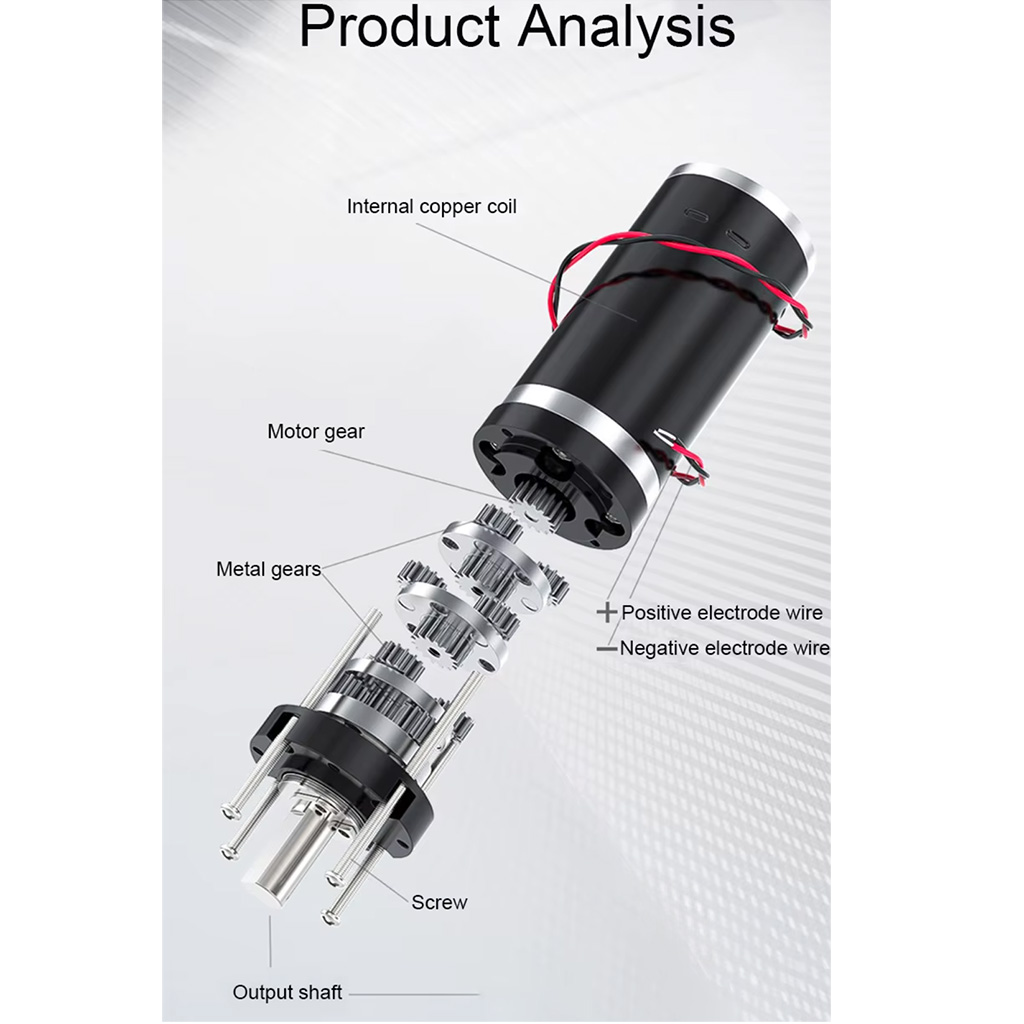

The 32GP-31ZY 12V 112RPM Planetary Gear Motor is a compact high-torque DC geared motor designed for robotics, automation, smart locks, conveyors, and DIY mechanical projects. It features a durable all-metal planetary gearbox that provides smooth operation, high transmission efficiency, and excellent torque output in a compact size.
Features:
- High torque planetary reduction gearbox.
- Operating voltage: 12V DC.
- No-load speed: 112RPM.
- Durable metal gears and metal housing.
- Supports CW and CCW rotation.
- Comes with metal mounting bracket.
- Compact size with high torque output.
- Low noise and smooth operation.
Specifications:
| Parameter | Details |
|---|---|
| Model | 32GP-31ZY |
| Motor Type | Planetary Geared DC Motor |
| Rated Voltage | 12V DC |
| No-Load Speed | 112 RPM |
| Rated Speed | 90 RPM |
| No-Load Current | 0.45 A |
| Rated Current | 1.8 A |
| Rated Torque | 10 Kg.cm |
| Stall Torque | 33 Kg.cm |
| Stall Current | 5 A |
| Output Power | 21.6 W |
| Rotation Direction | CW / CCW Reversible |
| Gearbox Type | Planetary Gearbox |
| Shaft type | D shaft |
| Gearbox Length | 38 mm |
| Cable Length | 20 cm |
| Housing Material | Metal |
| Mounting Bracket | Included |
Applications:
- Smart Robot Cars
- Mobile Robots
- Conveyor Systems
- Automatic Curtains
- Smart Locks
- Industrial Automation
- DIY Mechanical Projects
- Educational Robotics
- Camera Slider Systems
- Rotating Platforms
Package Includes:
- 1x 32GP-31ZY 12V 112RPM Planetary Gear Motor
- 1x Metal Mount Bracket
- 4x Mounting Screws
