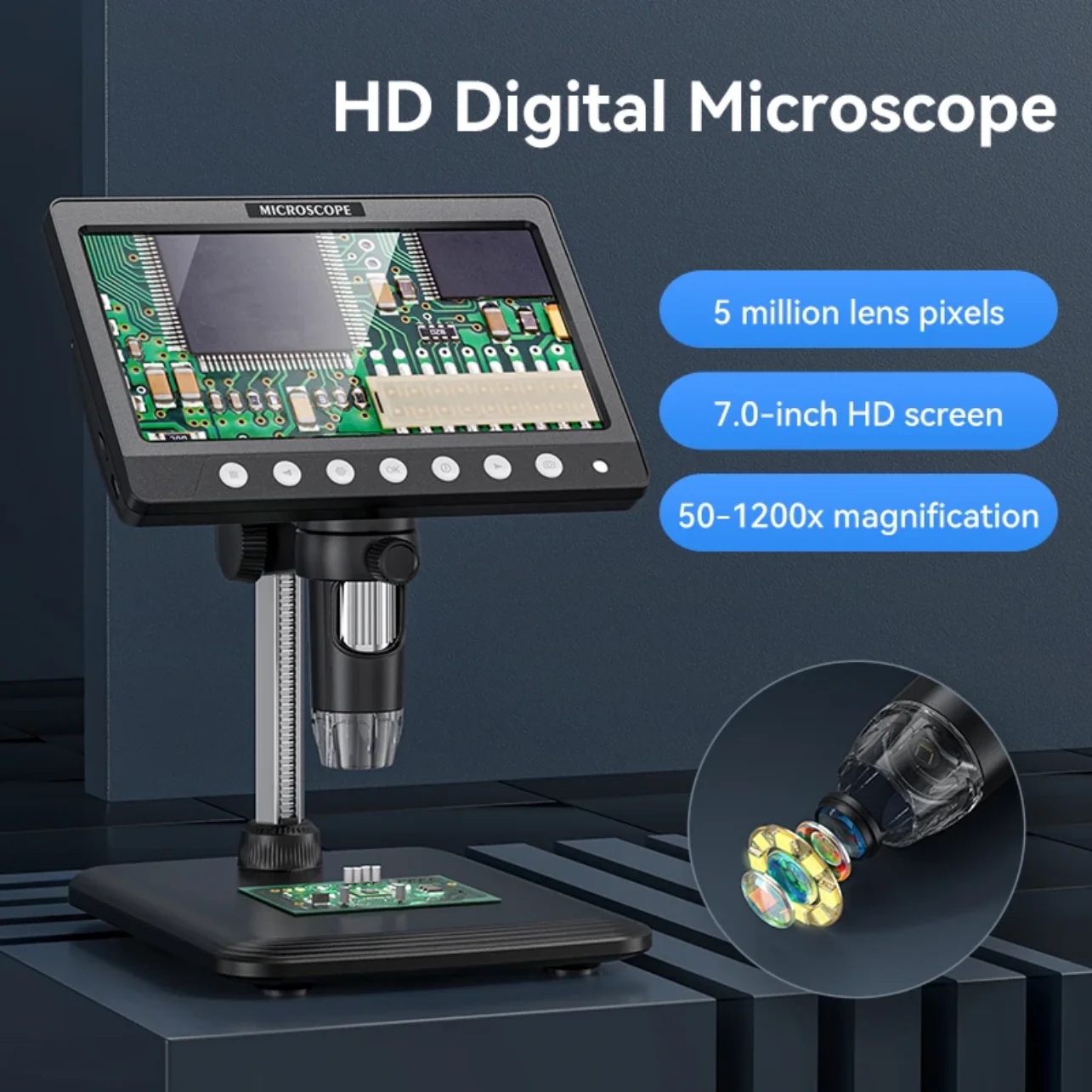

330H 7 Inch LCD Digital Microscope 1080P ,1200X Magnification with 5MP Camera
The 330H 7 Inch LCD Digital Microscope is a versatile inspection and magnification tool designed for electronics repair, soldering, PCB analysis, quality control, and educational applications. Equipped with a high-resolution 5MP image sensor and a large 7-inch IPS display, it provides clear real-time viewing without the need for an external monitor.
Features:

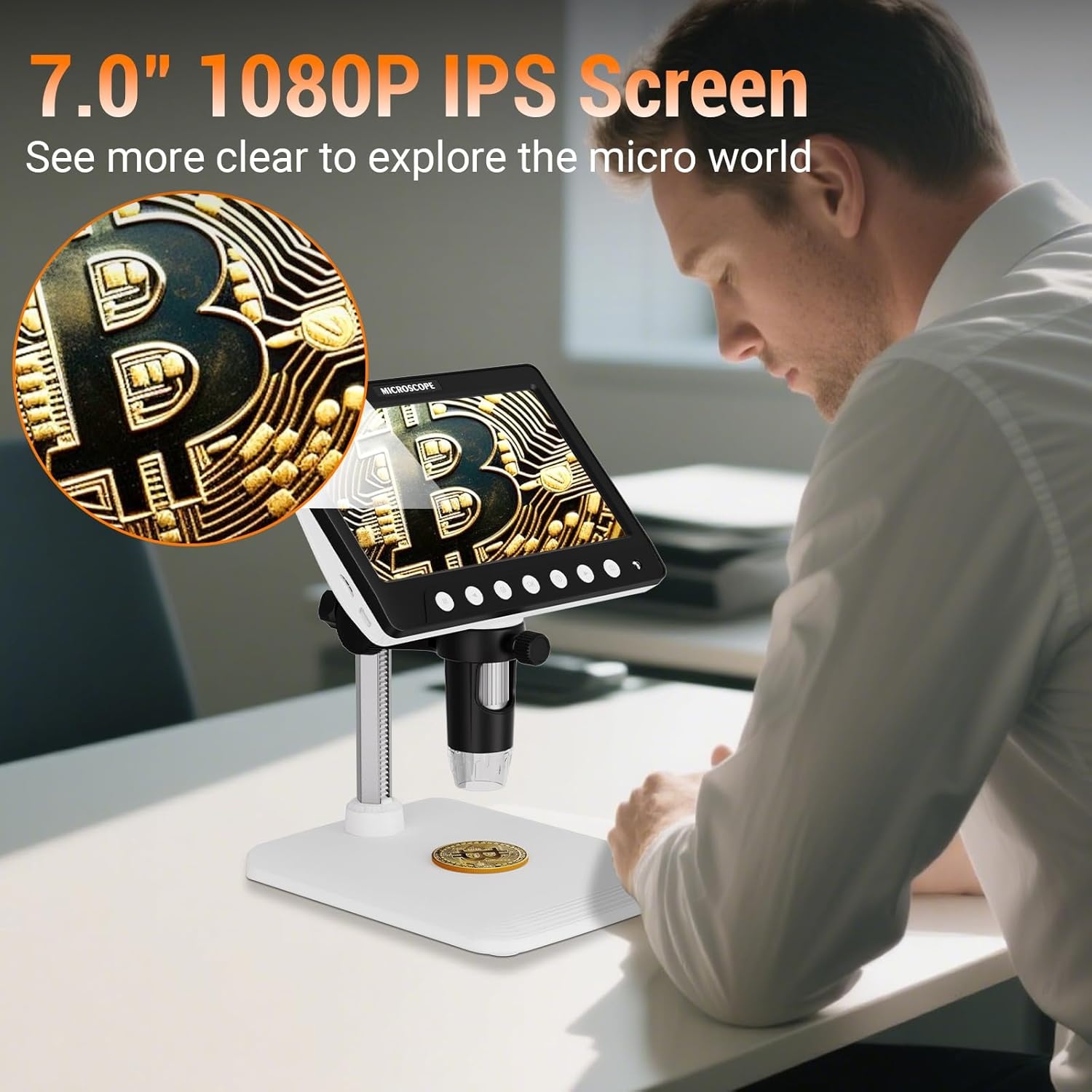

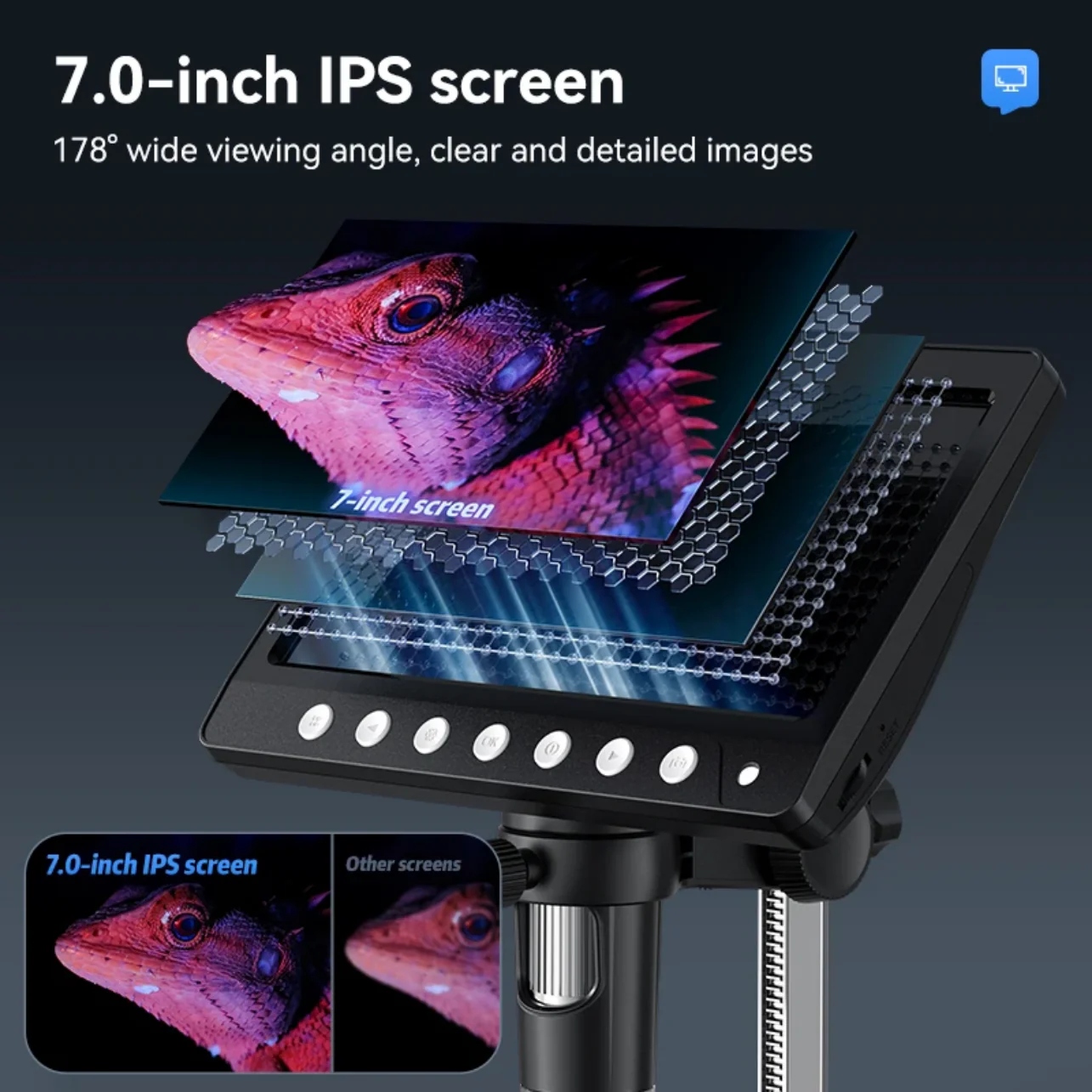

- Large 7-inch IPS LCD display.
- High-resolution 5MP image sensor.
- Magnification range from 50X to 1200X.
- Full HD 1080P image and video output.

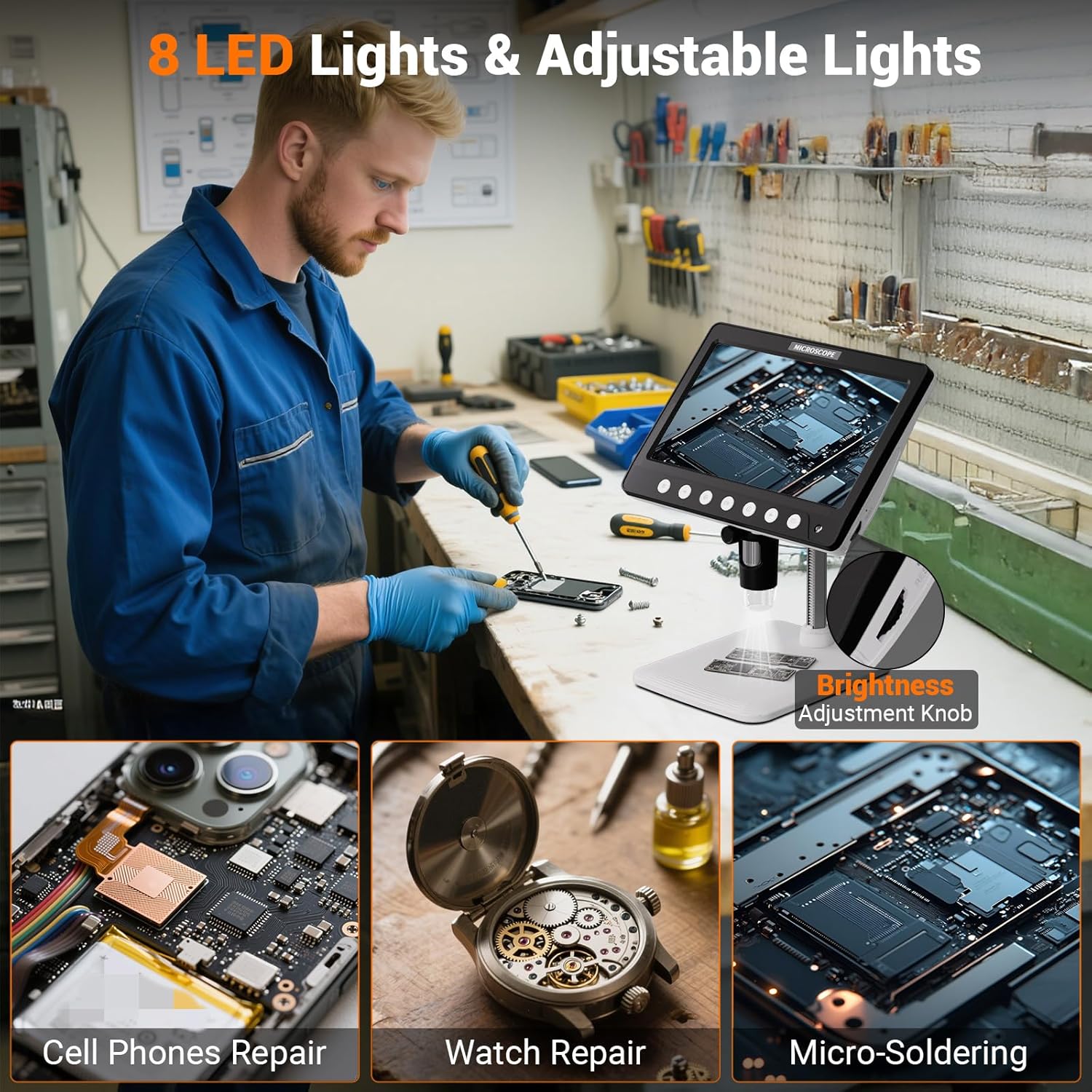

- Adjustable LED illumination system.
- Real-time image display without external monitor.
- Photo capture and video recording functions.
- Supports memory card storage.
Specifications:
| Model | 330H. |
| Screen Size | 7.0in IPS LCD. |
| Sensor Resolution | 5MP. |
| Magnification | 1200x (max). |
| Image Resolutions | 5M (2592×1944), 3M (2048×1536), 2M (1920×1080), 1M (1280×720). |
| Video Resolutions | 1920×1080, 1280×720. |
| LED Illumination | 8 LEDs (adjustable). |
| Focusing Range | 0‑110mm. |
| Picture Format | JPG. |
| Video Format | AVI. |
| Battery Capacity | 2000mAh (approx. 3.5h runtime). |
| Color | White. |

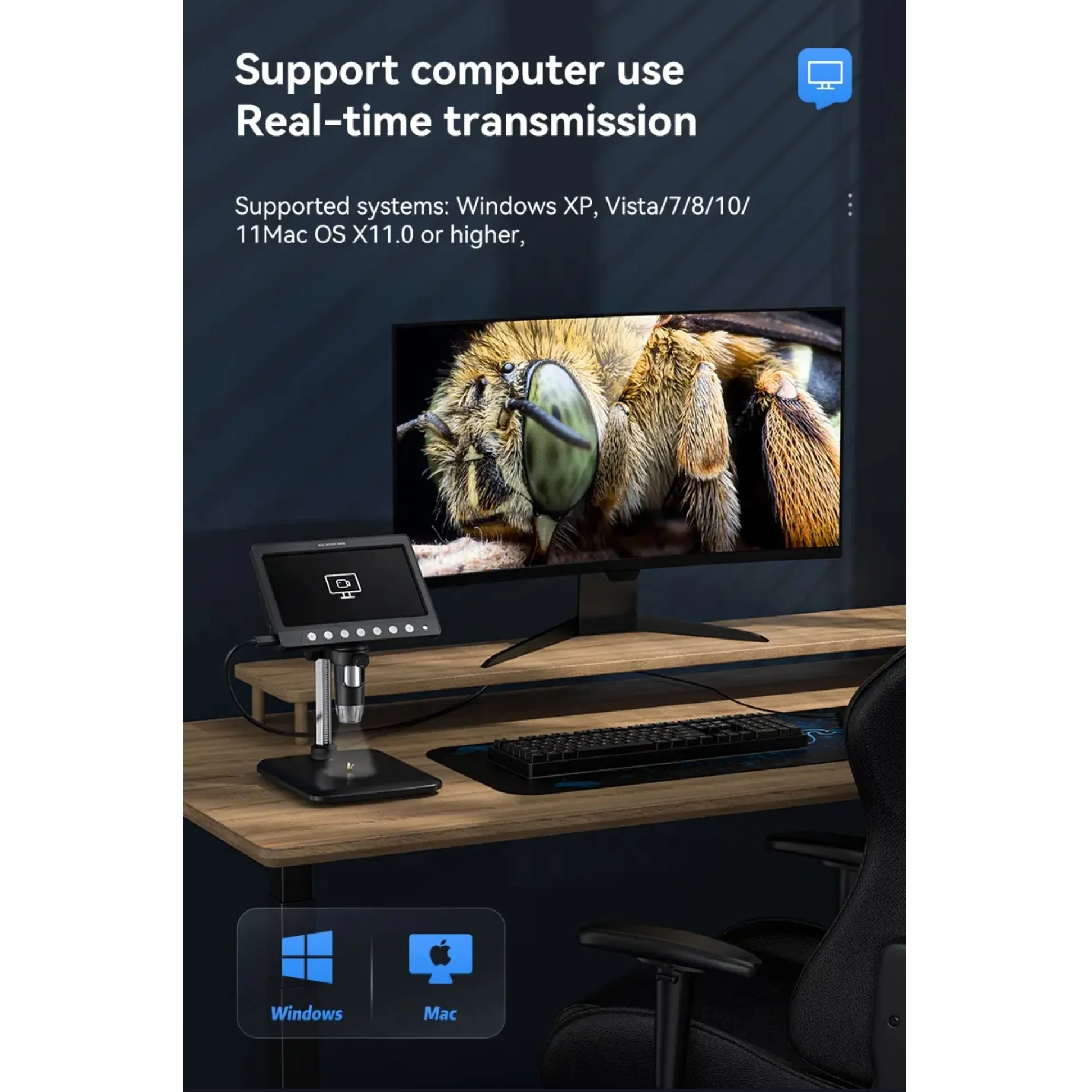

| Output Interfaces | HDMI, USB 2.0. |
| Power Supply | Rechargeable battery or AC adapter. |
| Stand Type | Adjustable metal stand. |
| OS Compatibility | Windows, Mac, Linux. |
Applications:
- PCB inspection.
- Soldering and rework.
- Electronic component analysis.
- Mobile phone repair.
- Quality control inspection.
- Jewelry examination.
- Coin collection inspection.
- Educational laboratories.
- Precision mechanical inspection.
- Hobby and DIY projects.

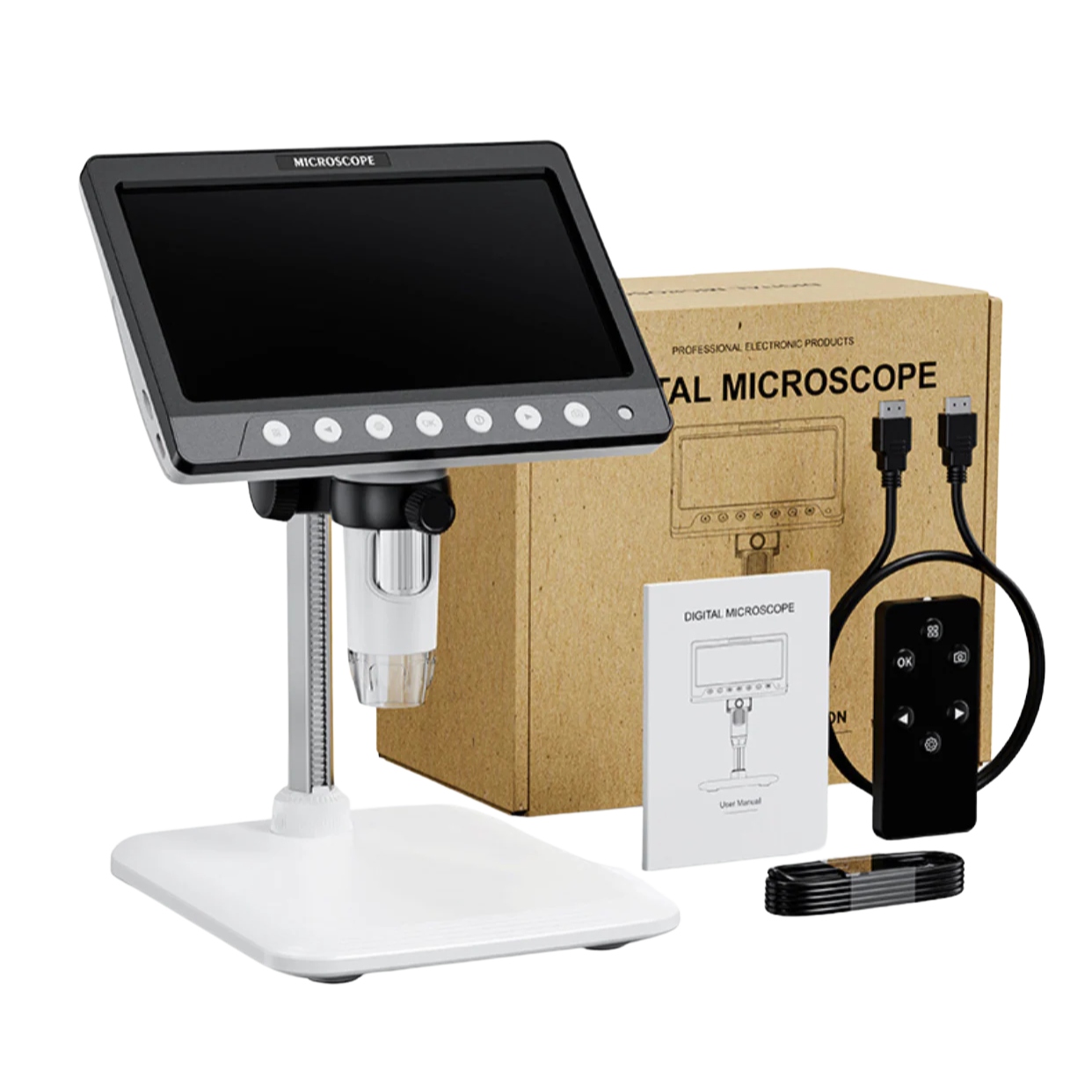

Package Include:
- 1x 330H Digital Microscope.
- 1x Plastic Base Stand.
- 1x Metal Support Rod.
- 1x Plastic Microscope Holder.
- 1x USB Type-C Power Cable.
- 1x Remote control.
- 1x HDMI Cable.
- 1x User Manual.
