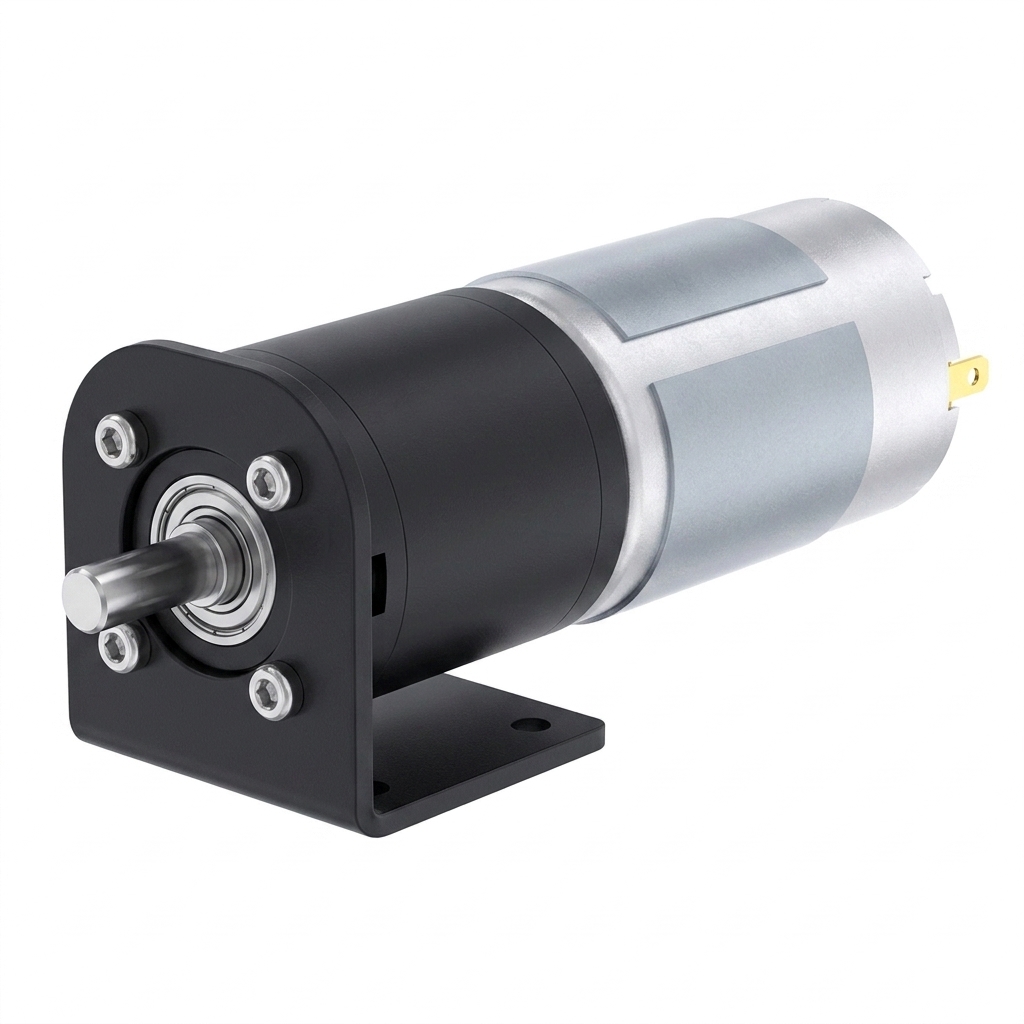

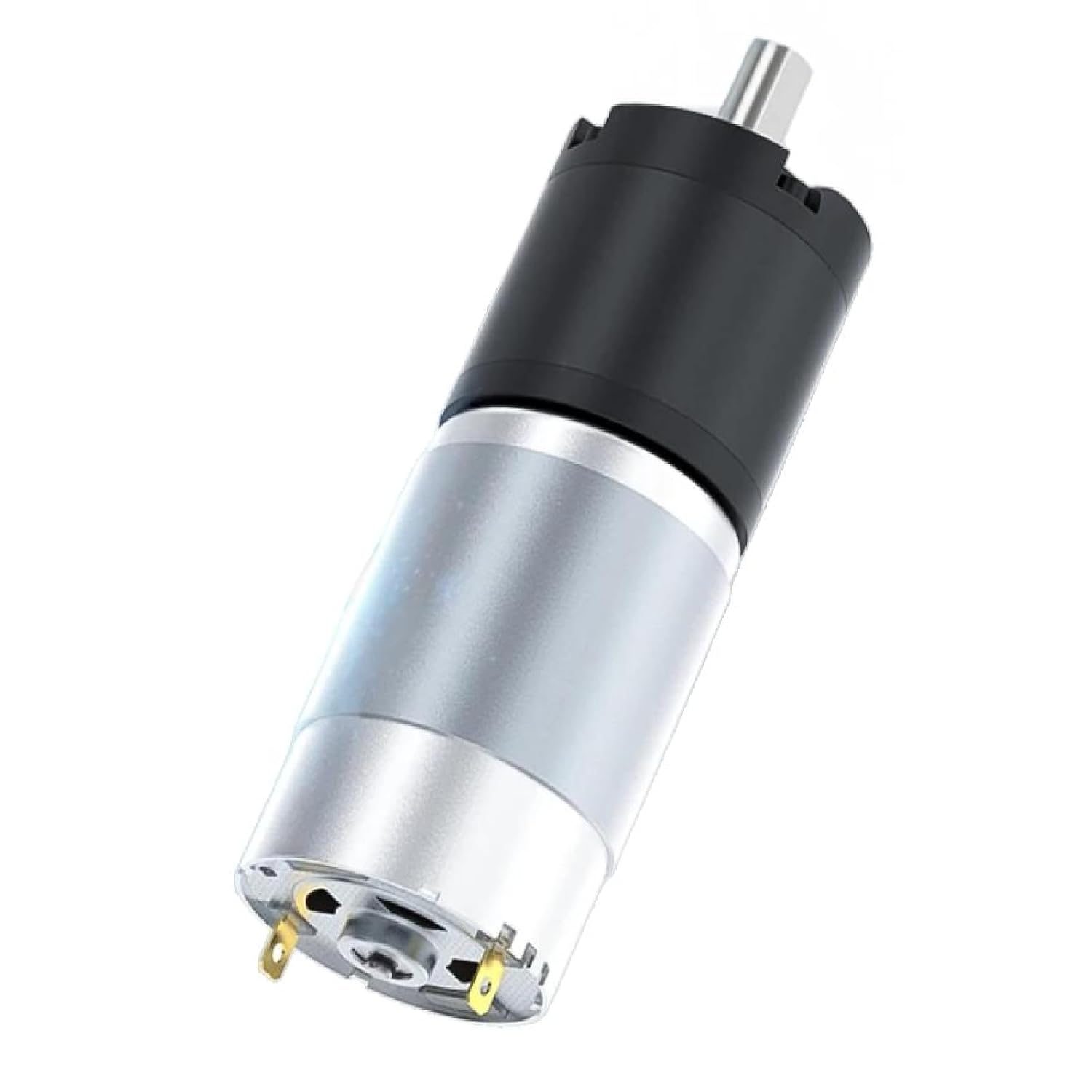

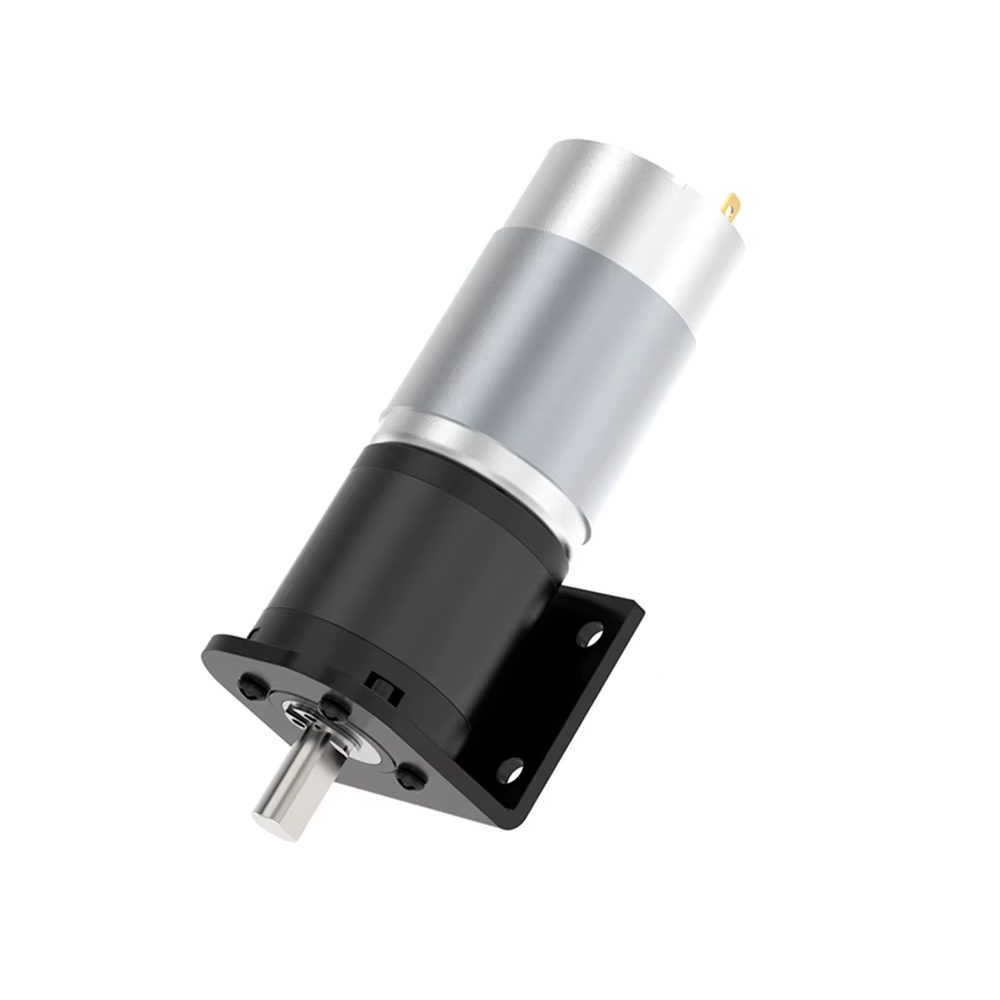

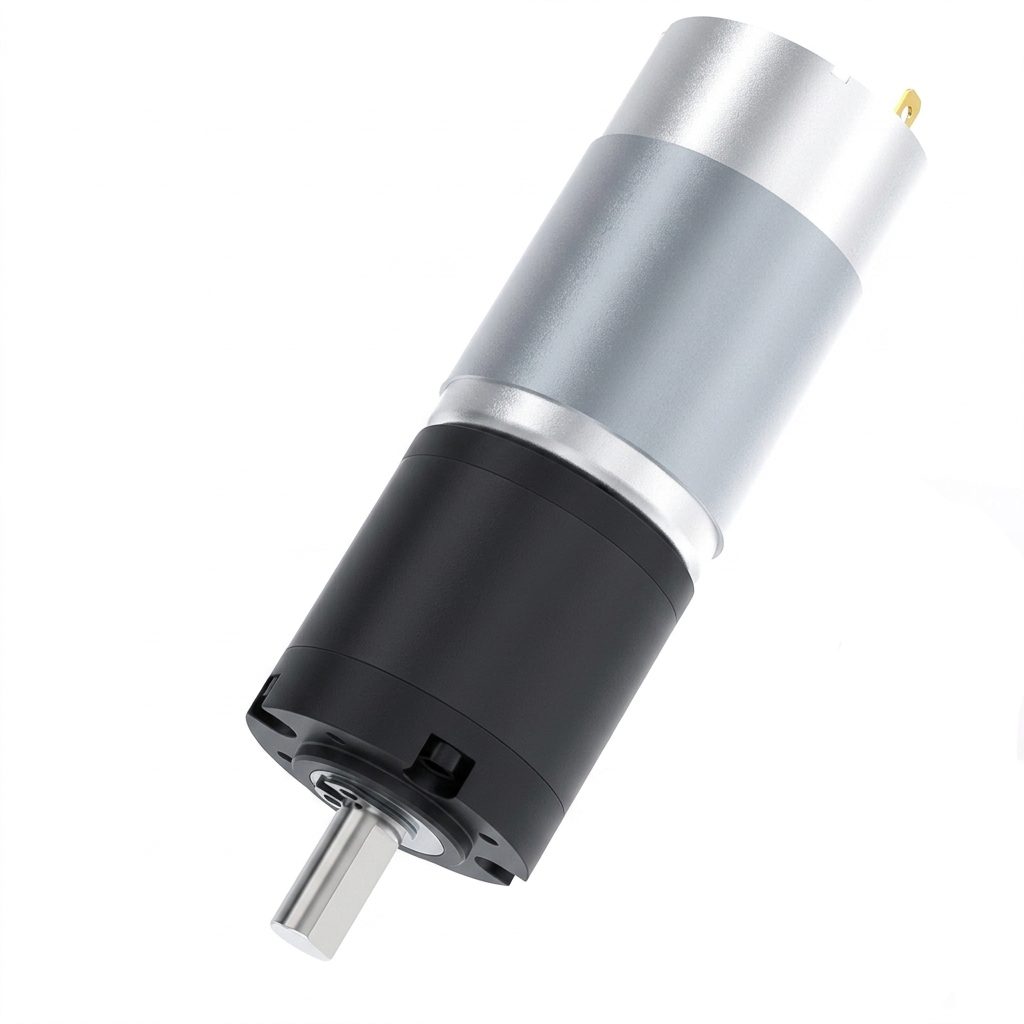

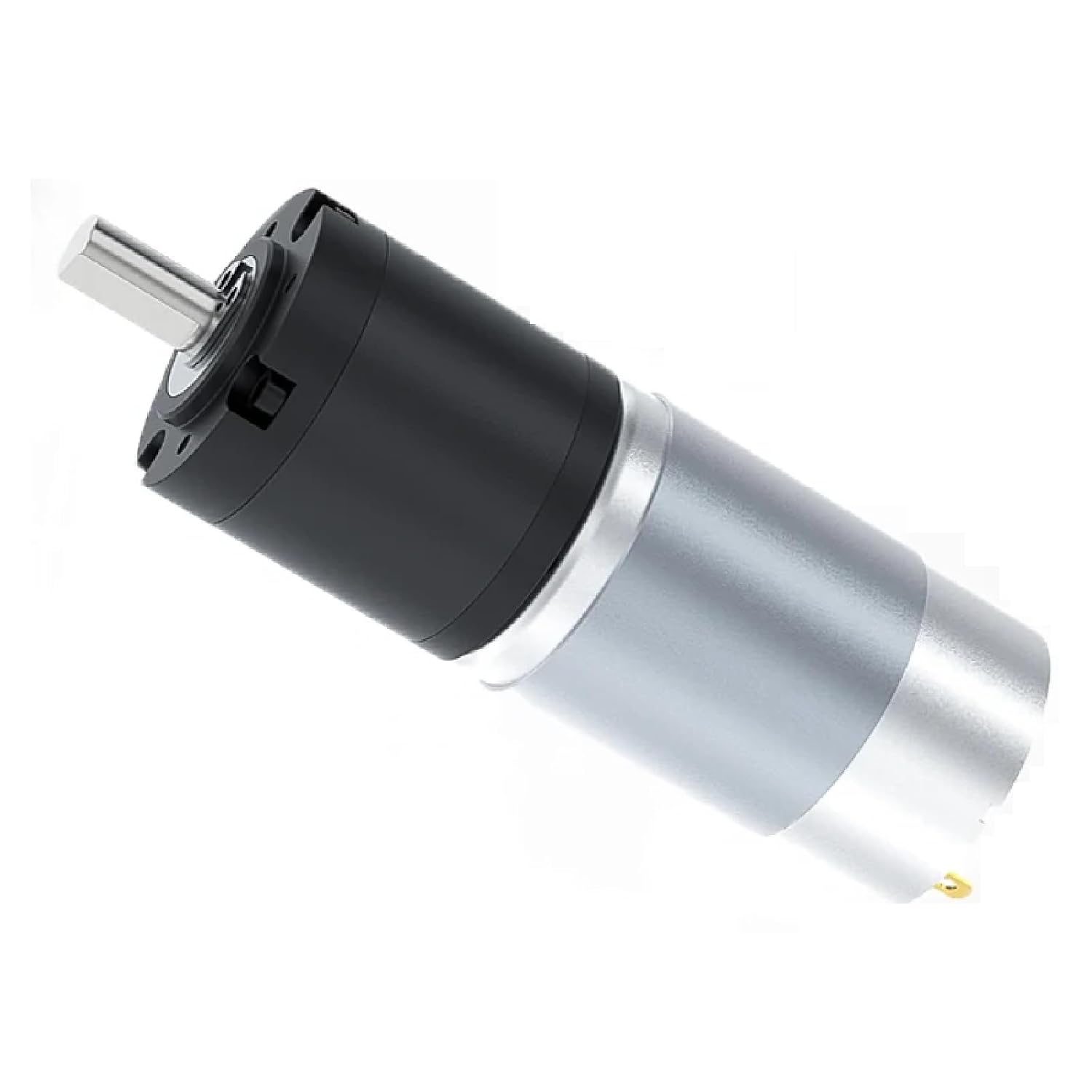

36GP-555 DC Gear Motor 12V 60RPM D-Shaft 8mm with Mounting Bracket
High-Torque 36GP-555 DC Gear Motor 12V 60RPM D-Shaft 8mm with Heavy-Duty Mounting Bracket is a robust geared motor engineered for applications requiring high torque and stable low-speed operation. Powered by 12VDC, this motor features a durable metal gearbox and an 8mm D-shaped output shaft for secure power transmission. Its reliable performance makes it ideal for robotics, automation systems, conveyor mechanisms, smart devices, and industrial projects. The included heavy-duty mounting bracket ensures easy installation and secure integration into a wide range of mechanical assemblies.
Features
- High torque output for demanding load applications.
- Stable low-speed operation at 60RPM.

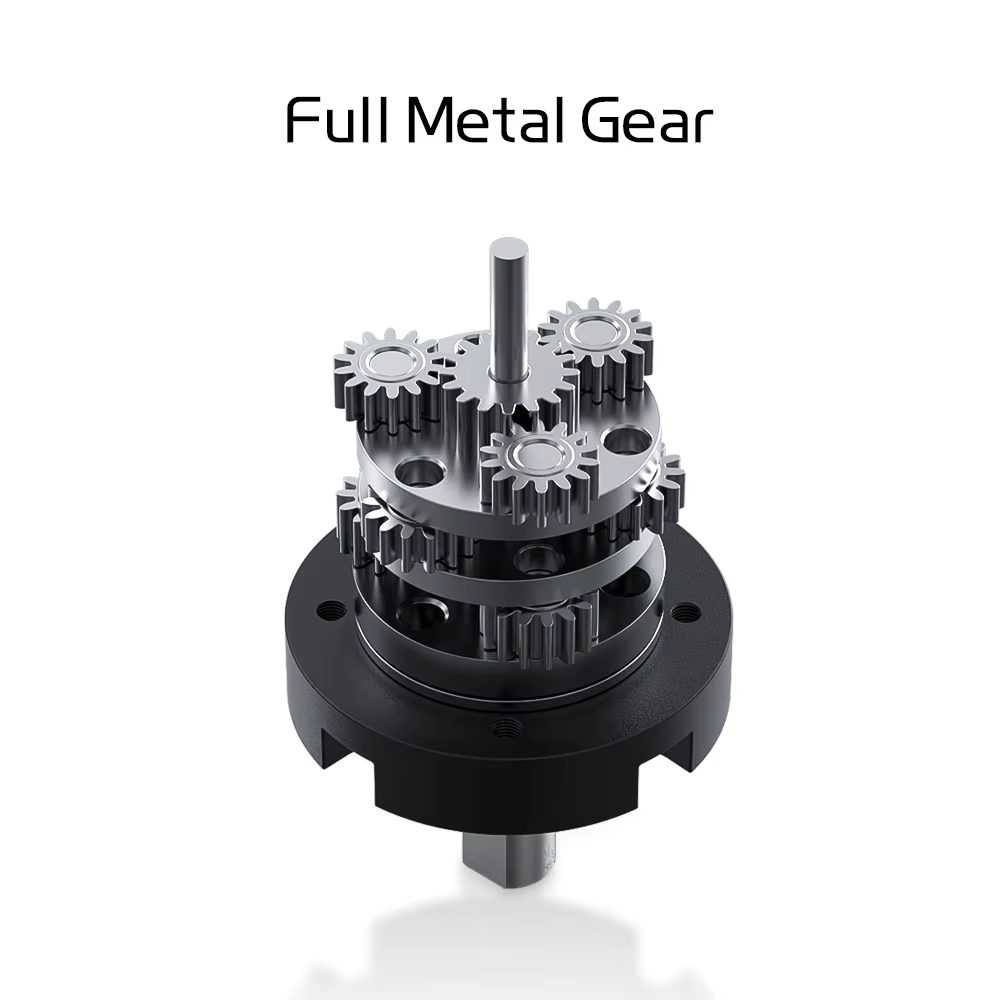

- Durable metal gearbox for long-lasting performance.
- Operates efficiently from a 12VDC power supply.
- 8mm D-shaped shaft ensures secure coupling.
- Reversible CW and CCW rotation capability.

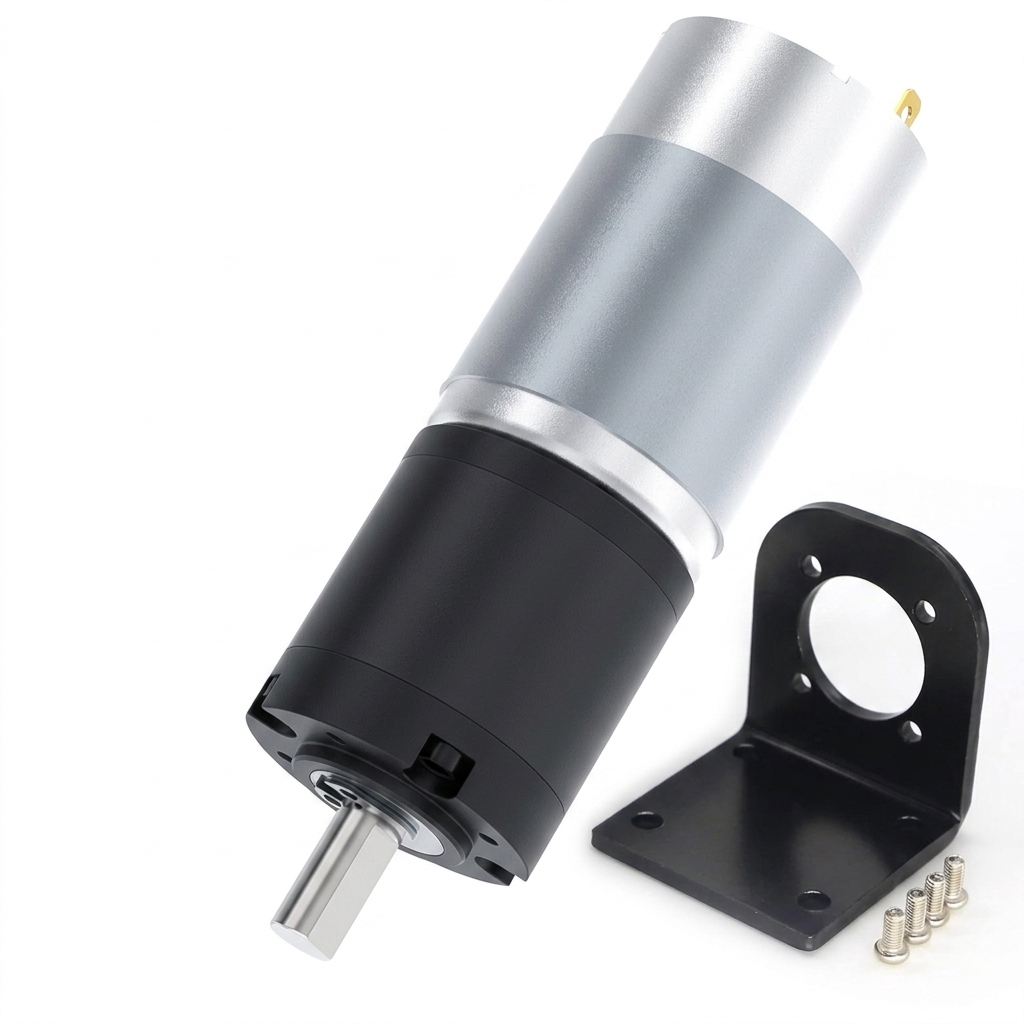

- Heavy-duty mounting bracket included for easy installation.
- Compact design suitable for automation projects.
- Smooth operation with reliable mechanical performance.
- Ideal for robotics, industrial control, and DIY applications.
Specifications
| Parameter | Details |
| Product Model | 36GP-555 |
| Motor Type | DC Geared Motor |
| Gearbox Type | Metal Gearbox |
| Rated Voltage | 12VDC |
| Free Run Speed | 60RPM |
| Free Run Current (12V) | 0.4A |
| Rated Speed | 40RPM |
| Rated Current (12V) | 1A |
| Rated Power | W |
| Rated Torque (12V) | kg.cm |
| Stall Current (12V) | 6A |
| Stall Torque (12V) | kg.cm |
| Reducer size | 39mm |
| Weight | 440g |
| Shaft Diameter | 8mm |
| Shaft Type | D Shape Shaft |
| Rotation Direction | Clockwise and Counter Clockwise / Forward And Reverse |
| Mounting Type | Bracket Mount |
| Body Material | Metal and Plastic Construction |
| Operating Principle | Brushed DC Motor |
| Duty Cycle | Continuous Operation |
| Application Type | Low Speed High Torque Applications |

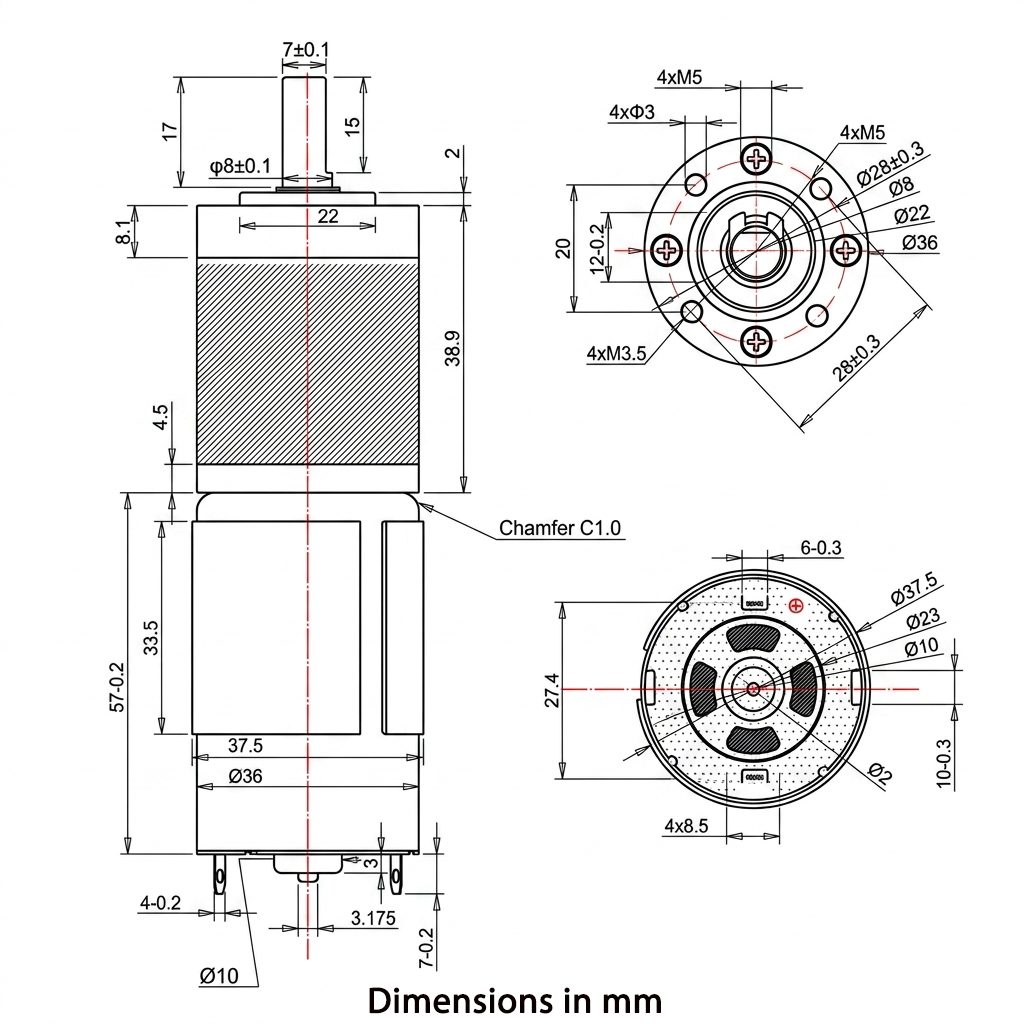

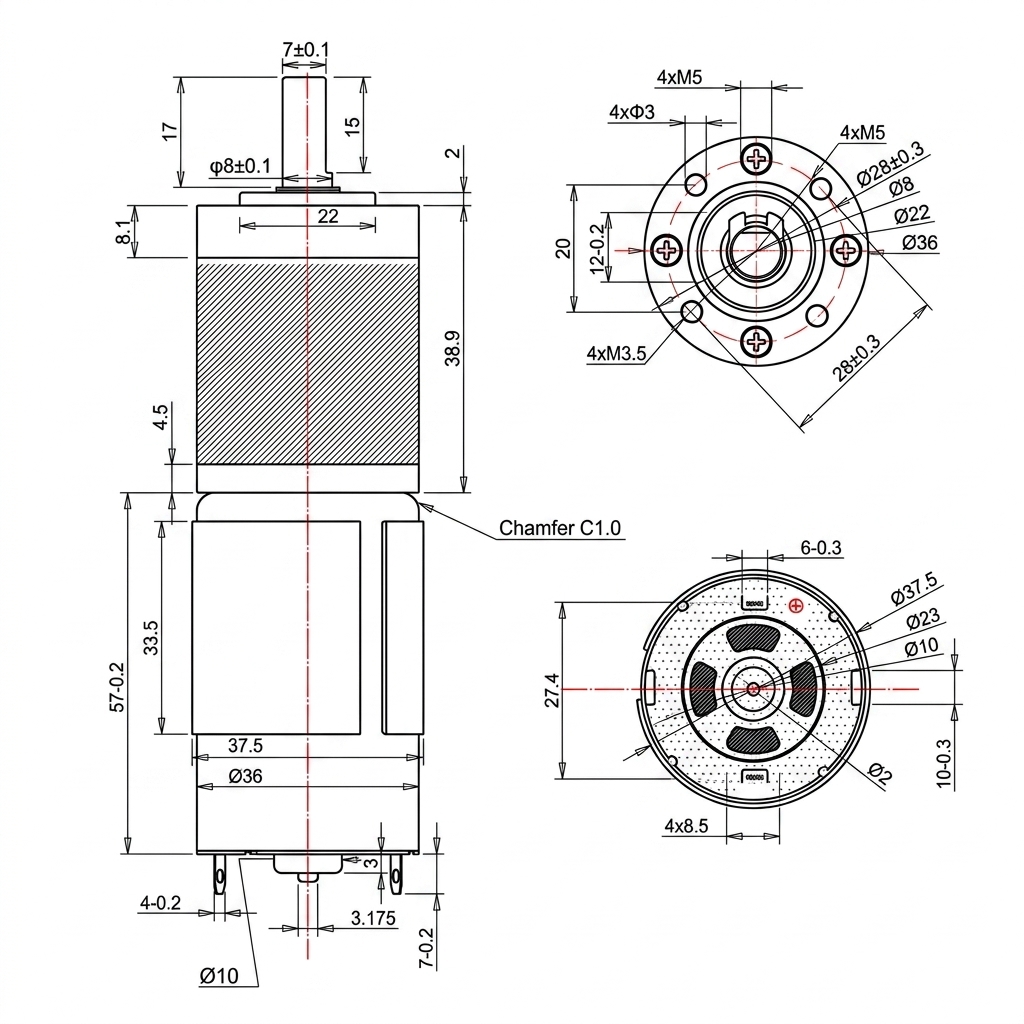

Dimensions

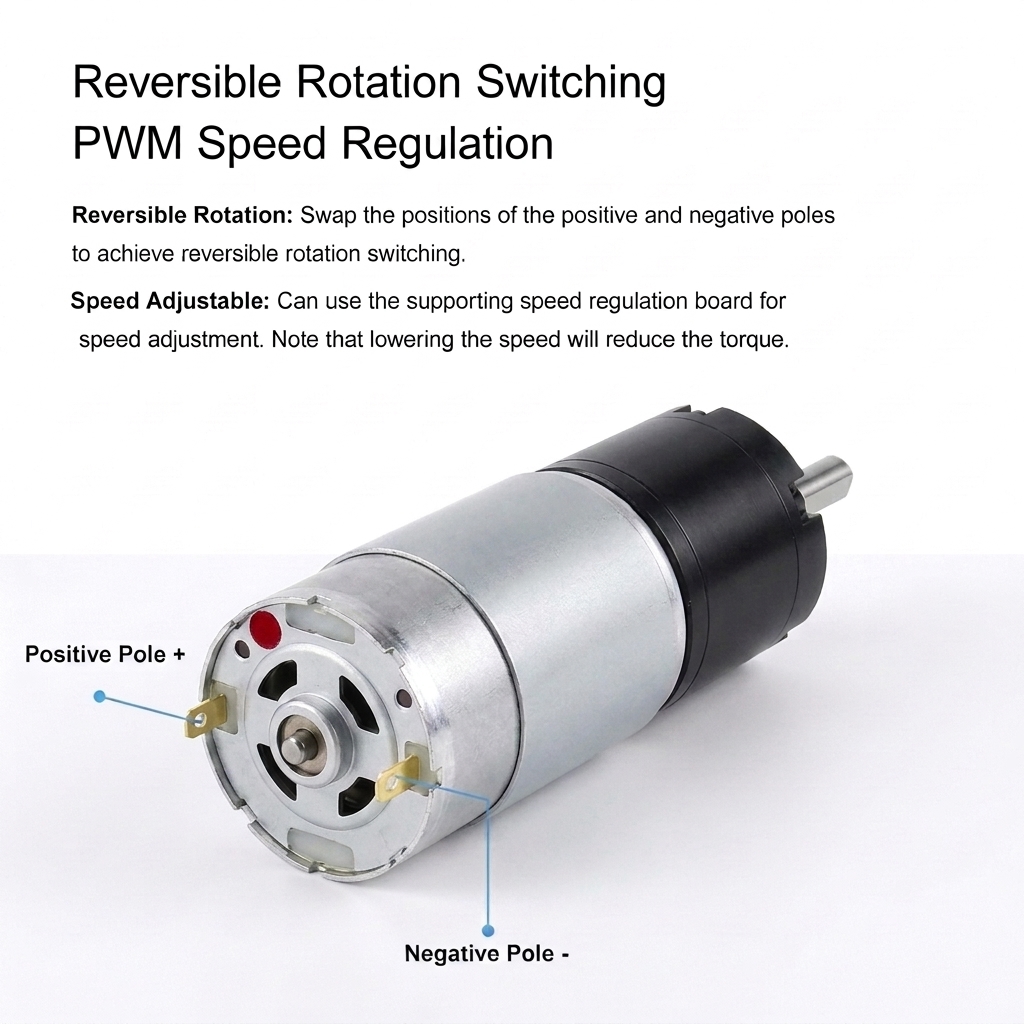

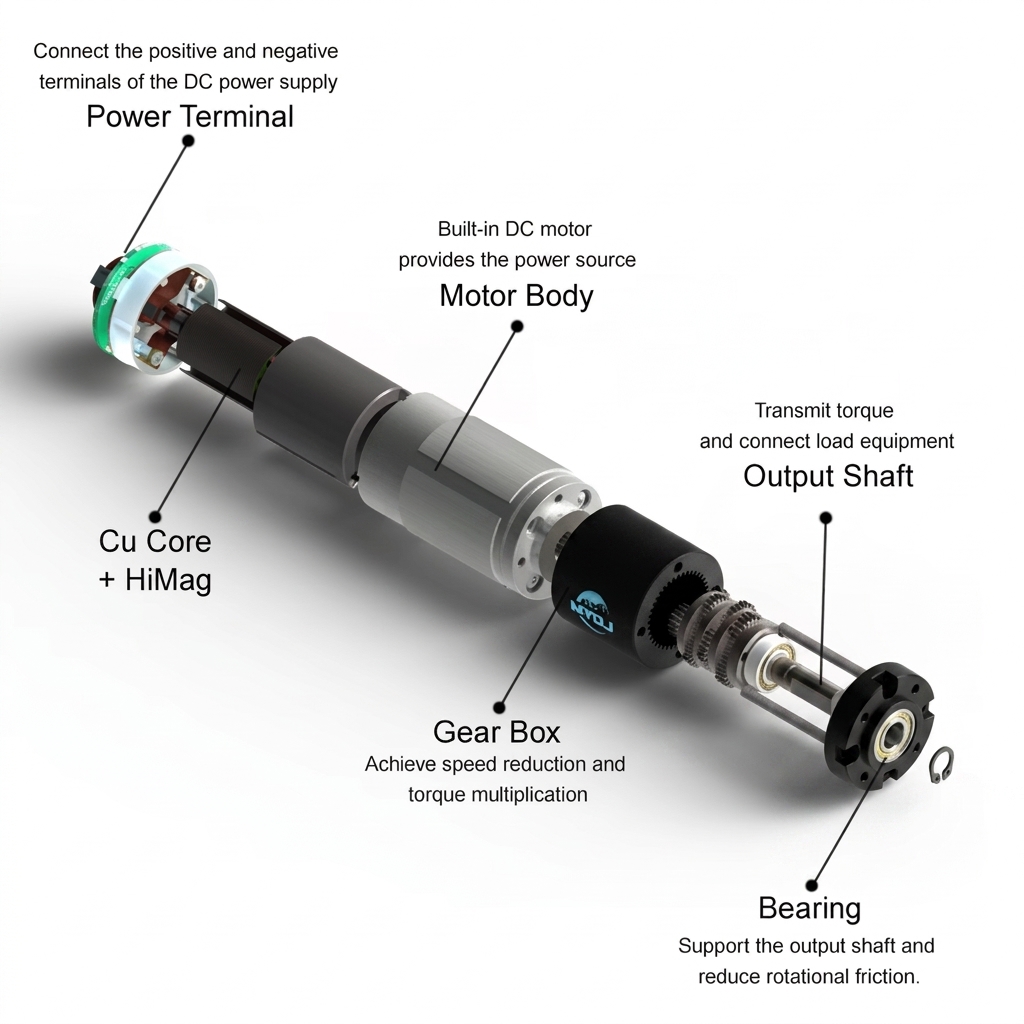

Pinout Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Motor Terminal (+) | Positive DC power input. |
| 2 | Motor Terminal (-) | Negative DC power input. |
Applications
- Robotics and robotic vehicle projects.
- Conveyor belt drive systems.
- Smart automation equipment.
- Automatic door mechanisms.
- DIY engineering projects.
- Educational robotics platforms.
- Motorized display systems.
- Industrial control systems.
- Mechanical actuators.
- Small lifting and positioning mechanisms.
Package Contents
- 1 x 36GP-555 DC Gear Motor 12V 60RPM D-Shaft 8mm

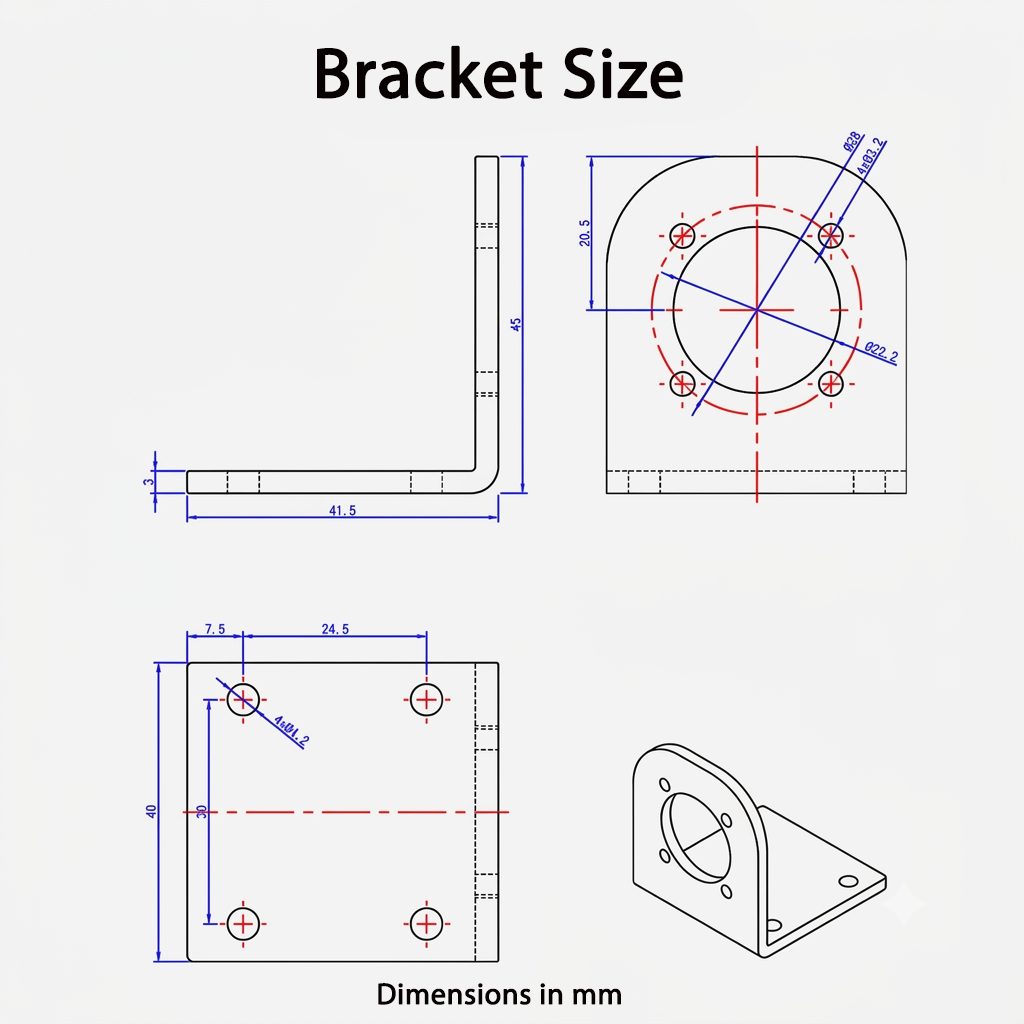

- 1 x Metal Mounting Bracket.
- 4 x M3 Mounting Scerw 5mm.
