4033 IC Decade Counter
CMOS 7-seg Decoder and Counter
15.00 EGP
Buy Now
Availability:
In Stock
SKU:4856529802207
Features:
- Counter and 7-segment decoding in one package
- Easily interfaced with 7-segment display types
- Fully static counter operation: DC to 6 MHz (typ.) at VDD = 10 V
- Ideal for low-power displays
- “Ripple blanking” and lamp test (CD4033B)
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Schmitt-triggered clock inputs

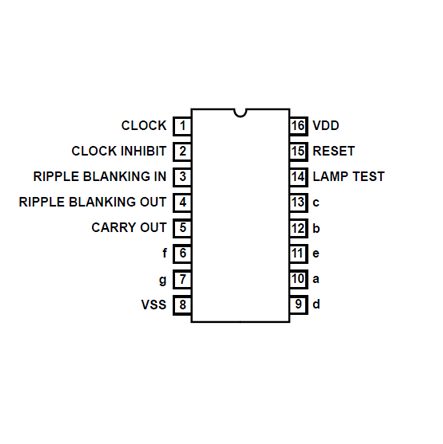

CD4033 Pinout
| Pin No |
Pin Name |
Description |
| 1 |
CLK 1 |
Clock Signal 1 |
| 2 |
CLK INHIBIT 1 |
Clock Inhibit Signal |
| 3 |
R-BLANKING IN |
Ripple Blanking Input |
| 4 |
R BLANKING OUT |
Ripple Blanking Output |
| 5 |
C-OUT |
Carry Out Signal |
| 6 |
f |
Output f of counter |
| 7 |
g |
Output g of counter |
| 8 |
VSS |
Source Supply Voltage |
| 9 |
d |
Output d of counter |
| 10 |
a |
Output a of counter |
| 11 |
e |
Output e of counter |
| 12 |
b |
Output b of counter |
| 13 |
c |
Output c of counter |
| 14 |
L-TEST |
Lamp Test Pint |
| 15 |
Reset |
Reset |
| 16 |
VDD |
Drain supply Voltage |
Technical Specifications
| Physical |
| Case/Package |
PDIP |
| Contact Plating |
Gold |
| Mount |
Through Hole |
| Number of Pins |
16 |
| Technical |
| Clock Edge Trigger Type |
Positive Edge |
| Direction |
Unidirectional |
| Frequency |
16 MHz |
| Logic Function |
Counter |
| Max Operating Temperature |
125 °C |
| Max Supply Voltage |
18 V |
| Min Operating Temperature |
-55 °C |
| Min Supply Voltage |
3 V |
| Number of Bits |
7 |
| Number of Bits per Element |
5 |
| Number of Elements |
1 |
| Propagation Delay |
600 ns |
| Quiescent Current |
100 µA |
| Reset |
Asynchronous |
| Sync/Async |
Synchronous |
| Turn-On Delay Time |
600 ns |
Applications
- Decade Counting 7 Segment Decimal Display
- Frequency Division 7 Segment Decimal Displays
- Clocks, Watches, Timers (e.g. ÷ 60, ÷ 60, ÷12 Counter/Display)
- Counter/Display Driver For Meter Applications
