NMB-MAT 4710KL-05W-B30 DC Fan 24V 0.2A 119x119x25.5mm 2-Pin
The NMB-MAT 4710KL-05W-B30 is a high-reliability 24V DC axial fan engineered with a dual ball bearing system and black UL94V-0 flame-retardant casing and impeller. The fan operates with clockwise rotation, discharging airflow outwards over the struts, and features integrated auto-restart and polarity protection.
Features
- Motor Protection: Integrated Auto Restart and Polarity Protection.
- Bearing Type: Ball Bearing construction.
- Airflow Direction: Clockwise rotation with airflow outlet over the struts.
Specifications
| Model / Product No. | 4710KL-05W-B30-X00 |
|---|---|

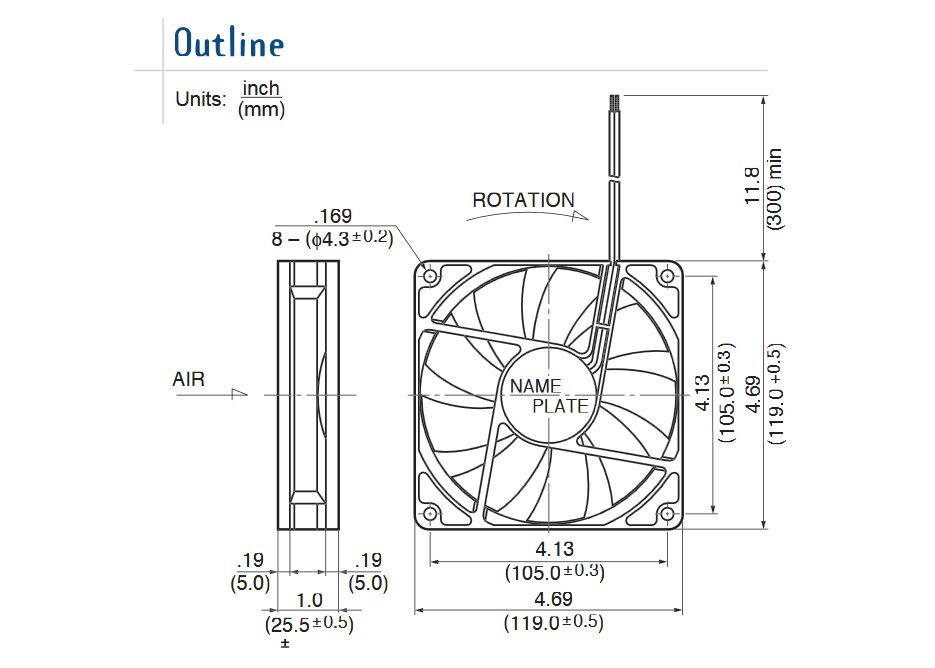

| Dimensions | 119 mm × 119 mm × 25.5 mm (4.69″ × 4.69″ × 1.0″) |
| Rated Voltage | 24 V DC |
| Operating Voltage Range | 10.0 V to 27.6 V DC |
| Rated Current | 0.15 A (Datasheet specification) / 0.20 A (Physical label marking) |
| Input Power | 3.60 W |
| Fan Speed | 2,200 min⁻¹ (RPM) |
| Max. Air Flow | 88.2 CFM (2.50 m³/min) |
| Max. Static Pressure | 0.13 in H₂O (32.3 Pa) |
| Noise Level | 35.0 dB |
| Mass / Weight | 180 g |
| Allowable Operating Temp. | -10°C to +70°C (non-condensing) |
| Storage Temp. Range | -40°C to +70°C (non-condensing) |
| Insulation Resistance | 10 MΩ or over with DC 500V |
| Dielectric Withstand Voltage | AC 700V 1 second |
Applications
- DC Axial Forced-Air Cooling
- 24V DC Power Systems
Package Content
- 1 x NMB-MAT 4710KL-05W-B30 DC Fan 24V 0.2A 119x119x25.5mm 2-Pin
