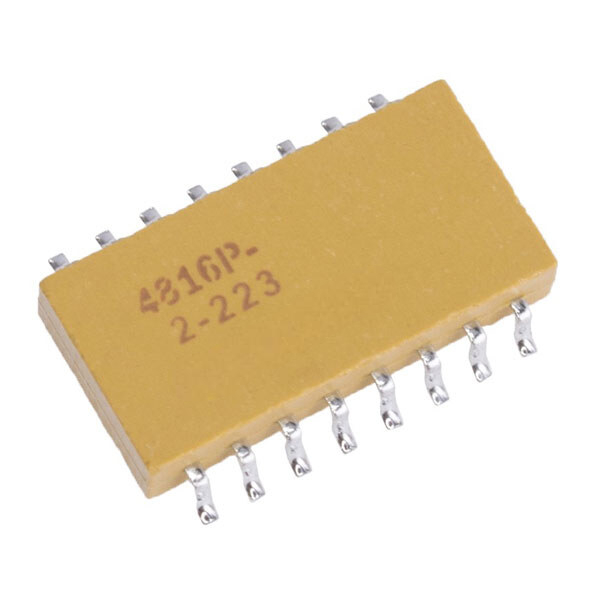

4816P-2-223 SMD BUSSED RESISTOR NETWORKS 22KΩ 2% SOIC-16
The 4816P-2-223 is a surface-mount resistor network featuring eight isolated 22kΩ thick-film resistors integrated into a compact SOIC-16 package. This resistor array is designed to reduce PCB space usage, simplify circuit assembly, and minimize the number of discrete resistor components required in digital and embedded electronic systems. The isolated resistor configuration provides independent resistor elements without a common bus connection, making the device suitable for signal conditioning, pull-up and pull-down networks, voltage division, and general-purpose resistor array applications.
Features:
- Bussed schematic with 8 resistors arranged in 4 pairs.

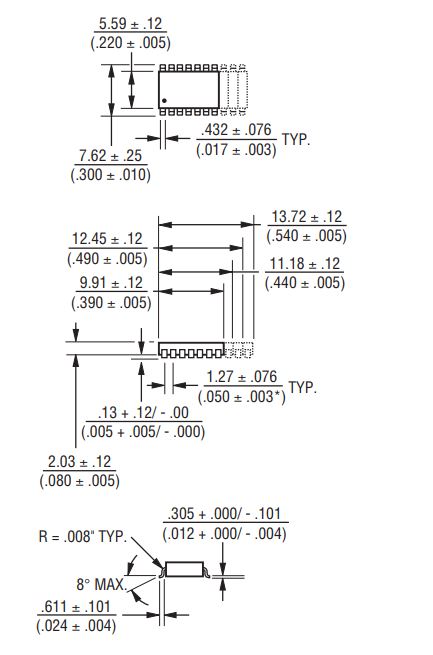

- Medium body SOIC package for compact SMT designs.
- Reflow solderable for modern assembly processes.
- Compatible with automatic surface mounting equipment.
- Thick film resistive elements for stable performance.
- Low temperature coefficient of ±100ppm/°C.
Specifications:
| Parameter | Value |
|---|---|
| Type | Thick Film Resistor Network |
| Schematic | Bussed (2 Circuit) |
| Number of Resistors | 8 (arranged in 4 bussed pairs) |
| Resistance Value | 22KΩ (22,000Ω) |
| Tolerance | ±2% (Standard), ±1% (F) and ±0.5% (D) available |
| Power Rating per Element | 0.16W at +70°C |
| Package Power Rating (Max at +70°C) | 1.28W |
| Temperature Coefficient (TCR) | ±100ppm/°C (50Ω and above) |
| TCR Tracking | ±50ppm/°C maximum |
| Maximum Operating Voltage | 50V |
| Operating Temperature Range | -55°C to +125°C |
| Storage Temperature Range | -55°C to +150°C |
| Insulation Resistance | >10,000MΩ minimum |
| Dielectric Withstanding Voltage | 200VRMS |
| Lead Coplanarity | 0.102mm (0.004″) max. at mounting |
| Flammability | UL94V-0 |
| Lead Frame Material | Copper, solder coated |
| Body Material | Thermoplastic |
| Package Type | SOIC-16 (Small Outline Integrated Circuit) |
| Pin Count | 16 |
| Mounting Style | Surface Mount (SMD) |
Applications:
- Signal pull-up networks.
- Signal pull-down circuits.
- Voltage divider arrays.
- Embedded electronics systems.
- Industrial control electronics.
- Communication interface circuits.
- Microcontroller interface circuits.
- Educational electronics projects.
- Digital signal conditioning.
