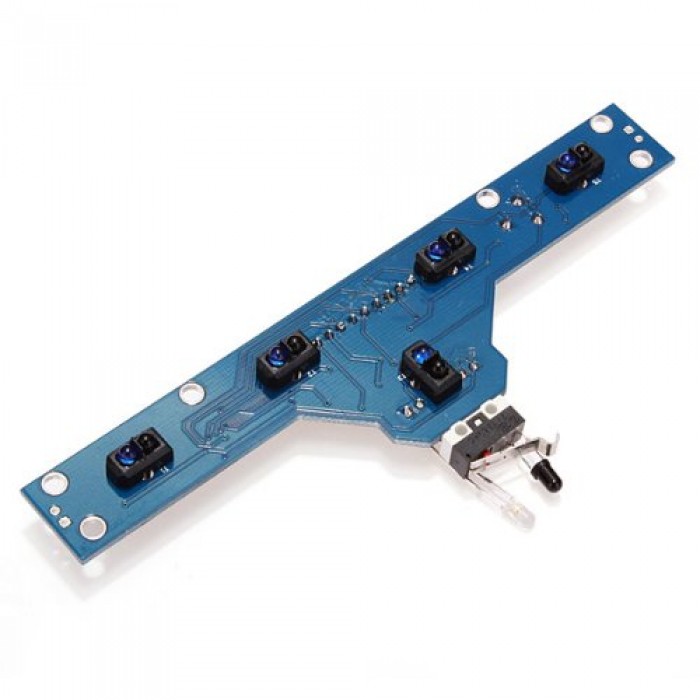

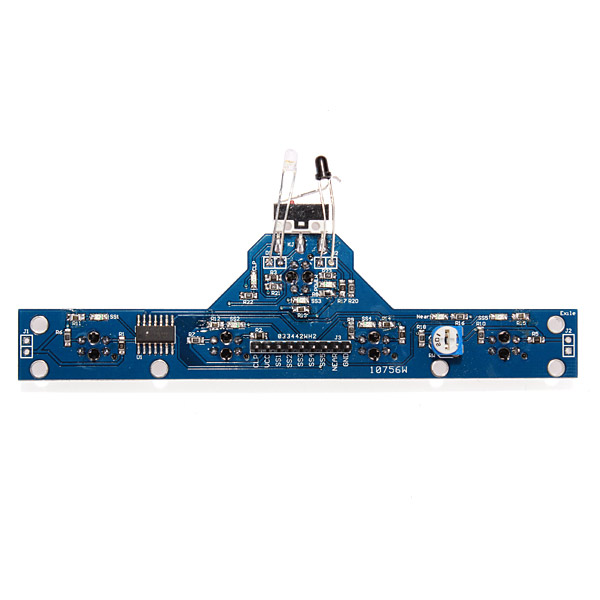

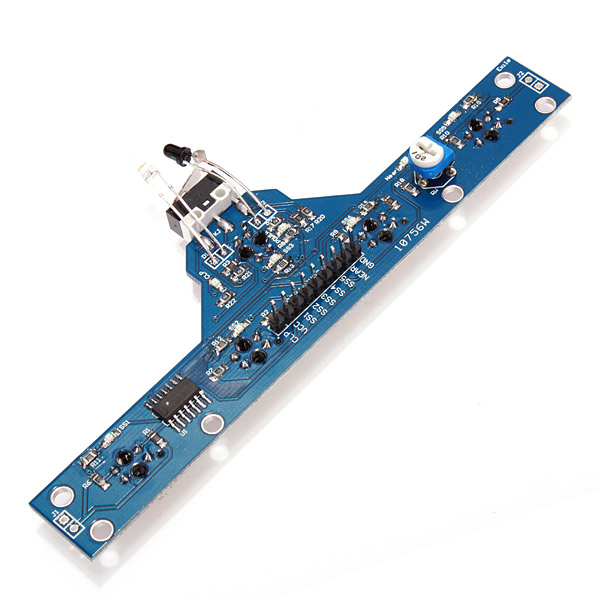

5 Channel Line Tracking Sensor Module (BFD-1000)

5 Channel Line Tracking Sensor Module (BFD-1000) is a sensor board designed for use with line follower robots. This module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor and touch detection sensor, the board makes your robot design able to adapt to the situation easily.

5 Channel Line Tracking Sensor Module (BFD-1000) – General Specifications

• 5 channel high sensitivity sensor
• High accuracy for tracking black line.
• Distance sensor at the front, distance can be adjusted
• Special touch sensor design, making the robot design simple
• Digital output signal
• Indicator LEDs

5 Channel Line Tracking Sensor Module (BFD-1000) – Technical Specifications

• Detection distance: 0 – 4cm(black and white line sensors), 0 – 5cm(adjustable distance detection)
• Input voltage: 3.0V – 5.5V
• Output form: digital output (high and low level)
