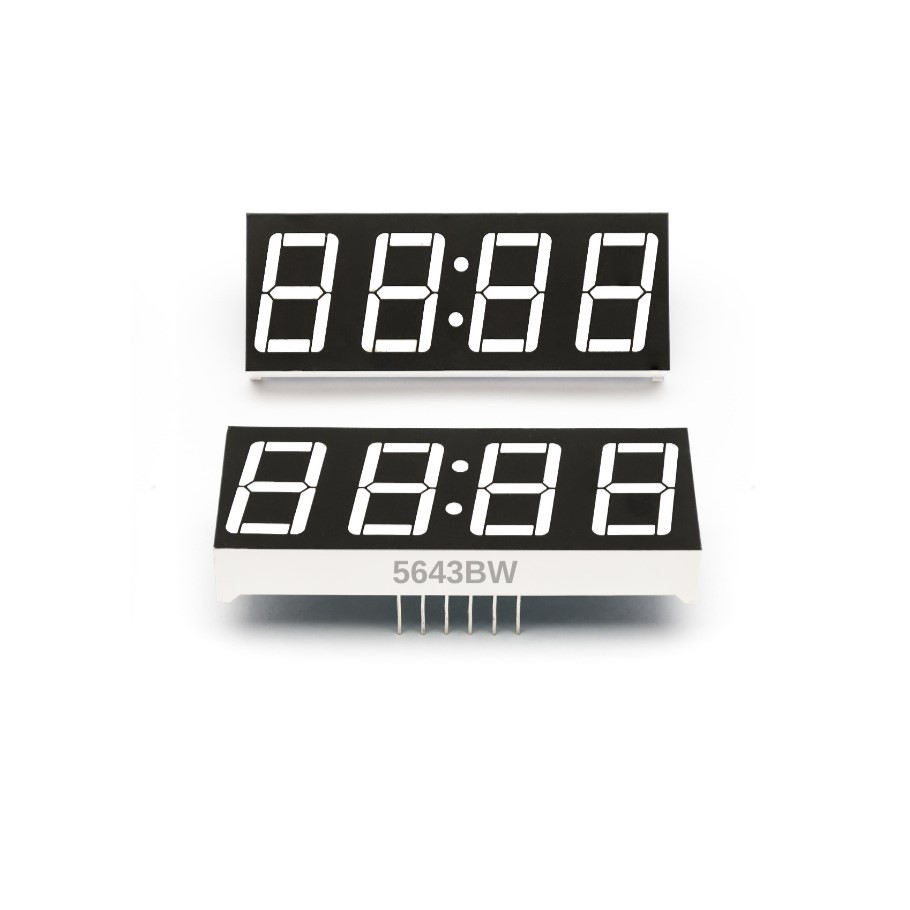

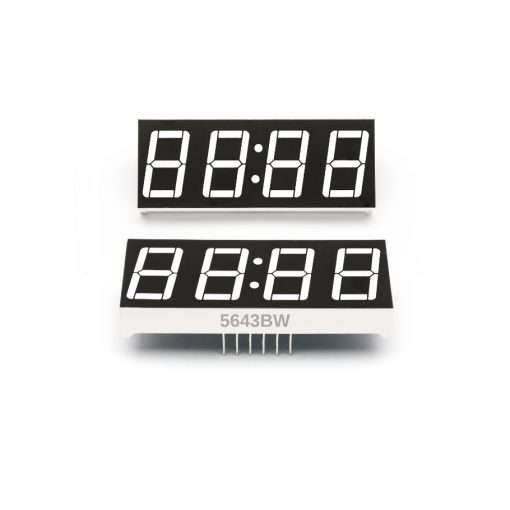

5643BW Clock Time 7 Segment 4 Digit 0.56 Inch Com.Anode – WHITE
The 5643BW is a compact, high-efficiency 4-digit, 7-segment LED display specifically designed for clock and timing applications. Featuring a crisp white output and a 0.56-inch digit height, this module provides excellent readability in a streamlined form factor. Built with a Common Anode internal configuration, all the individual LED segments share a common positive terminal per digit. The display also includes integrated central colon dots (D5 and D6), making it the perfect visual interface for digital clocks, timers, and counter projects.
Features
- 4-Digit Clock Display
- Integrated Time Colon
- Common Anode Configuration
- Standard DIP Footprint
Specifications

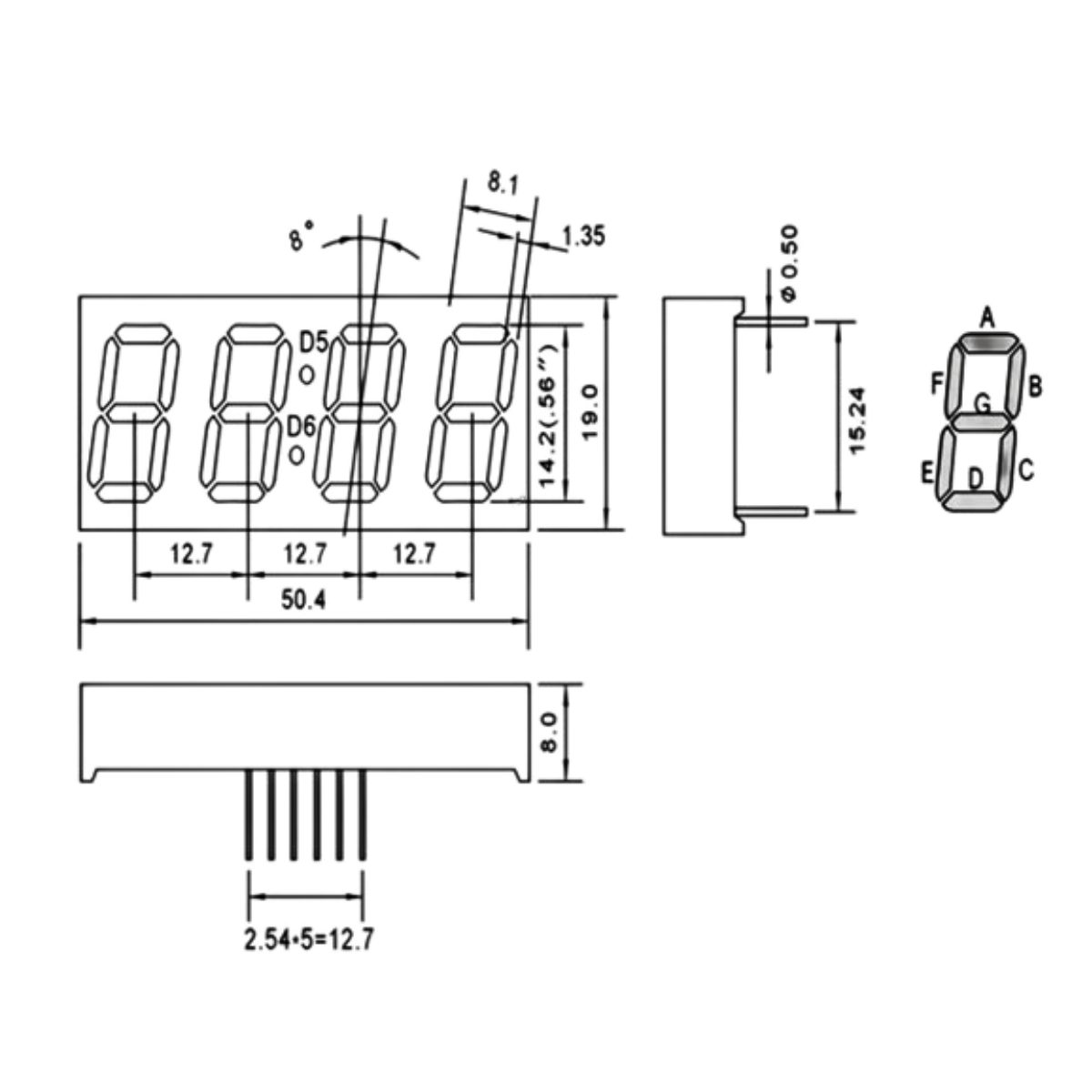

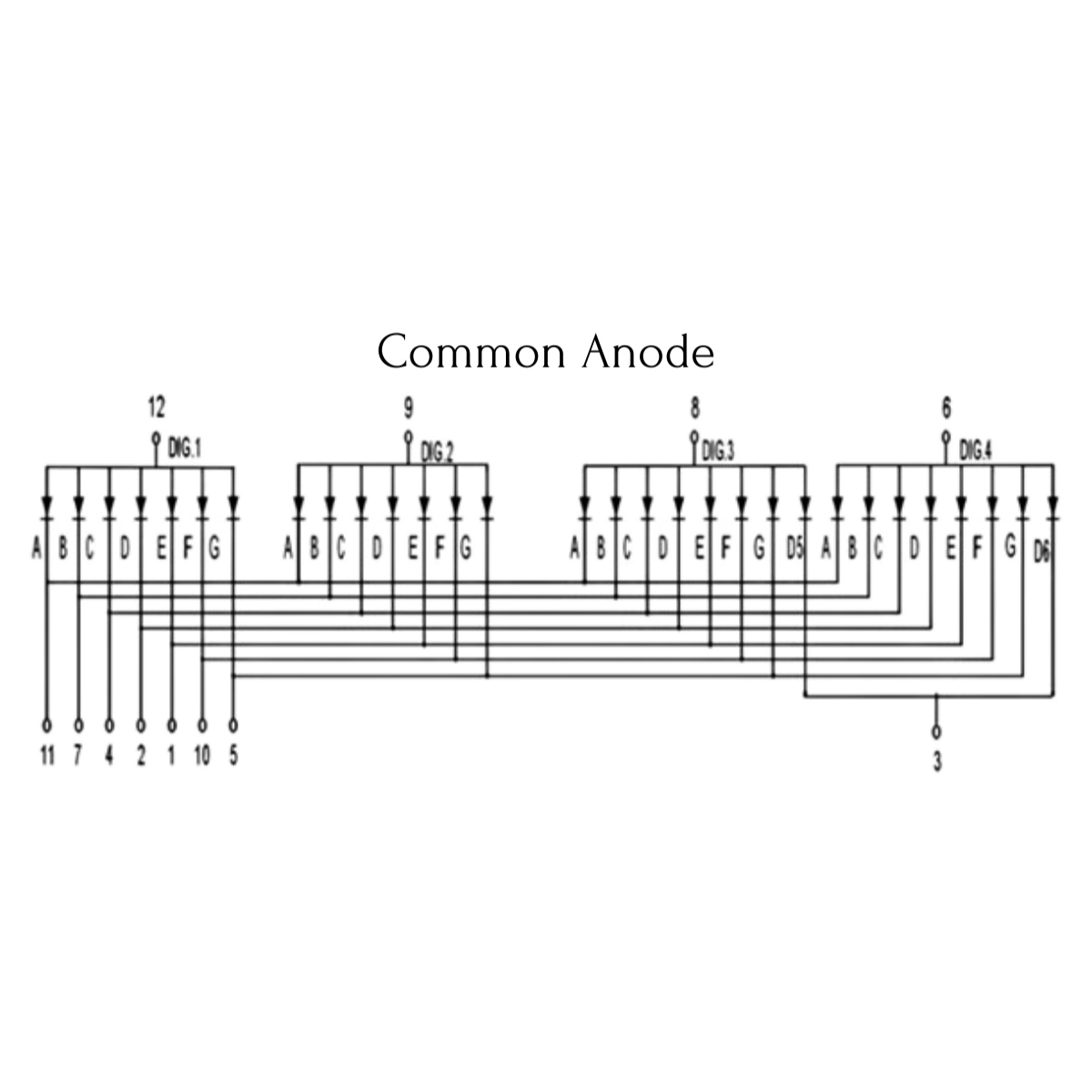

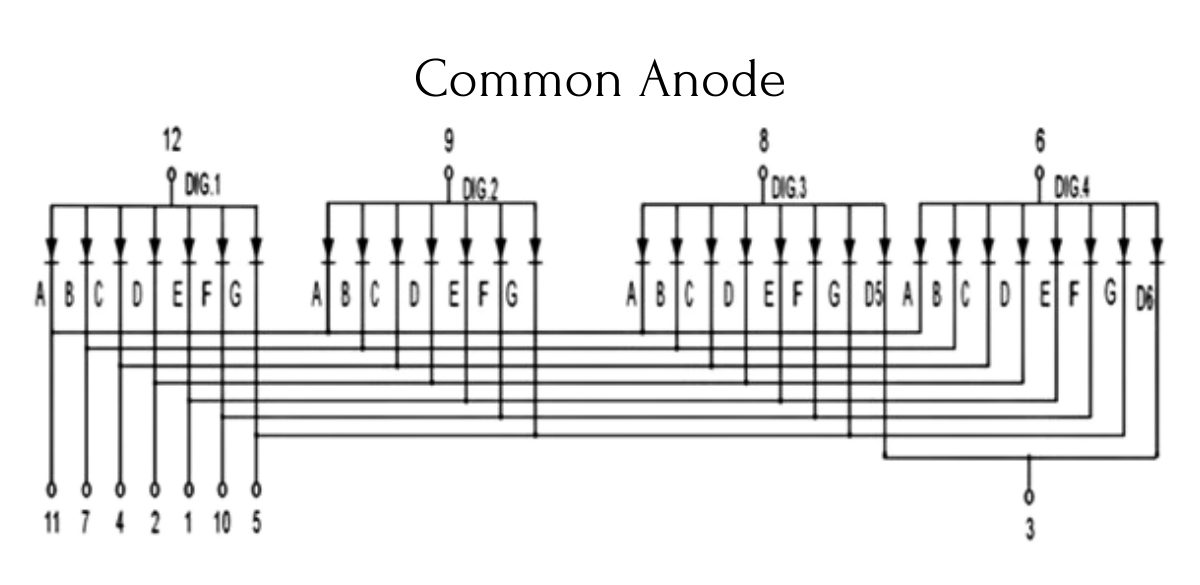

| Pin Number | Circuit Node Assignment | Functional Mapping Classification |
|---|---|---|
| Pin 1 | Segment E | Cathode input path for element E |
| Pin 2 | Segment D | Cathode input path for element D |
| Pin 3 | D5, D6 (Time Colon) | Cathode input path for center clock separator dots |
| Pin 4 | Segment C | Cathode input path for element C |
| Pin 5 | Segment G | Cathode input path for element G |
| Pin 6 | DIG.4 Anode | Common Anode control path for the 4th Digit position |
| Pin 7 | Segment B | Cathode input path for element B |
| Pin 8 | DIG.3 Anode | Common Anode control path for the 3rd Digit position |
| Pin 9 | DIG.2 Anode | Common Anode control path for the 2nd Digit position |
| Pin 10 | Segment F | Cathode input path for element F |
| Pin 11 | Segment A | Cathode input path for element A |
| Pin 12 | DIG.1 Anode | Common Anode control path for the 1st Digit position |
Applications
- Digital alarm clocks and wall clocks
- Countdown timers and stopwatches
- Instrument panels and industrial process counters
- DIY microcontroller projects
Package Content
- 1 x 5643BW Clock Time 7 Segment 4 Digit 0.56 Inch Com.Anode – WHITE
