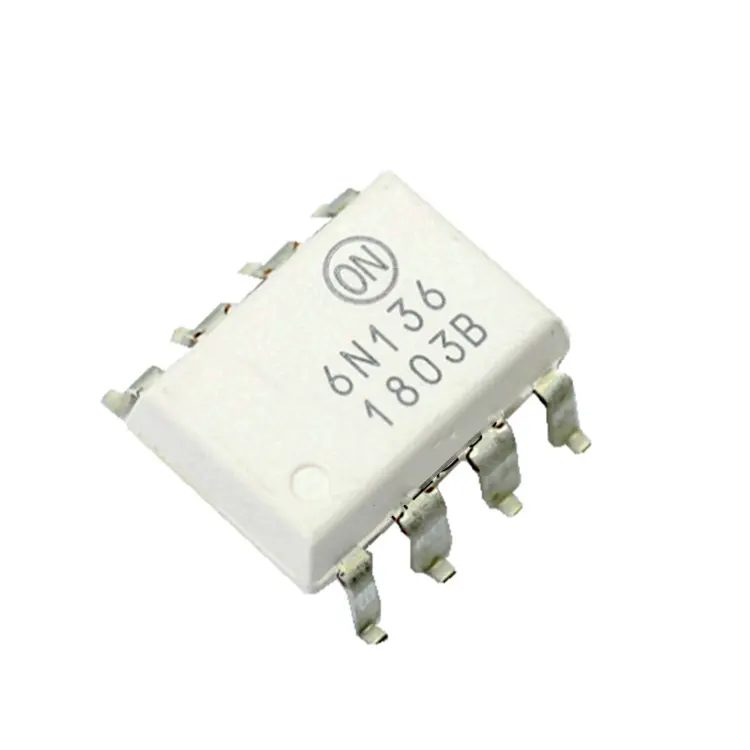

6N136SDM SMD IC 1Mbit/s 0.8us 10kV/us DC SOP-8-2.54mm Optocouplers – Logic Output
30.00 EGP
Buy Now
Availability:
In Stock
SKU:3496300072262
Features
- High speed –1 MBit/s
- Superior CMR – 10kV/µs
Applications
- Line receivers
- Pulse transformer replacement
- Output interface to CMOS-LSTTL-TTL
- Wide bandwidth analog coupling
Specifications
| Product Attribute |
Attribute Value |
| Manufacturer: |
onsemi |
| Product Category: |
High Speed Optocouplers |
| Mounting Style: |
SMD/SMT |
| Package/Case: |
SMD-8 |
| Data Rate: |
1 Mb/s |
| Number of Channels: |
1 Channel |
| Output Type: |
Photodarlington |
| Isolation Voltage: |
5000 Vrms |
| Vf – Forward Voltage: |
1.45 V |
| If – Forward Current: |
16 mA |
| Vr – Reverse Voltage: |
5 V |
| Pd – Power Dissipation: |
100 mW |
| Current Transfer Ratio: |
38 % |
| Minimum Operating Temperature: |
– 55 C |
| Maximum Operating Temperature: |
+ 100 C |
| aFall Time: |
800 ns |
| Output Current: |
8 mA |
| Rise Time: |
800 ns |
