6N137 High-Speed 10 MBit/s Logic Gate Optocoupler DIP-8
6N137 High-Speed 10 MBit/s Logic Gate Optocoupler (DIP-8). Features a 10MBit/s data rate, 5000VRMS isolation, and an open-drain logic output.
10.00 EGP
6N137 High-Speed 10 MBit/s Logic Gate Optocoupler DIP-8
The 6N137 High-Speed 10 MBit/s Logic Gate Optocoupler DIP-8 is a high-performance digital optocoupler designed for fast and reliable electrical isolation between low-voltage control circuits and high-voltage systems. It combines a high-efficiency infrared LED with an integrated photodiode and high-speed logic gate detector, providing excellent signal integrity for digital communication while maintaining complete galvanic isolation between the input and output. Its high switching speed and low propagation delay make it ideal for applications where conventional phototransistor optocouplers are too slow.
Features:
- High-speed digital optocoupler.
- Data rate up to 10MBit/s.
- Open-drain NMOS logic output.
- 5000VRMS isolation voltage.
- CMOS and TTL compatible output.
- Low input current operation.
- Integrated enable function.
- High common-mode transient immunity.
- Low propagation delay.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | 6N137 |
| Product Type | High-Speed Logic Gate Optocoupler |
| Package | DIP-8 |
| Mounting Type | Through Hole |
| Input Type | Infrared LED |
| Output Type | Open-Drain Logic Output |
| Data Rate | 10MBit/s |
| Isolation Voltage | 5000VRMS |
| Supply Voltage (VCC) | 4.5V~5.5V |
| Average Forward Current (IF) | 20mA(Max) |
| Surge Forward Current (IFSM) | 200mA(Max) |
| Forward Voltage (VF) | 1.4V(Typ),1.7V(Max) |
| Reverse Voltage (VR) | 5V(Max) |
| Output Voltage (VO) | 7V(Max) |
| Output Current (IO) | 50mA(Max) |
| Output Low Voltage (VOL) | 0.6V(Max) |
| Input Threshold Current (ITH) | 5mA(Max) |
| Propagation Delay (tPLH) | 75ns(Max) |
| Propagation Delay (tPHL) | 75ns(Max) |
| Propagation Pulse Width Distortion | 40ns(Max) |
| Common Mode Rejection (CMR) | 15kV/µs(Typ) |
| Operating Temperature | -40°C~+100°C |

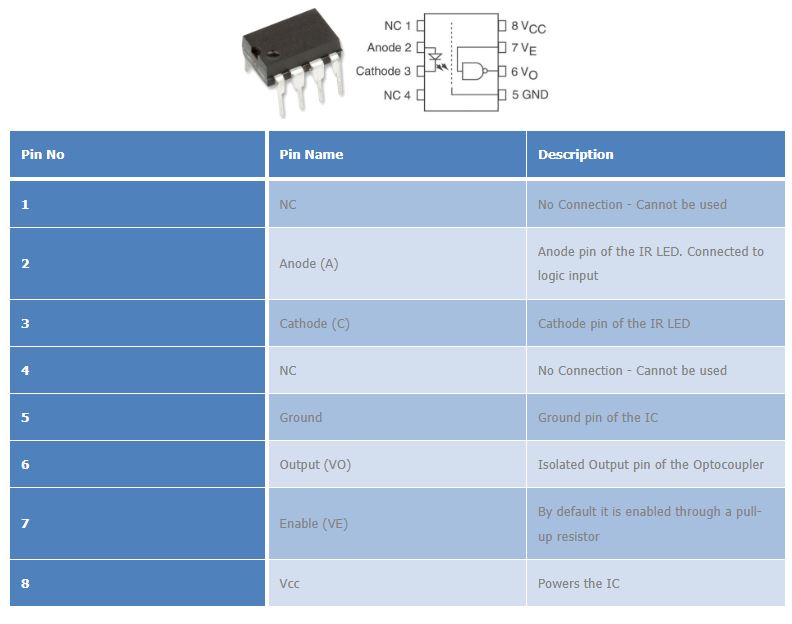

Pin Configurations:
Foot Print:
Applications:
- Microprocessor interfaces.
- PLC input and output isolation.
- Digital communication systems.
- Industrial automation.
- Fieldbus interfaces.
- High-speed A/D converters.
- High-speed D/A converters.
- Computer peripherals.
- Digital power supplies.
- Ground-loop isolation.
- Noise isolation.
- Embedded control systems.
Package Include:
1x 6N137 High-Speed 10 MBit/s Logic Gate Optocoupler DIP-8
