7410 IC Triple 3-input NAND Gate DIP-14
The 7410 is a triple 3-input NAND gate IC commonly used in digital logic circuits, control systems, and Boolean logic implementations.
13.00 EGP
In stockSKU 8661963444007
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
7410 IC Triple 3-input NAND Gate DIP-14
The 7410 is a TTL logic integrated circuit containing three independent 3-input NAND gates in a single package. Each gate evaluates three digital input signals and produces a LOW output only when all three inputs are HIGH. For every other input combination, the output remains HIGH, making the IC useful for implementing digital logic functions.
The 7410 can be integrated into combinational logic circuits, digital control systems, signal-processing circuits, and electronic prototypes. Multiple gates can be combined to create more complex logic functions, including decoding, interlocking, and signal qualification. Its DIP-14 through-hole package makes it convenient for breadboard experiments, educational projects, repairs, and PCB assembly.
Features:
- Three independent NAND gates.
- Three logic inputs per gate.
- Standard TTL logic operation.
- Suitable for combinational logic design.
- Supports Boolean logic implementation.
- Can be combined with other logic ICs.
- Through-hole mounting.
- DIP package for convenient prototyping.
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Logic Gates |
| Logic Function: | NAND |
| Number of Gates: | 3 Gate |
| Logic Family: | LS |
| Number of Input Lines: | 9 Input |

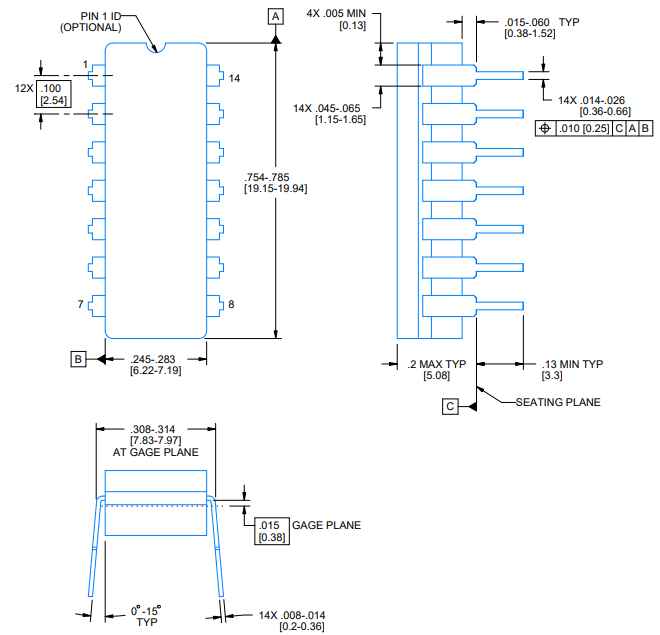

| Package/Case: | PDIP-14 |
| Number of Output Lines: | 3 Output |
| Low Level Output Current: | 8 mA |
| High Level Output Current: | – 400 uA |
| Propagation Delay Time: | 10 ns |
| Supply Voltage – Min: | 4.75 V |
| Supply Voltage – Max: | 5.25 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Mounting Style: | Through Hole |
| Function: | NAND |
| Input Type: | TTL |
| Logic Type: | 3-Input NAND |
| Operating Supply Current: | 27 uA |
| Operating Supply Voltage: | 5 V |
| Output Type: | TTL |
| Series: | SN74LS10 |
Pinout
| Pin # | Type | Description |
|---|---|---|
| 1 | Input | Input to the first NAND gate. |
| 2 | Input | Input to the first NAND gate. |
| 3 | Input | Input to the second NAND gate. |
| 4 | Input | Input to the second NAND gate. |
| 5 | Input | Input to the second NAND gate. |
| 6 | Output | Output from the second NAND gate. |
| 7 | Power | Connect to ground (GND). |
| 8 | Output | Output from the third NAND gate. |
| 9 | Input | Input to the third NAND gate. |
| 10 | Input | Input to the third NAND gate. |
| 11 | Input | Input to the third NAND gate. |
| 12 | Output | Output from the first NAND gate. |
| 13 | Input | Input to the first NAND gate. |
| 14 | Power | Positive power supply (VCC). Connect to +5V power. |
Applications:
- Digital logic circuits
- Boolean logic implementation
- Combinational logic systems
- Digital control circuits
- Logic decoding and signal qualification
- Interlocking circuits
- Electronic prototyping
- Educational electronics projects
- Industrial digital systems
Packages Included:
- 1 × 7410 IC Triple 3-input NAND Gate DIP-14
