74150 Data Selectors Multiplexers 5V 60mA DIP-24

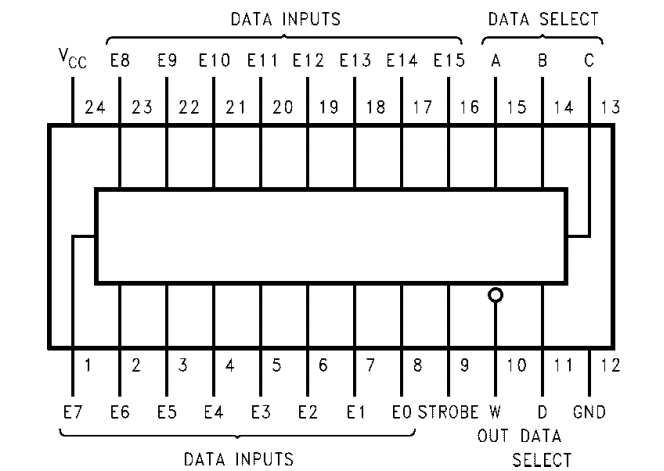

The 74150 Data Selector/Multiplexer is a TTL logic integrated circuit designed to select one of 16 digital data inputs using four binary select lines. The selected input is transferred to a single output in inverted form, making the IC useful for digital signal routing, logic function implementation, and data selection in electronic systems. Its internal selection circuitry allows multiple digital signals to share one output path, helping simplify circuit design and reduce the number of separate logic components required.
The IC also includes a strobe input that controls the device’s output operation. It is suitable for digital control systems, combinational logic circuits, data routing applications, and educational electronics projects. The 24-pin DIP package supports through-hole PCB assembly and breadboard prototyping with compatible adapters. The device is commonly used in classic TTL logic designs where multiple input signals must be selected according to binary control signals.
Features
- 150 selects one-of-sixteen data sources
- All performance parallel-to-serial conversion
- All permit multiplexing from N lines to one line
- Also for use as a Boolean function generator
- Input-clamping diode simplifies system design
- Fully compatible with most TTL circuits
Specifications
| Specification | Value |
|---|---|
| Product Type | 1-to-16 Data Multiplexer IC with Strobe Input |
| Number of Pins | 24 |
| Package | PDIP-24 |
| Mounting Type | Through-Hole |
| Supply Voltage | 5.0–5.25V |
| High-Level Input Voltage (VIH) | 2V (minimum) |
| Low-Level Input Voltage (VIL) | 0.8V (maximum) |
| High-Level Output Current (IOH) | -0.8mA |
| Low-Level Output Current (IOL) | 16mA |
| Operating Temperature | 0°C to +70°C |
Applications
- Digital data selection and routing.
- Parallel-to-serial data conversion.
- Digital signal multiplexing.
- Boolean function generation.
- Digital control systems.
- Logic circuit design.
- Educational electronics and prototyping.
- Communication and data processing circuits.
Package Includes:
- 1 × 74150 Data Selectors Multiplexers 5V 60mA DIP-24.
