7422 Dual 4-Input NAND Gates IC DIP-14

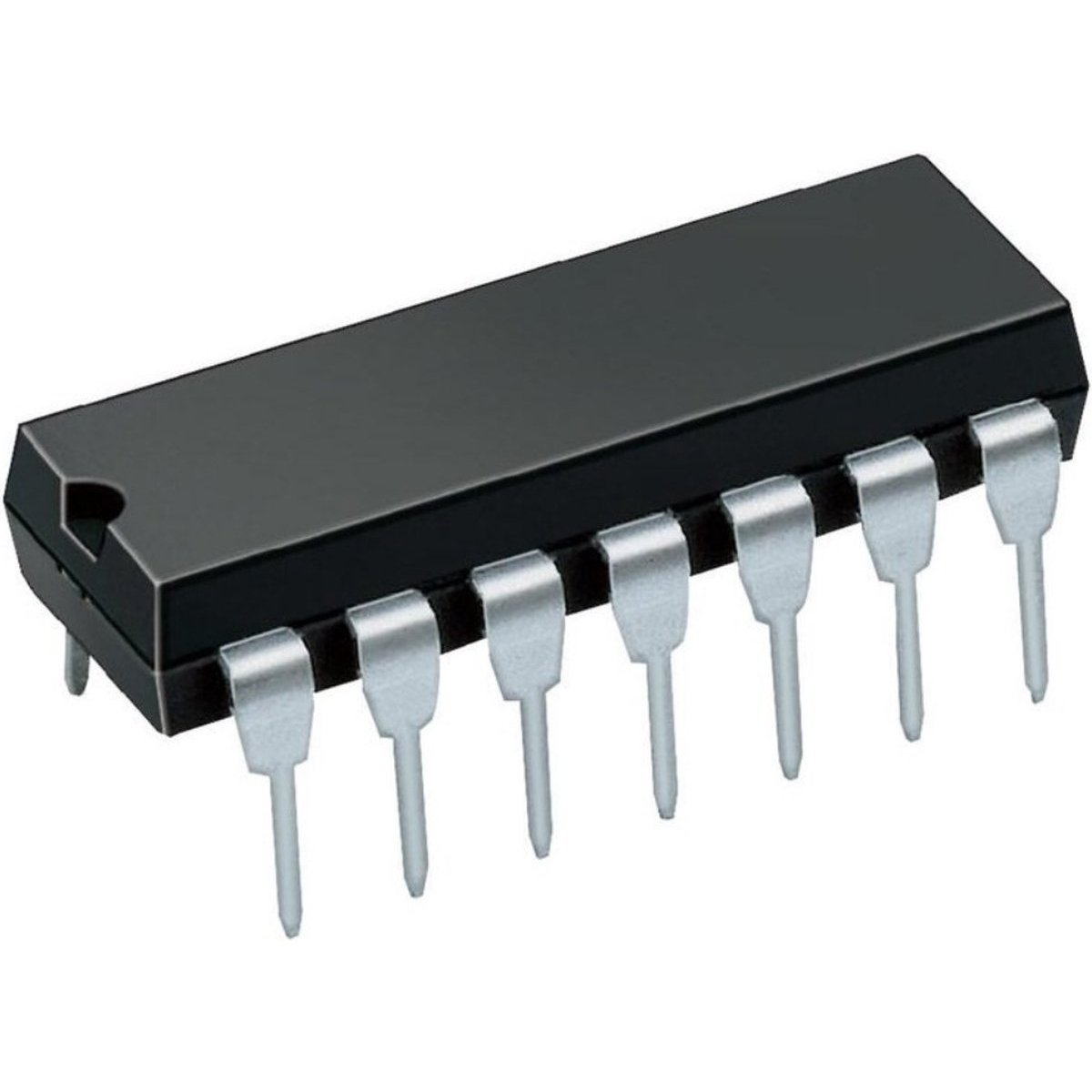

HD7422 DIP-14 4-input dual NAND gate IC

The HD74LS22 is a high-performance integrated circuit featuring two independent 4-input positive NAND gates. Designed with Open Collector Outputs, this IC allows for flexible output configurations, such as wired-AND logic or interfacing with different voltage levels when used with external pull-up resistors.

✅Features

• Dual-Gate Design
• Open Collector Outputs
• Low Power Schottky (LS)
• Standard DIP-14 Package

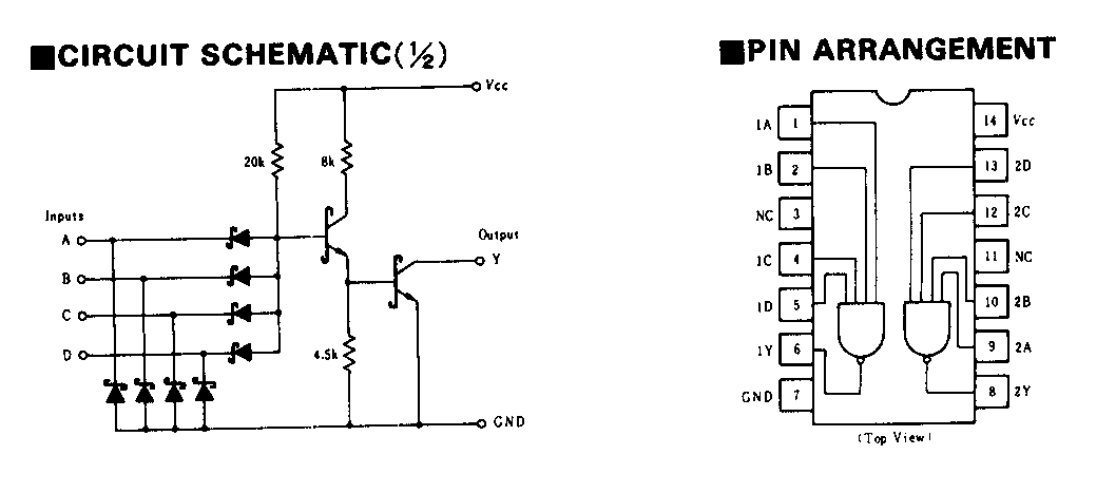

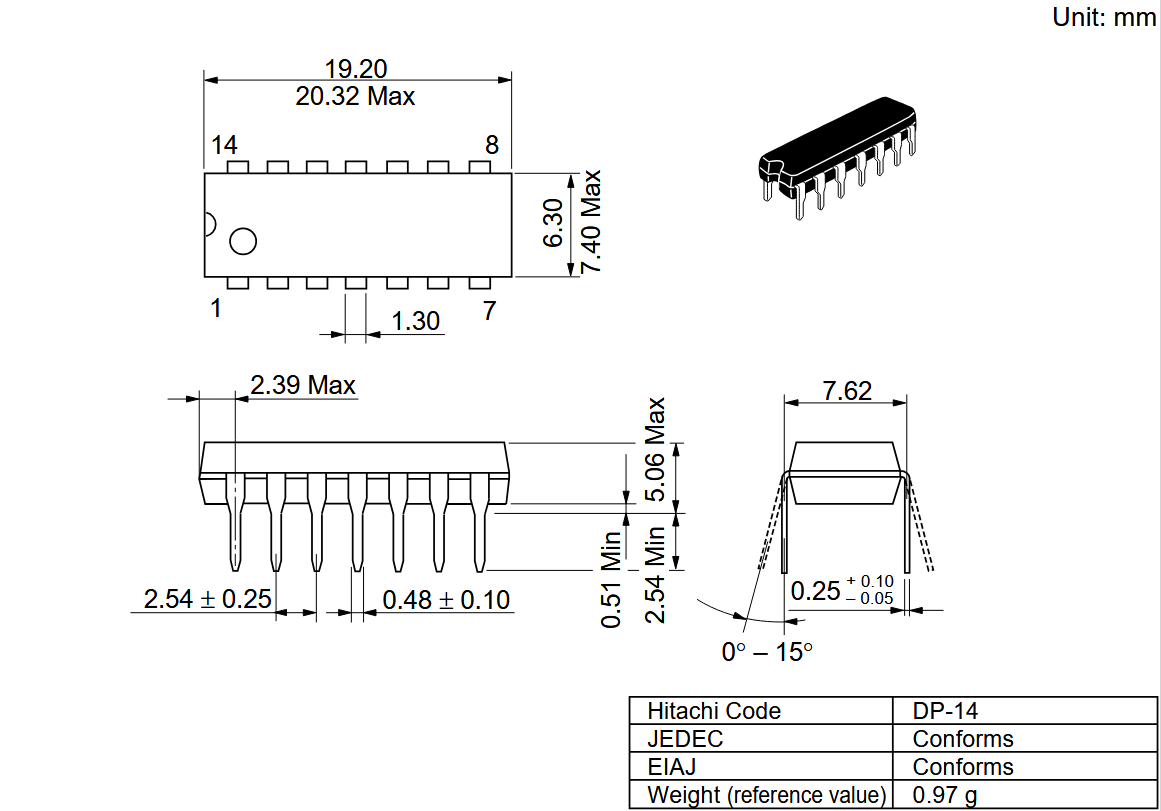

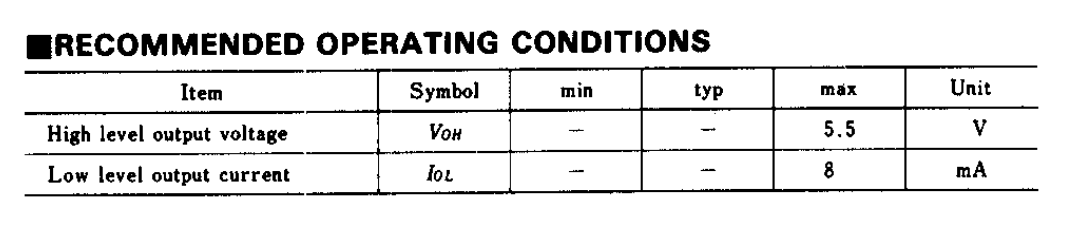

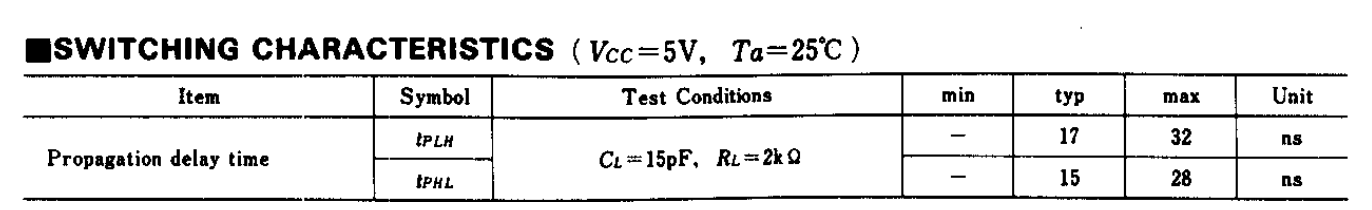

📜📚Specifications

💻Applications

• Digital logic system design.
• Wired-AND logic configurations.
• Voltage level shifting and bus-interfacing.
• Industrial control systems and general electronics prototyping.

🎁Package Content

• 1 x HD7422 DIP-14 4-input dual NAND gate IC

📖DataSheet

• HD74LS22
