74HC107 Dual JK Flip-Flop IC with Reset 2V-6V 25mA DIP-14
The 74HC107 is a high-speed, low-power Dual J-K Flip-Flop with independent asynchronous reset. Operates at 2V-6V on negative-edge clock triggers.
22.00 EGP
In stockSKU 7287249882557
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
74HC107 Dual JK Flip-Flop IC with Reset 2V-6V 25mA DIP-14
The 74HC107 is a high-speed Dual J-K Flip-Flop utilizing advanced silicon gate CMOS technology to achieve operating speeds equivalent to LSTTL components while maintaining the ultra-low power consumption of standard CMOS integrated circuits.
Features
- Hysteresis on Clock Inputs
- Asynchronous Reset
- Complementary Outputs
- High Drive Capability (Fanout)
- Low Power Logic Replacement
- Balanced Delays
Specifications
| Parameter | Symbol | Test Conditions / VCC | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Recommended Operating Conditions | ||||||
| Supply Voltage Range | VCC | HC Types | 2.0 | — | 6.0 | V |
| DC Input or Output Voltage | VI, VO | — | 0 | — | VCC | V |
| Operating Temperature Range | TA | — | -55 | — | 125 | °C |
| DC Electrical Specifications (at TA = 25°C) | ||||||
| High-Level Input Voltage | VIH | VCC = 2.0V | 1.5 | — | — | V |
| VCC = 4.5V | 3.15 | — | — | V | ||
| VCC = 6.0V | 4.2 | — | — | V | ||
| Low-Level Input Voltage | VIL | VCC = 2.0V | — | — | 0.5 | V |
| VCC = 4.5V | — | — | 1.35 | V | ||
| VCC = 6.0V | — | — | 1.8 | V | ||
| High-Level Output Voltage (CMOS Loads) | VOH | VCC = 2.0V, IO = -0.02mA | 1.9 | — | — | V |
| VCC = 4.5V, IO = -0.02mA | 4.4 | — | — | V | ||
| VCC = 6.0V, IO = -0.02mA | 5.9 | — | — | V | ||
| High-Level Output Voltage (TTL Loads) | VOH | VCC = 4.5V, IO = -4mA | 3.98 | — | — | V |
| VCC = 6.0V, IO = -5.2mA | 5.48 | — | — | V | ||
| Low-Level Output Voltage (CMOS Loads) | VOL | VCC = 2.0V to 6.0V, IO = 0.02mA | — | — | 0.1 | V |
| Low-Level Output Voltage (TTL Loads) | VOL | VCC = 4.5V, IO = 4mA | — | — | 0.26 | V |
| VCC = 6.0V, IO = 5.2mA | — | — | 0.26 | V | ||
| Input Leakage Current | II | VCC = 6.0V, VI = VCC or GND | — | — | ±0.1 | μA |
| Quiescent Device Current | ICC | VCC = 6.0V, VI = VCC or GND | — | — | 4.0 | μA |
| Prerequisite & Switching Specifications (at TA = 25°C) | ||||||
| Maximum Clock Frequency | fMAX | VCC = 2.0V | 6 | — | — | MHz |
| VCC = 4.5V (CL = 50pF) | 30 | — | — | MHz | ||
| VCC = 5.0V (CL = 15pF) | — | 60 | — | MHz | ||
| Clock Pulse Width | tw | VCC = 2.0V | 80 | — | — | ns |
| VCC = 4.5V | 16 | — | — | ns | ||
| Setup Time (J, K to CP) | tSU | VCC = 4.5V | 20 | — | — | ns |
| Hold Time (J, K to CP) | tH | VCC = 4.5V | 3 | — | — | ns |
| Input Capacitance | CI | — | — | 10 | 10 | pF |

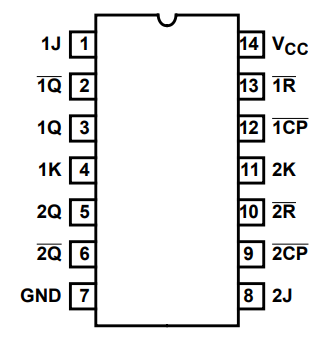

Pinout:
Applications
- Edge-triggered sequential logic systems
- High-speed digital logic timing and clock state synchronization
- Digital counters, frequency dividers, and register control circuits
- Noise-prone environments requiring advanced clock input filtering
Package Content
- 1 x 74HC107 Dual JK Flip-Flop IC with Reset 2V-6V 25mA DIP-14.
