H.R.Y 9225S12V DC Cooling Fan 12V 0.38A 92x92x25mm 3800 RPM
H.R.Y 9225S12V DC cooling fan 12V 0.38A 3W, 92x92x25mm, 3800 RPM, sleeve bearing, impedance protected. Ideal for PC & electronics cooling.
65.00 EGP
Buy NowH.R.Y 9225S12V DC Cooling Fan 12V 0.38A 92x92x25mm 3800 RPM

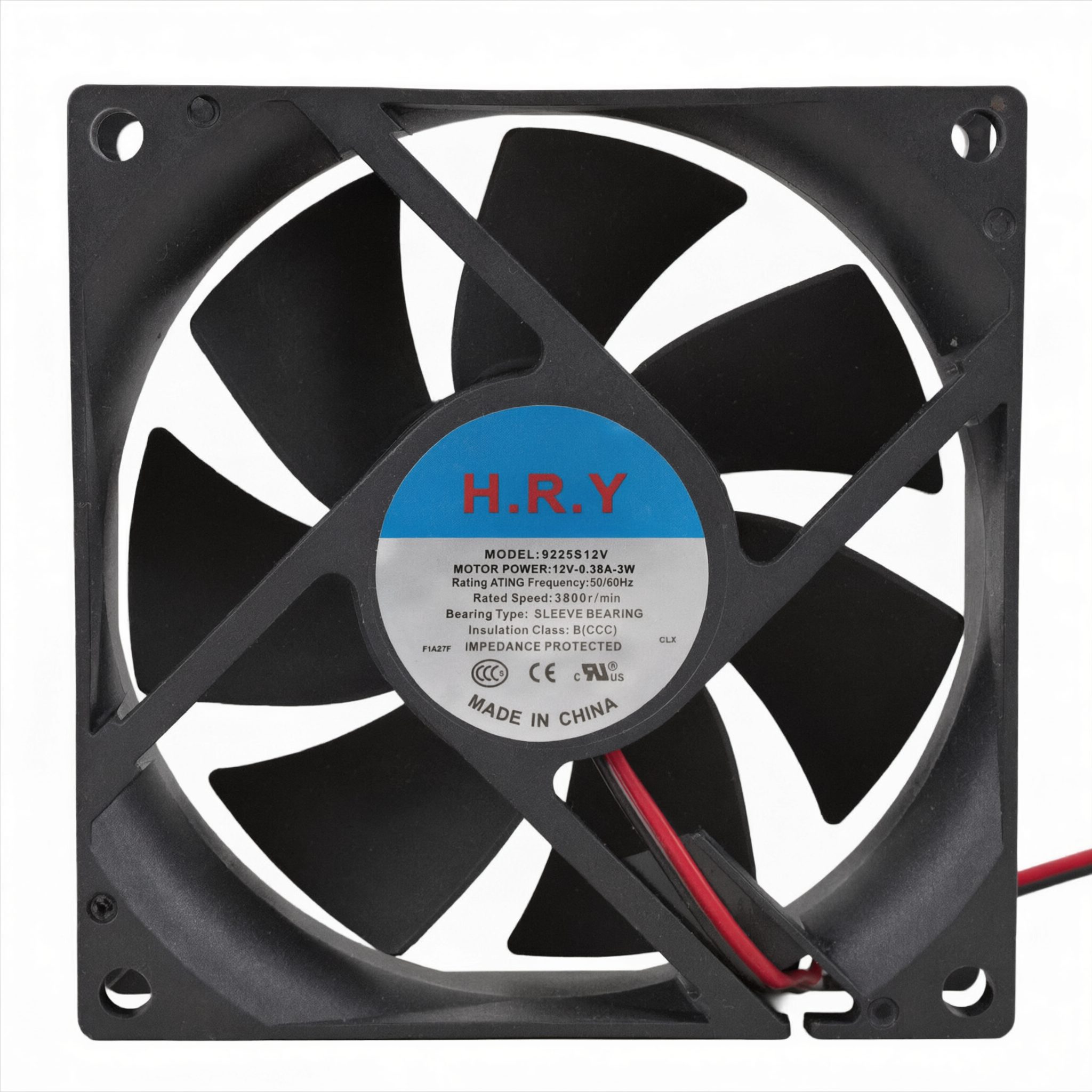

The H.R.Y 9225S12V is a standard-size 92x92x25mm DC axial cooling fan designed for reliable heat dissipation in electronic equipment. Operating at 12V DC with a rated current of 0.38A and motor power of 3W, it delivers a rated speed of 3800 r/min for effective airflow in compact spaces.
The fan uses a sleeve bearing system for smooth, quiet operation and features an impedance protected motor with Insulation Class B for added safety and durability. It connects via simple 2-wire connector for easy installation, and the square frame includes four corner mounting holes for standard 92mm fan mounting.
Features
- Standard 92mm size (92x92x25mm)
- 12V DC operation
- High rated speed: 3800 r/min
- Impedance protected
- Rated frequency: 50/60Hz
Specifications
| Brand | H.R.Y |
|---|---|
| Model Number | 9225S12V |
| Fan Type | DC Axial Cooling Fan (2-Wire) |
| Dimensions | 92 x 92 x 25 mm |
| Rated Voltage | 12V DC |
| Rated Current | 0.38A |
| Motor Power | 3W |
| Rated Frequency | 50/60Hz |
| Rated Speed | 3800 r/min (RPM) |
| Bearing Type | Sleeve Bearing |
| Insulation Class | B (CCC) |
| Motor Protection | Impedance Protected |
| Lead Wires | 2 Leads (Red / Black) |
| Mounting | 4-Corner Mounting Holes |
| Country of Origin | Made in China |
Applications
- Computer cases & PC systems
- Power supplies & UPS units
- Networking equipment
- Audio amplifiers & receivers
- Office machines & appliances
- General electronics cooling
Package Content
- 1 x H.R.Y 9225S12V DC Cooling Fan 12V 0.38A 92x92x25mm 3800 RPM
