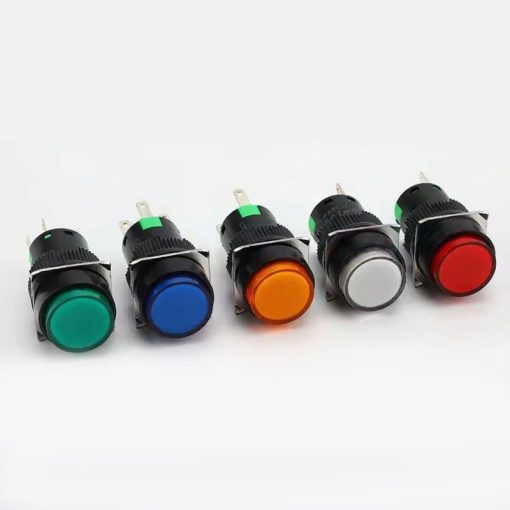

AB6-M Round Push Button Without LED 220VAC 16mm 3 Pin
The AB6-M Round Push Button Without LED is a compact and durable switch designed for various electrical applications. It operates at 220V AC and features a 16mm mounting diameter, making it suitable for control panels and machinery interfaces. This push button is constructed with a round actuator for easy operation and is designed without an LED indicator, making it ideal for simple on/off control functions. It comes with a 3-pin configuration, allowing for normally open (NO) or normally closed (NC) connections, ensuring flexibility in wiring. With its robust design and reliable performance, the AB6-M push button is a practical choice for industrial and commercial use.
Features:
- Compact Design Small 16mm mounting diameter, suitable for control panels and industrial applications.
- High Voltage Compatibility Operates at 220V AC, making it ideal for various electrical circuits.
- Durable Construction Made from high-quality materials to ensure longevity and reliable performance.
- Round Actuator Designed for smooth and easy operation, providing a comfortable pressing experience.
- No LED Indicator Simple push button without an LED, ideal for on/off control applications where indication is not required.
- 3-Pin Configuration Supports both Normally Open (NO) and Normally Closed (NC) connections for flexible wiring options.
- Easy Installation Screw terminal design or quick-connect options for hassle-free wiring.
Drawing and Dimensions:
Specifications:
| Parameter | Specification |
|---|---|
| Model | AB6-M |
| Type | Momentary Push Button Switch |
| Operating Voltage | 220 V AC |
| Rated Current | 5 A |
| Mounting Hole Diameter | 16 mm |
| Button Shape | Round |
| Actuator Type | Momentary |
| LED Indicator | Without LED |
| Contact Configuration | 3-Pin |
| Terminal Type | Wire Terminal |
| Material | Durable plastic and metal |
| Mechanical Life | Over 50,000 pressing cycles |
| Electrical Life | Over 10,000 operations under rated load |
| Operating Temperature | –25°C to +55°C |
| Storage Temperature | –30°C to +70°C |
| Panel Thickness Support | 5 mm |
| Protection Rating | IP40 |
Applications:
- Industrial Control Panels.
- Electrical Circuits.
- Home Automation Systems.
- Machine Control.
- Testing Equipment.
- DIY Electronic Projects.
- Security and Access Control.
- Office and Commercial Equipment.
- Automotive Applications.
- Medical Equipment.
Package Contents:
- 1x AB6-M Round Push Button Without LED 220VAC 16mm 3 Pin.
