Ai-Thinker Ai-M62-12F WIFI 6 + BLE 5.3 Module
Ai-Thinker Ai-M62-12F is a Wi-Fi 6 and BLE 5.3 module offering low power consumption and a wide range of peripheral interfaces for IoT applications.
275.00 EGP
In stockSKU 3496300119592
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Ai-Thinker Ai-M62-12F WIFI 6 + BLE 5.3 Module
The Ai-Thinker Ai-M62-12F WIFI 6 + BLE 5.3 Module created by Shenzhen Ai-Thinker Technology Co., Ltd. This module features the BL616 chip as its core processor, supporting Wi-Fi 802.11b/g/n/ax, BLE, and Thread protocols. The BL616 chip comprises a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache, and memory, reaching a peak frequency of 320M. The Ai-M62-12F module boasts an array of peripheral interfaces, such as Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, and GPIO. Its versatile application range includes audio and video multimedia, the Internet of Things (IoT), mobile and wearable electronic devices, and smart home technologies. Additionally, the Ai-M62-12F module’s Security Engine supports AES/SHA/PKA/TRNG, among other security functions, facilitating image encryption and secure boot, thus fulfilling diverse security needs within the IoT domain.
Features:
- SMD-22 package.
- Supports 2.4GHz operating frequency band.
- Support IEEE 802.11 B/g/n/ax.
- Support BLE5.3.
- Support Thread.
- Support Wi-Fi/BLE/Thread coexistence.
- Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3.
- Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps.
- Support STA, SoftAP, STA + SoftAP and sniffer modes.
- 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M 532KB SRAM,128KB ROM,4Kb eFuse.
- Support Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
- Integrated RF Balun, PA/LNA.
- Support for safe startup and safe debugging.
- Support XIP QSPI On-The-Fly AES decryption (OTFAD).
- Support Trust Zone.
- Support AES-CBC/CCM/GCM/XTS mode.
- Support MD5, SHA-1/224/256/384/512.
- TRNG (True Random Number Generator) is supported.
- Support PKA (Public Key Accelerator) for RSA/ECC.
- BLE-enabled Wi-Fi fast connection.
- Universal AT command can be used quickly.
- Supports secondary development and integrates Windows and Linux development
environments.
Specifications:
| Category | Details |
|---|---|
| Model | Ai-M62-12F |
| Package | SMD-22 |

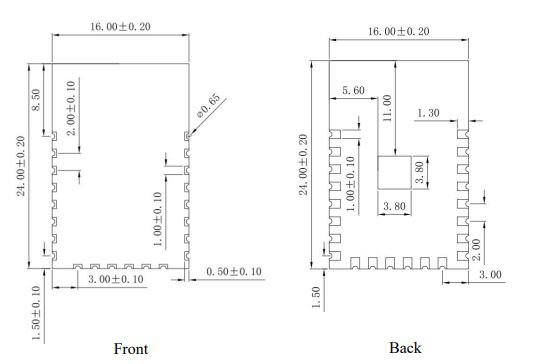

| Size | 24mm × 16mm × 3mm (±0.2mm) |
| Antenna | Onboard PCB antenna |
| Frequency | 2400–2483.5 MHz (Wi-Fi 2.4 GHz) |
| Operating Temp. | -40°C to 85°C |
| Storage Temp. | -40°C to 125°C (<90% RH) |
| Power Supply | 2.97V–3.6V, ≥500mA current |
| Interfaces | Audio Codec, USB2.0, SD/MMC, SPI, UART, I2C, I2S, PWM, ADC, GPIO, etc. |
| GPIO Pins | 15 |
| UART Rate | Default: 115200 bps |
| Security | WPS/WEP/WPA/WPA2/WPA3 |
| Flash Memory | Default: 4MB (expandable) |

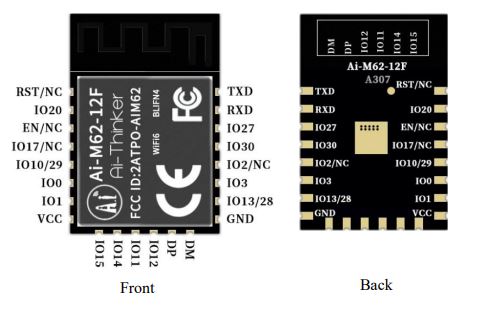

Pin Configuration:
| Pin No. | Name | Function Description |
|---|---|---|
| 1 | RST/NC | Floating or active-low reset (customizable) |
| 2 | IO20 | GPIO20 / SPI_SS / I2S_BCLK / I2C_SCL / ADC_CH0 / PWM0 |
| 3 | EN/NC | Chip enable (active-high) |
| 4 | IO17/NC | GPIO17 / SPI_SCLK / I2S_FS / I2C_SDA / XTAL_32K_OUT / PWM0 |
| 5 | IO10/29 | Default: GPIO29 / SPI_SCLK / I2S_FS / I2C_SDA / PWM0 |
| 6 | IO0 | GPIO0 / SPI_SS / I2S_BCLK / I2C_SCL / ADC_CH9 / PWM0 |
| 7 | IO1 | GPIO1 / SPI_SCLK / I2S_FS / I2C_SDA / ADC_CH8 / PWM0 |
| 8 | VCC | 3.3V power supply (≥500mA recommended) |
| 9 | IO15 | GPIO15 / SPI_MOSI / I2S_DO / I2S_RCLK_O / I2C_SDA / PWM0 |
| 10 | IO14 | GPIO14 / SPI_MISO / I2S_DI / I2S_RCLK_O / I2C_SCL / ADC_CH4 / PWM0 |
| 11 | IO11 | GPIO11 / SPI_MOSI / I2S_DO / I2S_RCLK_O / I2C_SDA / PWM0 |
| 12 | IO12 | GPIO12 / SPI_SS / I2S_BCLK / I2C_SCL / ADC_CH6 / PWM0 |
| 13 | DP | USB_DP (USB2.0 Data+) |
| 14 | DM | USB_DM (USB2.0 Data-) |
| 15 | GND | Ground |
| 16 | IO13/28 | Default: GPIO28 / SPI_SS / I2S_BCLK / I2C_SCL / ADC_CH11 / PWM0 |
| 17 | IO3 | GPIO3 / SPI_MOSI / I2S_DO / I2S_RCLK_O / I2C_SDA / ADC_CH3 / PWM0 |
| 18 | IO2/NC | Default: NC. Optional: GPIO2 / SPI_MISO / I2S_DI / I2S_RCLK_O / I2C_SCL / ADC_CH2 / PWM0 |
| 19 | IO30 | GPIO30 / SPI_MISO / I2S_DI / I2S_RCLK_O / I2C_SCL / PWM0 |
| 20 | IO27 | GPIO27 / SPI_MOSI / I2S_DO / I2S_RCLK_O / I2C_SDA / ADC_CH10 / PWM0 |
| 21 | RXD | UART RXD / GPIO22 / SPI_MISO / I2S_DI / I2S_RCLK_O / I2C_SCL / PWM0 |
| 22 | TXD | UART TXD / GPIO21 / SPI_SCLK / I2S_FS / I2C_SDA / ADC_RCAL_VOUT / PWM0 |
Application:
- Internet of Things (IoT) devices.
- Smart home systems.
- Wearable electronic devices.
- Mobile devices.
- Audio and video multimedia applications.
- Industrial automation.
- Remote monitoring and control.
Package Include:
- 1x Ai-Thinker Ai-M62-12F Module.
Data Sheet:
