Technical Specifications
Explore the detailed technical specifications of T3111-000 by to gain insights into its key features and parameters.
| Physical | |
|---|---|
| Contact Plating | Silver |
| Insulation Material | Plastic |
| Mount | Flanges, Panel |
| Technical | |
| Connector Type | Receptacle |
| Current Rating | 16 A |
| Fastening Type | Threaded |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Termination | Screw |
| Voltage Rating | 400 V |

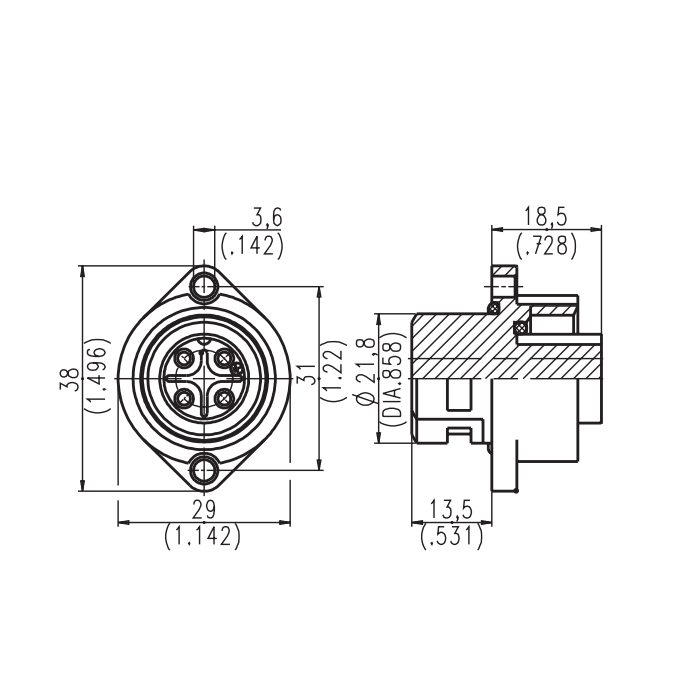

| Dimensions | |
| Depth | 29 mm |
| Length | 32 mm |
| Wire/Cable Gauge | 14 AWG |
