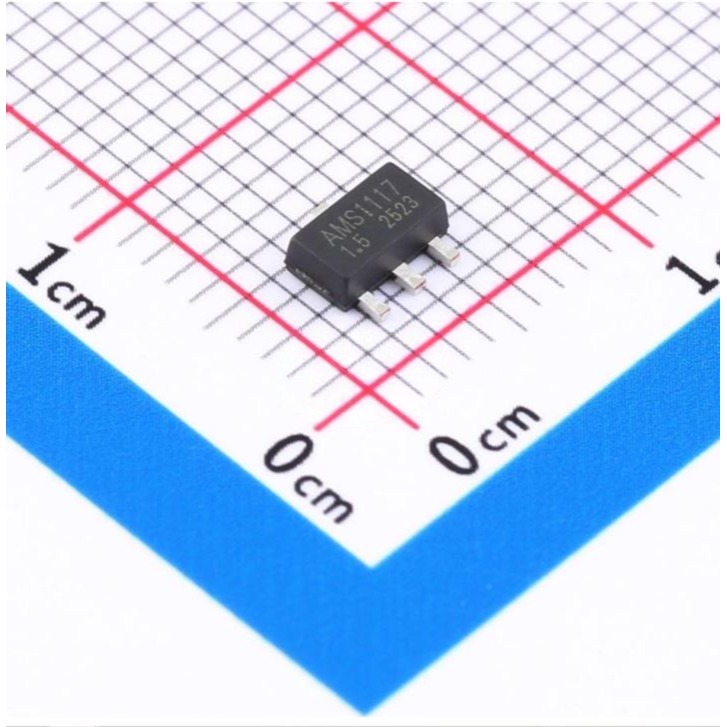

AMS1117-1.5V SMD Fixed 12V 1.5V 800mA Dropout Regulators SOT-89
The AMS1117-1.5V is a highly efficient, fixed low dropout (LDO) linear voltage regulator specifically engineered to deliver a stable 1.5V output with a maximum continuous current capability of 800mA. Designed for modern low-voltage applications, this component utilizes advanced semiconductor technology to maintain a minimal dropout voltage of 1.40V at full load, ensuring reliable operation even when the input voltage is marginally higher than the desired output. The device is housed in a compact SOT-89 surface-mount package, making it an ideal choice for high-density printed circuit board layouts where space optimization and thermal management are critical design considerations.
Features:
- Delivers a stable 1.5V fixed positive output voltage with high precision.
- Supports a continuous output current of 800mA for reliable power delivery.
- Features an ultra-low dropout voltage of 1.40V at maximum load current.
- Incorporates on-chip thermal shutdown for enhanced device safety.
- Includes built-in over-current protection to prevent load damage.
- Exhibits excellent load regulation of 0.50% maximum across operating condition.
Specifications:
|
Model Number
|
AMS1117-1.5
|
|
Component Type
|
Fixed LDO Voltage Regulator
|
|
Package Type
|
SOT-89
|
|
Output Voltage
|
1.5V
|
|
Output Current
|
800mA
|
|
Maximum Input Voltage
|
18V
|
|
Dropout Voltage
|
1.40V
|
|
Line Regulation
|
0.30%
|
|
Load Regulation
|
0.50%
|
|
Supply Current
|
10mA
|
|
Operating Temperature
|
-40°C~+125°C
|
|
Thermal Resistance
|
225°C/W
|
|
Power Dissipation
|
400mW
|
|
Output Configuration
|
Positive Fixed
|

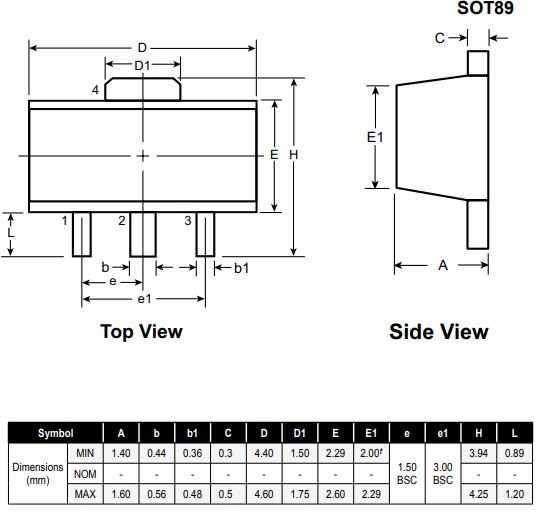

Footprint:
Applications:
- Post-regulation stages for switching DC/DC power converters.
- Battery chargers and portable electronic device power management.
- Motherboard clock supplies and PC add-on card voltage regulation.
- LCD monitor and display panel power distribution networks.
- Set-top boxes and consumer multimedia entertainment systems.
- Industrial control systems requiring stable low-voltage references.
- Telecommunication equipment and networking hardware power supplies.
Package Include:
1x AMS1117-1.5V SMD Fixed 12V 1.5V 800mA Dropout Regulators SOT-89
