Standard Anderson Connector (1330 – 30A).
30 amp contacts are recommended for 14-12 gauge wire

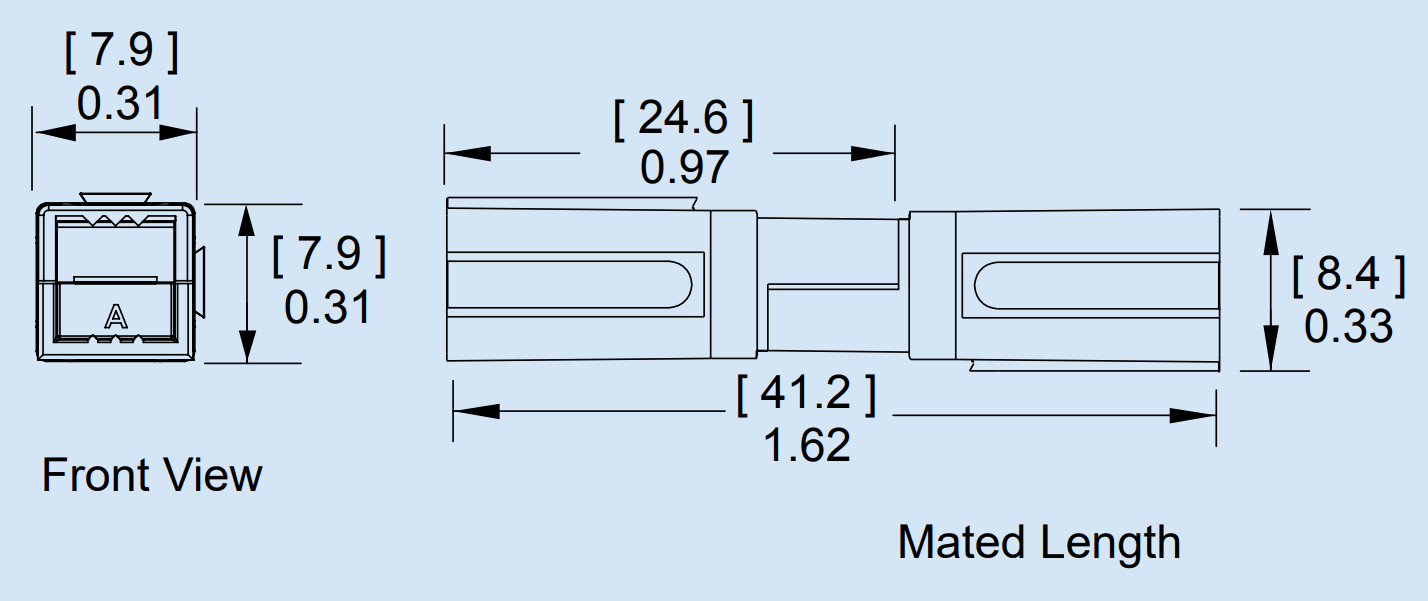

Dimension (LxWxH):(24.6mm) x (7.9mm) x (7.9mm)
Weight: 1.6 Oz (45grams)
Max. load 30 Amp
Perfect for DIY with both RC car rechargeable battery pack. and CBA II
Red wire indicates positive polarity
Black wire indicates negative polarity.
Note: Anderson connector has no difference in male and female, which can mate each other by two of them as picture shown below.
