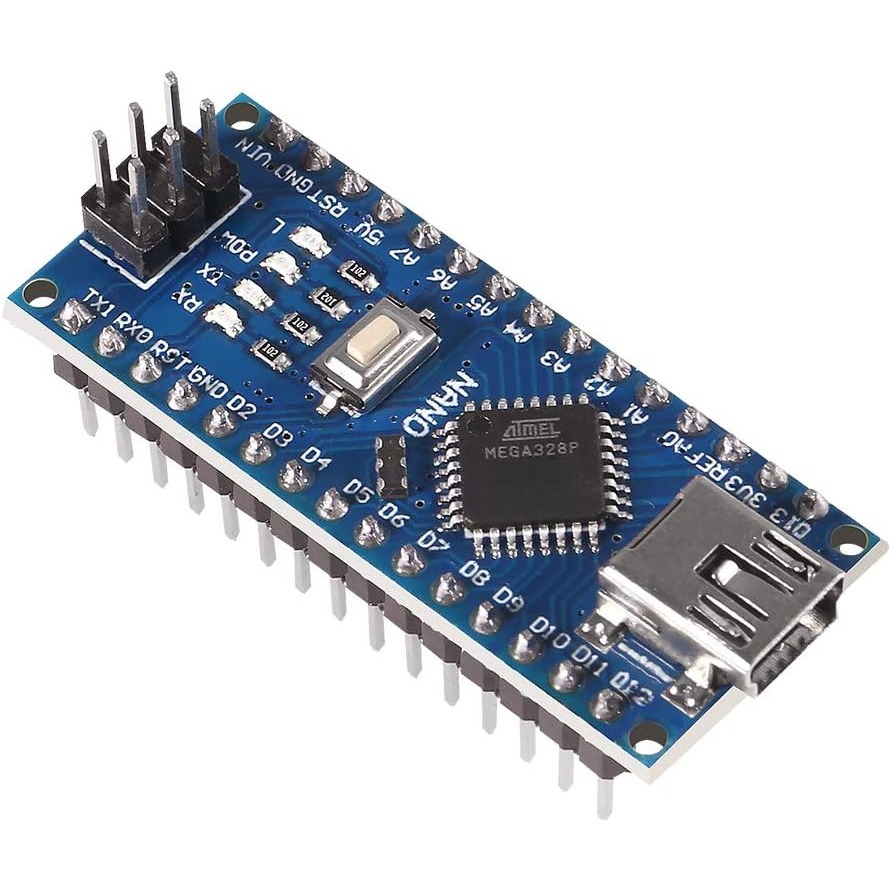

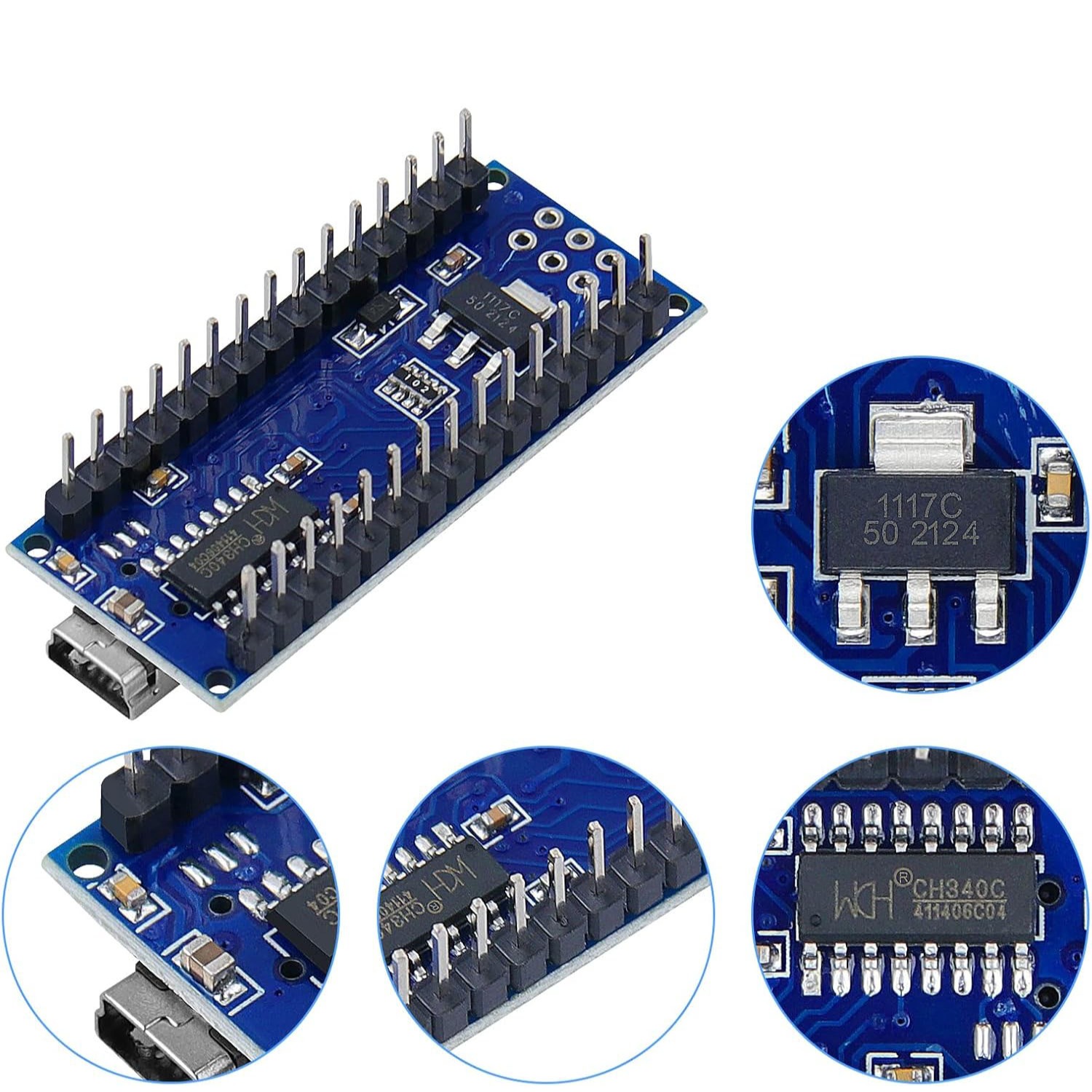

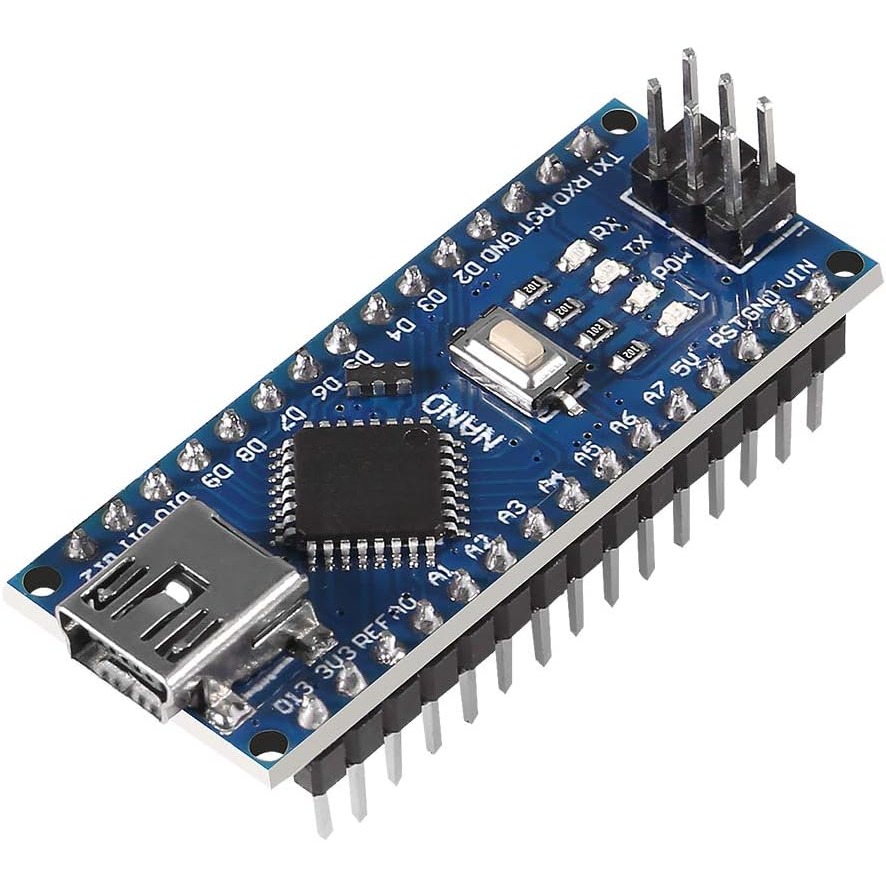

Arduino Nano Atmega328PU-PH with CH340G Uploader – Mini USB
The Arduino Nano ATmega328PU-PH with CH340G Uploader – Mini USB is a compact and versatile microcontroller development board designed for electronics enthusiasts, students, engineers, and embedded system developers. Built around the popular ATmega328P microcontroller, the board delivers the same functionality and performance as the Arduino Uno while occupying a significantly smaller footprint, making it ideal for space-constrained projects and breadboard prototyping.
Features:
- ATmega328P microcontroller.
- CH340G USB-to-Serial converter.
- Mini USB programming interface.
- 16MHz crystal oscillator.
- Compact breadboard-friendly design.
- 14 digital I/O pins.
- 8 analog input channels.
Specifications:
| Microcontroller | ATmega328PB |
| Serial to USB Converter | CH340C |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Digital I/O Pins | 14 |
| PWM I/O Pins (Shared with Digital I/O) | 6 |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 20mA recommended (40mA max) |
| DC Current which can be drawn from 3.3V Pin | 25mA |
| Flash Memory | 32 Kbytes |
| SRAM | 2 Kbytes |
| EEPROM | 1 Kbytes |
| Clock Speed | 16MHz |
| Power Consumption | 200mA |
| Built-in LED | Attached to digital I/O Pin 13 |
| USB Connector Style | Micro USB |
| Board Dimensions | 46×18mm |

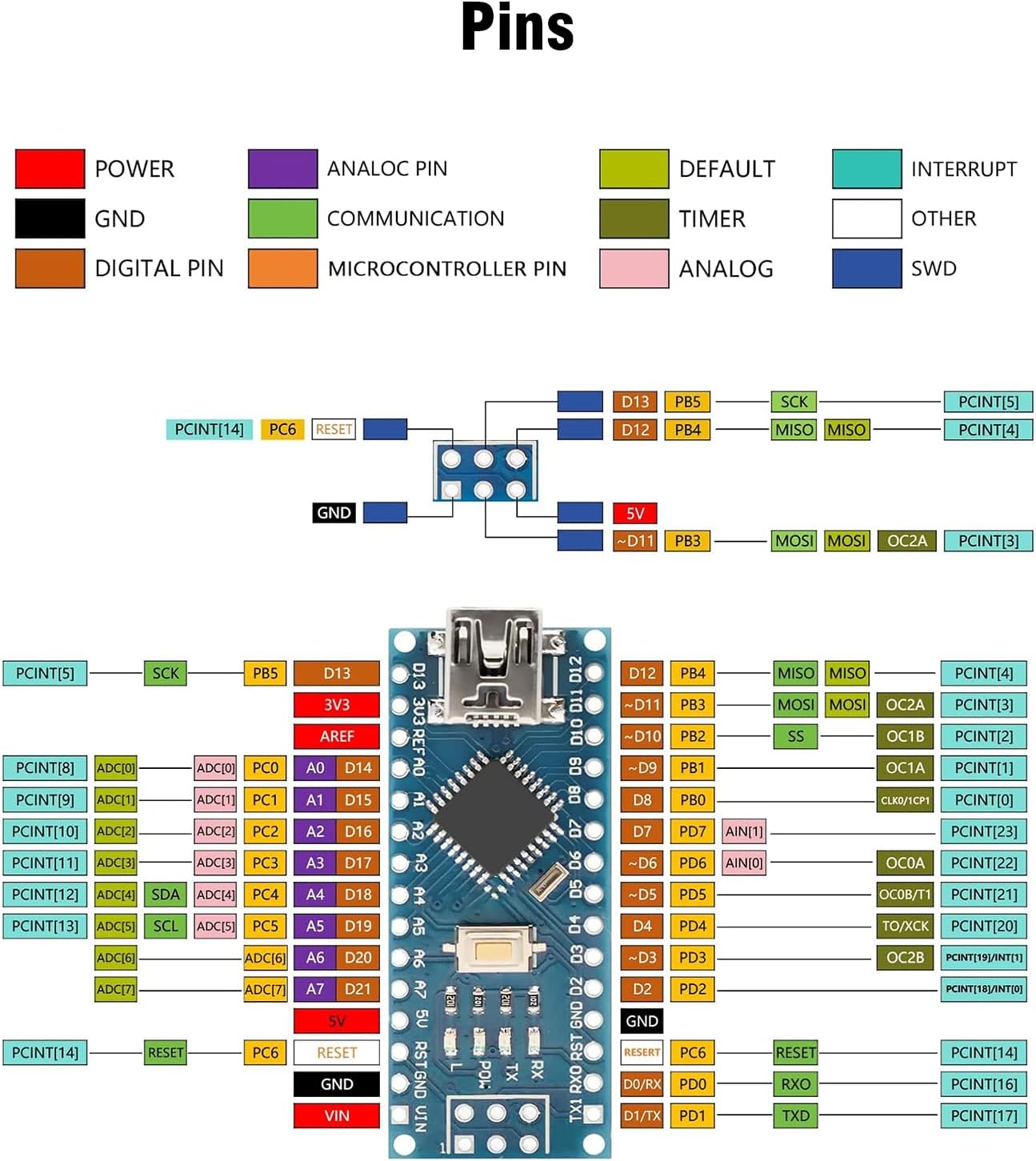

Pin Configurations:
Applications:
- Arduino development projects.
- Robotics systems.
- IoT applications.
- Home automation.
- Sensor interfacing.
- Data acquisition systems.
- Motor control applications.
- Wireless communication projects.
- Embedded system development.
- Educational electronics projects.
- Prototype design and testing.
- Industrial monitoring systems.
Package Include:
1x Arduino Nano ATmega328P-U with CH340G Uploader – Mini USB
